Diamond Brite LEDs

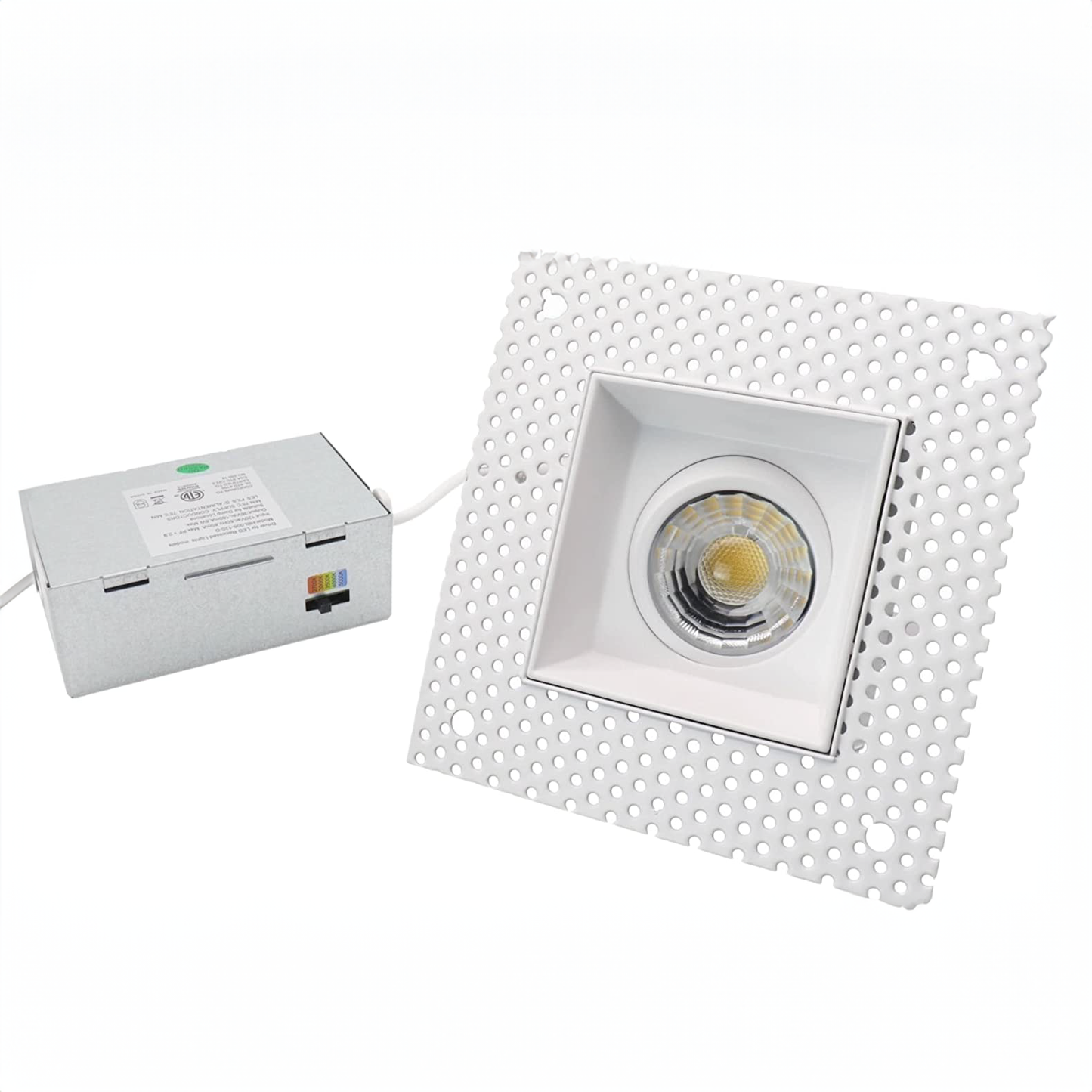

8W Square Recessed Trimless Eyeball – Vera Series
8W Square Recessed Trimless Eyeball – Vera Series
Couldn't load pickup availability
The 8W Vera Series 3" Square Recessed Trimless Eyeball is a premium architectural downlight designed for precise directional illumination with a clean, seamless ceiling appearance. Featuring a fully adjustable head and deep regressed reflector, the Vera Series provides excellent glare control while maintaining a sophisticated minimalist aesthetic.
Delivering more than 600 lumens with CRI >90, the fixture features integrated 5CCT selectability and multiple beam angle options for exceptional flexibility in high-end residential, hospitality, retail, display, and commercial lighting applications.
Features
- 8W power consumption
- Produces more than 600 lumens
- 120V operation
- TRIAC dimming
- 5CCT selectable color temperature
- 2700K, 3000K, 3500K, 4000K & 5000K
- CRI >90 for excellent color rendering
- Available with 15°, 24° or 38° beam angles
- Fully adjustable directional head
- Deep regressed reflector for improved glare control
- Square trimless architectural design
- Die-cast aluminum construction
- Texture White finish
- Pre-wired remote driver junction box included
- Compatible with ceiling thicknesses from 0.2"–1" (5–25 mm)
5CCT Color Temperature Selection
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Soft White |
| 3500K | Natural White |
| 4000K | Cool White |
| 5000K | Bright White |
Beam Angle Options
| Beam Angle | Recommended Use |
|---|---|
| 15° | Narrow Spot / Focused Accent Lighting |
| 24° | Spot / Display Lighting |
| 38° | Flood / General Accent Lighting |
Specifications
| Product Type | Trimless Recessed Eyeball LED Downlight |
|---|---|
| Series | Vera Series |
| Fixture Size | 3" |
| Shape | Square |
| Installation | Recessed / Trimless |
| Power | 8W |
| Light Output | >600 lm |
| Input Voltage | 120V |
| Dimming | TRIAC |
| Color Temperature | 5CCT – 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >90 |
| Beam Angle Options | 15° / 24° / 38° |
| Reflector | Deep Regressed / Low Glare |
| Material | Die-Cast Aluminum |
| Finish | Texture White |
| Cutout Size | 3" × 3" (75 × 75 mm) |

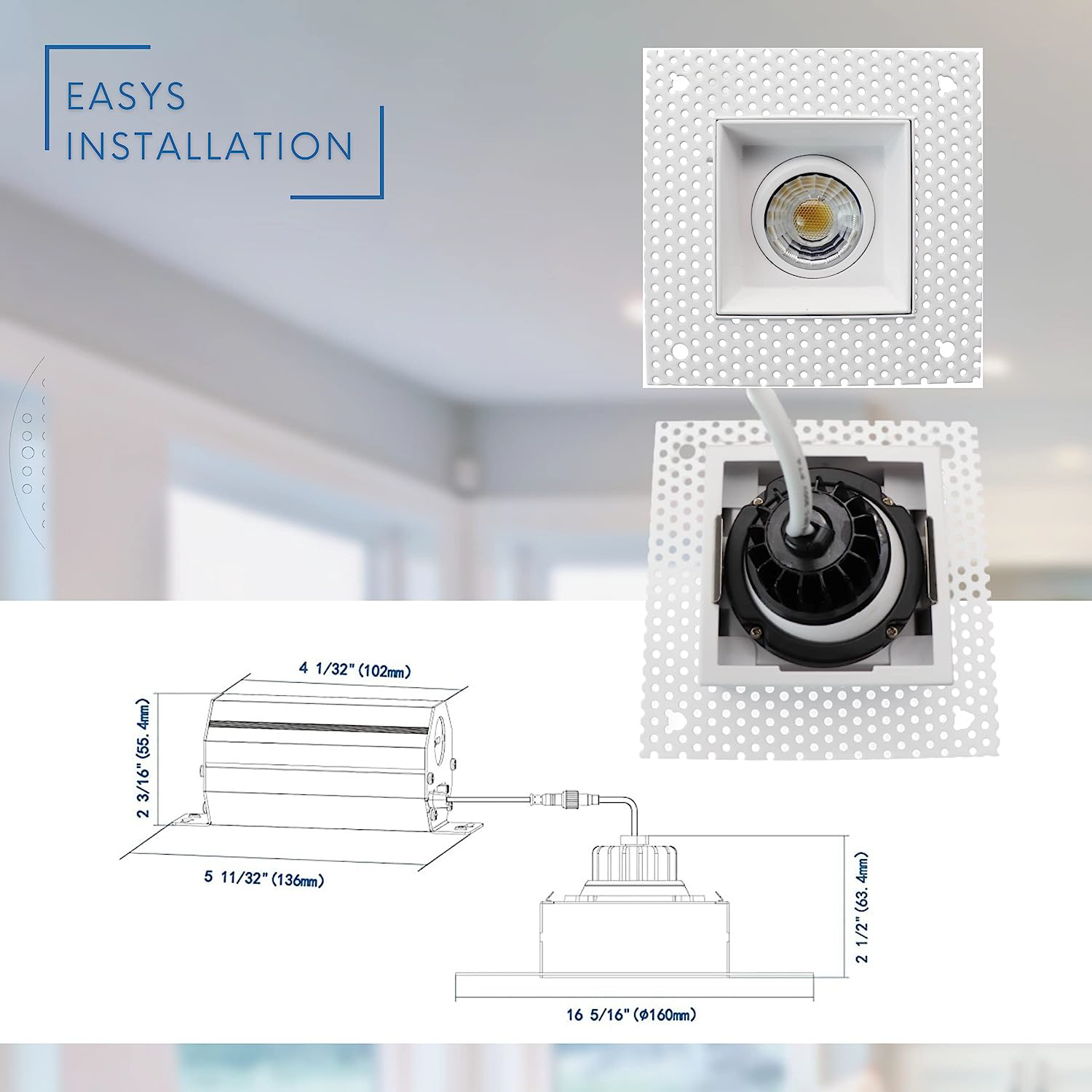

| Overall Dimensions | 6.3" × 6.3" × 2.5" (160 × 160 × 63 mm) |
| Ceiling Thickness | 0.2"–1" (5–25 mm) |
| Minimum Ceiling Void | 6" (150 mm) |
| Driver | Pre-Wired Remote Driver Junction Box |
What's Included
- 1 × Vera Series 3" Square Trimless Eyeball Fixture
- Pre-Wired Remote LED Driver
- Junction Box
Applications
- High-End Residential Lighting
- Luxury Homes & Condominiums
- Hotels & Hospitality
- Retail Stores
- Jewelry Showrooms
- Gallery & Artwork Lighting
- Display Accent Lighting
- Restaurants & Lounges
- Modern Commercial Interiors
- Architectural Accent Lighting
Why Choose the Vera Series?
The Vera Series combines a seamless 3" square trimless design with a fully adjustable directional head and deep regressed reflector for precise illumination with improved visual comfort. Multiple 15°, 24°, and 38° beam options allow the fixture to be configured for focused accent lighting, displays, artwork, or wider illumination.
With 5CCT selectability, CRI >90, TRIAC dimming, die-cast aluminum construction, and a pre-wired remote driver junction box, the Vera Series provides a highly flexible architectural lighting solution for premium residential and commercial interiors.
