Diamond Brite LEDs
7W Panelite Square Recessed Baffle Downlight Series - 3 Inch
7W Panelite Square Recessed Baffle Downlight Series - 3 Inch
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Couldn't load pickup availability

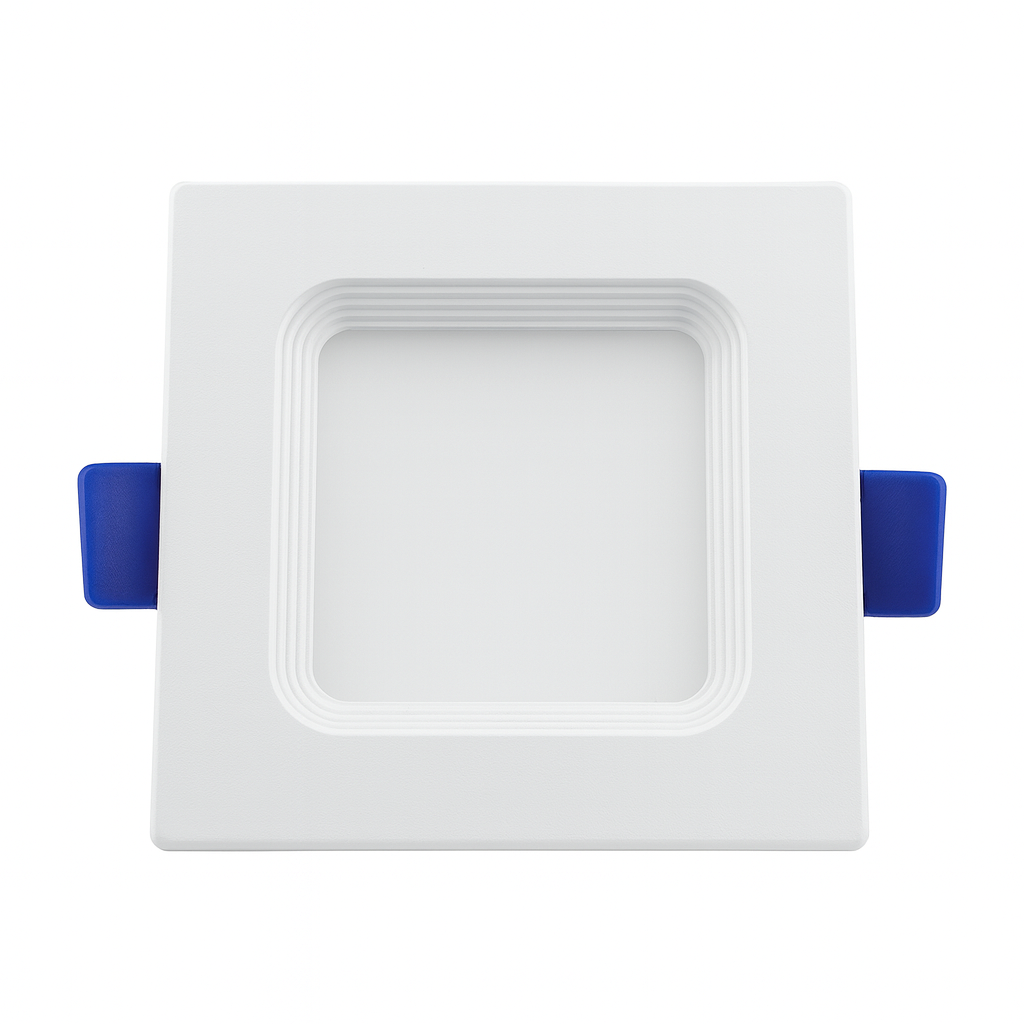

The 7W Panelite Square Recessed Baffle Downlight Series - 3 Inch provides efficient recessed illumination in a clean, contemporary square format. Producing 450 lumens while consuming only 7 watts, it is ideal for modern residential and commercial interiors.
Available in 3000K, 4000K, and 5000K, the fixture provides a broad 110° flood beam, CRI 82 color rendering, dimmable 120V operation, and a white finish.
Features
- 7W LED recessed downlight
- 3-inch square design
- Produces 450 lumens
- Available in 3000K, 4000K & 5000K
- 110° flood beam
- CRI 82
- 120V AC, 50–60Hz
- Dimmable
- Damp location rated
- White finish
- 50,000-hour rated life
- 5-year warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
| 3000K | Soft White | 450 lm |
| 4000K | Cool White | 450 lm |
| 5000K | Bright White | 450 lm |
Specifications
| Product Type | Recessed Baffle LED Downlight |
| Series | Panelite |
| Shape | Square |
| Size | 3 Inch |
| Power | 7W |
| Light Output | 450 lm |
| Efficacy | 64.3 lm/W |
| Input Voltage | 120V AC |
| Frequency | 50–60Hz |
| Color Temperatures | 3000K / 4000K / 5000K |
| CRI | 82 |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Location Rating | Damp Location |
| Finish | White |

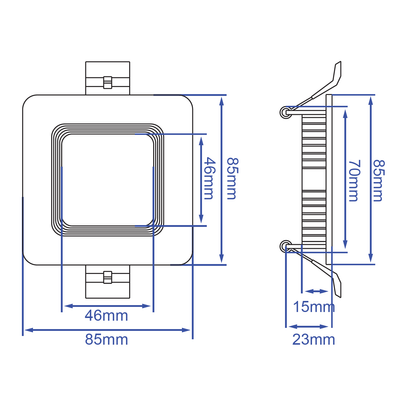

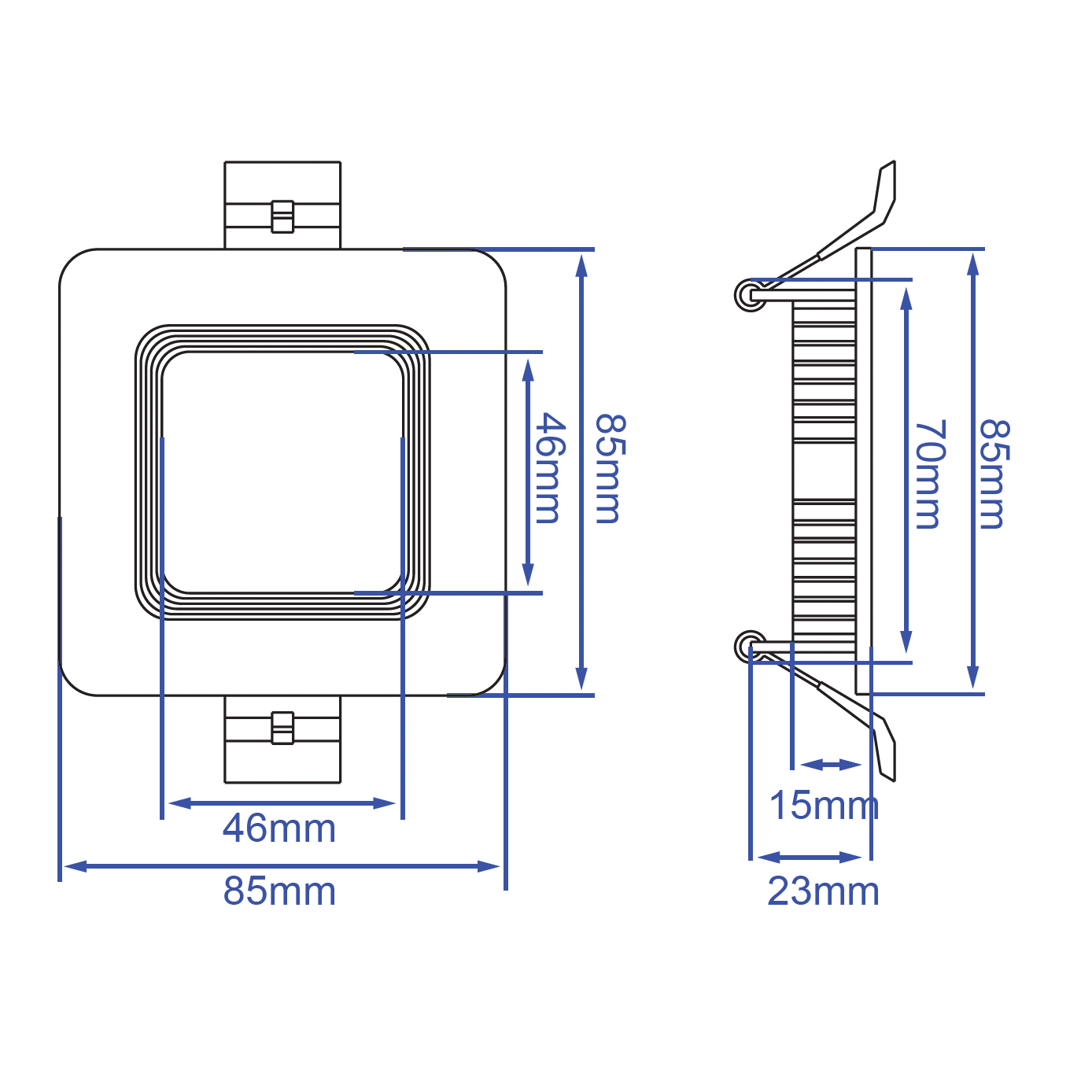

| Cutout | 2.75" × 2.75" (70 × 70 mm) |
| Rated Life | 50,000 Hours |
| Warranty | 5 Years |
Applications
- Residential Lighting
- Modern Interiors
- Offices
- Retail Spaces
- Restaurants
- Hotels
- Hallways
- General Interior Lighting
Why Choose the 7W 3" Square Panelite?
The 7W Square Panelite provides the same efficient 450-lumen performance in a modern square architectural profile. Its broad beam, three color temperature options, and compact recessed design make it ideal for clean contemporary lighting layouts.
