8W Panelite Square Recessed Downlight Series
8W Panelite Square Recessed Downlight Series
Couldn't load pickup availability

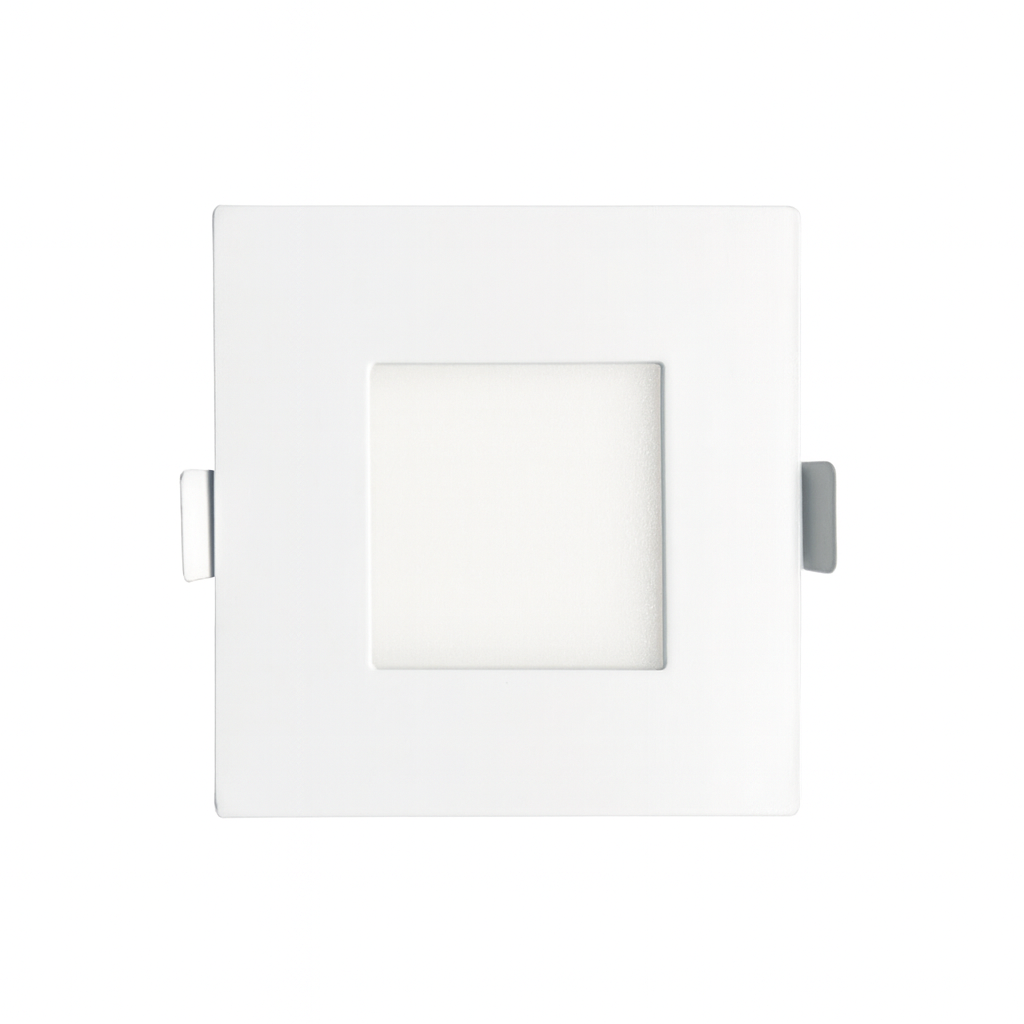

The 8W 3" Panelite Square Recessed Downlight Series is a compact recessed LED fixture that delivers 540 lumens of clean, efficient illumination. Its modern square profile and smooth trim provide a minimal architectural appearance for residential and commercial interiors.
Featuring 5 selectable color temperatures from 2700K to 5000K, the Panelite Downlight allows the lighting appearance to be adjusted to suit different spaces and applications. TRIAC dimming, IC-rated construction, and a wet-location rating provide additional flexibility for kitchens, bathrooms, hallways, retail spaces, offices, and accent lighting installations.
Features
- 8W power consumption
- Produces 540 lumens
- 5CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- TRIAC dimmable
- CRI 80
- Modern square design with smooth trim
- Compact recessed profile
- IC rated
- Wet-location rated
- ETL Listed
- Energy Star Certified
- Rated for approximately 50,000 hours
Selectable Color Temperature
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
Specifications
| Product Type | Square Recessed LED Downlight |
|---|---|
| Series | Panelite Downlight |
| Power | 8W |
| Light Output | 540 lm |
| Color Temperature | 5CCT Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 80 |
| Dimming | TRIAC Dimmable |
| Mounting | Recessed |
| Trim Style | Square / Smooth |
| IC Rating | IC Rated |
| Location Rating | Wet Location |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | ETL Listed / Energy Star Certified |
Applications
- Residential Accent Lighting
- Kitchens
- Bathrooms
- Hallways & Corridors
- Retail Spaces
- Office Spaces
- Architectural Lighting
- General Interior Lighting
Why Choose the Panelite Downlight?
The 8W 3" SQ Smooth Recessed Panelite Downlight delivers 540 lumens from a compact square fixture designed for clean, modern interiors. Its 5CCT selectable technology provides the flexibility to choose between 2700K, 3000K, 3500K, 4000K, and 5000K to complement different environments.
With TRIAC dimming, IC-rated construction, wet-location suitability, ETL listing, Energy Star certification, and an approximately 50,000-hour rated lifespan, the Panelite provides a versatile recessed lighting solution for residential and commercial applications.
