Diamond Brite LEDs
12W Forum Recessed Gimbal Downlight Series
12W Forum Recessed Gimbal Downlight Series
Couldn't load pickup availability
The 12W 4-Inch Recessed Forum Gimbal LED Downlight Series is a compact, adjustable recessed lighting solution designed for precise directional illumination. Its gimbal design provides a 45° tilt range, allowing the light to be aimed toward artwork, displays, architectural features, work surfaces, and other focal areas.
Operating at 12W, the Forum Gimbal Series produces up to 1,092 lumens with an efficacy of 91 lm/W. A 38° flood beam, dimming capability, IC-rated construction, and a 50,000-hour rated lifetime make it suitable for residential and commercial lighting applications.
Features
- 12W power consumption
- Produces up to 1,092 lumens
- 91 lm/W efficacy
- 120V AC input voltage
- Adjustable gimbal design
- 45° tilt range for directional aiming
- 38° flood beam angle
- CRI 80
- Available in 3000K, 4100K, and 5000K
- Dimmable
- IC Rated
- Damp Location Rated
- Energy Star Certified
- ETL Listed
- Mercury Free
- 50,000-hour rated lifetime
- 3-year warranty
Available Models
| Model No. | Color Temperature | Lumens | Beam Angle |
| FRG4-12W-30K | 3000K – Warm White | 1,060 lm | 38° Flood |
| FRG4-12W-41K | 4100K – Cool White | 1,092 lm | 38° Flood |
| FRG4-12W-50K | 5000K – Bright White | 1,092 lm | 38° Flood |
Color Temperature & Lumen Options
| Color Temperature | Description | Lumens | CRI |
| 3000K | Warm White | 1,060 lm | 80 |
| 4100K | Cool White | 1,092 lm | 80 |
| 5000K | Bright White | 1,092 lm | 80 |
Specifications
| Product Type | Adjustable Recessed Gimbal LED Downlight |
| Series | Forum Gimbal Series |
| Fixture Size | 4" |
| Installation | Recessed |
| Power | 12W |
| Light Output | 1,060–1,092 lm |
| Efficacy | 91 lm/W |
| Input Voltage | 120V AC |
| Color Temperatures | 3000K / 4100K / 5000K |
| CRI | 80 |
| Beam Angle | 38° Flood |
| Tilt Range | 45° |
| Dimming | Yes |

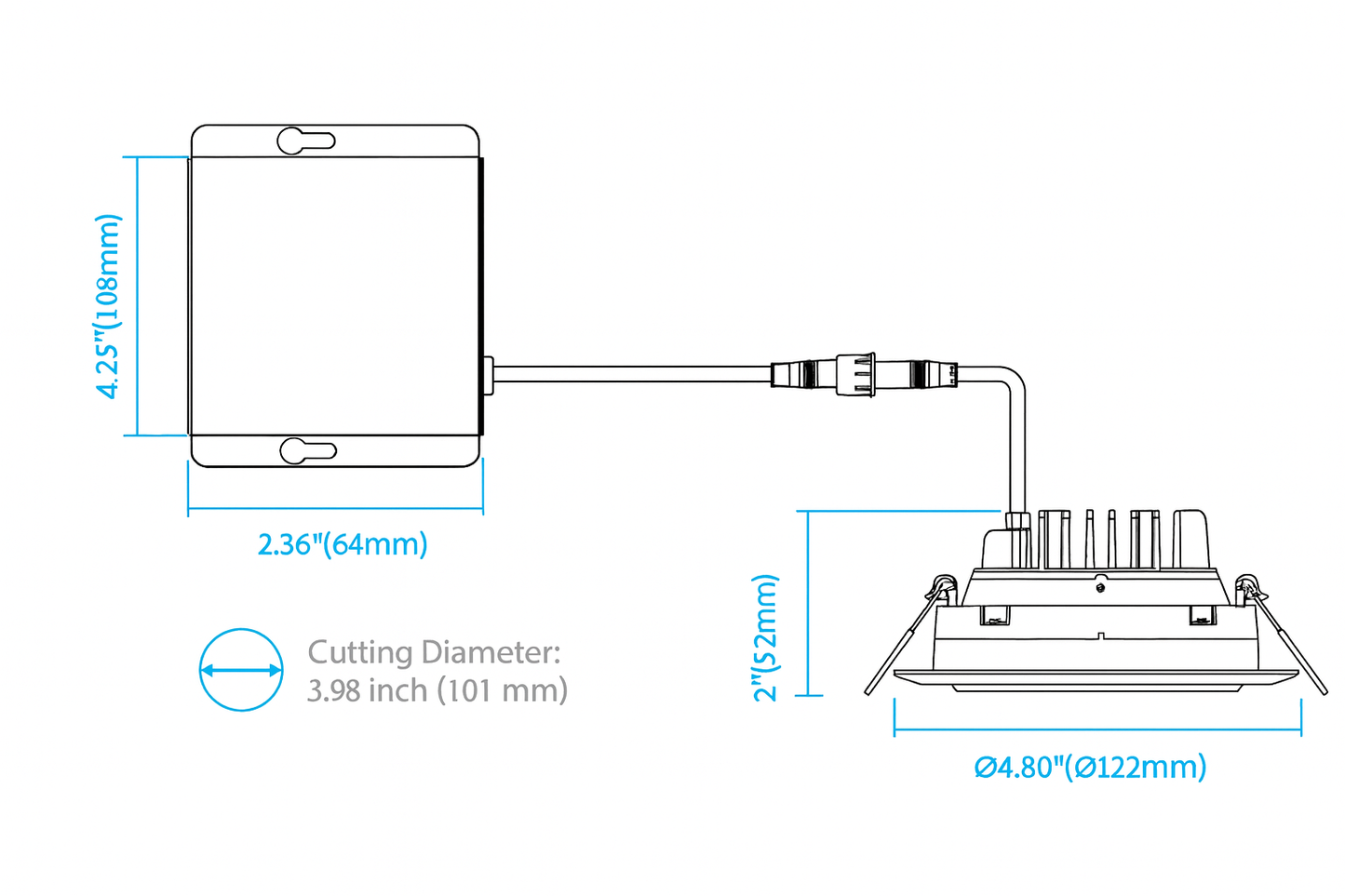

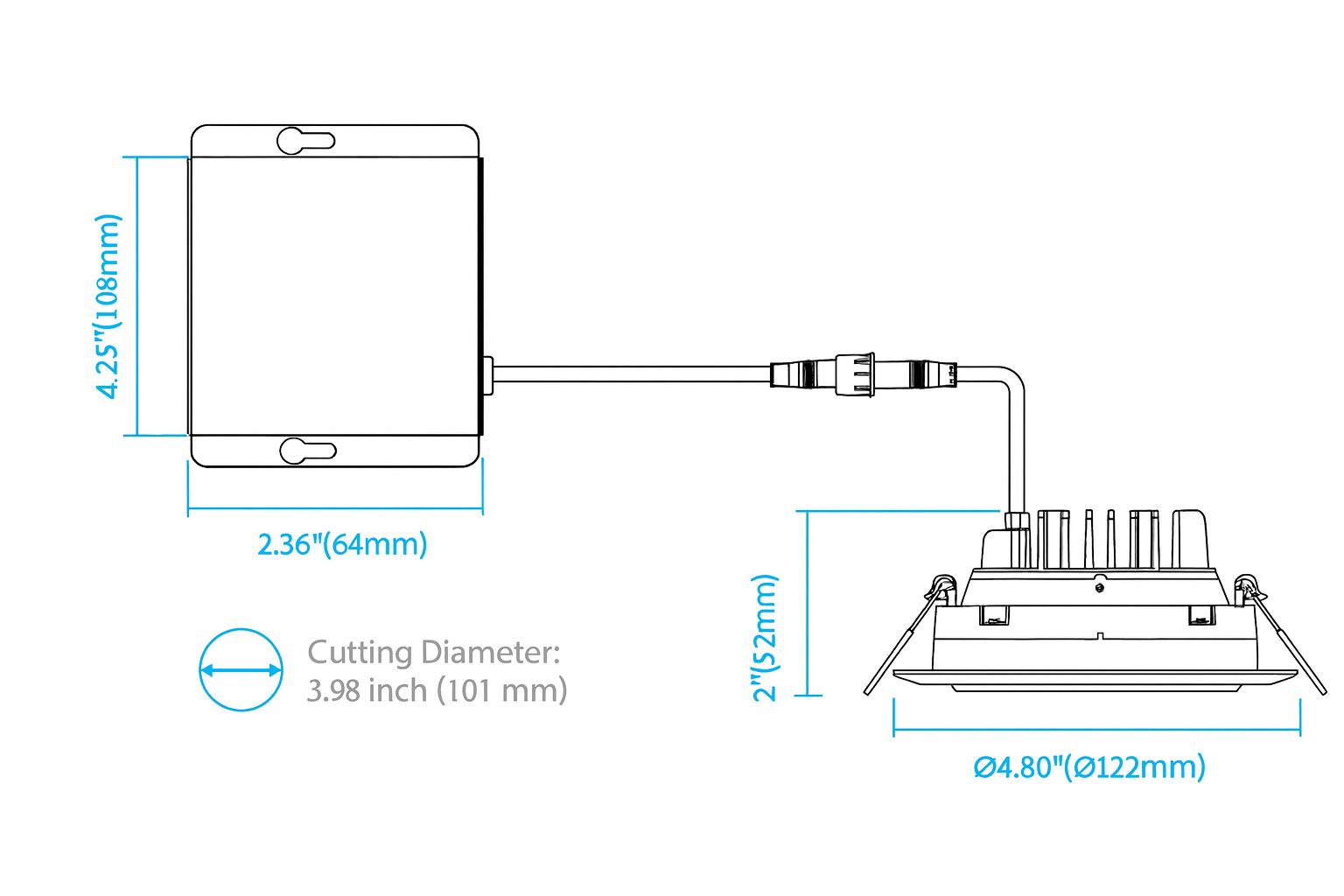

| Cutout Diameter | 3.98" (101 mm) |
| Outer Diameter | 4.80" (122 mm) |
| Driver Height | 4.25" (108 mm) |
| Driver Depth | 2.36" (64 mm) |
| IC Rating | IC Rated |
| Location Rating | Damp Location Rated |
| Rated Life | 50,000 Hours |
| Certifications | Energy Star / ETL Listed |
| Warranty | 3 Years |
Installation
- Designed for recessed ceiling installation
- 3.98" (101 mm) cutting diameter
- 45° adjustable tilt for directional lighting
- IC Rated for installations requiring insulation contact
- Compatible with new construction mounting plate Model No. 3N1-RD-NC
Applications
- Residential Lighting
- Commercial Interiors
- Accent Lighting
- Artwork & Display Lighting
- Retail Lighting
- Task Lighting
- Kitchen Lighting
- Office Lighting
- Hospitality Environments
- General Illumination
Why Choose the Forum Gimbal Series?
The 12W 4-Inch Recessed Forum Gimbal LED Downlight Series combines efficient LED performance with adjustable directional control. Its 45° tilt range allows precise aiming, while the 38° flood beam provides focused yet practical illumination for accent, task, display, and general lighting applications.
With output up to 1,092 lumens, 91 lm/W efficacy, three available color temperatures, dimming capability, IC-rated construction, Damp Location rating, Energy Star certification, ETL listing, and a 50,000-hour rated lifetime, the Forum Gimbal Series provides a versatile solution for residential and commercial interiors.
