Diamond Brite LEDs
8W Recessed Gimbal Downlight Series
8W Recessed Gimbal Downlight Series
Couldn't load pickup availability
The 8W 3" Recessed Gimbal LED Series combines directional flexibility, energy efficiency, and a clean architectural design for residential and commercial lighting applications. Featuring an adjustable gimbal head, this compact recessed fixture allows light to be precisely directed toward artwork, displays, architectural features, or general areas while maintaining a minimal ceiling appearance.
Consuming only 8W while replacing up to a 50W halogen fixture, the series delivers up to 600 lumens with an efficacy of approximately 91 lm/W. Its IC-rated, airtight, and damp-location-rated construction provides additional installation flexibility.
Features
- 8W power consumption
- Replaces up to 50W halogen
- Up to 600 lumens
- Approximately 91 lm/W efficacy
- 120V operation
- Dimmable
- Adjustable gimbal design for directional lighting

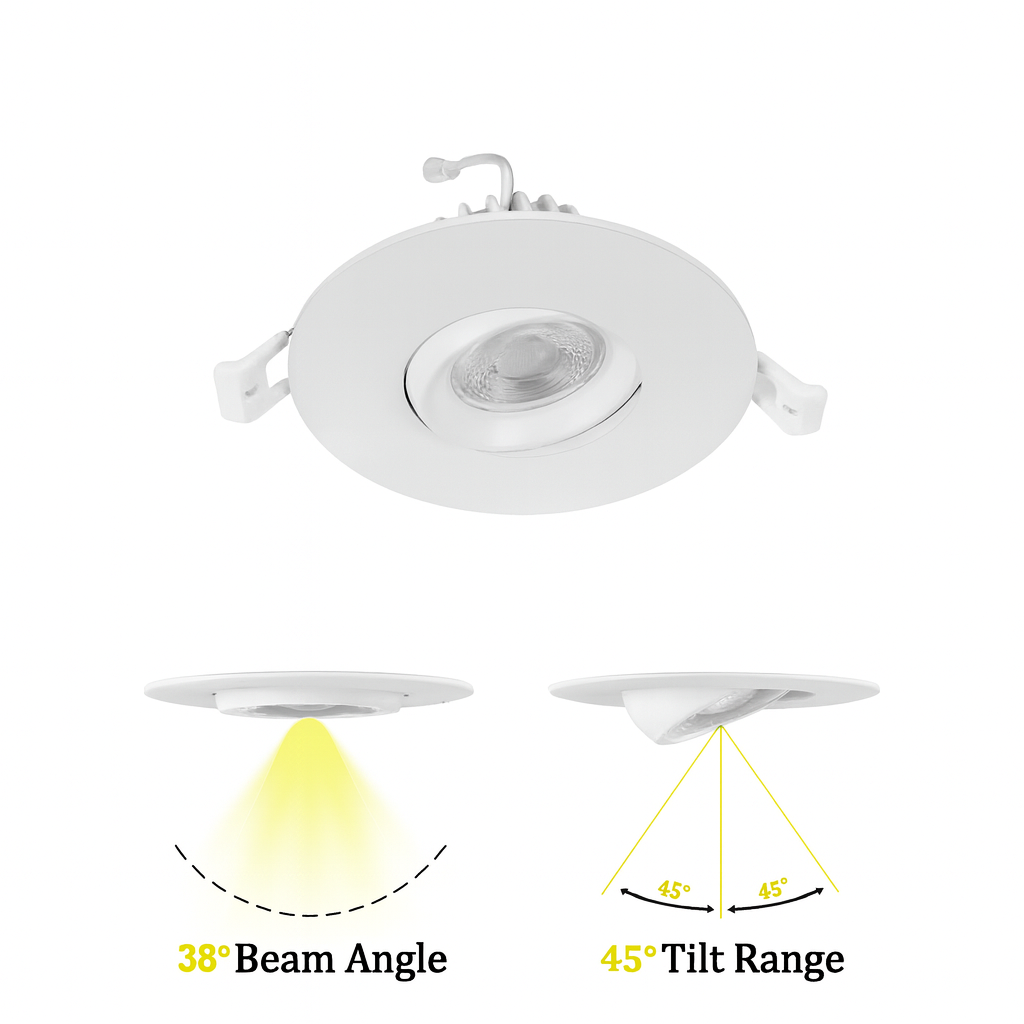

- 38° flood beam angle
- IC Rated for direct contact with insulation
- Air Tight
- Damp Location Rated
- ENERGY STAR Certified
- Mercury-Free
- Approximately 50,000-hour rated life
- Compatible with new construction mounting plate
Color Temperature & Lumen Options
| Color Temperature | Description | Lumens |
|---|---|---|
| 2700K | Warm White | 550 lm |
| 4100K | Cool White | 600 lm |
| 5000K | Bright White | 600 lm |
Specifications
| Product Type | Recessed Gimbal LED Downlight |
|---|---|
| Fixture Size | 3" |
| Installation | Recessed |
| Power | 8W |
| Halogen Equivalent | Up to 50W |
| Light Output | 550–600 lm |
| Efficacy | 91 lm/W |
| Input Voltage | 120V |
| Dimming | Dimmable |
| Beam Angle | 38° Flood |

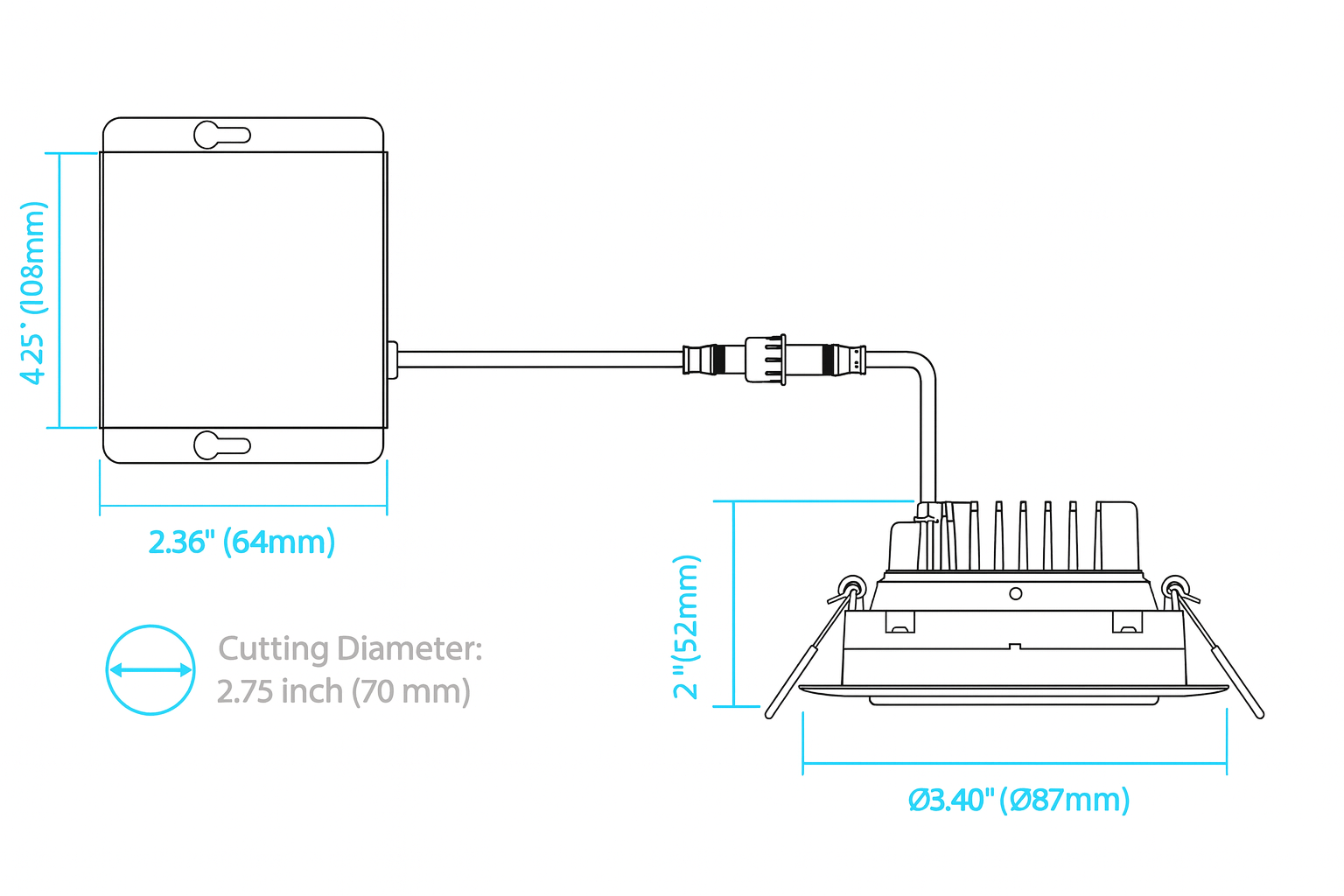

| Cutout Diameter | 2.75" (70 mm) |
| Overall Diameter | 3.4" (87 mm) |
| IC Rating | IC Rated |
| Air Tight | Yes |
| Location Rating | Damp Location |
| Certification | ENERGY STAR Certified |
| Rated Life | Approximately 50,000 Hours |
Compatible Accessories
- 3N1-RD-NC New Construction Mounting Plate
Applications
- Residential Accent Lighting
- Directional Ceiling Lighting
- Retail Stores
- Commercial Interiors
- Hotels & Hospitality
- Gallery Lighting
- Artwork Lighting
- Display Lighting
- Architectural Accent Lighting
- Restaurants & Lounges
Why Choose the 3" Recessed Gimbal LED Series?
The 3" Recessed Gimbal LED Series combines an adjustable directional design with efficient 8W LED performance and output up to 600 lumens. Its 38° flood beam provides controlled illumination for accent, display, and general lighting while the adjustable gimbal allows precise aiming.
With dimming capability, multiple color temperatures, an approximately 50,000-hour rated life, and IC-rated, airtight, and damp-location-rated construction, this series provides a versatile recessed lighting solution for modern residential, retail, hospitality, gallery, and commercial interiors.
