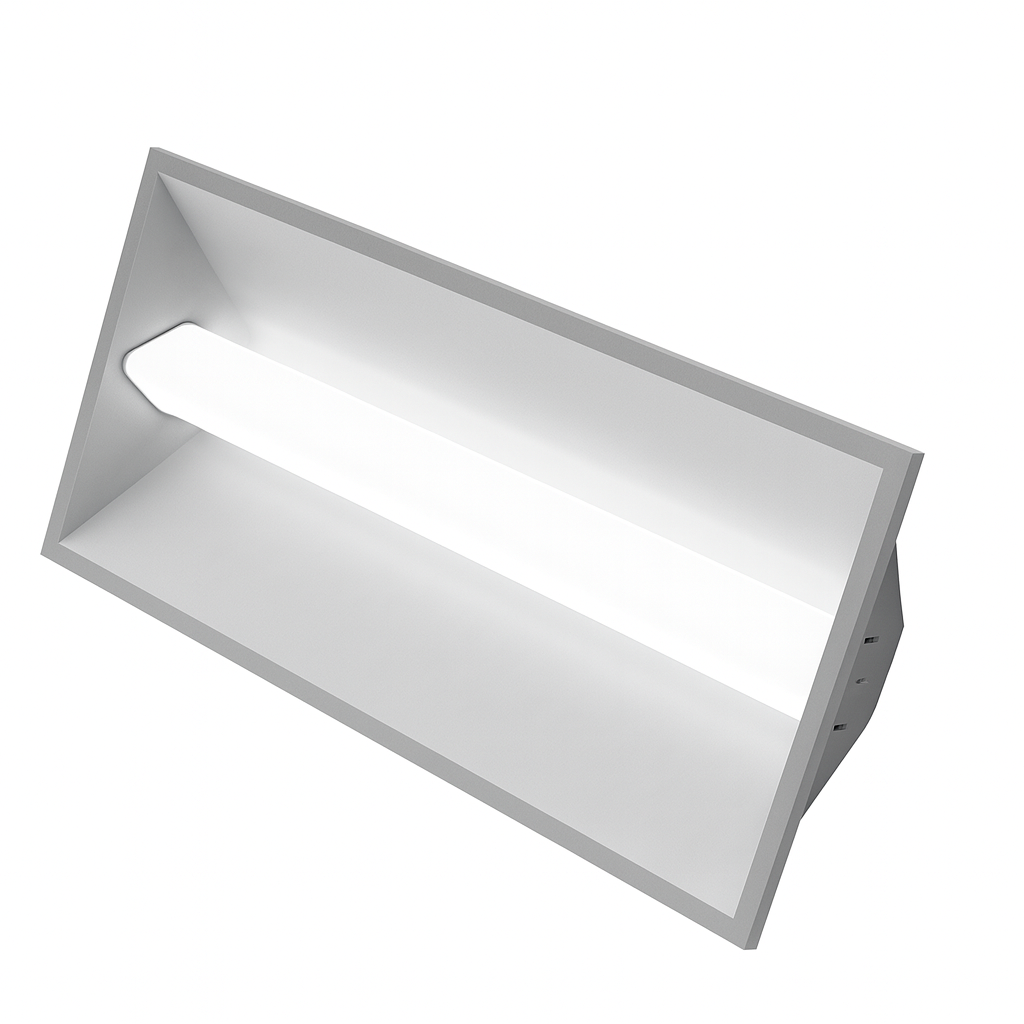

50W CONTOUR Troffer Light Series
50W CONTOUR Troffer Light Series
Couldn't load pickup availability
The 50W 2x4 CONTOUR LED Troffer Light Series is a high-performance recessed ceiling fixture designed for commercial grid ceiling applications. Its slim architectural profile provides bright, uniform, glare-reduced illumination for offices, conference rooms, healthcare facilities, schools, universities, retail spaces, and other professional environments.
Producing up to 6,250 lumens from only 50W, the 2x4 CONTOUR Series provides an energy-efficient replacement for traditional 200W CFL fixtures. Integrated 0–10V dimming provides smooth control over light levels for greater comfort, flexibility, and energy savings.
Features
- 50W power consumption
- Produces up to 6,250 lumens
- Approximately 125 lm/W luminous efficacy
- Designed to replace traditional 200W CFL fixtures
- 100–277V AC universal voltage
- 0–10V dimming
- 120° wide beam angle
- CRI >80
- Premium Nichia LED chips
- Power factor >0.90
- Aluminum + PVC construction
- White trim finish
- Designed for standard 2' × 4' grid ceilings
- IP20 rated for indoor applications
- Approximately 60,000-hour rated life
- Multiple color temperatures available
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Soft White |
| 5000K | Bright White |
Specifications
| Product Type | LED Troffer Light |
|---|---|
| Series | CONTOUR Series |
| Fixture Size | 2' × 4' |
| Power | 50W |
| Replacement | Approximately 200W CFL |
| Light Output | 6,250 lm |
| Luminous Efficacy | 125 lm/W |
| Input Voltage | 100–277V AC, 50–60Hz |
| Dimming | 0–10V |
| Beam Angle | 120° |
| CRI | >80 |
| LED Chip | Nichia |
| Power Factor | >0.90 |
| Material | Aluminum + PVC |
| Finish | White |
| Dimensions | 24" × 48" × 3" (603 × 1,212 × 83 mm) |
| IP Rating | IP20 – Indoor Use |
| Color Temperatures | 3000K, 4000K, 5000K |
| Operating Temperature | -13°F to 113°F (-25°C to 45°C) |
| Rated Life | Approximately 60,000 Hours |
Applications
- Office Lighting
- Conference Rooms
- Corporate Interiors
- Hospitals & Medical Facilities
- Schools & Universities
- Retail Stores
- Commercial Interiors
- Reception Areas
- Hallways & Common Areas
- Drop-Ceiling Installations
Why Choose the 2x4 CONTOUR LED Troffer Light Series?
The 2x4 CONTOUR LED Troffer Light Series delivers an impressive 6,250 lumens from only 50W, achieving approximately 125 lumens per watt. Its 120° wide beam angle distributes light evenly throughout larger commercial spaces, while 0–10V dimming provides precise control over illumination levels.
With universal 100–277V AC operation, premium Nichia LEDs, multiple color temperatures, and an approximately 60,000-hour rated life, the 2x4 CONTOUR Series provides an efficient and long-lasting solution for modern commercial grid ceiling applications.
