Diamond Brite LEDs
36W CONTOUR Troffer Light Series
36W CONTOUR Troffer Light Series
Couldn't load pickup availability

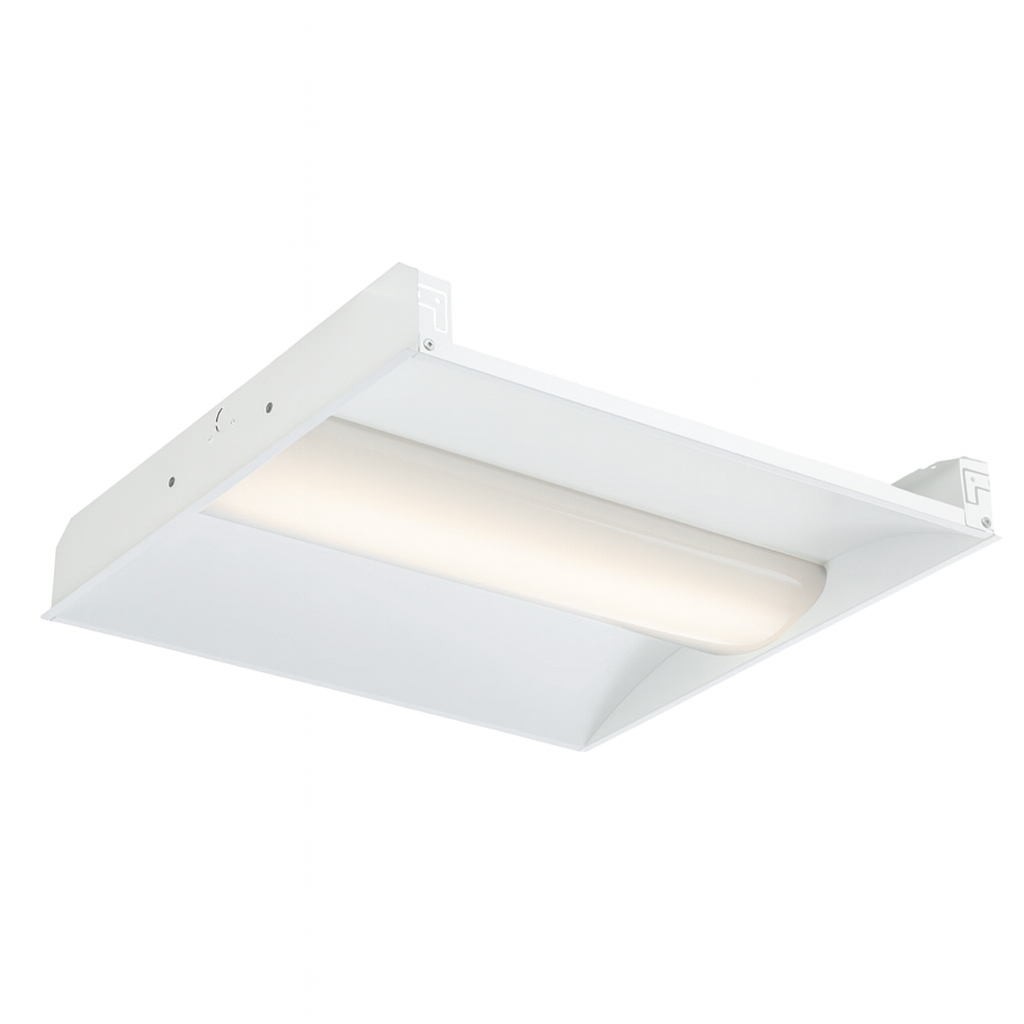

The 36W 2x2 CONTOUR LED Troffer Light Series is a high-efficiency commercial ceiling fixture designed to provide bright, uniform illumination for offices, conference rooms, schools, healthcare facilities, retail spaces, and other professional environments. Its slim architectural profile integrates cleanly into standard 2' × 2' drop ceilings while delivering smooth, glare-reduced illumination.
Producing up to 4,500 lumens from only 36W, the CONTOUR Series provides an efficient replacement for traditional fluorescent and CFL fixtures. Integrated 0–10V dimming allows the light level to be adjusted for greater comfort, flexibility, and energy savings.
Features
- 36W power consumption
- Produces up to 4,500 lumens
- Approximately 125 lm/W luminous efficacy
- Designed to replace traditional 150W CFL fixtures
- 100–277V AC universal voltage
- 0–10V dimming
- 120° wide beam angle
- CRI >80
- Premium Nichia LED chips
- Power factor >0.90
- Aluminum + PVC construction
- White trim finish
- Slim 2' × 2' ceiling profile
- IP20 rated for indoor applications
- Approximately 60,000-hour rated life
- Multiple color temperatures available
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Soft White |
| 5000K | Bright White |
Specifications
| Product Type | LED Troffer Light |
|---|---|
| Series | CONTOUR Series |
| Fixture Size | 2' × 2' |
| Power | 36W |
| Replacement | Approximately 150W CFL |
| Light Output | 4,500 lm |
| Luminous Efficacy | 125 lm/W |
| Input Voltage | 100–277V AC, 50–60Hz |
| Dimming | 0–10V |
| Beam Angle | 120° |
| CRI | >80 |
| LED Chip | Nichia |
| Power Factor | >0.90 |
| Material | Aluminum + PVC |
| Finish | White |
| Dimensions | 24" × 24" × 3" (603 × 603 × 83 mm) |
| IP Rating | IP20 – Indoor Use |
| Color Temperatures | 3000K, 4000K, 5000K |
| Operating Temperature | -13°F to 113°F (-25°C to 45°C) |
| Rated Life | Approximately 60,000 Hours |
Applications
- Office Lighting
- Conference Rooms
- Corporate Interiors
- Hospitals & Healthcare Facilities
- Schools & Educational Facilities
- Retail Stores
- Commercial Interiors
- Reception Areas
- Hallways & Common Areas
- Drop-Ceiling Installations
Why Choose the 2x2 CONTOUR LED Troffer Light Series?
The 2x2 CONTOUR LED Troffer Light Series delivers an impressive 4,500 lumens from only 36W, achieving approximately 125 lumens per watt. Its wide 120° beam angle distributes light evenly throughout commercial spaces, while 0–10V dimming provides greater control over illumination levels.
With universal 100–277V AC operation, premium Nichia LEDs, multiple color temperatures, and an approximately 60,000-hour rated life, the CONTOUR Series provides an efficient, long-lasting solution for modern commercial drop-ceiling lighting applications.
