Diamond Brite LEDs
2W G4 Barrel Lamp Series
2W G4 Barrel Lamp Series
Couldn't load pickup availability

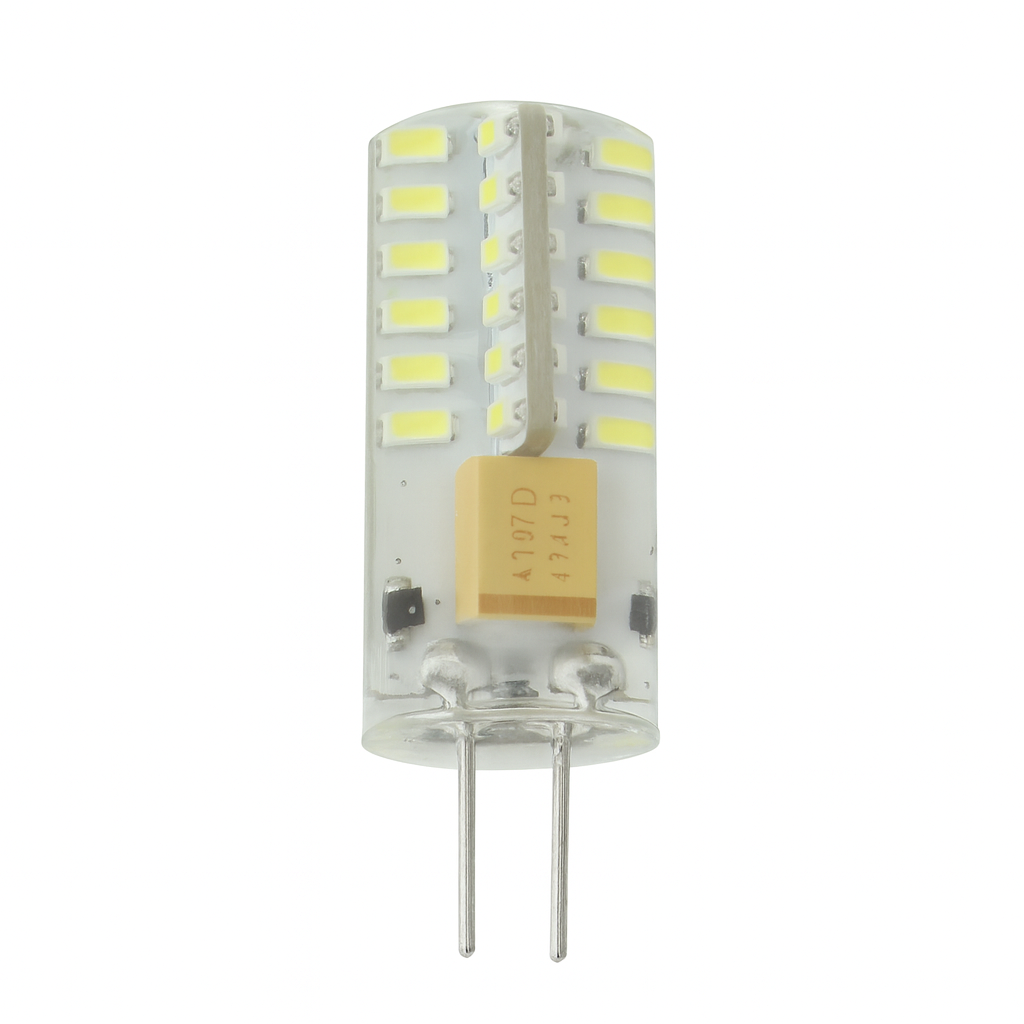

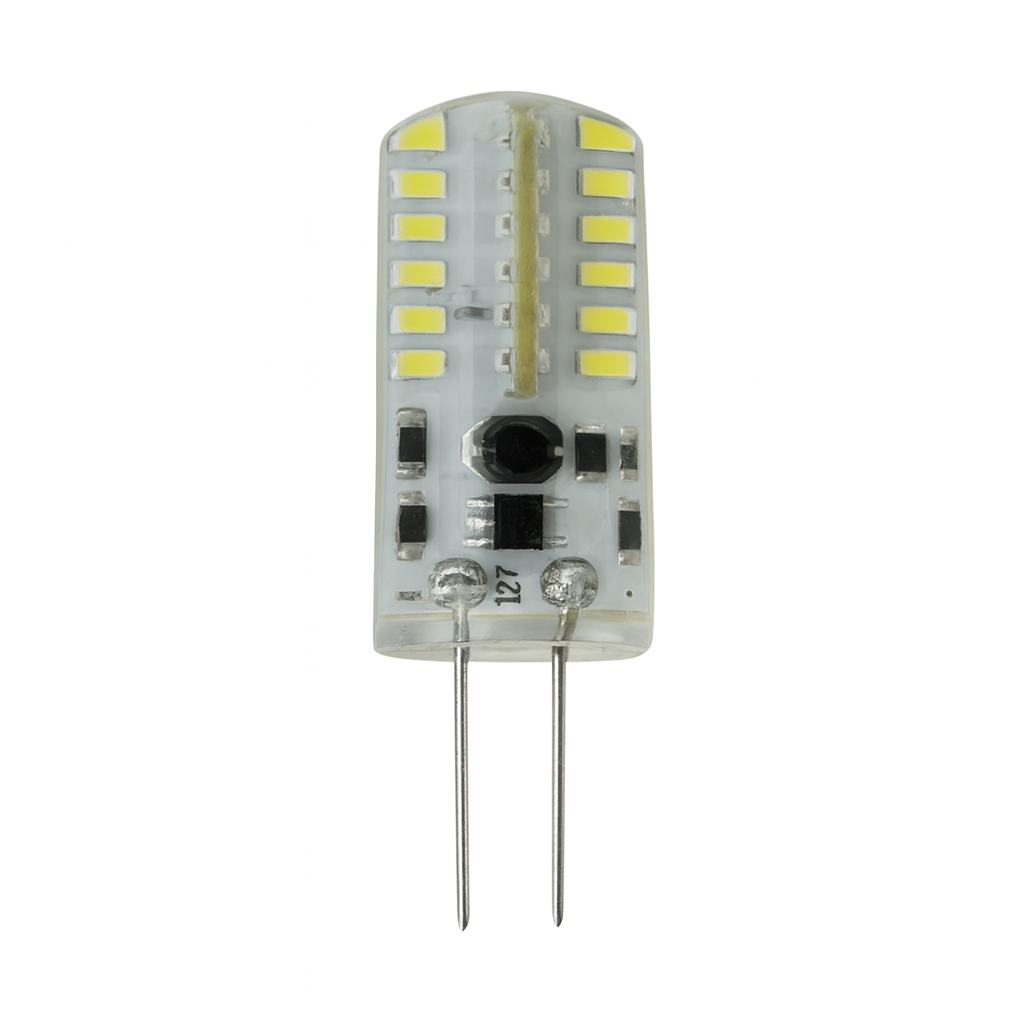

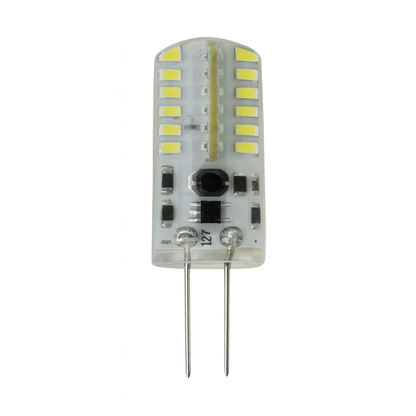

The 2W G4 Barrel Lamp Series is a compact, energy-efficient LED lamp designed to replace traditional 30W halogen G4 bulbs. Producing up to 150 lumens while consuming only 2W, it provides efficient, uniform illumination in an ultra-compact form factor.
Available in both 12V AC/DC and 120V AC configurations, the G4 Barrel Lamp Series is suitable for decorative fixtures, cabinetry, displays, RVs, yachts, boats, and a wide variety of specialty lighting applications.
Features
- 2W power consumption
- Up to 150 lumens
- Approximately 30W halogen equivalent
- 48 Epistar LEDs
- 120° wide beam angle
- Available in 12V AC/DC and 120V AC
- 12V version features a flexible, heat-resistant silicone body
- 120V version features a durable ceramic body
- Multiple color temperatures available
- Smooth dimming supported
- CRI >80
- Power factor >0.90
- Mercury-free construction
- Rated for 30,000+ hours
- Compact G4 base design
Voltage Options
| Voltage | Body Material | Application |
|---|---|---|
| 12V AC/DC | Silicone | Low-Voltage Systems |
| 120V AC | Ceramic | Line-Voltage Systems |
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6500K | Bright White |
Specifications
| Product Type | G4 LED Barrel Lamp |
|---|---|
| Series | G4 Barrel Lamp Series |
| Wattage | 2W |
| Halogen Equivalent | Approximately 30W |
| Light Output | 140–150 lm |
| Voltage Options | 12V AC/DC or 120V AC |
| Base | G4 |
| LED Source | 48 × Epistar LEDs |
| Beam Angle | 120° |
| CRI | >80 |
| Power Factor | >0.90 |
| Dimming | Dimmable |
| Diameter | 0.5" (12 mm) |
| Length | 1.4" (36 mm) |
| Color Temperatures | 3000K, 4000K, 5000K, 6500K |
| Rated Life | 30,000+ Hours |
Applications
- Chandeliers
- Decorative Fixtures
- Cabinet Lighting
- Under-Cabinet Lighting
- Display Lighting
- Accent Lighting
- RVs & Motorhomes
- Yachts & Boats
- Residential Lighting
- Commercial Lighting
- Specialty Lighting Applications
Why Choose the G4 Barrel Lamp Series?
The G4 Barrel Lamp Series provides an efficient LED replacement for traditional 30W halogen G4 lamps, delivering up to 150 lumens while consuming only 2W. Its 120° wide beam angle provides smooth, uniform illumination while its compact size allows installation in small decorative and specialty fixtures.
With both 12V AC/DC and 120V AC versions, four color temperature options, dimming capability, and a rated life of 30,000+ hours, the G4 Barrel Lamp Series provides a versatile solution for low-voltage and line-voltage lighting applications.
