27W QuadLamp C Series
27W QuadLamp C Series
Couldn't load pickup availability
The 27W QuadLamp C Series provides high-output, energy-efficient illumination for commercial, industrial, and retrofit lighting applications. Producing 3,240 lumens while consuming only 27 watts, it provides an efficient replacement for traditional CFL, metal halide, HPS, HID, and incandescent lamps.
Powered by 90 Samsung 2835 SMD LEDs, the QuadLamp C delivers broad 180° light distribution. Its 6063 aluminum thermal structure, internal driver, and IP64 construction provide a durable solution for demanding lighting applications.
Features
- 27W LED power consumption
- Produces 3,240 lumens
- 90 Samsung 2835 SMD LEDs
- Up to 120 lm/W efficacy
- 180° beam angle
- CRI >83
- Power factor >0.95
- Wide-range 85–305V AC operation
- E26 / E27 / E39 / E40 base options
- Clear or frosted lampshade options
- 6063 aluminum thermal structure
- IP64 ingress protection
- 50,000-hour rated lifespan
- UL/cUL, CE & RoHS certified
- 2-year warranty
Color Temperature Options
- Amber 585nm
- 2700K
- 3000K
- 4000K
- 5000K
- 5700K
- 6500K
Specifications
| Product Type | LED Retrofit Lamp |
| Series | QuadLamp C Series |
| Power | 27W |
| Light Output | 3,240 lm |
| LED Source | Samsung 2835 SMD |
| LED Quantity | 90 LEDs |
| Input Voltage | 85–305V AC |
| Base Options | E26 / E27 / E39 / E40 |
| Lampshade | Clear or Frosted |
| CRI | >83 |
| Power Factor | >0.95 |
| Beam Angle | 180° |
| IP Rating | IP64 |

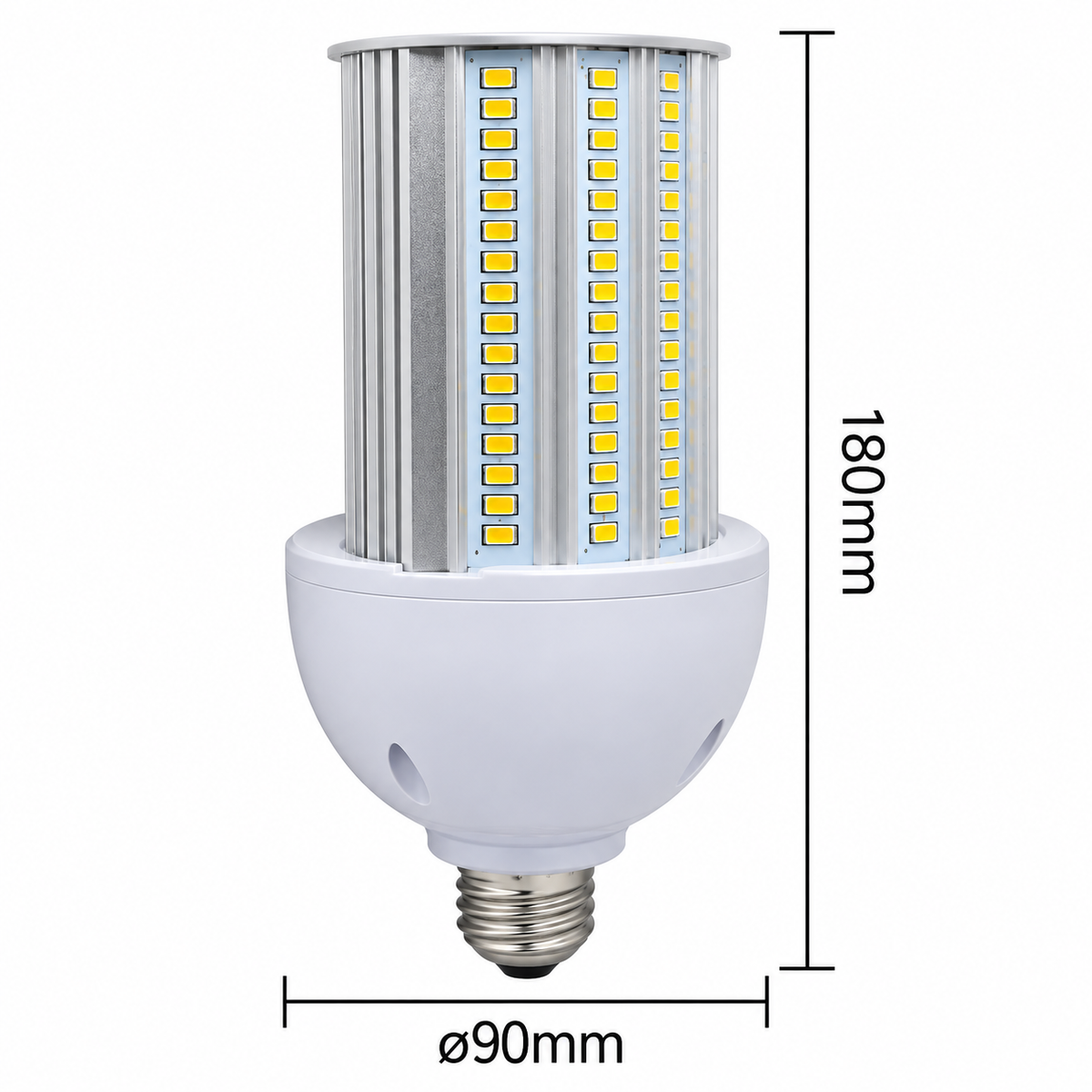

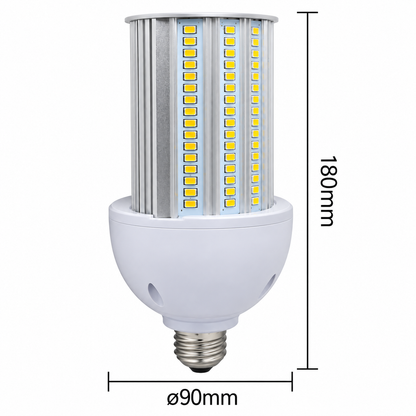

| E27 Dimensions | Ø3.5" × 7.1" (Ø90 × 180 mm) |
| E40 Dimensions | Ø3.5" × 7.9" (Ø90 × 200 mm) |
| Net Weight | 1.76 lbs (800 g) |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rated Life | 50,000 Hours |
| Warranty | 2 Years |
Traditional Lamp Replacement
- 55W CFL
- 90W Metal Halide / HPS / HID
- 230W Incandescent
Applications
- Street & Roadway Lighting
- Post-Top Fixtures
- Commercial Lighting
- Industrial Lighting
- Area Lighting
- Retrofit Applications
Why Choose the 27W QuadLamp C?
The 27W QuadLamp C Series produces 3,240 lumens with broad 180° illumination while consuming only 27 watts. Samsung LED technology, multiple base options, IP64 protection, and a 50,000-hour rated lifespan make it a versatile replacement for traditional high-consumption lamps.
