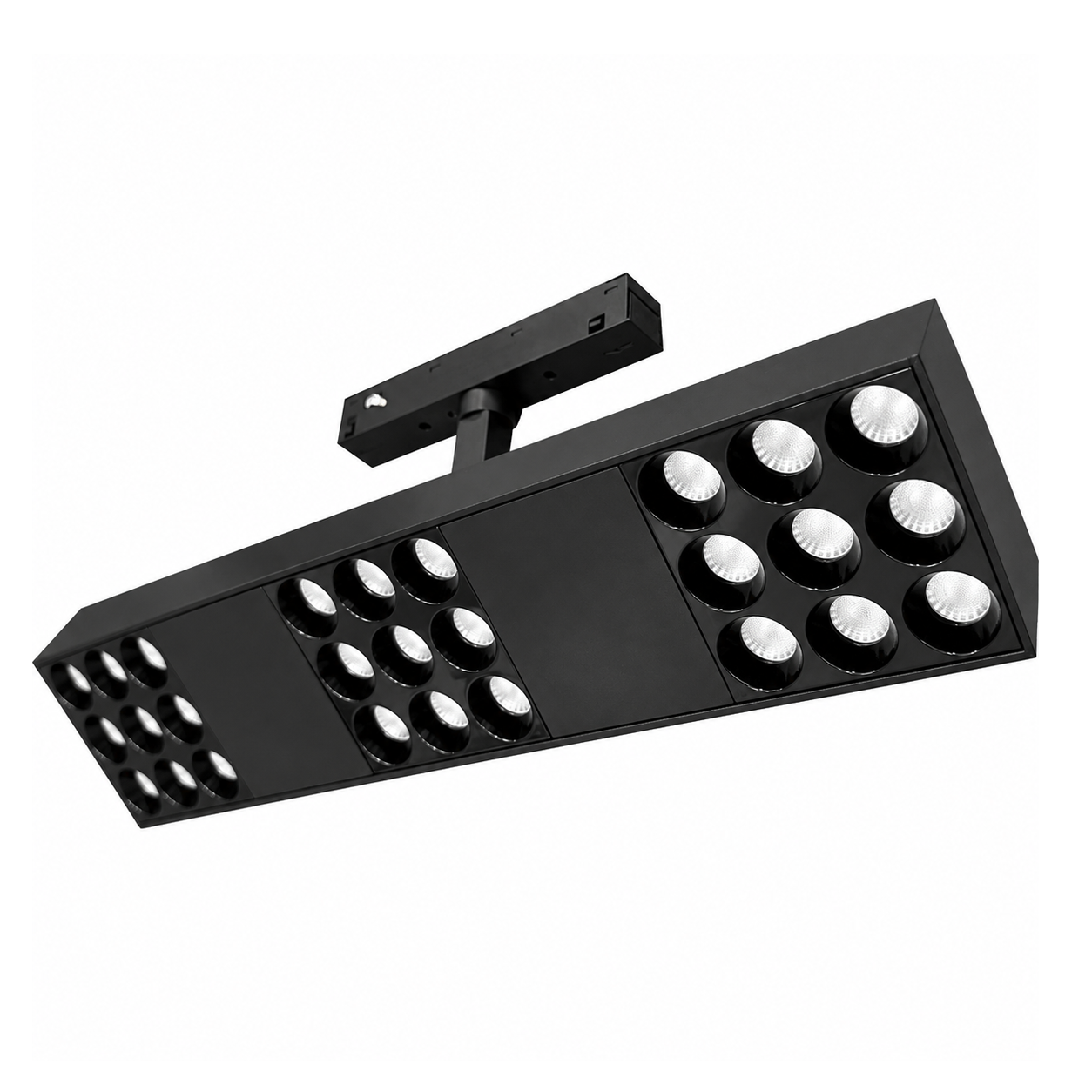

27W Micro Magnetic Matrix Light Series
27W Micro Magnetic Matrix Light Series
Couldn't load pickup availability
The 27W Micro Magnetic Matrix Light delivers high-output architectural illumination through a Triple Head multi-cell optical design. Producing 3,186 lumens, this configuration provides greater coverage and lighting performance for larger retail displays, galleries, hospitality spaces, luxury residences, and commercial interiors.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick, tool-free repositioning and effortless lighting customization.
Features
- 27W Integrated LED
- Triple Head matrix configuration
- 3,186 Lumens
- High efficiency: 118 lm/W
- Modern multi-cell LED optics
- Available in 3000K Warm White and 6500K Daylight
- Smooth dimmable operation
- Precision accent illumination
- Low-glare optical design
- Compatible with all 48V Micro Magnetic Track Systems
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Dimensions | Color Temp | Lumens |
|---|---|---|---|---|
| Matte Black | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 3000K | 3,186 lm |
| Matte Black | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 6500K | 3,186 lm |
| Matte White | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 3000K | 3,186 lm |
| Matte White | 27W | 11" × 1" × 4" (280 × 25 × 110 mm) | 6500K | 3,186 lm |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Matrix Light |
| Configuration | Triple Head |
| Power | 27W |
| Lumen Output | 3,186 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperatures | 3000K Warm White, 6500K Daylight |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Dimensions | 11" × 1" × 4" (280 × 25 × 110 mm) |
| Optical Design | Multi-Cell Matrix LED |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:
- Retail Stores
- Luxury Boutiques
- Jewelry Showrooms
- Museums
- Art Galleries
- Luxury Homes
- Hospitality
- Hotels
- Restaurants
- Office Spaces
- Product Displays
- Architectural Accent Lighting
What's Included
- 1 × 27W Triple Head Micro Magnetic Matrix Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose the Matrix Light?
The Triple Head Matrix Light delivers maximum output and coverage within the Matrix Series while maintaining precise beam control and excellent glare reduction. Its clean architectural profile and magnetic installation make it ideal for larger spaces requiring powerful, flexible accent illumination.
