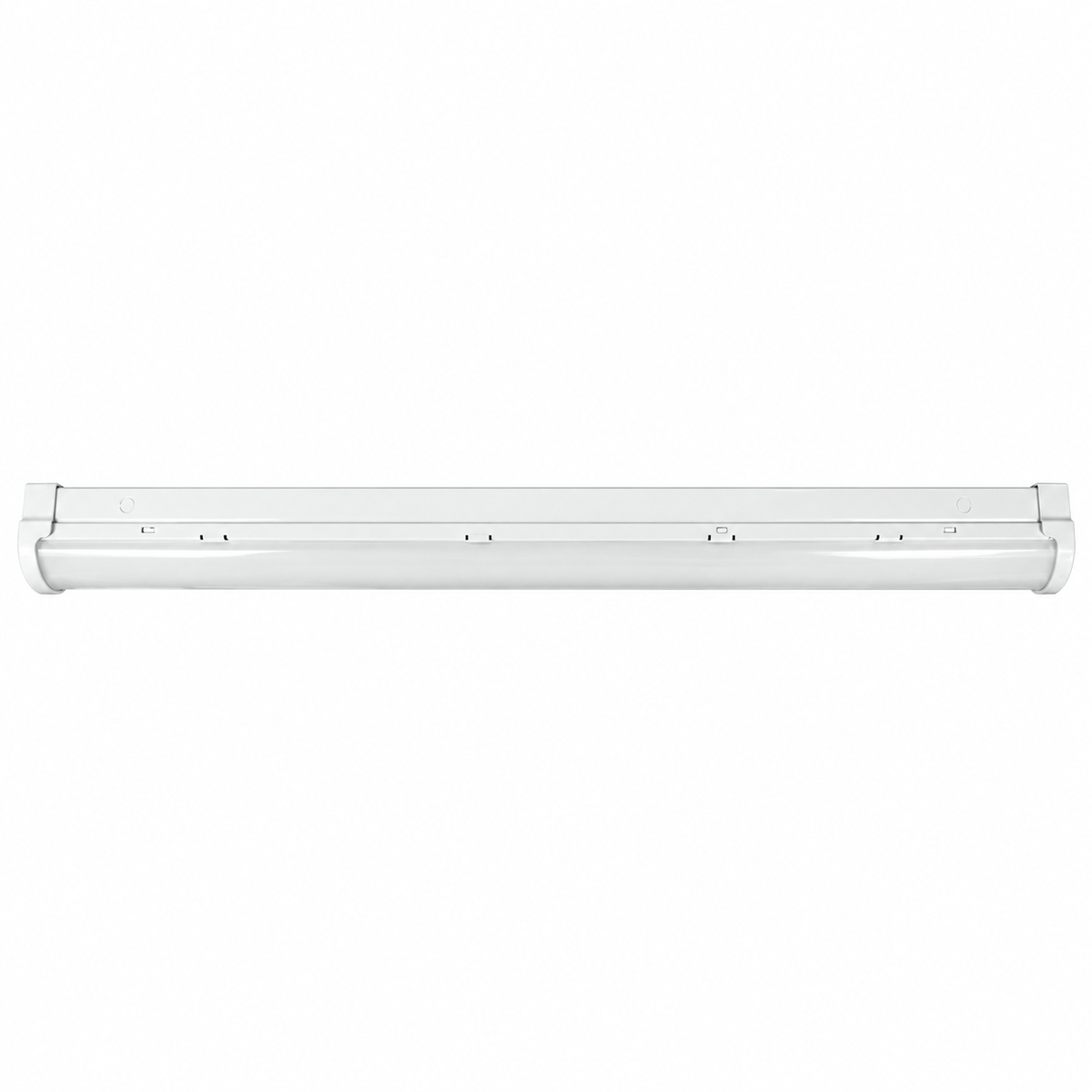

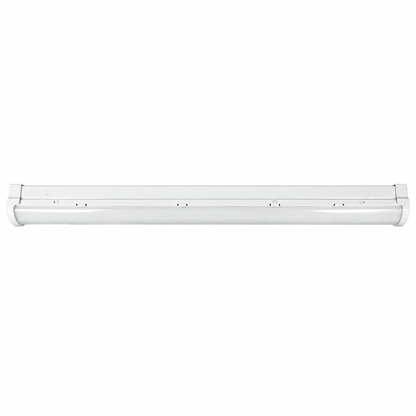

26W Luxrite Linear Slim Luminaire Series
26W Luxrite Linear Slim Luminaire Series
Couldn't load pickup availability
The 26W Linear Slim Luminaire Series - 36 Inch provides efficient linear illumination in a narrow, streamlined fixture designed for modern residential and commercial interiors. Producing 2,650 lumens while consuming only 26 watts, it delivers reliable general illumination while maintaining a slim architectural profile.
The fixture features a durable steel housing and acrylic lens, universal 120–277V input, and a removable designer cover. Three available color temperatures provide flexibility for a variety of lighting environments.
Features
- 26W LED linear luminaire
- 36-inch fixture length
- Produces 2,650 lumens
- 105.9 lm/W efficacy
- Available in 3000K, 4000K & 5000K
- CRI 80
- Universal 120–277V input
- Steel housing + acrylic lens
- Removable designer cover
- White finish
- Mercury free
- Damp location rated
- ETL Approved
- DLC Listed
- 50,000-hour average rated life
- 5-year module & driver manufacturer warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
| 3000K | Soft White | 2,650 lm |
| 4000K | Cool White | 2,650 lm |
| 5000K | Bright White | 2,650 lm |
Specifications
| Product Type | LED Linear Luminaire |
| Series | Linear Slim Luminaire Series |
| Nominal Size | 36 Inch |
| Power | 26W |
| Light Output | 2,650 lm |
| Efficacy | 105.9 lm/W |
| Input Voltage | 120–277V |
| Color Temperatures | 3000K / 4000K / 5000K |
| CRI | 80 |
| Housing | Steel |
| Lens | Acrylic |
| Finish | White |
| Dimensions | 36"L × 2.6"W × 2.5"H |
| Location Rating | Damp Location |
| Mercury Free | Yes |
| Average Lifetime | 50,000 Hours |
| Listings | ETL / DLC |
| Warranty | 5 Years – Module & Driver |
Available Models
| Model | Color Temperature |
| LR25143 | 3000K Soft White |
| LR25144 | 4000K Cool White |
| LR25145 | 5000K Bright White |
Applications
- Offices
- Commercial Interiors
- Retail Spaces
- Residential Interiors
- Hallways & Corridors
- Utility Areas
- General Interior Lighting
Why Choose the 26W Linear Slim Luminaire?
The 26W Linear Slim Luminaire delivers 2,650 lumens from a slim 36-inch fixture. Its narrow profile, removable designer cover, durable construction, and universal voltage operation provide a clean and versatile lighting solution for residential and commercial spaces.
