24W Micro Magnetic Linear Dot Light Series
24W Micro Magnetic Linear Dot Light Series
Couldn't load pickup availability

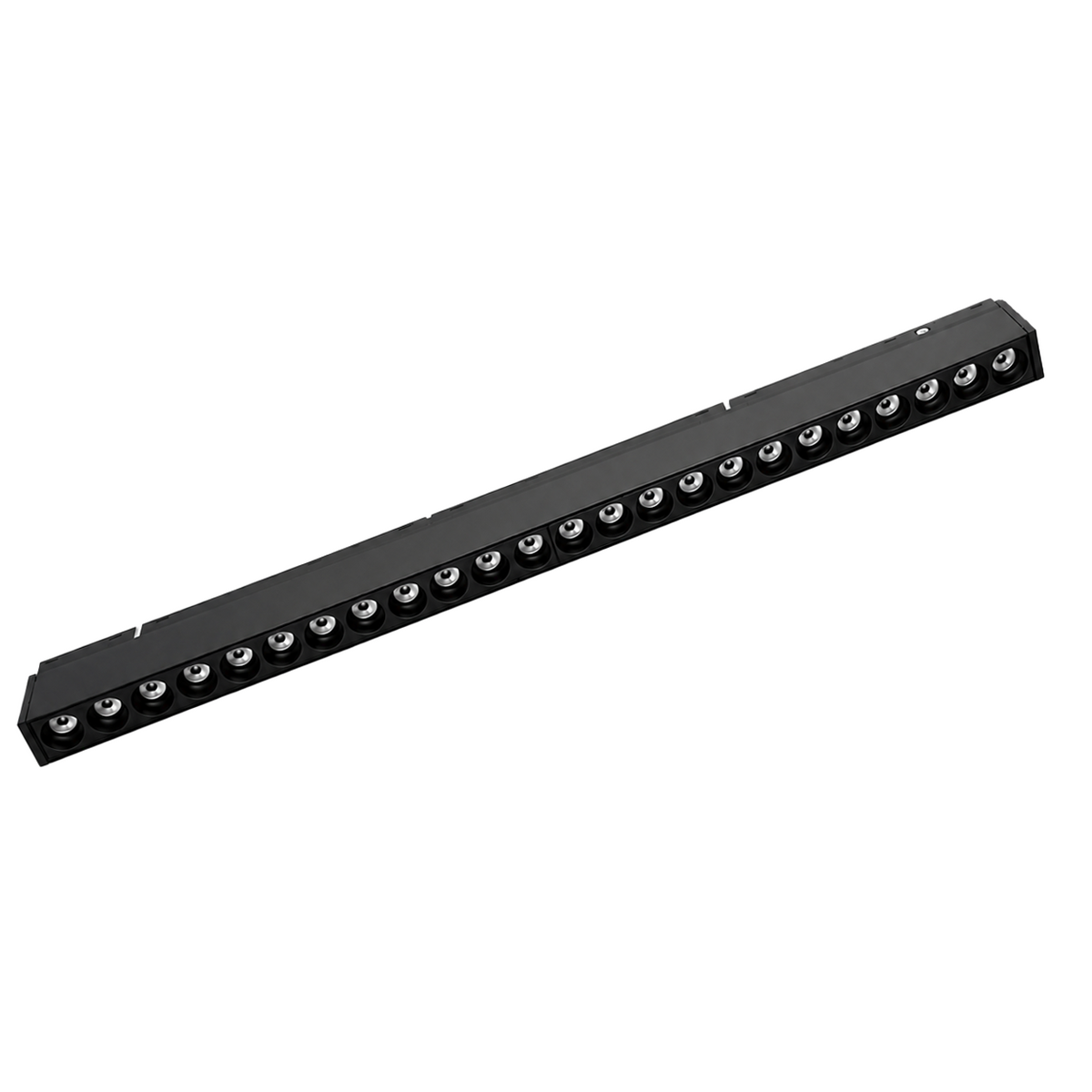

The 24W Micro Magnetic Linear Dot Light delivers high-output, precision accent illumination through 24 individually recessed LED optics. Designed for applications requiring greater light output and coverage, the DOT17 provides excellent beam control with reduced glare while maintaining a sleek architectural appearance.
Engineered for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick, tool-free repositioning and maximum lighting flexibility.
Features
- 24W Integrated LED
- DOT17 configuration with 24 recessed optics
- 2,832 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 24W | 17" (435 mm) | 2,832 lm | MCR-DOT17-24W-CCT-48V-MB |
| Matte White | 24W | 17" (435 mm) | 2,832 lm | MCR-DOT17-24W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Dot Light |
| Configuration | DOT17 |
| LED Optics | 24 |
| Power | 24W |
| Lumen Output | 2,832 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 17" (435 mm) |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for retail displays, jewelry showrooms, museums, galleries, luxury residences, hospitality spaces, restaurants, hotels, offices, and larger architectural accent-lighting applications.
What's Included
- 1 × 24W DOT17 Micro Magnetic Linear Dot Light
Magnetic track, power supply, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
