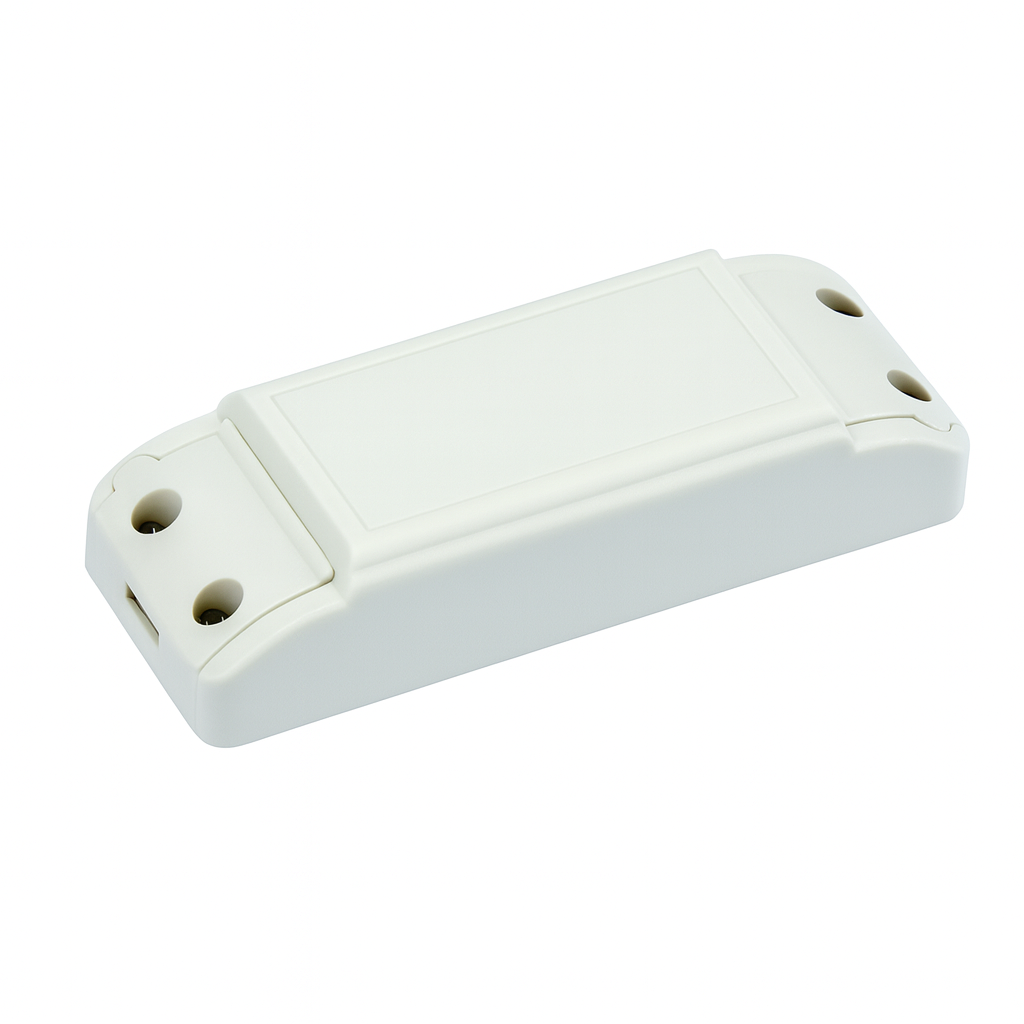

24-Watt Recessed Light Replacement Driver

The 12~24 watt Replacement Recessed Light Driver is designed to power 12–24 watt recessed LED fixtures and other low-voltage lighting applications. Built for indoor installations, this driver provides a stable constant current output with essential safety protections for reliable performance.

Key Features:

Wide Compatibility – Supports 12–24W recessed LED fixtures and similar DC-driven LED lights.

Stable Output – Provides DC 50–80V at 300mA ±5% for consistent brightness and efficiency.

Built-In Safety – Short-circuit and overload protection ensure safe operation.

Soft Start Technology – Helps extend the life of your LED fixtures.

Compact & Lightweight – Plastic housing with IP40 rating, ideal for dry, indoor environments.

Specifications:

Input Voltage: AC 100–277V, 50/60Hz

Output Voltage: DC 50–80V, 300mA ±5%

Maximum Load: 24W (12–24 × 1W LEDs)

Dimmable: No

DC Outputs: 1 plug

Housing: Plastic (IP40, indoor use only)

Dimensions: 114 × 44 × 27 mm

Weight: 0.20 lbs (91 g) – Shipping Weight: 0.30 lbs

Certifications: CE, RoHS

Model Number: SJ-24W-PAB-300

Applications: Best suited for recessed downlights, ceiling spotlights, and cabinet lighting in dry indoor environments.
