60W Luxrite Panelite-Emergency Series - 2'×4'
60W Luxrite Panelite-Emergency Series - 2'×4'
Couldn't load pickup availability

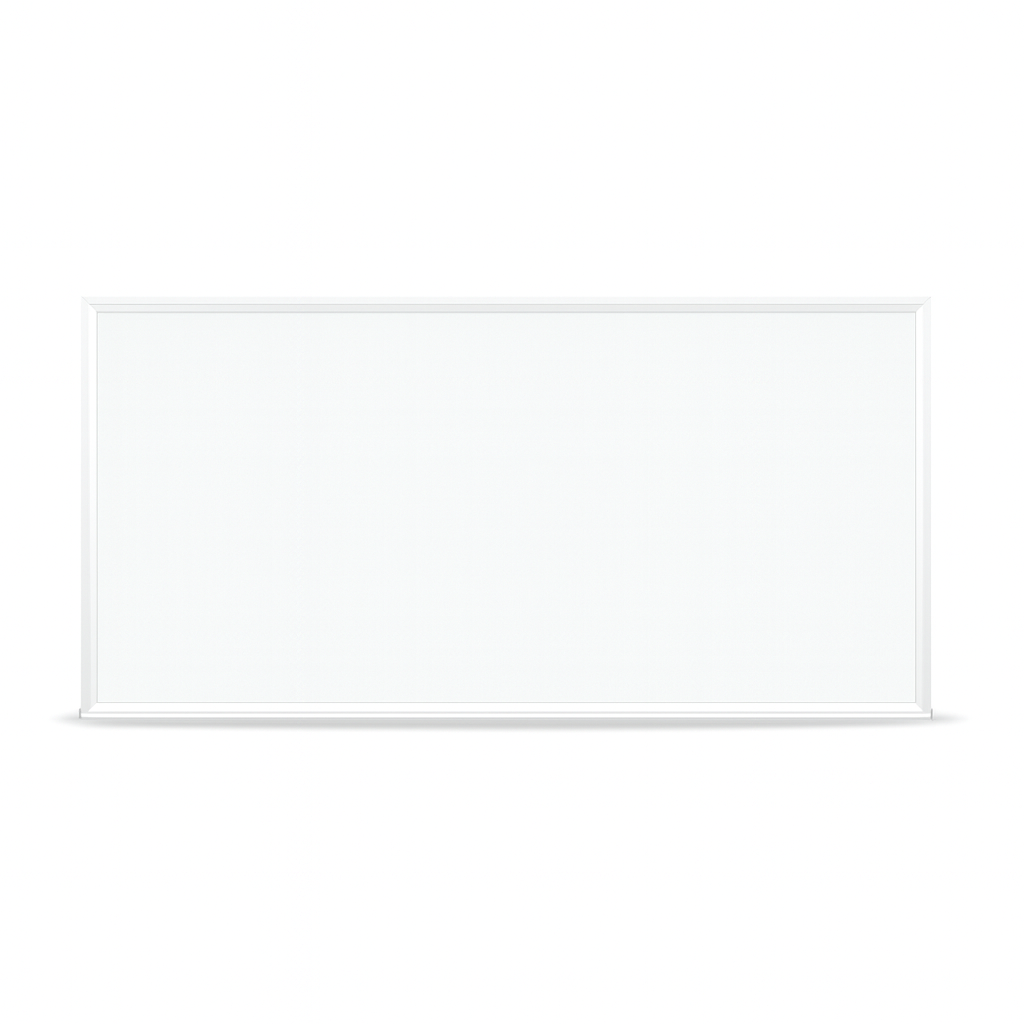

The 60W 2'×4' Luxrite LED Panelite-Emergency Series is a high-performance LED flat panel with an integrated emergency battery backup for dependable everyday and emergency illumination. Delivering 6,540–6,960 lumens depending on color temperature, the fixture provides powerful, efficient lighting for larger commercial and institutional environments.
Its ultra-slim 0.5-inch profile provides a clean architectural appearance, while 0–10V dimming and five available color temperatures offer flexibility for a variety of applications. During an emergency, the integrated battery backup provides up to 120 minutes of runtime with 10–17W emergency output.
Features
- 60W power consumption
- Produces 6,540–6,960 lumens depending on color temperature
- Integrated emergency battery backup
- Provides up to 120 minutes of emergency runtime
- 10–17W emergency output
- Available in 3000K / 3500K / 4000K / 5000K / 6500K
- CRI >80
- 0–10V dimmable
- 120–277V input voltage
- Power Factor >0.90
- 2.0' × 4.0' flat panel format
- Ultra-slim 0.5" profile
- Rated for approximately 50,000 hours
- DLC Listed
- UL & cUL Listed
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6500K | Cool Daylight |
Emergency Backup
| Emergency Feature | Specification |
|---|---|
| Battery Backup | Integrated |
| Emergency Runtime | Up to 120 Minutes |
| Emergency Output | 10–17W |
Specifications
| Product Type | LED Flat Panel with Emergency Backup |
|---|---|
| Series | Luxrite LED Panelite-Emergency |
| Panel Size | 2.0' × 4.0' |
| Profile Thickness | 0.5" (13 mm) |
| Wattage | 60W |
| Light Output | 6,540–6,960 lm |
| Color Temperature | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | >80 |
| Input Voltage | 120–277V |
| Dimming | 0–10V Dimmable |
| Power Factor | >0.90 |
| Emergency Backup | Integrated Battery Backup |
| Emergency Runtime | Up to 120 Minutes |
| Emergency Output | 10–17W |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | DLC Listed / UL Listed / cUL Listed |
Applications
- Conference Rooms
- Offices
- Hospitals & Healthcare Facilities
- Schools & Educational Facilities
- Retail Facilities
- Large Commercial Interiors
- Institutional Facilities
- Emergency Egress Lighting
- Areas Requiring Battery-Backup Illumination
Why Choose the Luxrite LED Panelite-Emergency Series?
The 60W 2.0-Foot × 4.0-Foot Luxrite LED Panelite-Emergency Series combines 6,540–6,960 lumens of powerful general illumination with an integrated emergency battery backup, providing both everyday lighting performance and emergency reliability from a single fixture. Its larger 2.0-foot × 4.0-foot format provides broad coverage for commercial and institutional spaces while maintaining an ultra-slim 0.5-inch profile.
With five color temperature options, CRI >80, 0–10V dimming, 120–277V operation, up to 120 minutes of emergency runtime, an approximately 50,000-hour rated lifespan, and DLC, UL, and cUL listings, the Panelite-Emergency Series provides a versatile solution for conference rooms, offices, hospitals, schools, retail facilities, and emergency lighting applications.
