Diamond Brite LEDs

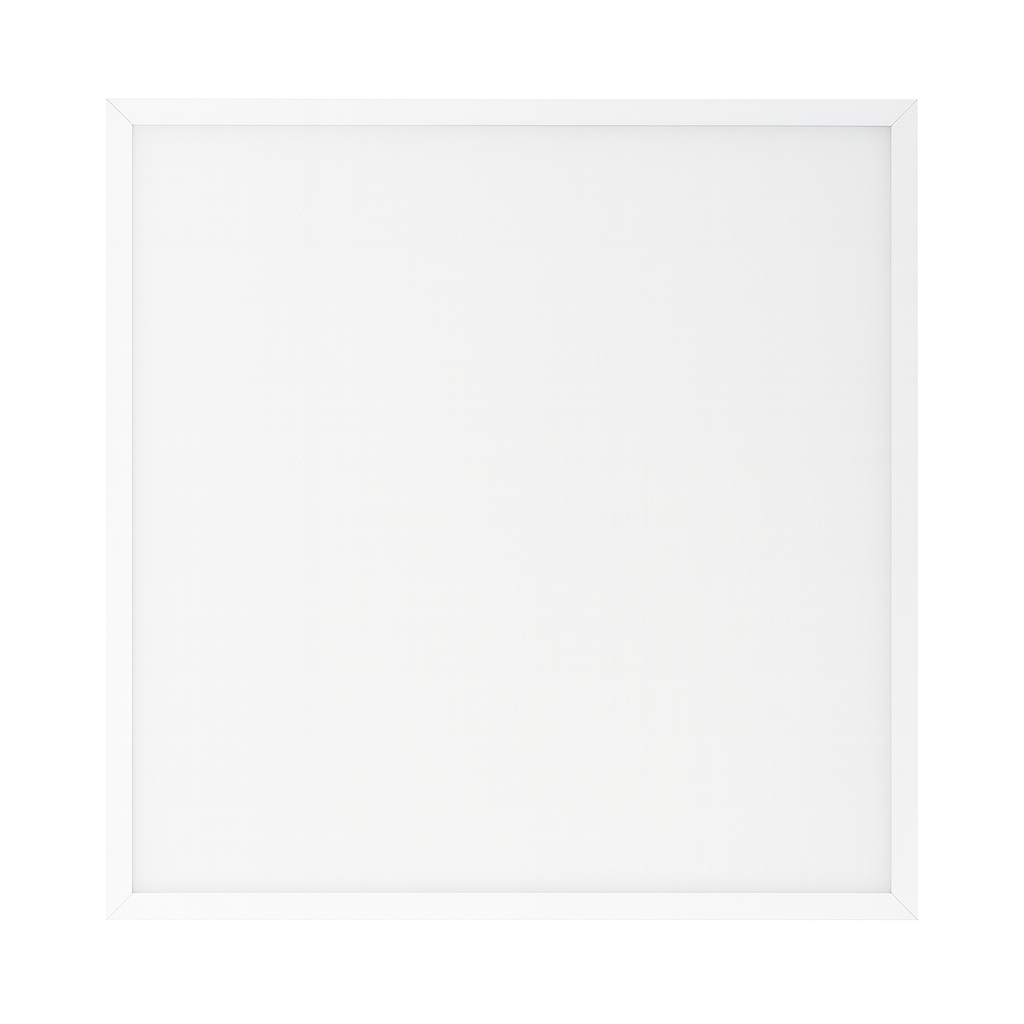

45W Luxrite Panelite-Emergency Series - 2'×2'
45W Luxrite Panelite-Emergency Series - 2'×2'
Couldn't load pickup availability
The 45W 2'×2' Luxrite LED Panelite-Emergency Series is a high-performance LED flat panel with an integrated emergency battery backup for dependable everyday and emergency illumination. Delivering 4,390–5,000 lumens depending on color temperature, the fixture combines efficient general lighting with emergency functionality for commercial and institutional environments.
Its ultra-slim 0.5-inch profile provides a clean architectural appearance, while 0–10V dimming and five available color temperatures offer flexibility for a variety of applications. During an emergency, the integrated battery backup provides up to 120 minutes of runtime with 10–17W emergency output.
Features
- 45W power consumption
- Produces 4,390–5,000 lumens depending on color temperature
- Integrated emergency battery backup
- Provides up to 120 minutes of emergency runtime
- 10–17W emergency output
- Available in 3000K / 3500K / 4000K / 5000K / 6500K
- CRI >80
- 0–10V dimmable
- 120–277V input voltage
- Power Factor >0.90
- 2.0' × 2.0' flat panel format
- Ultra-slim 0.5" profile
- Rated for approximately 50,000 hours
- DLC Listed
- UL & cUL Listed
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6500K | Cool Daylight |
Emergency Backup
| Emergency Feature | Specification |
|---|---|
| Battery Backup | Integrated |
| Emergency Runtime | Up to 120 Minutes |
| Emergency Output | 10–17W |
Specifications
| Product Type | LED Flat Panel with Emergency Backup |
|---|---|
| Series | Luxrite LED Panelite-Emergency |
| Panel Size | 2.0' × 2.0' |
| Profile Thickness | 0.5" (13 mm) |
| Wattage | 45W |
| Light Output | 4,390–5,000 lm |
| Color Temperature | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | >80 |
| Input Voltage | 120–277V |
| Dimming | 0–10V Dimmable |
| Power Factor | >0.90 |
| Emergency Backup | Integrated Battery Backup |
| Emergency Runtime | Up to 120 Minutes |
| Emergency Output | 10–17W |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | DLC Listed / UL Listed / cUL Listed |
Applications
- Schools & Educational Facilities
- Offices
- Hospitals & Healthcare Facilities
- Retail Spaces
- Commercial Interiors
- Institutional Facilities
- Emergency Egress Lighting
- Areas Requiring Battery-Backup Illumination
Why Choose the Luxrite LED Panelite-Emergency Series?
The 45W 2.0-Foot × 2.0-Foot Luxrite LED Panelite-Emergency Series combines 4,390–5,000 lumens of general illumination with an integrated emergency battery backup, providing both everyday lighting performance and emergency reliability from a single fixture. Its ultra-slim 0.5-inch profile maintains a clean architectural appearance while providing broad illumination for commercial and institutional environments.
With five color temperature options, CRI >80, 0–10V dimming, 120–277V operation, up to 120 minutes of emergency runtime, an approximately 50,000-hour rated lifespan, and DLC, UL, and cUL listings, the Panelite-Emergency Series provides a versatile solution for schools, offices, hospitals, retail spaces, and emergency egress lighting applications.
