20W Matrix Recessed Trimless Downlight Series – Single Head
20W Matrix Recessed Trimless Downlight Series – Single Head
Couldn't load pickup availability

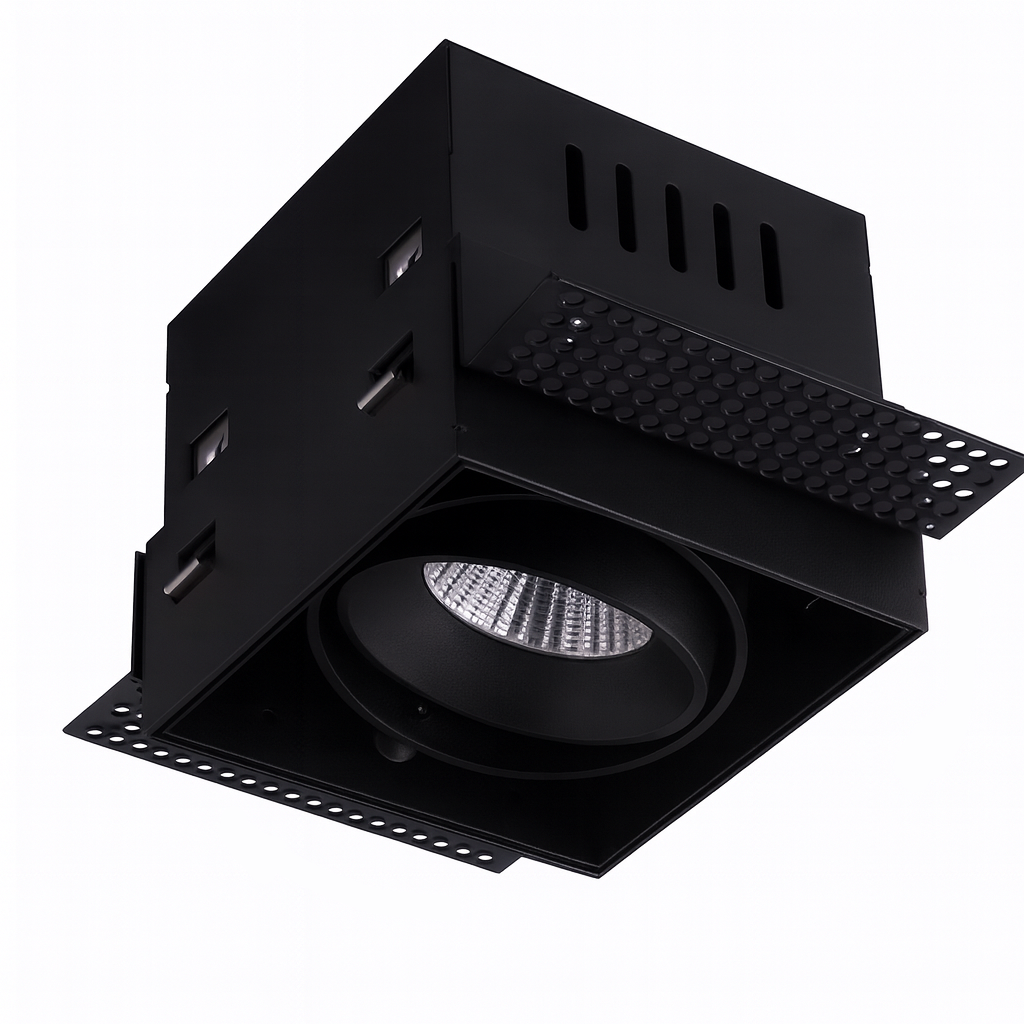

The 20W Matrix Recessed Trimless LED Downlight Series – Single Head is a high-performance architectural fixture designed for clean, minimalist recessed lighting applications. Its trimless adjustable head integrates seamlessly into the ceiling while allowing directional control for precise illumination of architectural features, displays, artwork, and interior spaces.
Powered by a 20W Cree CXA-1512 LED engine, the Matrix delivers more than 2,050 lumens with a deep recessed reflector for improved visual comfort. Multiple beam angles, four color temperature options, and optional CRI 90 provide flexibility for residential, hospitality, retail, and commercial lighting applications.
Features
- 20W Cree CXA-1512 LED engine
- Single adjustable head

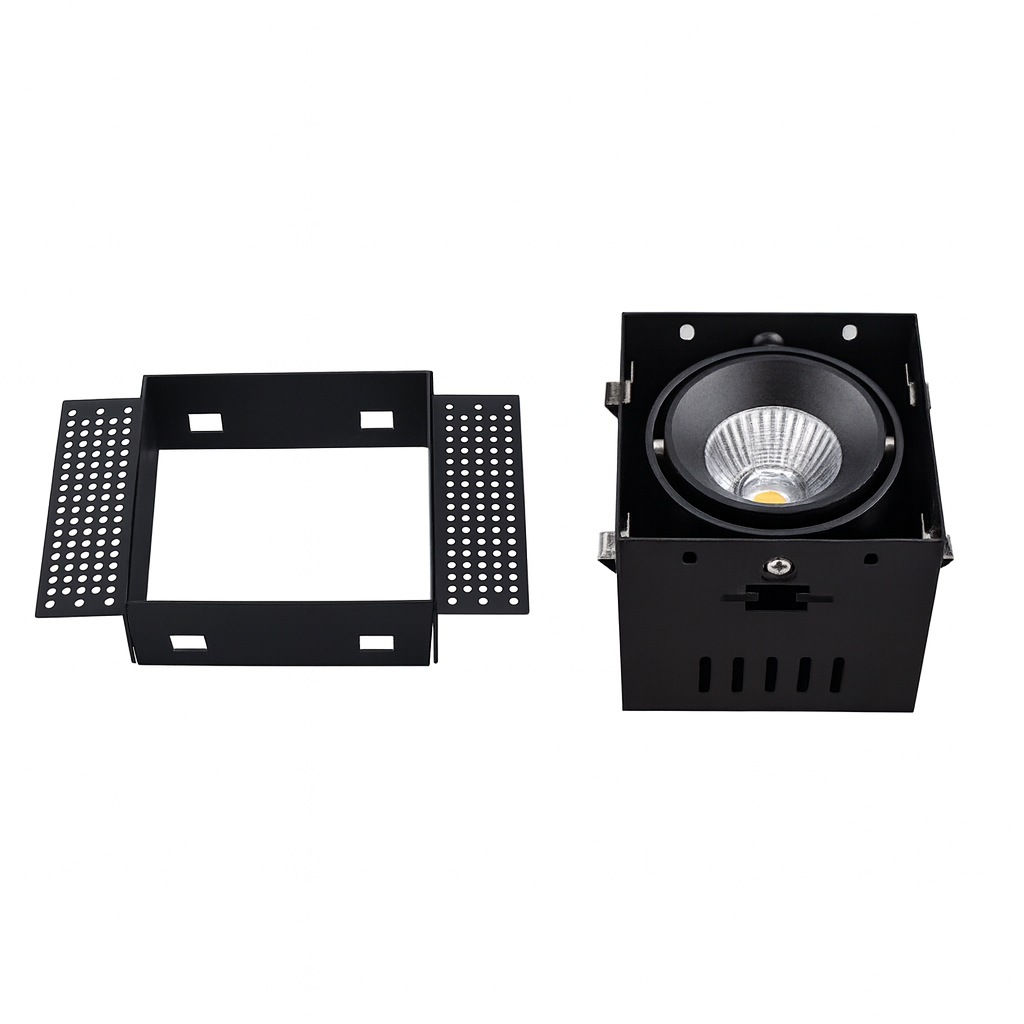

- Trimless recessed architectural design
- Deep recessed reflector design
- Produces more than 2,050 lumens
- Available in 15°, 24° & 38° beam angles
- Available in 2700K, 3000K, 4000K & 5000K
- CRI >80
- CRI 90 optional
- Prewired with black/red cable & connector
- Durable aluminum construction
- Available in Texture White and Texture Black
- Supports ceiling thickness from 3/16"–1" (5–25 mm)
- Minimum ceiling void of 5.9" (150 mm)
Color Temperature Options
| Color Temperature | Description |
| 2700K | Warm White |
| 3000K | Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
Beam Angle Options
- 15° – Narrow Spot
- 24° – Spot
- 38° – Flood
Finish Options
- Texture White
- Texture Black
Specifications
| Product Type | Recessed Trimless Adjustable LED Downlight |
| Series | Matrix Series |
| Head Configuration | Single Head |
| Power | 20W |
| LED Engine | Cree CXA-1512 |
| Light Output | >2,050 lm |
| Input | 450mA / 36V |
| Color Temperatures | 2700K / 3000K / 4000K / 5000K |
| CRI | >80 (90 Optional) |
| Beam Angles | 15° / 24° / 38° |
| Body Material | Aluminum |
| Fixture Size | 4.5" × 4.5" × 3.9" H (115 × 115 × 100 mm) |
| Cutout | 4.6" × 4.6" (118 × 118 mm) |
| Ceiling Thickness | 3/16"–1" (5–25 mm) |
| Minimum Ceiling Void | 5.9" (150 mm) |
| Finish | Texture White / Texture Black |
| Wiring | Prewired with Black/Red Cable & Connector |
| Compliance | EN60598-1:2008+A11:2009 / EN60598-2-5:1998 |
Applications
- Luxury Residential Interiors
- Retail Stores
- Jewelry Showrooms
- Hotels
- Restaurants
- Hospitality Spaces
- Offices
- Commercial Interiors
- Architectural Lighting
- Accent Lighting
- Artwork & Display Lighting
Why Choose the 20W Matrix Series?
The 20W Recessed Trimless Matrix LED Downlight delivers more than 2,050 lumens from a compact single-head architectural fixture. Its trimless construction creates a clean ceiling appearance, while the adjustable head allows illumination to be precisely directed where needed.
With a Cree CXA-1512 LED engine, 15°, 24°, and 38° beam options, four available color temperatures, optional CRI 90, and Texture White or Texture Black finishes, the 20W Matrix provides a flexible solution for sophisticated residential and commercial lighting installations.
