2-Inch Recessed Linear Xtreme Series
2-Inch Recessed Linear Xtreme Series
Couldn't load pickup availability

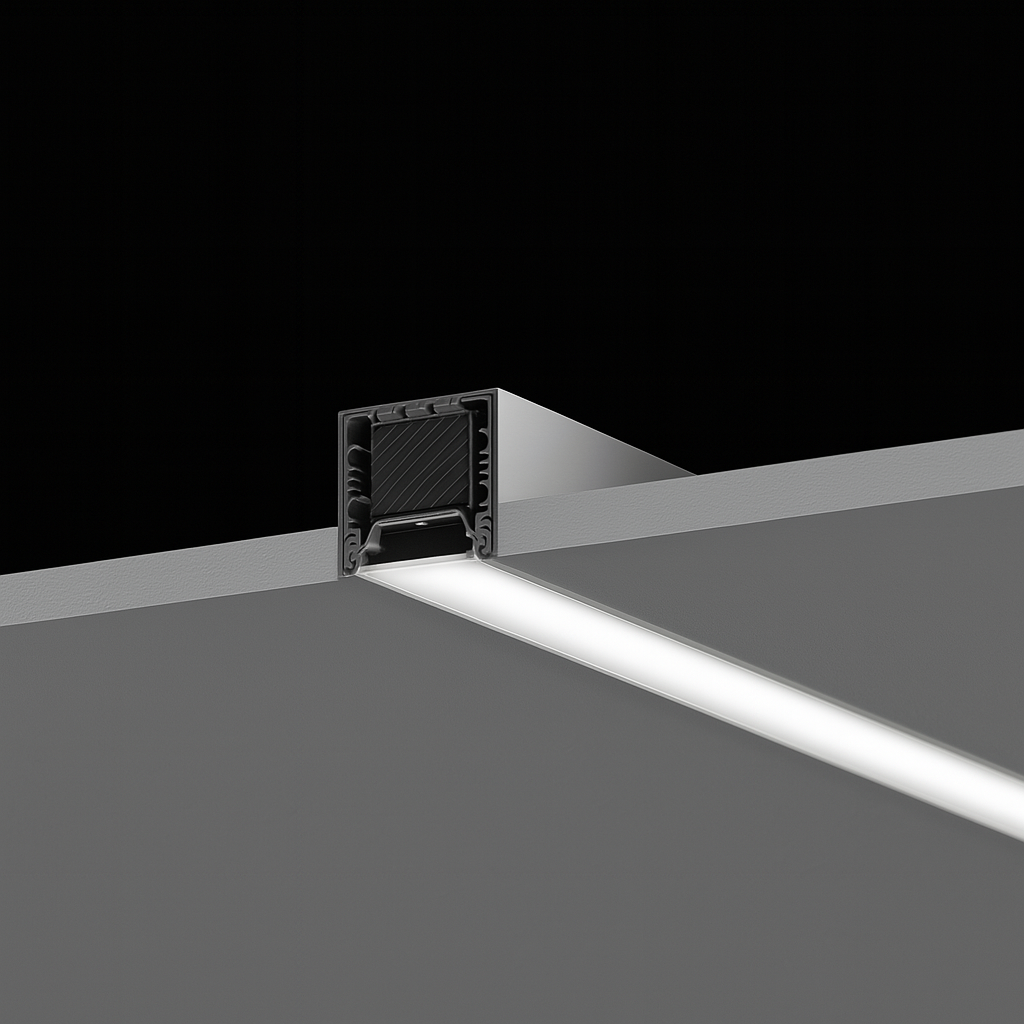

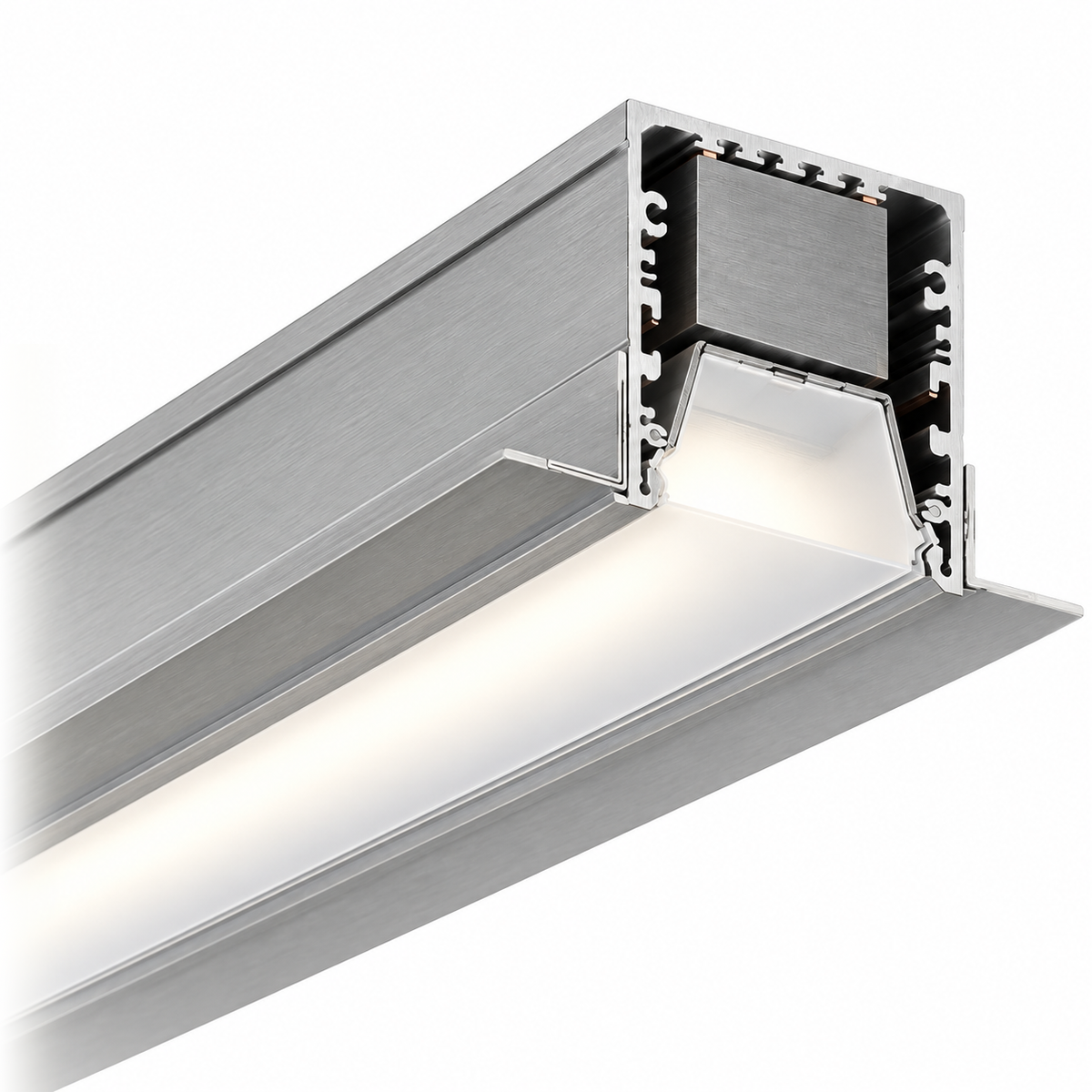

The 2-Inch Recessed Linear Xtreme Series is a high-performance architectural linear LED fixture designed for clean, continuous recessed lighting installations. Featuring a compact 2" aperture, high-transmission frosted lens, and extruded aluminum housing, the series delivers smooth, uniform illumination without visible diode imaging or exposed fasteners.
Five LED drive packages are available, ranging from 4W/FT and 400 lumens per foot to 12W/FT and 1,155 lumens per foot. Multiple color temperatures, mounting systems, dimming configurations, and continuous-run lengths provide extensive flexibility for commercial and architectural lighting projects.
Features
- 2" aperture recessed linear fixture
- Five output packages from 4W/FT to 12W/FT
- Produces up to 1,155 lumens per foot
- High-transmission frosted lens with no visible diode imaging
- Uniform light distribution
- No visible fasteners
- Durable extruded aluminum housing
- Multiple dimming and driver options
- Color temperatures from 2700K to 6500K
- Optional 90+ CRI LED boards
- Less than 2-step MacAdam Ellipse binning
- Standard lengths from 1' to 8'
- Nearly limitless continuous-run configurations
- Universal 120–277V operation
- UL Listed for dry & damp locations
- 5-year system warranty
LED Drive & Output Options
| Output | Power | Light Output | Code |
| Very Low Output | 4W/FT | 400 lm/FT | VLO |
| Low Output | 6W/FT | 605 lm/FT | LO |
| Standard Output | 8W/FT | 795 lm/FT | SO |
| High Output | 10W/FT | 995 lm/FT | HO |
| Very High Output | 12W/FT | 1,155 lm/FT | VHO |
Color Temperature Options
| Color Temperature | Ordering Code |
| 2700K | 27K |
| 3000K | 30K |
| 3500K | 35K |
| 4000K | 40K |
| 5000K | 50K |
| 6500K | 65K |
Mounting Options
| Mounting | Ordering Code |
| Drywall Mud-In | DMI |
| 15/16" Grid ACT | ACT15 |
| 9/16" Grid ACT | ACT9 |
Length Options
- 1'
- 2'
- 3'
- 4'
- 5'
- 6'
- 7'
- 8'
- Continuous Run – Specify Nominal Length
Driver & Dimming Options
| Driver Option | Ordering Code |
| Non-Dimming | ND |
| 0–10V Dimming to 10% | 10D |
| 0–10V Dimming to 1% | 1D |
| Lutron EcoSystem 1% Soft-On | LDE1 |
| Lutron EcoSystem 5% 5-Series | LDE5 |
| DALI Digital Addressable Lighting Interface | DALI |
Finish Options
| Finish | Ordering Code |
| Satin White – Standard | SW |
| Custom Finish | CF |

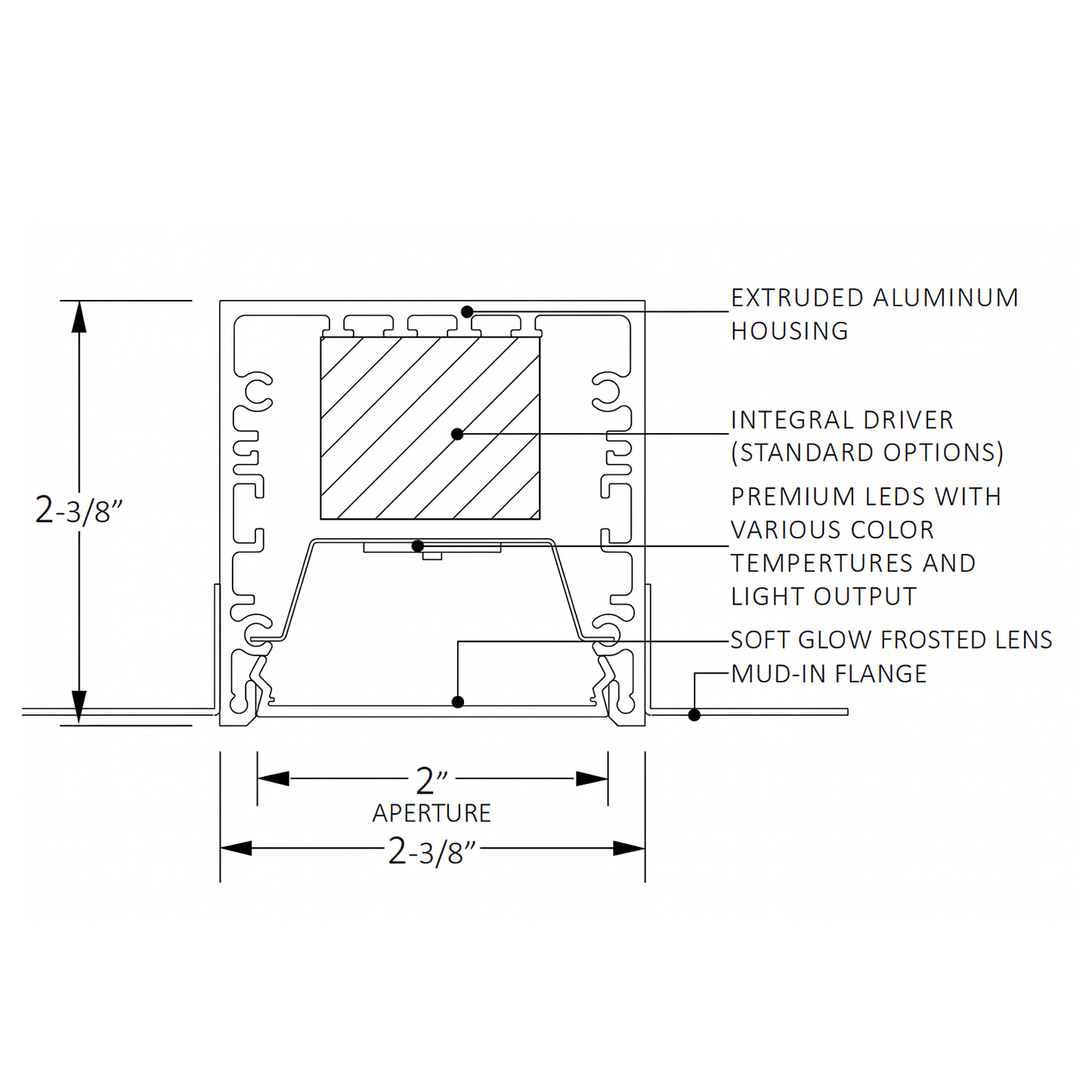

Specifications
| Product Type | Recessed Linear LED Luminaire |
| Series | 2-Inch Recessed Linear Xtreme Series |
| Fixture Type | 2LNRXTRM |
| Aperture | 2" |
| Overall Width | 2-3/8" |
| Overall Height | 2-3/8" |
| Power Options | 4W/FT / 6W/FT / 8W/FT / 10W/FT / 12W/FT |
| Light Output | 400–1,155 lm/FT |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | 90+ CRI Option Available |
| Voltage | Universal 120–277V |
| Housing | Extruded Aluminum |
| Lens | High-Transmission Soft Glow Frosted Lens |
| Standard Lengths | 1' / 2' / 3' / 4' / 5' / 6' / 7' / 8' |
| Continuous Runs | Available |
| Location Rating | Dry & Damp Locations |
| Certification | UL Listed |
| Warranty | 5-Year System Warranty |
Optional Customization
- 7W Emergency Battery Backup – Approximately 600 Lumens
- 12W Emergency Battery Backup – Approximately 1,000 Lumens
- 90+ CRI LED Boards
- Corners & Patterns
- Custom Driver
- Custom Project Configurations
- Nlight Air
- Enlighted
- Wavelinx
- Lutron Vive
Applications
- Architectural Lighting
- Commercial Interiors
- Office Lighting
- Retail Spaces
- Hospitality Lighting
- Continuous Linear Lighting
- Recessed Ceiling Lighting
- Accent & General Illumination
Why Choose the 2-Inch Linear Xtreme Series?
The 2-Inch Recessed Linear Xtreme Series combines a compact architectural profile with five selectable LED output packages, allowing lighting performance to be tailored to the requirements of each project. Output ranges from an efficient 400 lumens per foot at 4W/FT to a high-output 1,155 lumens per foot at 12W/FT.
With multiple color temperatures, several dimming systems, three mounting configurations, standard and continuous-run lengths, optional 90+ CRI LEDs, and extensive customization capabilities, the 2-Inch Linear Xtreme Series provides a flexible recessed linear lighting solution for modern architectural and commercial projects.
