Diamond Brite LEDs
5W MR1L Micro Nugget Recessed Downlight Series
5W MR1L Micro Nugget Recessed Downlight Series
Couldn't load pickup availability

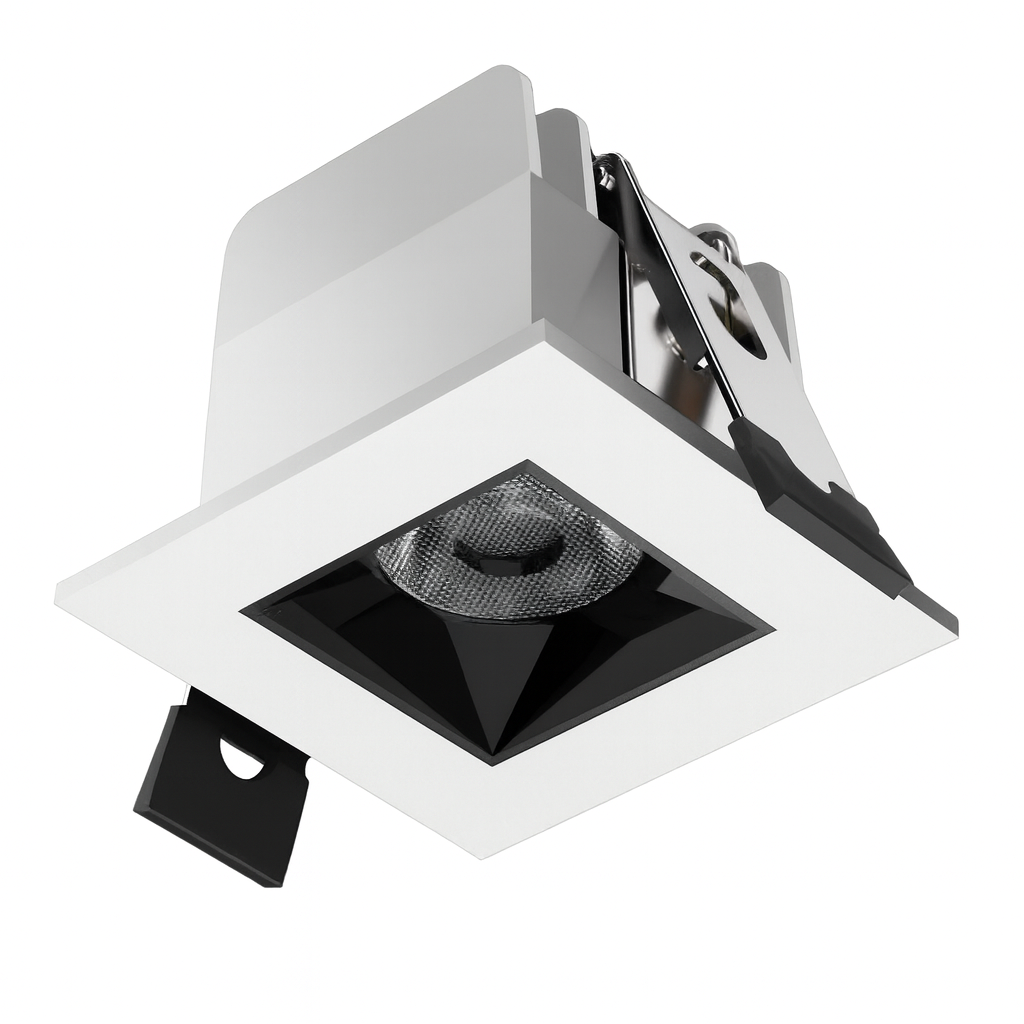

The 5W MR1L Micro Nugget Recessed Downlight Series is a compact recessed LED downlight designed for small accent areas and architectural spaces. With a 2.5" aperture and 5W power rating, it delivers clean, low-glare illumination in a discreet, minimalist form.
Designed for 120V applications, the Micro Nugget is available in multiple color temperatures from 2700K to 6500K and offers customizable trim and reflector combinations. An included junction box with integrated dimmable remote driver simplifies installation for residential and commercial lighting projects.
Features
- Compact 2.5" recessed aperture
- 5W LED power
- 120V operation
- Color temperature options from 2700K–6500K
- Designed for clean, low-glare illumination
- Black or White fixture trim options

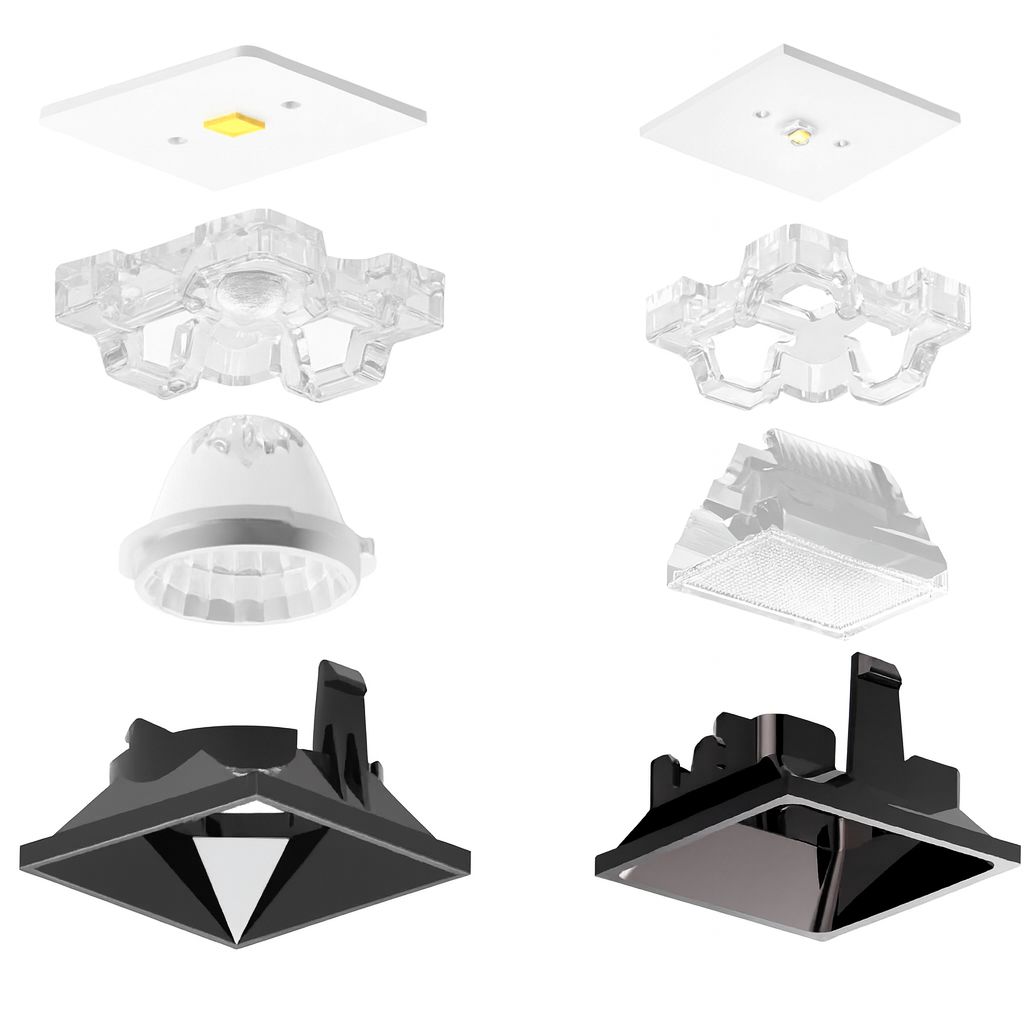

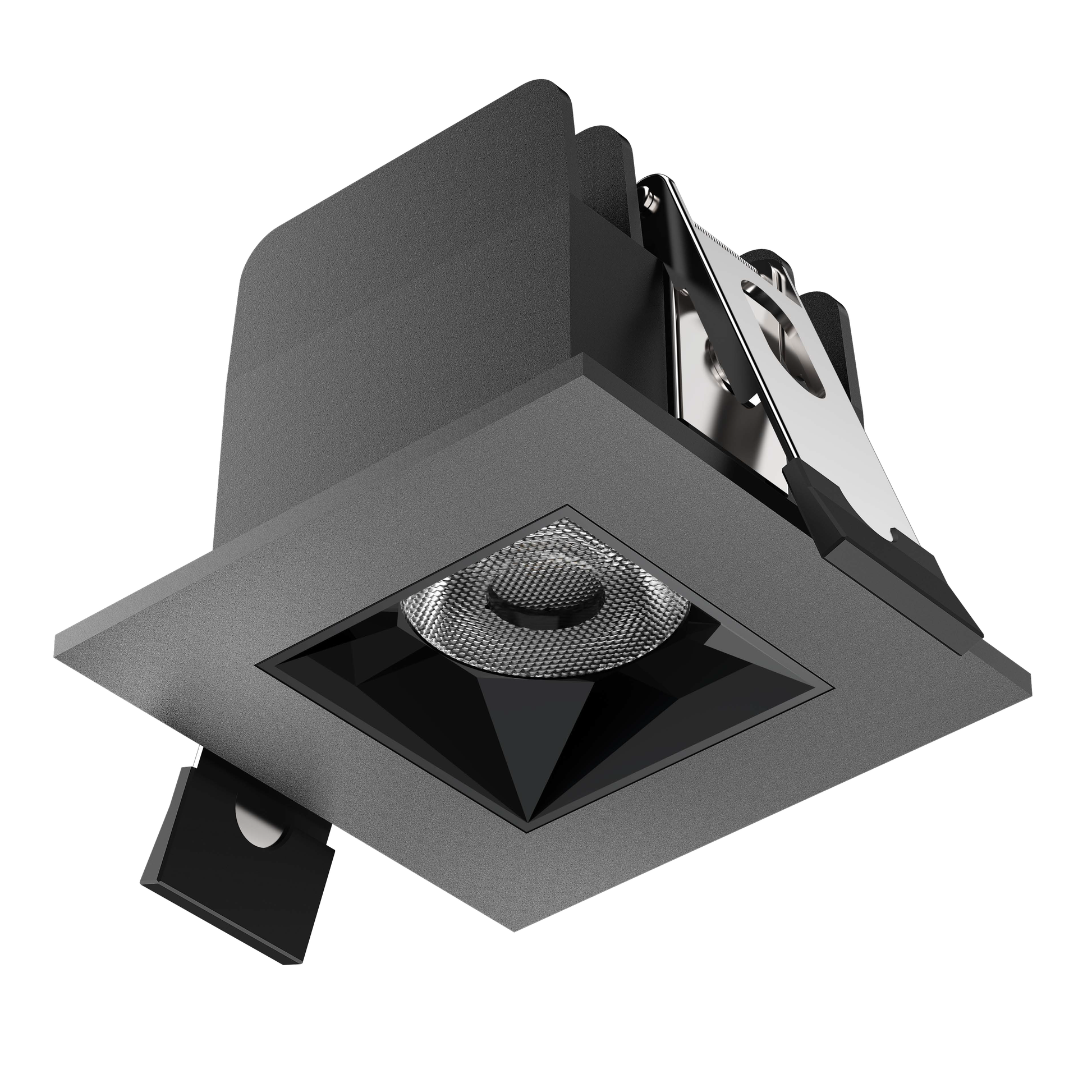

- Black, White, or Standard Gun Metal reflector options
- Junction box included
- Integrated dimmable remote driver
- IC rated
- Damp location rated
- 5-year warranty
Finish & Reflector Options
| Component | Available Options |
|---|---|
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
Specifications
| Product Type | Recessed LED Downlight |
|---|---|
| Series / Model | MR1L Micro Nugget |

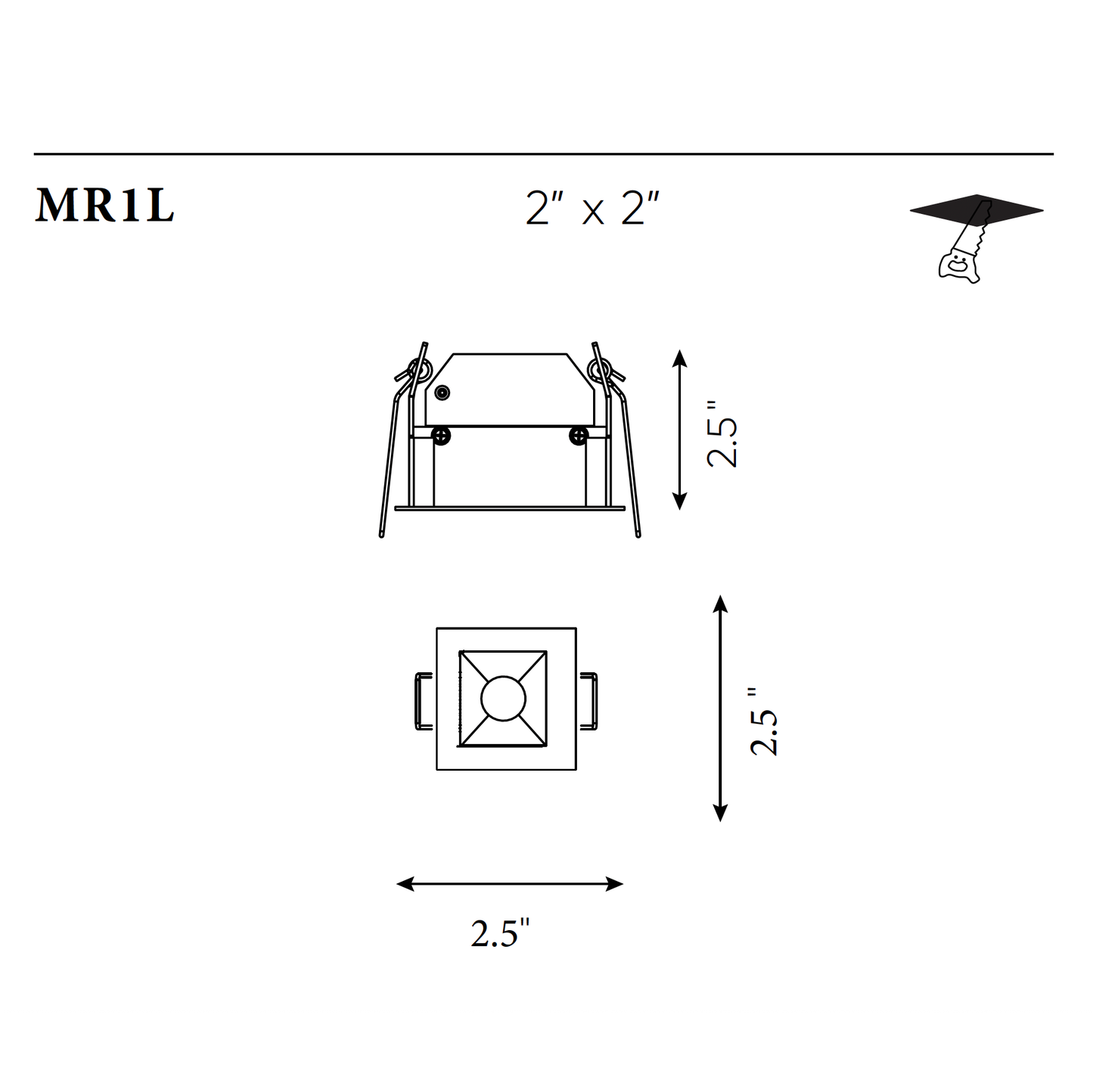

| Aperture Size | 2.5" (64 mm) |
| Power | 5W |
| Voltage | 120V |
| Color Temperature | 2700K–6500K |
| Dimming | Dimmable |
| Driver | Integrated Remote Driver |
| Junction Box | Included |
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
| IC Rating | IC Rated |
| Location Rating | Damp Location |
| Warranty | 5 Years |
Applications
- Architectural Accent Lighting
- Residential Interiors
- Commercial Interiors
- Hallways and Corridors
- Display Areas
- Hospitality Spaces
- Small Accent Areas
- Minimalist Ceiling Designs
Why Choose the MR1L Micro Nugget?
The MR1L Micro Nugget combines a compact 2.5" aperture with efficient 5W LED performance, making it ideal for applications where discreet, low-glare accent lighting is desired. Multiple trim, reflector, and color temperature options allow the fixture to integrate cleanly into a variety of architectural interiors.
With an included junction box, integrated dimmable remote driver, IC rating, damp-location rating, and a 5-year warranty, the MR1L Micro Nugget provides a flexible recessed lighting solution for residential, commercial, hospitality, and architectural applications.
