Diamond Brite LEDs
15W TrimLux Interlocking Trimless High Output Module Series – 2 Inch
15W TrimLux Interlocking Trimless High Output Module Series – 2 Inch
Couldn't load pickup availability

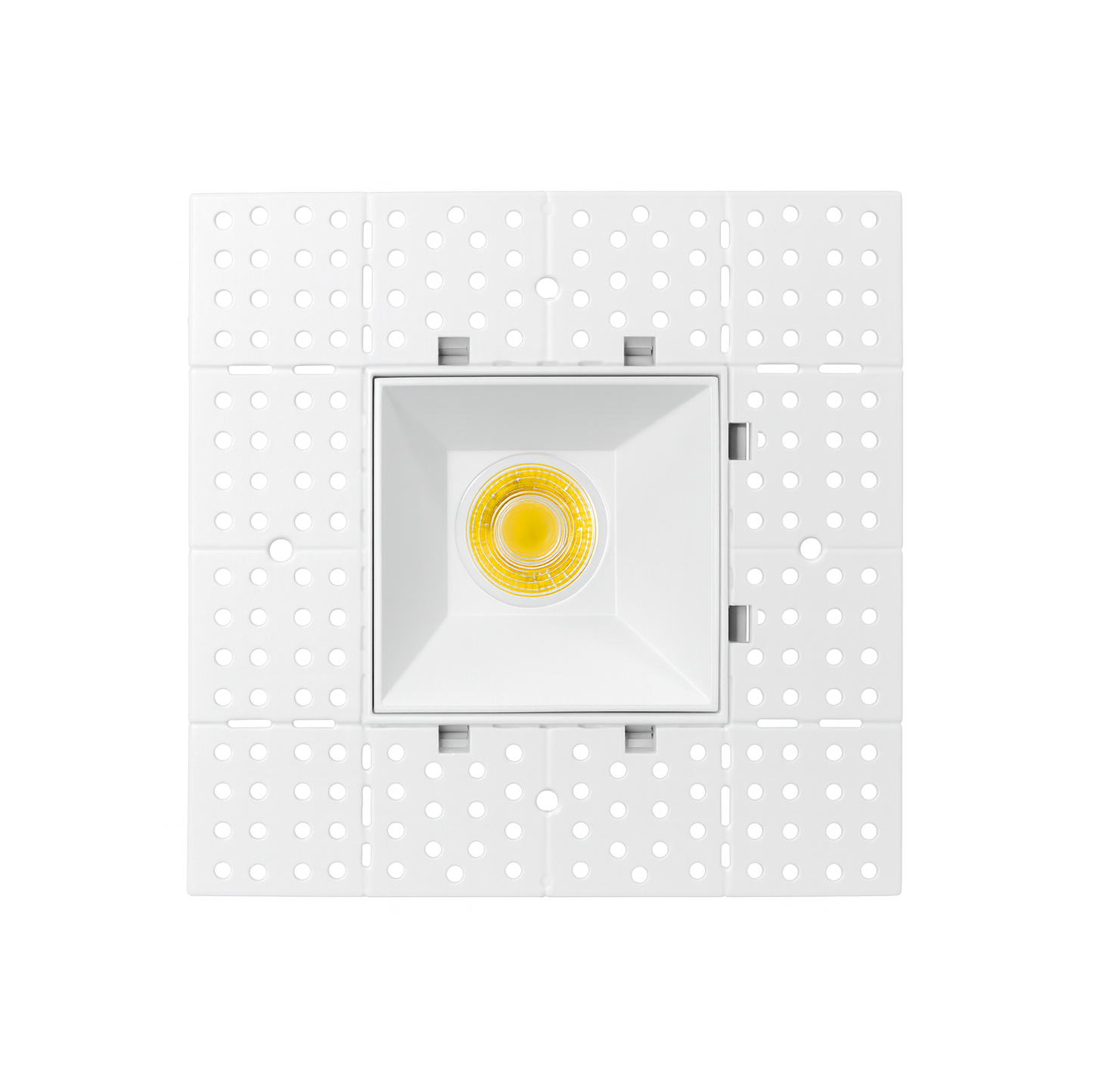

The 15W TrimLux Interlocking Trimless High Output Module Series provides powerful illumination from a compact 2-inch architectural aperture. Designed as the high-output version of the 2-inch TrimLux module, it produces 1,000 lumens while maintaining the same clean, trimless architectural appearance.

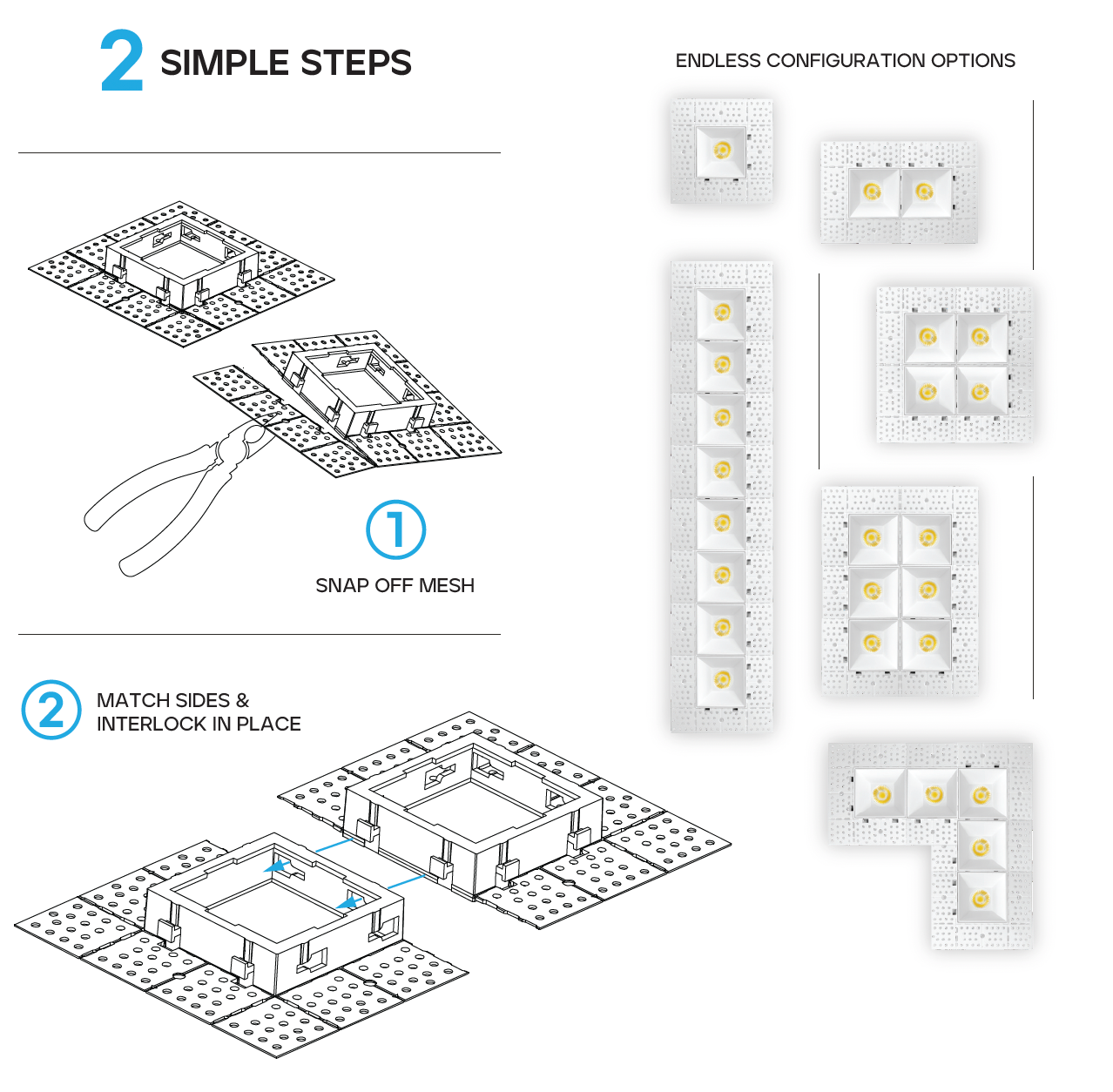

The interlocking mesh system allows multiple modules to connect together for custom lighting configurations. With 5-CCT selectable technology, CRI 90 color rendering, and a 38° flood beam, the high-output TrimLux provides versatile illumination for demanding residential and commercial applications.
Features
- 15W High Output LED
- Produces 1,000 lumens
- 2-inch High Output trimless module
- 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI 90
- 38° flood beam
- 120V operation
- Dimmable
- IC rated
- Air tight
- Wet location rated
- Canless installation
- Interlocking trimless mesh system
- ETL Listed
- 50,000-hour rated life
- 5-year warranty
Color Temperature Options
| Setting | Description |
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Neutral Warm White |
| 4000K | Neutral White |
| 5000K | Cool White |
Specifications
| Product Type | High Output Canless Trimless LED Spotlight |
| Series | TrimLux Interlocking Trimless High Output Module Series |
| Model | LR25480 |
| Size | 2" High Output |
| Power | 15W |
| Light Output | 1,000 lm |
| Efficacy | 67 lm/W |
| Input Voltage | 120V |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90 |
| Beam Angle | 38° Flood |
| Dimming | Dimmable |
| Location Rating | Wet Location Rated |
| IC Rating | IC Rated |
| Construction | Air Tight |

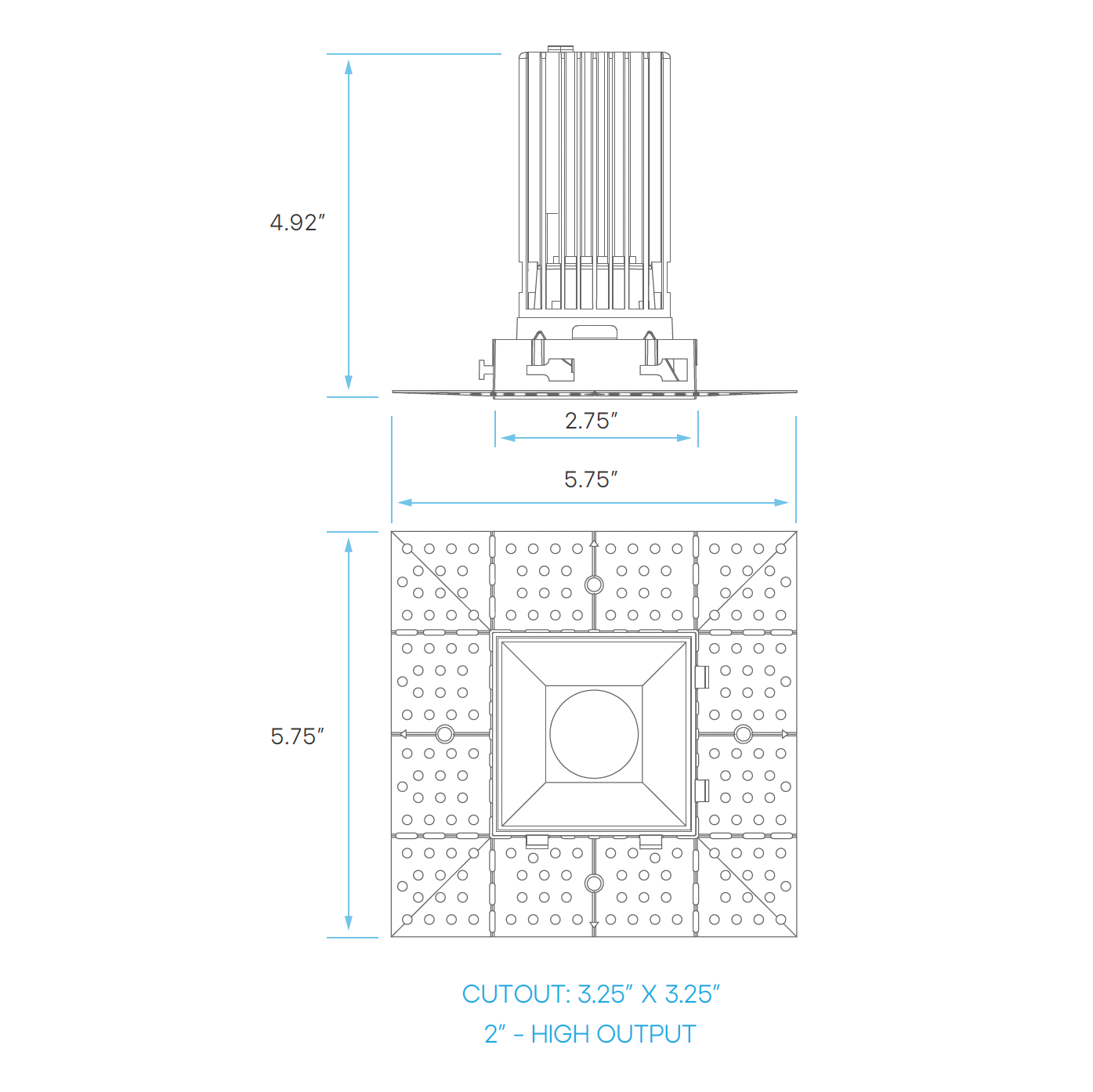

| Cutout | 3.25" × 3.25" |
| Rated Life | 50,000 Hours |
| Listing | ETL Listed |
| Warranty | 5 Years |
Applications
- High-Output Accent Lighting
- Retail Displays
- Restaurants
- Hotels
- Residential Interiors
- Commercial Interiors
- Architectural Lighting
- Custom Multi-Light Configurations
Why Choose the 15W 2" High Output TrimLux?
The 15W 2-inch High Output TrimLux delivers 1,000 lumens from a compact trimless aperture, making it ideal where greater light output is required without increasing the visible fixture size. Its interlocking construction also allows it to become part of larger custom architectural lighting arrangements.
