11W/FT Linea Wide Trimless Architectural TLP-5018 Series
11W/FT Linea Wide Trimless Architectural TLP-5018 Series
Couldn't load pickup availability

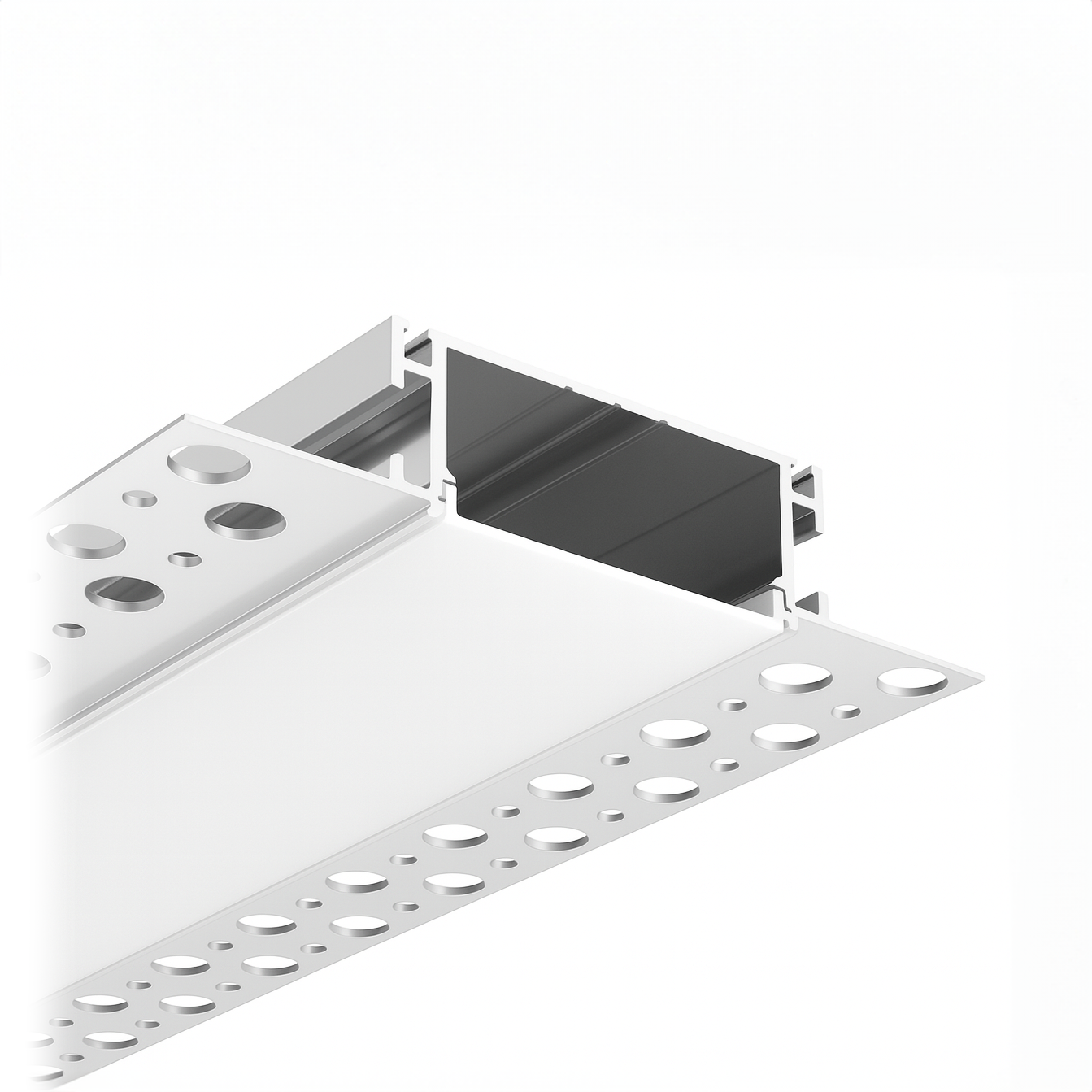

The 11W/FT Linea Wide Trimless Architectural TLP-5018 Series is a high-output recessed linear LED luminaire designed for seamless architectural lighting installations. Delivering up to 1,760 lumens per foot while consuming only 11 watts per foot, the TLP-5018 provides powerful illumination in a clean trimless profile for residential and commercial environments.
Operating on 42V constant current, the TLP-5018 Series features a broad 110° beam angle, dimming capability, multiple high-CRI color temperature options, and three optical lens choices. Standard lengths are available from 24" to 120", with custom lengths available in 2" (50 mm) increments.
Features
- 11W per foot power consumption
- Produces up to 1,760 lumens per foot
- High-output LED light engine
- Wide trimless recessed architectural profile
- 110° beam angle
- Dimmable
- Cuttable every 2" (50 mm)
- Custom lengths available from 24" to 120" in 2" increments
- Standard lengths: 24", 36", 48", 78", 96" & 120"
- Color temperatures from 2700K to 6500K
- High CRI options up to CRI 95
- Frost, Semi-Clear & Clear optics
- 42V constant-current operation
- IP54 rated
- UL Listed for wet locations
- Suitable for indoor & outdoor applications
Color Temperature & CRI Options
| LED Color | Description | CRI |
| 2700K | Warm White | CRI 95 |
| 3000K | Soft White | CRI 95 |
| 4200K | Neutral White | CRI 90 |
| 5000K | Cool White | CRI 88 |
| 6500K | Bright White | CRI 85 |
Optics Options
| Optic | Ordering Code |
| Frost | FC |
| Semi-Clear | SC |
| Clear | CL |
Standard Length Options
| Length | Ordering Code |
| 24" | 2 |
| 36" | 3 |
| 48" | 4 |
| 78" | 6 |
| 96" | 8 |
| 120" | 10 |
Custom lengths are available from 24" to 120" in 2" (50 mm) increments.
Specifications
| Product Type | Trimless Recessed Linear LED Luminaire |
| Series | Linea Wide Trimless Architectural TLP-5018 Series |
| Model | TLP-5018 |
| Power Consumption | 11W/FT |
| Maximum Light Output | Up to 1,760 lm/FT |
| Operation | 42V Constant Current |
| Mounting | Recessed / Trimless |
| Beam Angle | 110° |
| Dimming | Dimmable |
| Standard Lengths | 24" / 36" / 48" / 78" / 96" / 120" |
| Custom Lengths | 24"–120" in 2" (50 mm) Increments |
| Cut Interval | 2" (50 mm) |
| Color Temperatures | 2700K / 3000K / 4200K / 5000K / 6500K |
| CRI | 85–95 Depending on CCT |
| Optics | Frost / Semi-Clear / Clear |
| IP Rating | IP54 |
| Location Rating | Wet Location |
| Certification | UL Listed |
Profile Dimensions
| Overall Width | 90 mm |
| Profile Width | 50 mm |
| Internal Width | 47 mm |
| Overall Height | 18 mm |
| Internal Height | 15.6 mm |
Applications
- Architectural Lighting
- Ceiling Lighting
- Accent Lighting
- Area & General Lighting
- Office Lighting
- Commercial Interiors
- Recessed Linear Lighting
- Residential Architectural Lighting
- Suitable Indoor & Outdoor Applications
Why Choose the TLP-5018 Series?
The Linea Wide Trimless Architectural TLP-5018 Series combines a clean recessed architectural profile with high-output 11W per foot performance, producing up to 1,760 lumens per foot. Its broad 110° beam angle provides smooth, widespread illumination while the trimless construction integrates cleanly into modern architectural surfaces.
With six standard lengths, custom sizing in 2" increments, multiple high-CRI color temperatures, three optical lens choices, dimming capability, IP54 protection, and 42V constant-current operation, the TLP-5018 provides a flexible high-output solution for residential and commercial architectural lighting projects.
