72W Luxrite Panelite Series - 2'×4'
72W Luxrite Panelite Series - 2'×4'
Couldn't load pickup availability

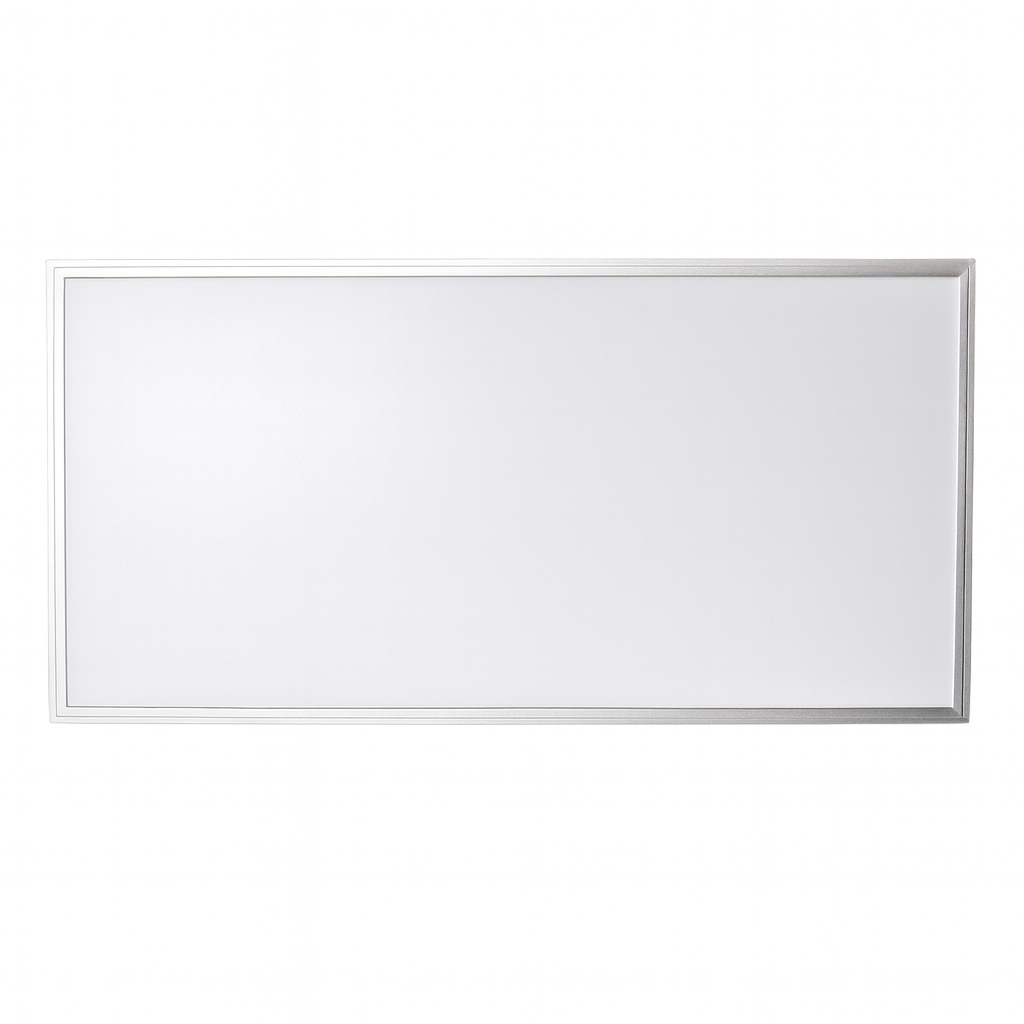

The 72W 2'×4' Luxrite LED Panelite Series is the largest panel in the series, delivering 7,100–7,920 lumens of powerful, efficient illumination. Its expansive 2.0-foot × 4.0-foot format and ultra-slim profile make it an ideal lighting solution for auditoriums, conference rooms, large offices, schools, hospitals, and other commercial or institutional environments.
Available in 3000K, 3500K, 4000K, 5000K, and 6500K color temperature options, the Panelite Series provides flexibility for a wide range of lighting environments. Its 0–10V dimming capability allows adjustable light levels, while optional surface, suspension, and flange kits provide additional installation flexibility.
Features
- 72W power consumption
- Produces 7,100–7,920 lumens
- Largest panel format in the Luxrite LED Panelite Series
- Available in 3000K / 3500K / 4000K / 5000K / 6500K
- CRI 83
- 0–10V dimmable
- 2.0' × 4.0' flat panel format
- Ultra-slim 0.5" profile
- Rated for approximately 50,000 hours
- DLC Listed
- UL & cUL Listed

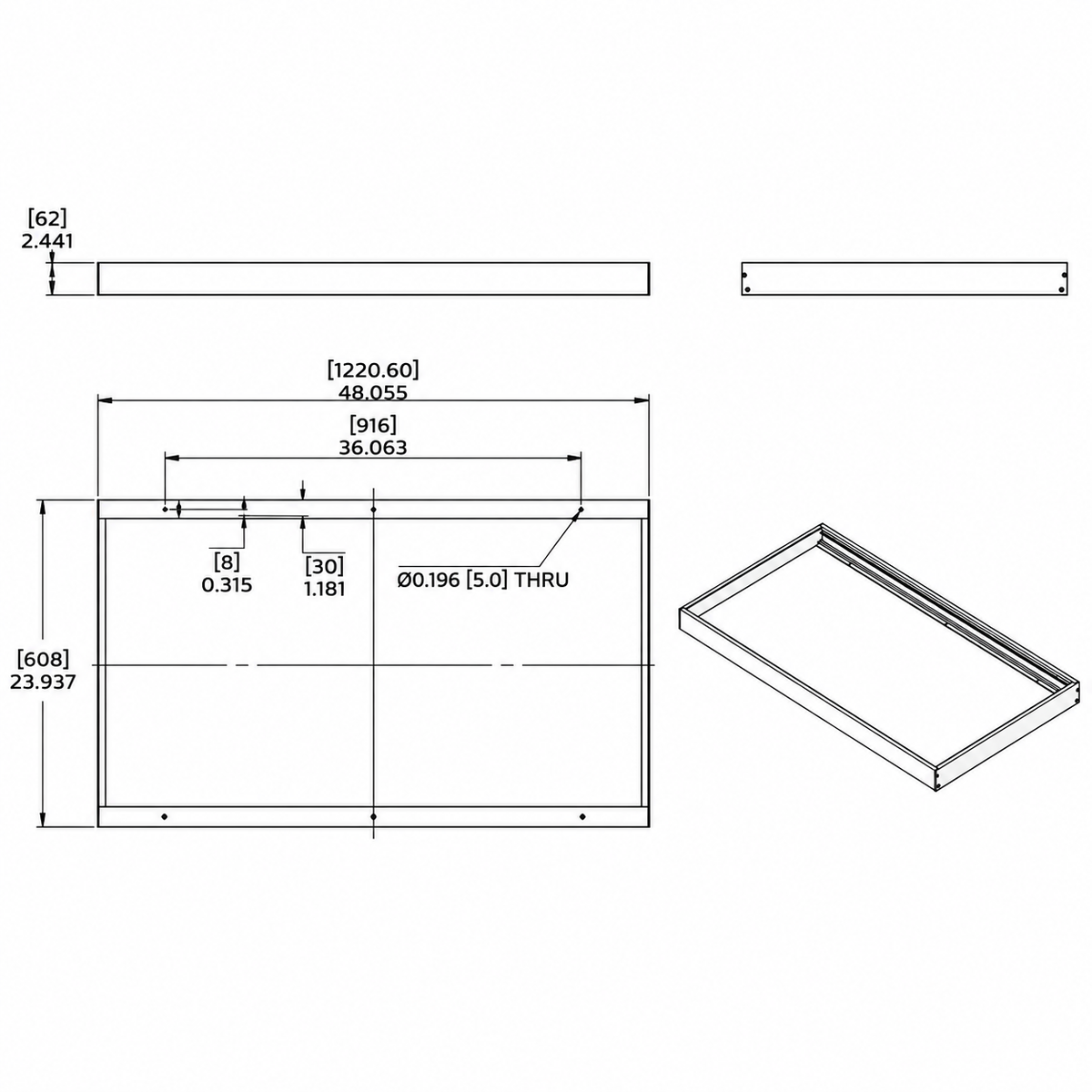

- Surface Kit available

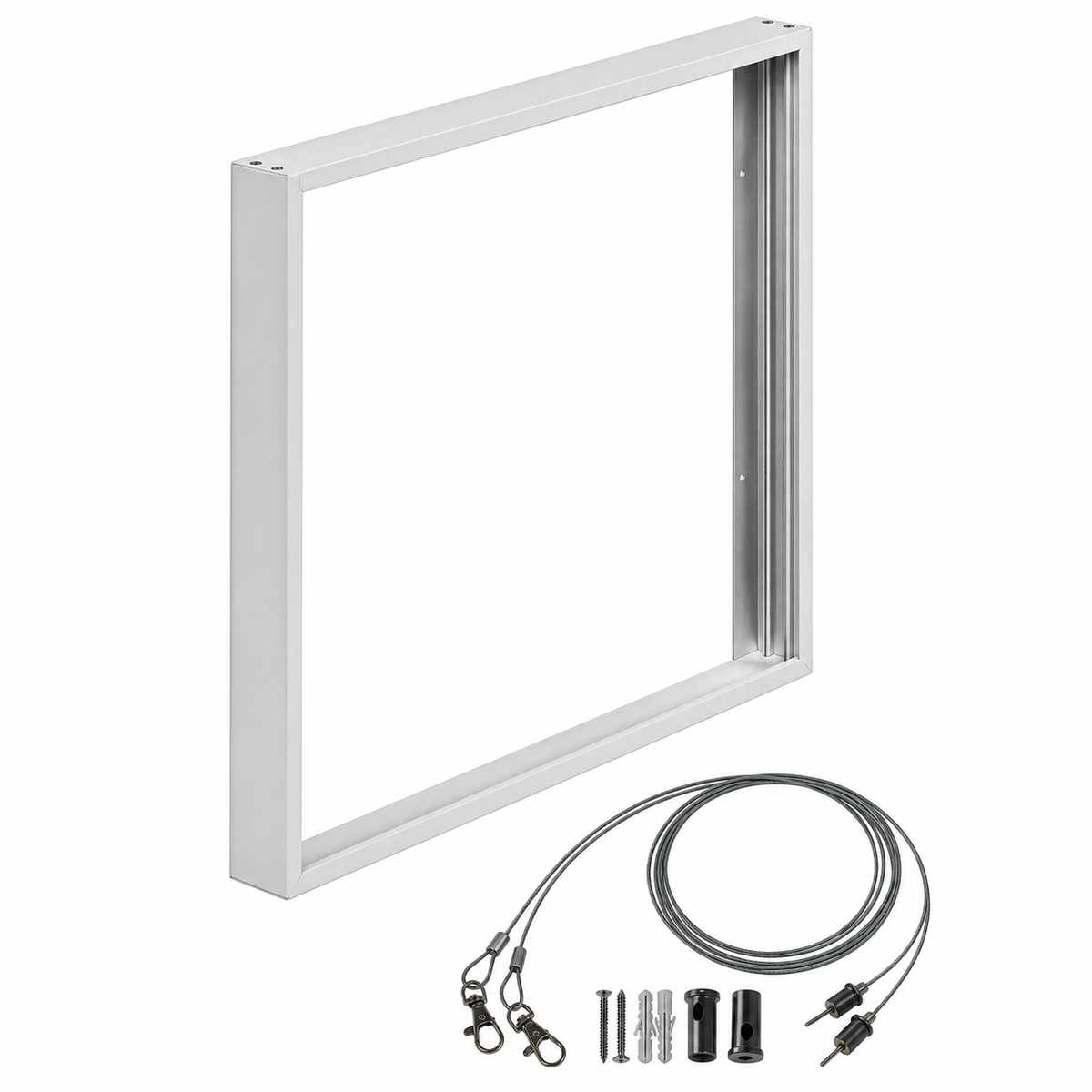

- Suspension Kit available

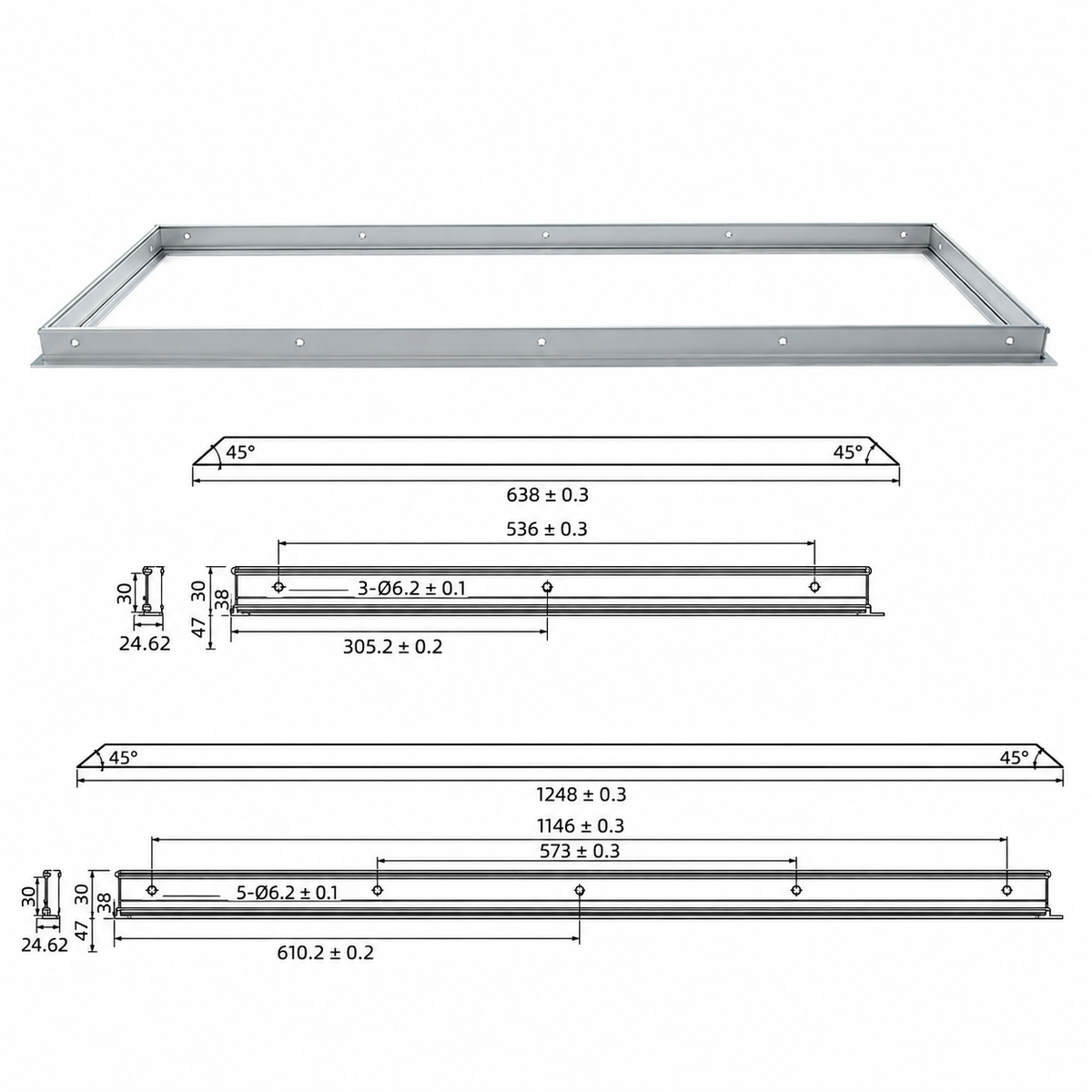

- Flange Kit available
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6500K | Cool Daylight |
Available Accessories
| Accessory | Installation Option |
|---|---|
| Surface Kit | Surface-Mount Installation |
| Suspension Kit | Suspended Installation |
| Flange Kit | Flanged Installation |
Specifications
| Product Type | LED Flat Panel |
|---|---|
| Series | Luxrite LED Panelite |

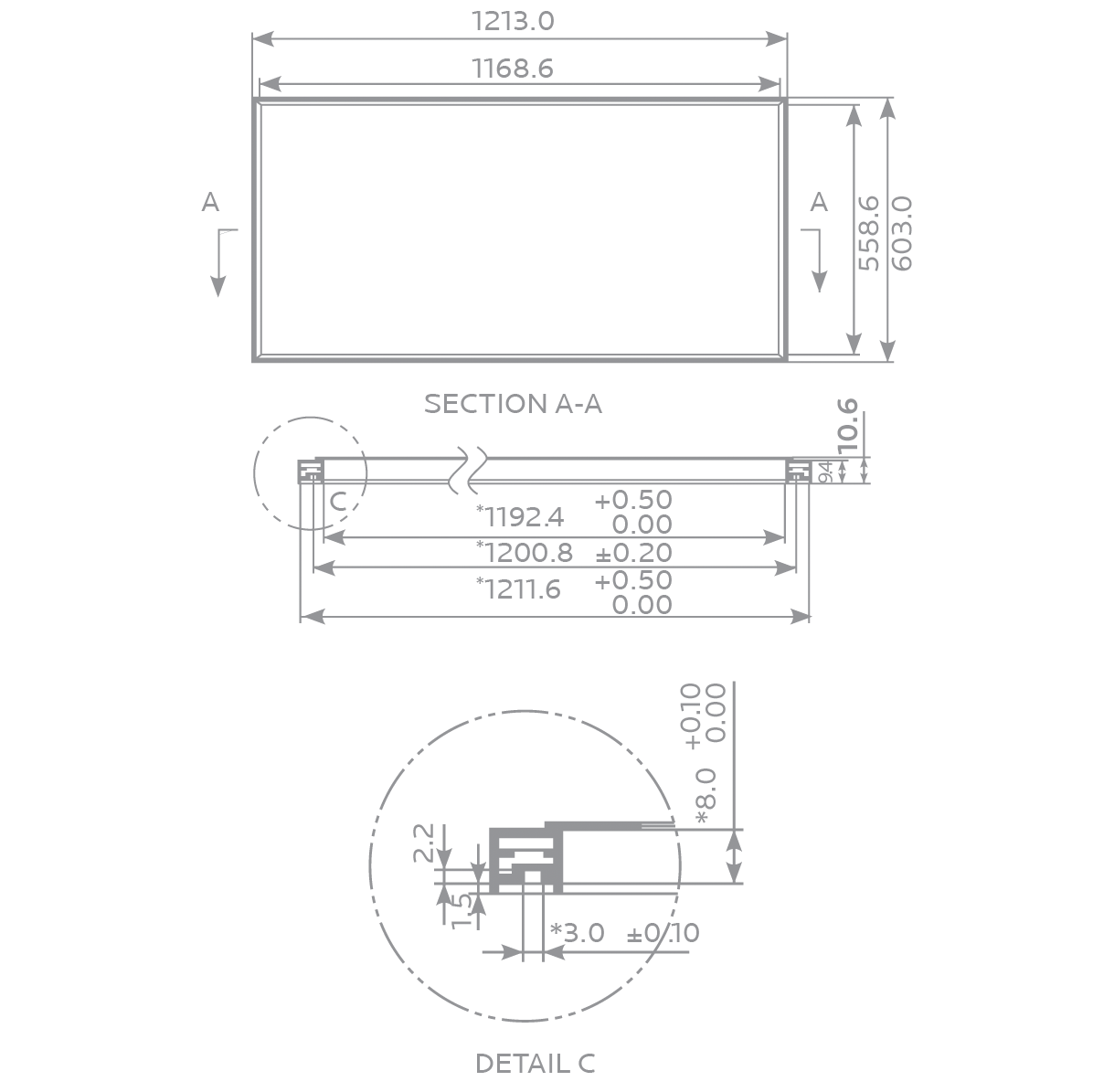

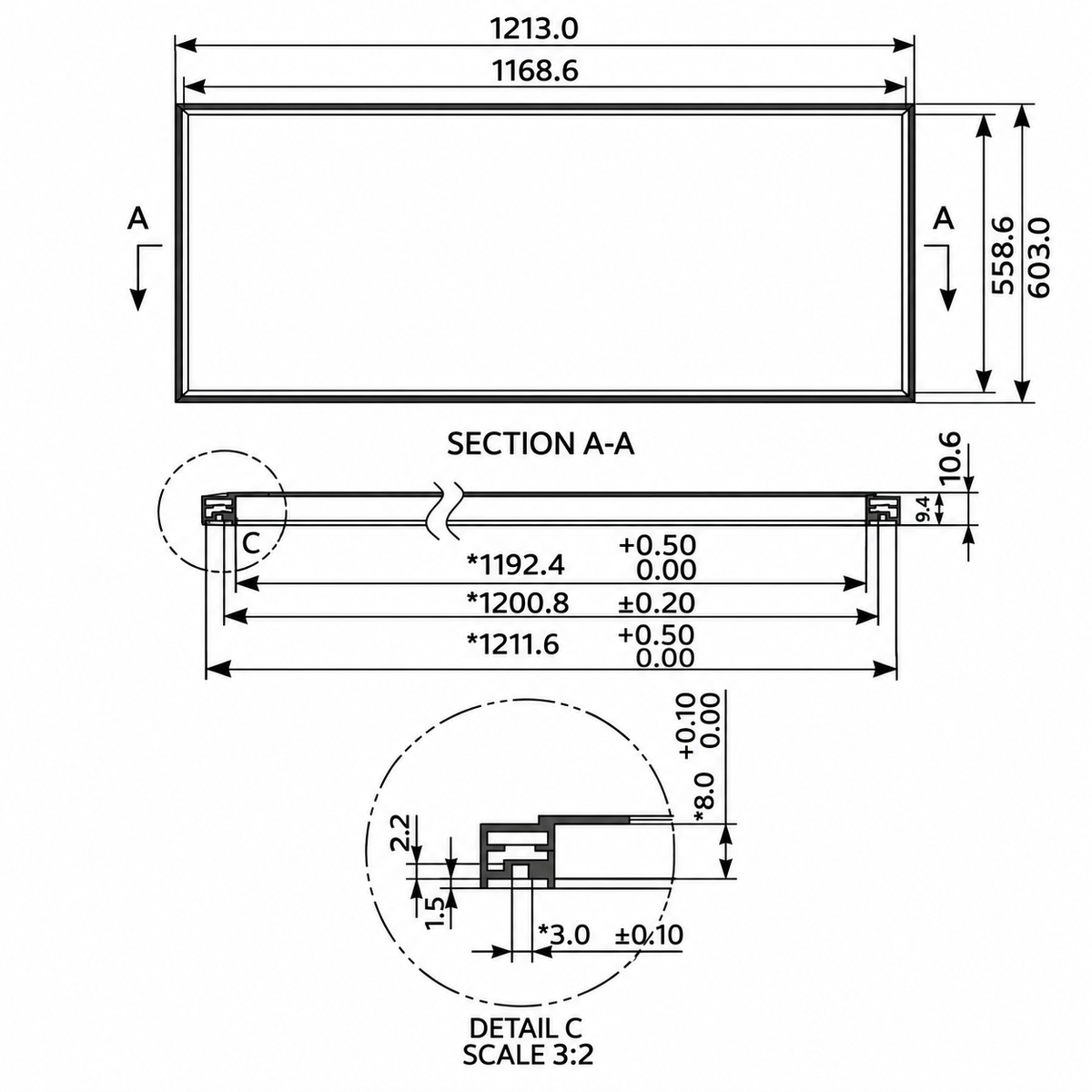

| Panel Size | 2.0' × 4.0' |
| Profile Thickness | 0.5" (13 mm) |
| Wattage | 72W |
| Light Output | 7,100–7,920 lm |
| Color Temperature | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | 83 |
| Dimming | 0–10V Dimmable |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | DLC Listed / UL Listed / cUL Listed |
| Available Accessories | Surface Kit / Suspension Kit / Flange Kit |
Applications
- Auditoriums
- Conference Rooms
- Large Offices
- Schools & Educational Facilities
- Hospitals & Healthcare Facilities
- Large Commercial Interiors
- Institutional Facilities
- General Interior Lighting
Why Choose the Luxrite LED Panelite Series?
The 72W 2.0-Foot × 4.0-Foot Luxrite LED Panelite Series delivers 7,100–7,920 lumens of powerful general illumination from an ultra-slim 0.5-inch profile. As the largest panel in the series, its expansive format provides broad lighting coverage for large offices, auditoriums, conference rooms, educational facilities, hospitals, and other commercial or institutional environments.
With five color temperature options, CRI 83, 0–10V dimming, an approximately 50,000-hour rated lifespan, DLC, UL, and cUL listings, plus optional surface, suspension, and flange kits, the Luxrite LED Panelite Series provides a flexible and high-output lighting solution for large-scale interior applications.
