45W Luxrite Panelite Series - 2'×2'
45W Luxrite Panelite Series - 2'×2'
Couldn't load pickup availability

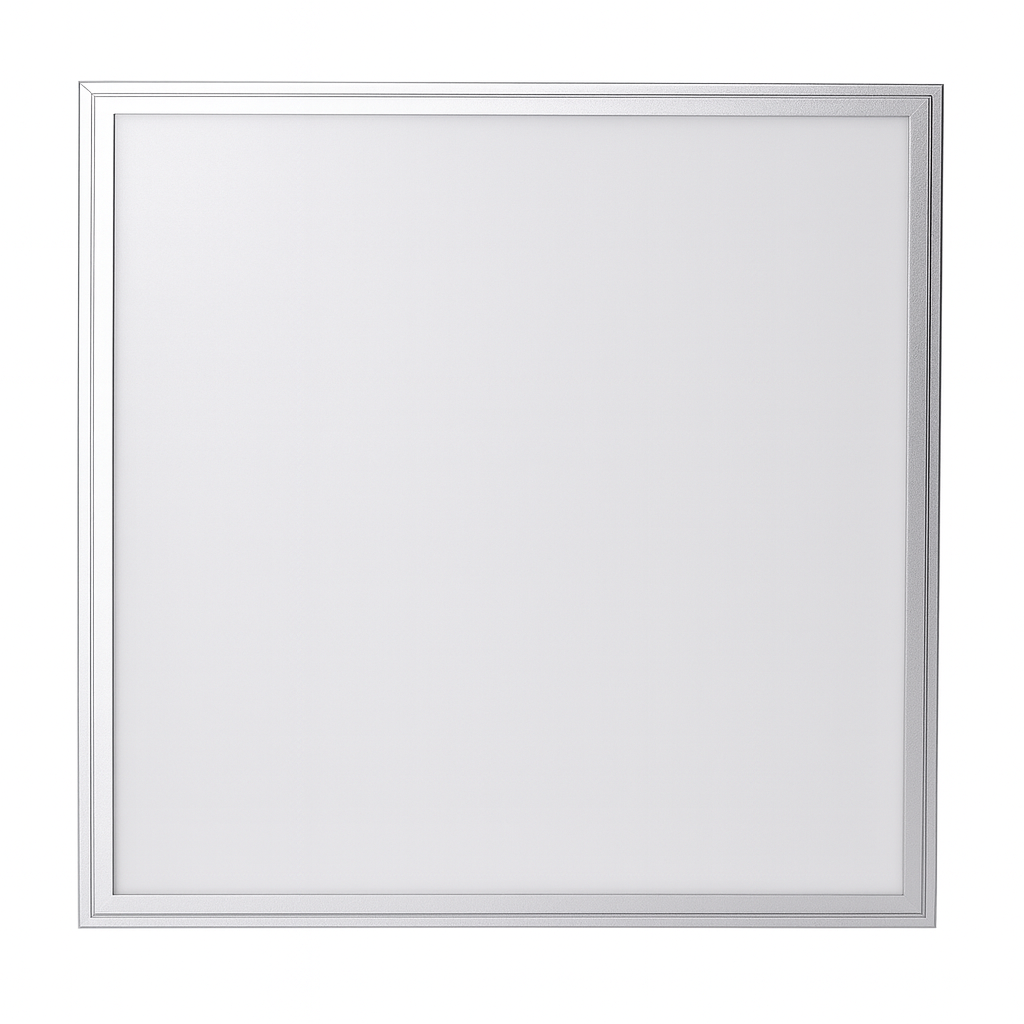

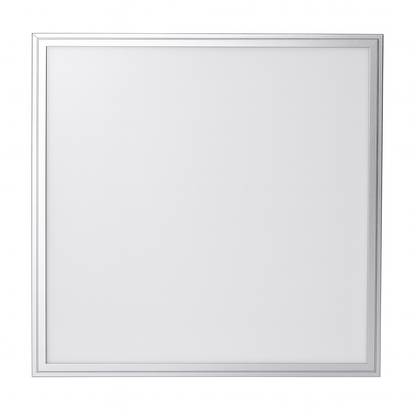

The 45W 2'×2' Luxrite LED Panelite Series delivers 4,850–5,150 lumens of bright, efficient illumination in an ultra-slim architectural format. Designed for commercial and institutional environments, its clean 2.0-foot × 2.0-foot profile provides broad, evenly distributed general lighting for offices, classrooms, healthcare facilities, retail spaces, and other interiors.
Available in 3000K, 3500K, 4000K, 5000K, and 6500K color temperature options, the Panelite Series provides flexibility for a wide range of lighting environments. Its 0–10V dimming capability allows adjustable light levels, while optional surface, suspension, and flange kits provide additional installation flexibility.
Features
- 45W power consumption
- Produces 4,850–5,150 lumens
- Available in 3000K / 3500K / 4000K / 5000K / 6500K
- CRI 81
- 0–10V dimmable
- 2.0' × 2.0' flat panel format
- Ultra-slim 0.5" profile
- Rated for approximately 50,000 hours
- DLC Listed
- UL & cUL Listed

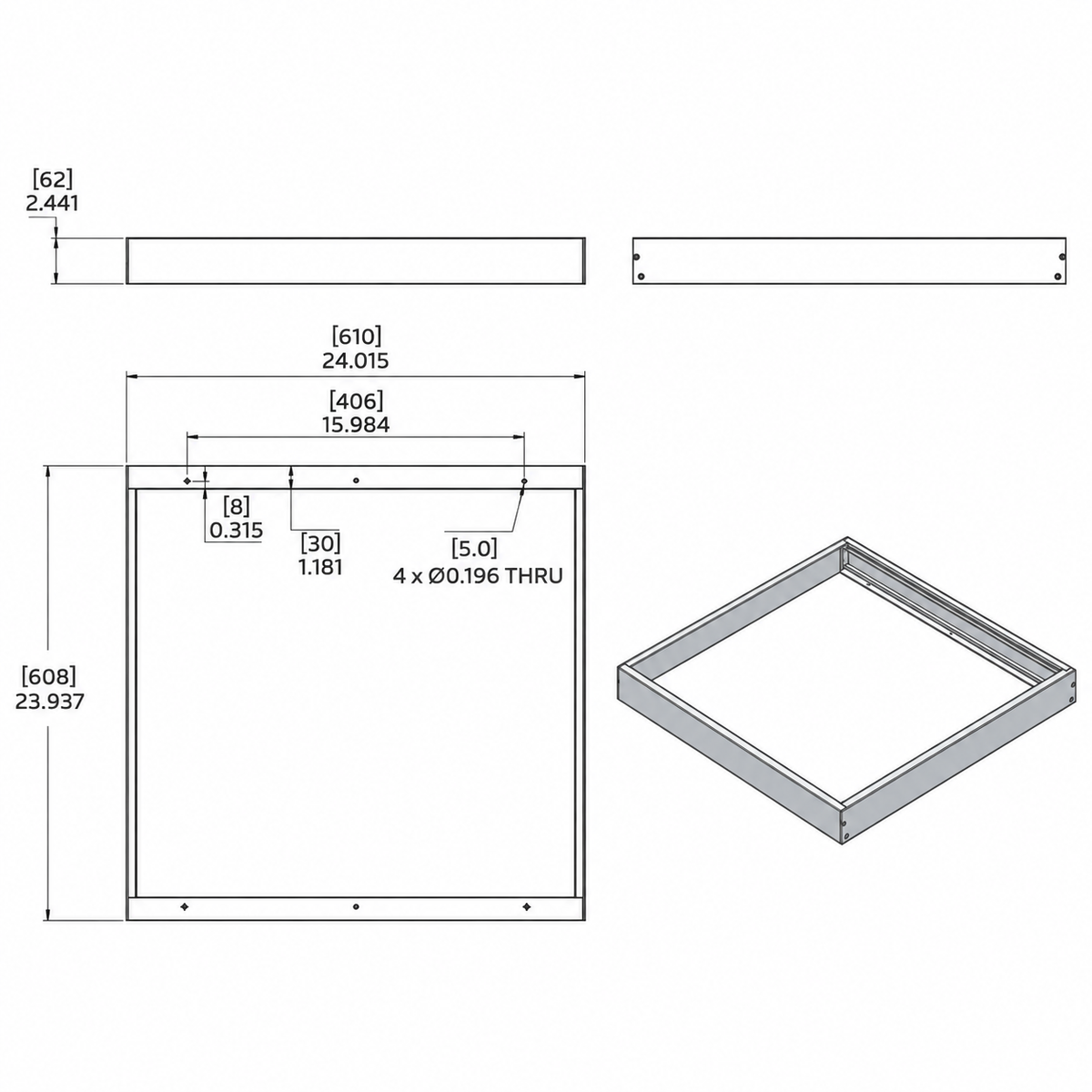

- Surface Kit available

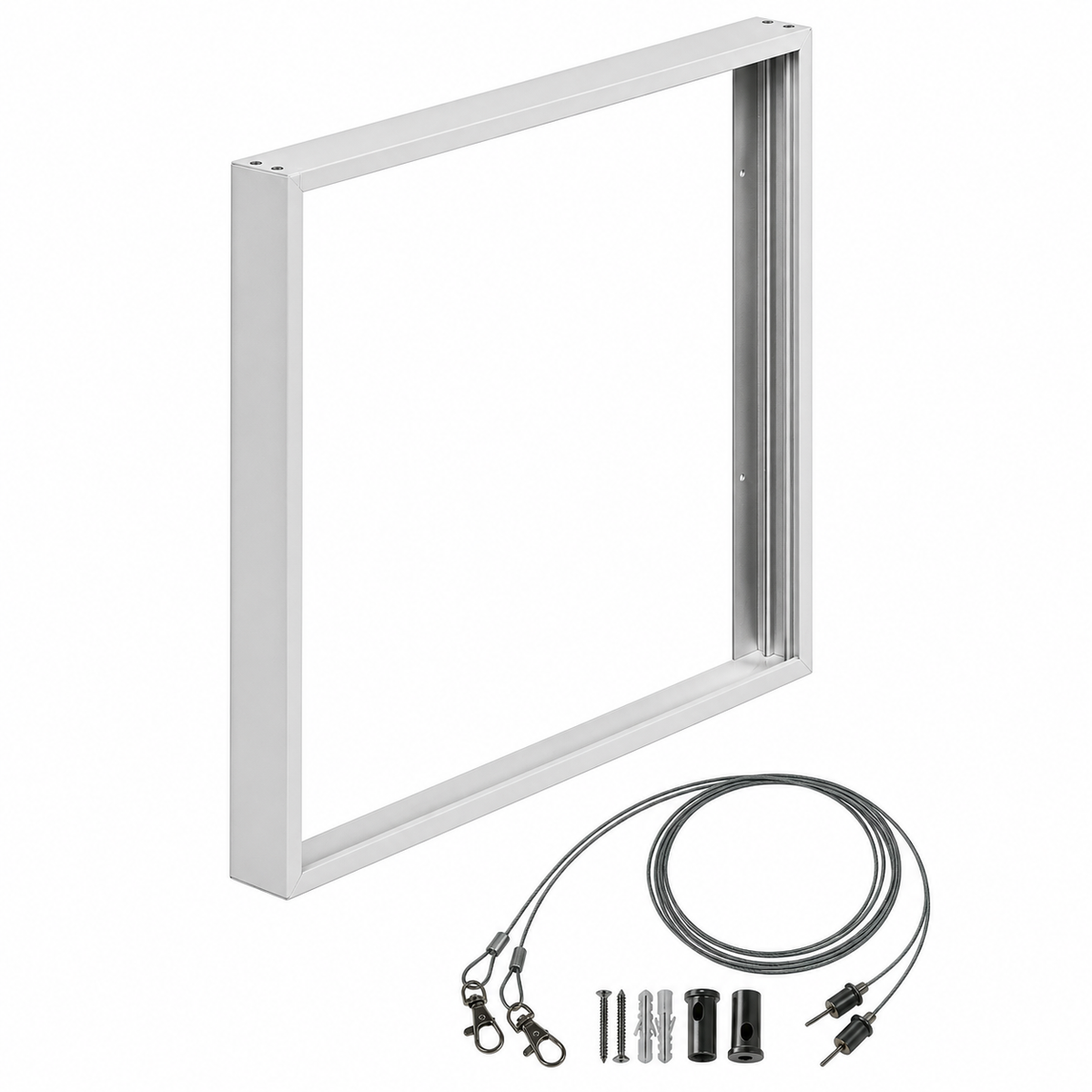

- Suspension Kit available

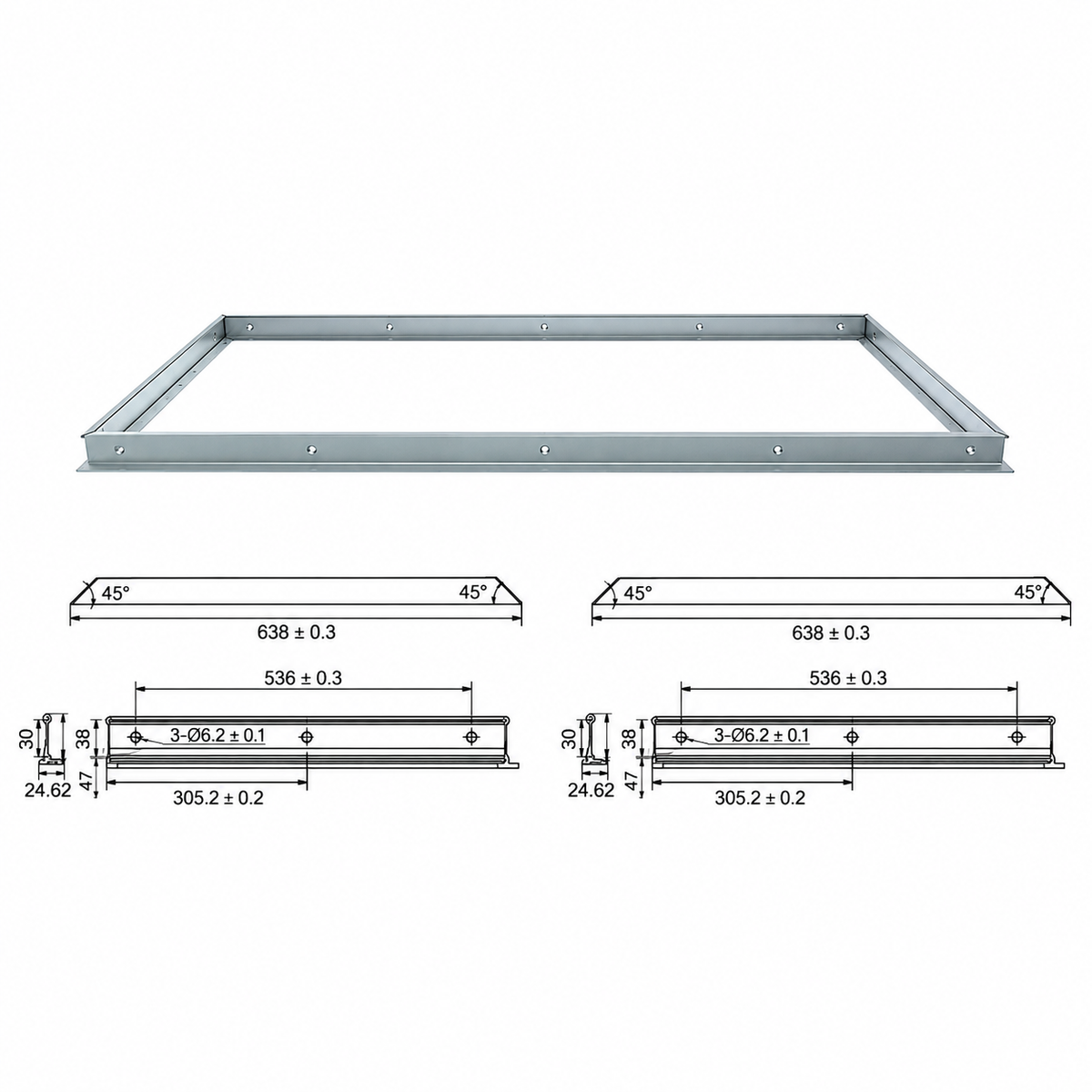

- Flange Kit available
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 3500K | Neutral White |
| 4000K | Natural White |
| 5000K | Daylight |
| 6500K | Cool Daylight |
Available Accessories
| Accessory | Installation Option |
|---|---|
| Surface Kit | Surface-Mount Installation |
| Suspension Kit | Suspended Installation |
| Flange Kit | Flanged Installation |
Specifications
| Product Type | LED Flat Panel |
|---|---|
| Series | Luxrite LED Panelite |
| Panel Size | 2.0' × 2.0' |
| Profile Thickness | 0.5" (13 mm) |
| Wattage | 45W |
| Light Output | 4,850–5,150 lm |
| Color Temperature | 3000K / 3500K / 4000K / 5000K / 6500K |
| CRI | 81 |
| Dimming | 0–10V Dimmable |
| Rated Lifespan | Approximately 50,000 Hours |
| Certifications | DLC Listed / UL Listed / cUL Listed |
| Available Accessories | Surface Kit / Suspension Kit / Flange Kit |
Applications
- Schools & Classrooms
- Offices
- Hospitals & Healthcare Facilities
- Retail Spaces
- Commercial Interiors
- Institutional Facilities
- Conference Rooms
- General Interior Lighting
Why Choose the Luxrite LED Panelite Series?
The 45W 2.0-Foot × 2.0-Foot Luxrite LED Panelite Series delivers 4,850–5,150 lumens of efficient general illumination from an ultra-slim 0.5-inch profile. Its clean flat-panel format provides a modern architectural appearance for offices, classrooms, healthcare facilities, retail environments, and other commercial interiors.
With five color temperature options, CRI 81, 0–10V dimming, an approximately 50,000-hour rated lifespan, DLC, UL, and cUL listings, plus optional surface, suspension, and flange kits, the Luxrite LED Panelite Series provides a flexible solution for a wide range of commercial and institutional lighting applications.
