Diamond Brite LEDs
18W Micro Magnetic Zoom Spot Light Series
18W Micro Magnetic Zoom Spot Light Series
Couldn't load pickup availability
The Micro Magnetic Zoom Spot Light delivers ultimate lighting flexibility with an adjustable beam angle from 10° to 60°. Easily transition from a narrow spotlight for highlighting artwork and merchandise to a wide flood beam for general accent lighting—all without changing fixtures. Combined with tunable white technology and smooth dimming, it's the perfect solution for premium residential, retail, hospitality, gallery, and commercial applications.
Designed for 48V Micro Magnetic Track Systems, the fixture magnetically installs into the track for effortless repositioning and maximum lighting versatility.
Features
- Adjustable zoom beam angle from 10° to 60°
- Precision spotlight with manual beam adjustment
- Compatible with all 48V Micro Magnetic Track Systems

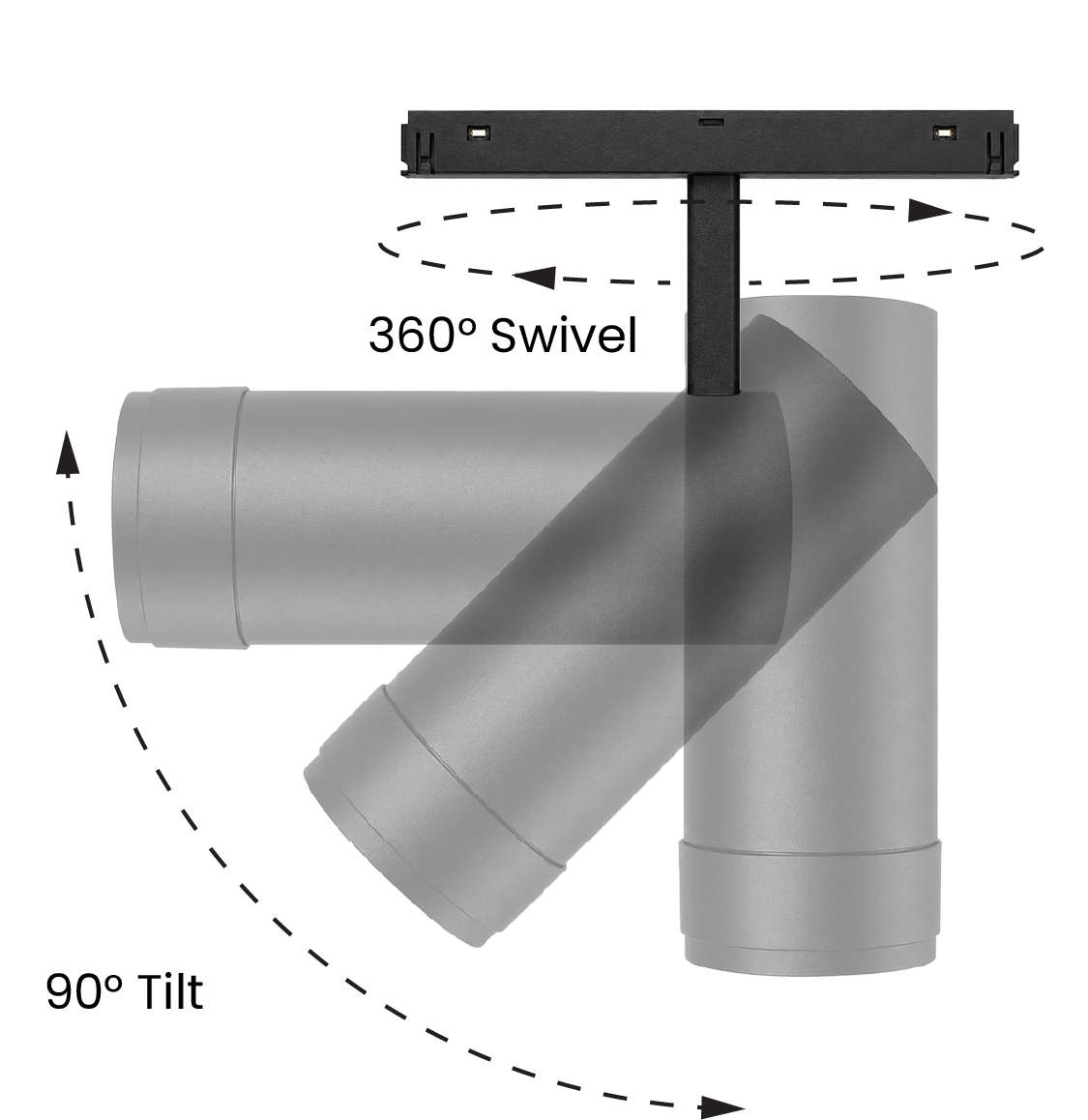

- Fully adjustable aiming head
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium die-cast aluminum construction
- High-performance COB LED
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models

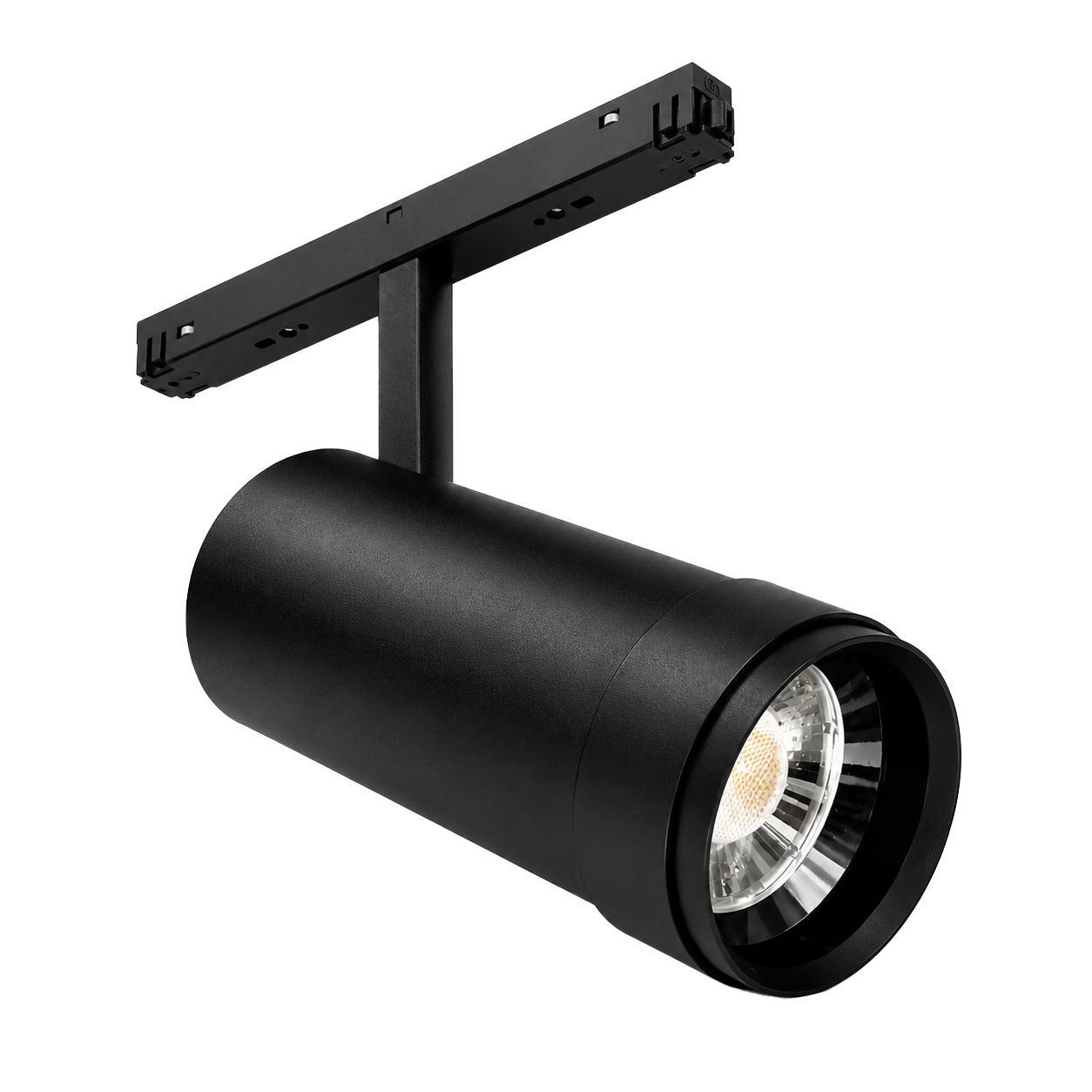

Matte Black
| Power | Dimensions | Model No. | SKU |
|---|---|---|---|
| 18W | Ø65 × 138 mm | MCR-ZM-18W-CCT-48V-MB | MCR-ZM-18W-CCT-48V-MB |

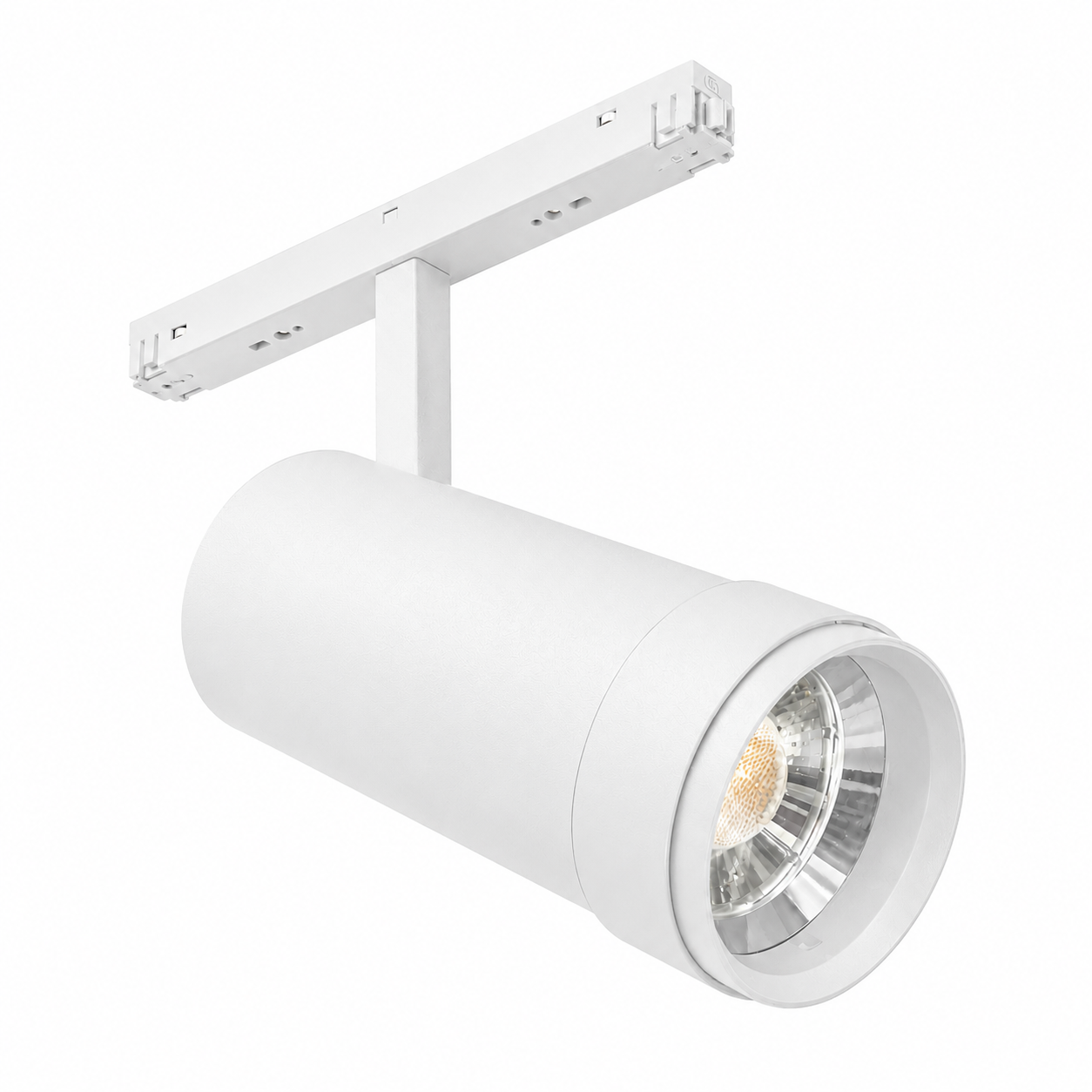

Matte White
| Power | Dimensions | Model No. | SKU |
|---|---|---|---|
| 18W | Ø65 × 138 mm | MCR-ZM-18W-CCT-48V-MW | MCR-ZM-18W-CCT-48V-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | Micro Magnetic Zoom Spot Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| Power | 18W |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Beam Angle | Adjustable 10°–60° |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Die-Cast Aluminum |
| Light Source | High-Efficiency COB LED |
| Dimensions | Ø65 × 138 mm |
| Adjustable Head | Yes |
| Compatible System | 48V Micro Magnetic Track |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:

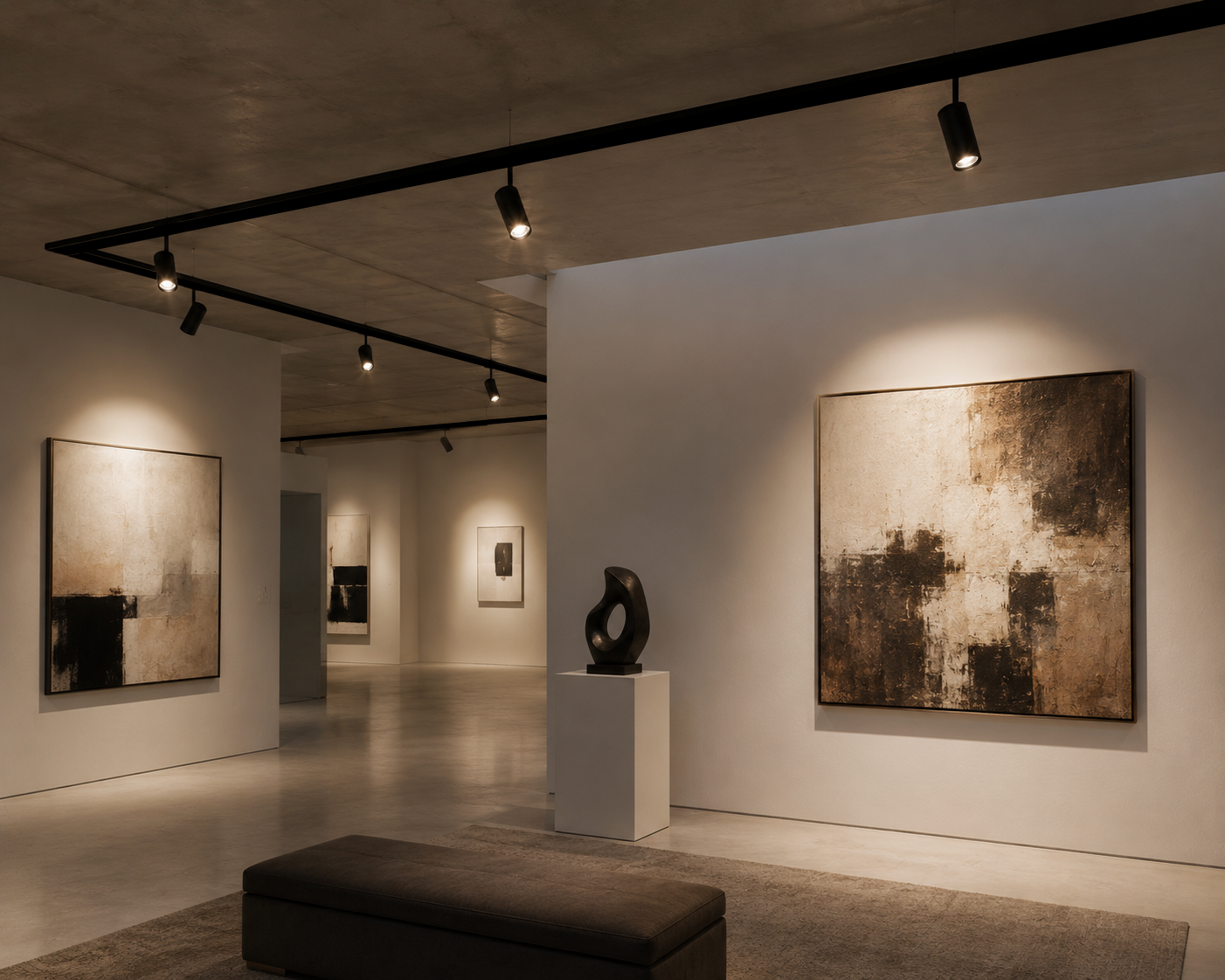

- Art Galleries
- Museums
- Jewelry Stores
- Luxury Retail
- Showrooms
- Display Cases
- Restaurants
- Hotels
- Living Rooms
- Feature Walls
- Product Displays
- Architectural Accent Lighting
What's Included
- 1 × Micro Magnetic Zoom Spot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Zoom Spot Light?
Unlike fixed-beam spotlights, the Micro Magnetic Zoom Spot Light lets you fine-tune the beam angle from 10° for tight, dramatic accent lighting to 60° for wider illumination. This versatility allows a single fixture to adapt to changing layouts, displays, or artwork without replacing lenses or fixtures, making it ideal for dynamic residential and commercial environments.
