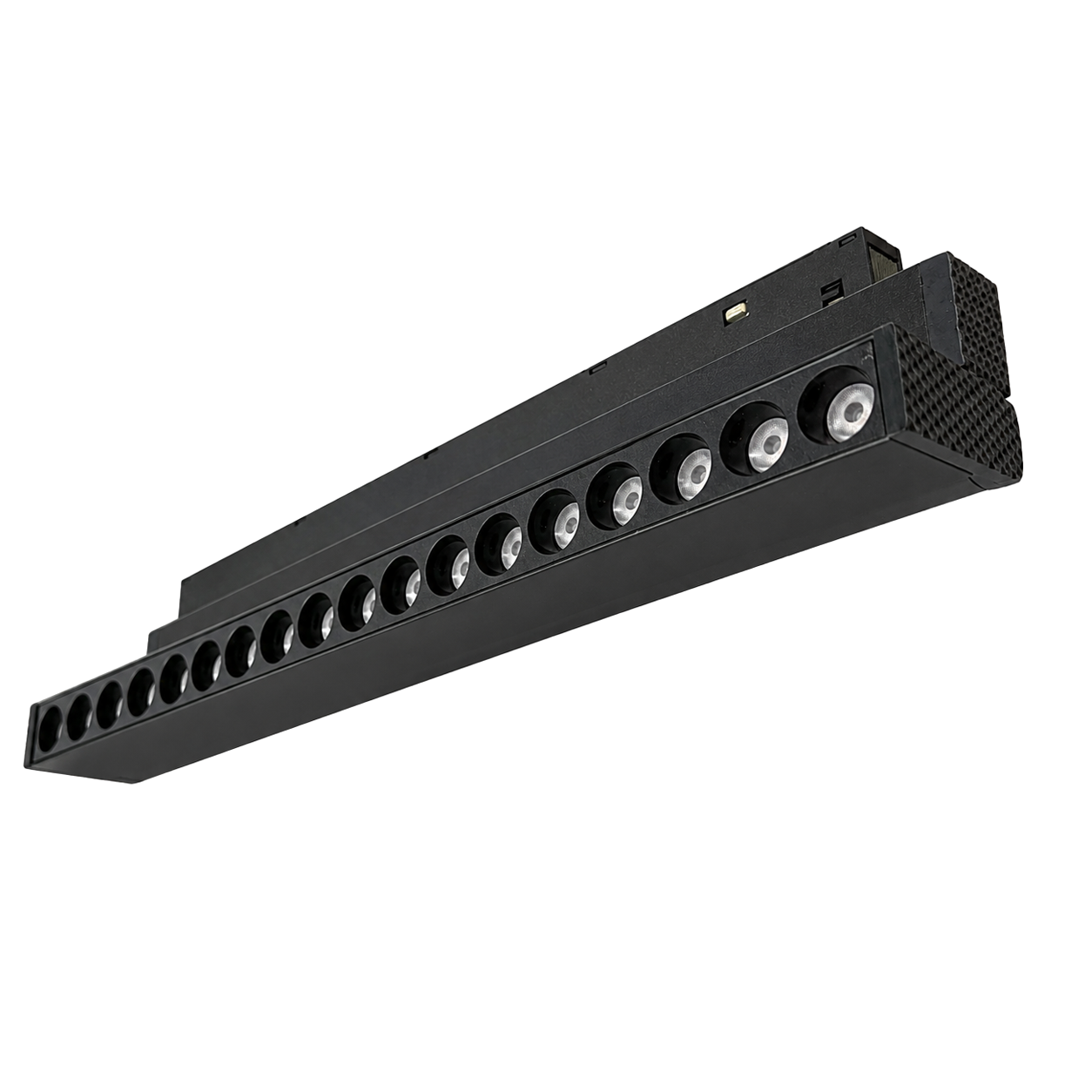

18W Micro Magnetic Pivot Linear Dot Light Series
18W Micro Magnetic Pivot Linear Dot Light Series
Couldn't load pickup availability
The 18W Micro Magnetic Pivot Linear Dot Light delivers high-output directional illumination through 18 individually recessed LED optics. Combining a pivoting adjustable head with precision low-glare optics, the DOT13 Pivot provides excellent beam control for larger displays, artwork, architectural features, and commercial accent-lighting applications.
Designed for 48V Micro Magnetic Track Systems, its magnetic mounting system allows quick installation, repositioning, and lighting layout adjustments without tools.
Features
- 18W Integrated LED
- DOT13 configuration with 18 recessed optics
- Adjustable pivoting light head
- 2,124 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Precision directional lighting
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 18W | 13" (328 mm) | 2,124 lm | MCR-DOT13-PVT-18W-CCT-48V-MB |
| Matte White | 18W | 13" (328 mm) | 2,124 lm | MCR-DOT13-PVT-18W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Pivot Linear Dot Light |
| Configuration | DOT13 Pivot |
| LED Optics | 18 |
| Power | 18W |
| Lumen Output | 2,124 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 13" (328 mm) |
| Width | 1" (22 mm) |
| Height | 4" (105 mm) |
| Adjustable Head | Pivoting Directional Lighting |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for retail displays, jewelry showrooms, museums, art galleries, luxury residences, kitchen islands, hospitality spaces, hotels, restaurants, offices, and larger architectural accent-lighting applications.
What's Included
- 1 × 18W DOT13 Micro Magnetic Pivot Linear Dot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
