18W Micro Magnetic Linear Dot Light Series
18W Micro Magnetic Linear Dot Light Series
Couldn't load pickup availability

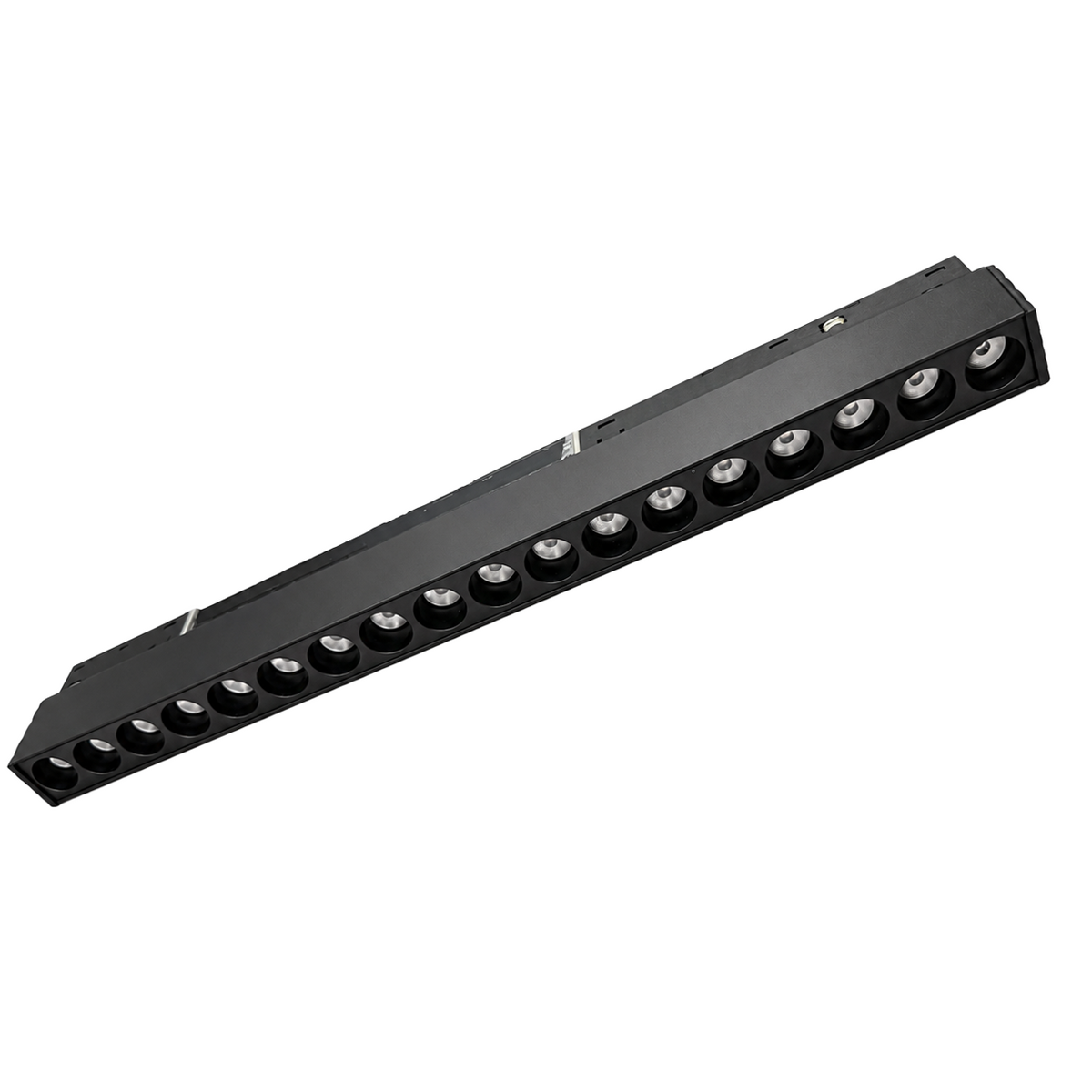

The 18W Micro Magnetic Linear Dot Light provides powerful, controlled accent illumination through 18 individually recessed LED optics. The DOT13 configuration combines excellent beam control and reduced glare with a clean linear architectural profile.
Designed for 48V Micro Magnetic Track Systems, the magnetic mounting system allows quick installation, repositioning, and lighting layout adjustments without tools.
Features
- 18W Integrated LED
- DOT13 configuration with 18 recessed optics
- 2,124 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 18W | 13" (330 mm) | 2,124 lm | MCR-DOT13-18W-CCT-48V-MB |
| Matte White | 18W | 13" (330 mm) | 2,124 lm | MCR-DOT13-18W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Dot Light |
| Configuration | DOT13 |
| LED Optics | 18 |
| Power | 18W |
| Lumen Output | 2,124 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 13" (330 mm) |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for retail displays, jewelry showrooms, museums, art galleries, luxury residences, kitchen islands, hospitality spaces, hotels, restaurants, offices, and architectural accent lighting.
What's Included
- 1 × 18W DOT13 Micro Magnetic Linear Dot Light
Magnetic track, power supply, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
