18W Recessed Light Replacement Driver
18W Recessed Light Replacement Driver
Couldn't load pickup availability

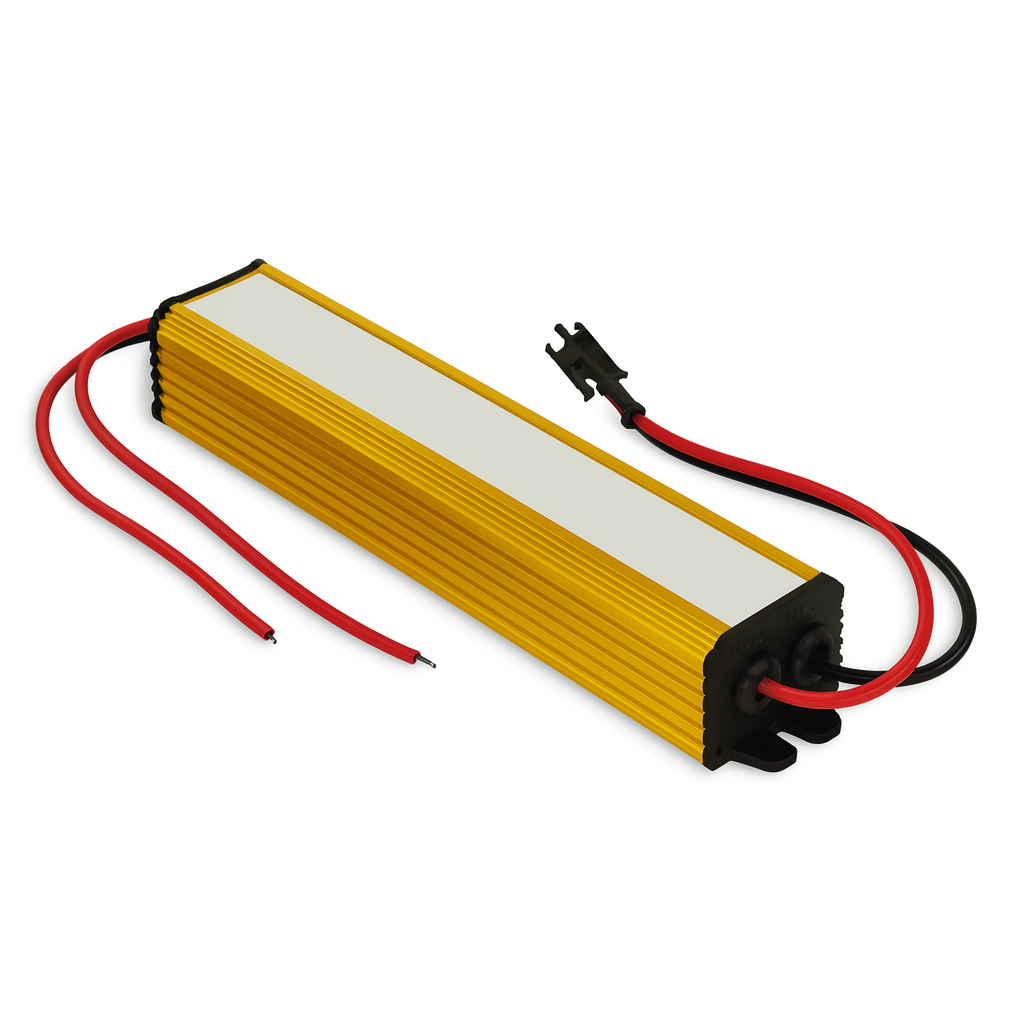

The Constant Current LED Driver is a high-quality power supply designed for 12–18W recessed LED fixtures and other compatible low-voltage LED lighting applications. With an output range of DC 38–65V at 300mA ±5%, the driver supports loads up to 18W for 12–18 × 1W LED configurations.
Built with a durable IP66-rated aluminum housing, the driver provides protection against dust and moisture for indoor and outdoor installations. Its compact construction, wide AC input range, and integrated protection features make it a practical solution for recessed downlights, spotlights, cabinet lighting, furniture lighting, and compatible outdoor-rated LED fixtures.
Features
- Designed for 12–18W LED lighting applications
- AC 100–265V input range
- DC 38–65V output range
- 300mA ±5% constant current output
- Supports up to 18W maximum load
- Designed for 12–18 × 1W LED configurations
- Single DC output connection
- Built-in short-circuit protection
- Built-in overload protection
- Durable aluminum housing
- IP66 rated for protection against dust and moisture
- Suitable for indoor and outdoor applications
- Compact design for installation in limited spaces
- Non-dimmable
- CE and RoHS certified
Output Specifications
| Output Voltage | Output Current | Maximum Load | LED Configuration |
|---|---|---|---|
| DC 38–65V | 300mA ±5% | 18W | 12–18 × 1W LEDs |
Specifications
| Product Type | Constant Current LED Driver |
|---|---|
| Model Number | LNY-2011-18W |
| Maximum Load | 18W |
| Input Voltage | AC 100–265V, 50/60Hz |
| Output Voltage | DC 38–65V |
| Output Current | 300mA ±5% |
| Output Type | Constant Current |
| LED Configuration | 12–18 × 1W LEDs |
| DC Outputs | 1 Plug |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload |
| Protection Rating | IP66 |
| Housing Material | Aluminum |
| Dimensions | 5.75" × 1.22" × 0.87" (146 × 31 × 22 mm) |
| Weight | 0.30 lbs (136 g) |
| Shipping Weight | 0.40 lbs |
| Certifications | CE / RoHS |
| Environment | Indoor / Outdoor |
Applications
- Recessed LED Downlights
- LED Spotlights
- Cabinet Lighting
- Furniture Lighting
- Accent Lighting
- Low-Voltage LED Fixtures
- Indoor Lighting Installations
- Outdoor-Rated LED Fixtures
- Moisture-Prone Lighting Applications
Why Choose the Constant Current LED Driver?
This LED driver provides a regulated 300mA ±5% constant current output across a DC 38–65V range, making it suitable for compatible 12–18W LED fixtures and 12–18 × 1W LED configurations.
Its durable aluminum construction, IP66 protection rating, short-circuit and overload protection, compact design, and wide AC 100–265V input range make it a reliable power solution for compatible indoor and outdoor LED lighting applications.
