Diamond Brite LEDs

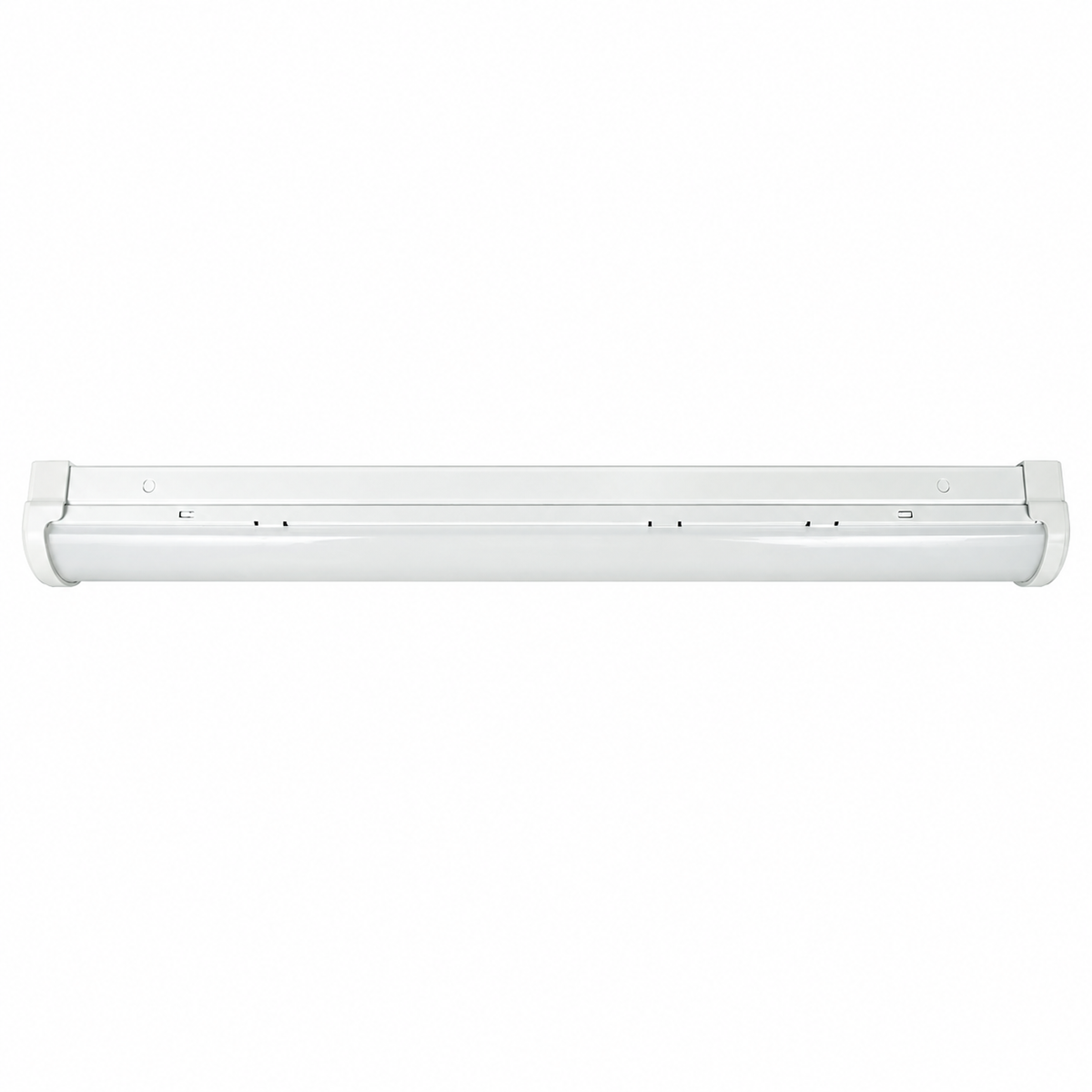

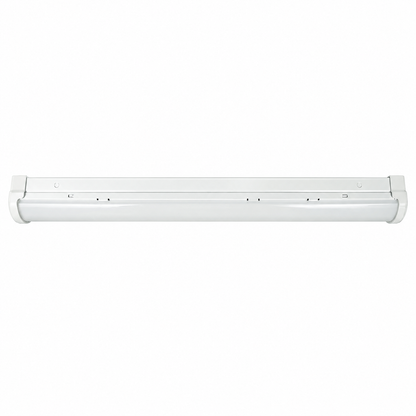

17W Luxrite Linear Slim Luminaire Series
17W Luxrite Linear Slim Luminaire Series
Couldn't load pickup availability
The 17W Linear Slim Luminaire Series - 24 Inch delivers efficient, uniform illumination in a compact and streamlined linear fixture. Producing 1,800 lumens while consuming only 17 watts, this fixture is designed for residential, commercial, retail, office, and general interior lighting applications.
Featuring a durable steel housing with an acrylic lens, the Linear Slim Luminaire operates on universal 120–277V input and is available in 3000K, 4000K, and 5000K color temperatures. Its slim profile and removable designer cover provide a clean architectural appearance.
Features
- 17W LED linear luminaire
- 24-inch fixture class
- Produces 1,800 lumens
- 105.9 lm/W efficacy
- Available in 3000K, 4000K & 5000K
- CRI 80
- Universal 120–277V input
- Steel housing + acrylic lens
- Removable designer cover
- White finish
- Mercury free
- Damp location rated
- ETL Approved
- DLC Listed
- 50,000-hour average rated life
- 5-year module & driver manufacturer warranty
Color Temperature Options
| Color Temperature | Description | Lumens |
| 3000K | Soft White | 1,800 lm |
| 4000K | Cool White | 1,800 lm |
| 5000K | Bright White | 1,800 lm |
Specifications
| Product Type | LED Linear Luminaire |
| Series | Linear Slim Luminaire Series |
| Nominal Size | 24 Inch |
| Power | 17W |
| Light Output | 1,800 lm |
| Efficacy | 105.9 lm/W |
| Input Voltage | 120–277V |
| Color Temperatures | 3000K / 4000K / 5000K |
| CRI | 80 |
| Housing | Steel |
| Lens | Acrylic |
| Finish | White |
| Dimensions | 23.25"L × 2.6"W × 2.5"H |
| Location Rating | Damp Location |
| Mercury Free | Yes |
| Average Lifetime | 50,000 Hours |
| Listings | ETL / DLC |
| Warranty | 5 Years – Module & Driver |
Available Models
| Model | Color Temperature |
| LR25140 | 3000K Soft White |
| LR25141 | 4000K Cool White |
| LR25142 | 5000K Bright White |
Applications
- Residential Interiors
- Offices
- Retail Spaces
- Hallways & Corridors
- Utility Areas
- Work Areas
- General Interior Lighting
Why Choose the 17W Linear Slim Luminaire?
The 17W Linear Slim Luminaire combines a compact 24-inch profile with 1,800 lumens of efficient illumination. Its slim construction, removable designer cover, universal voltage input, and three available color temperatures make it a versatile solution for clean architectural lighting installations.
