Diamond Brite LEDs

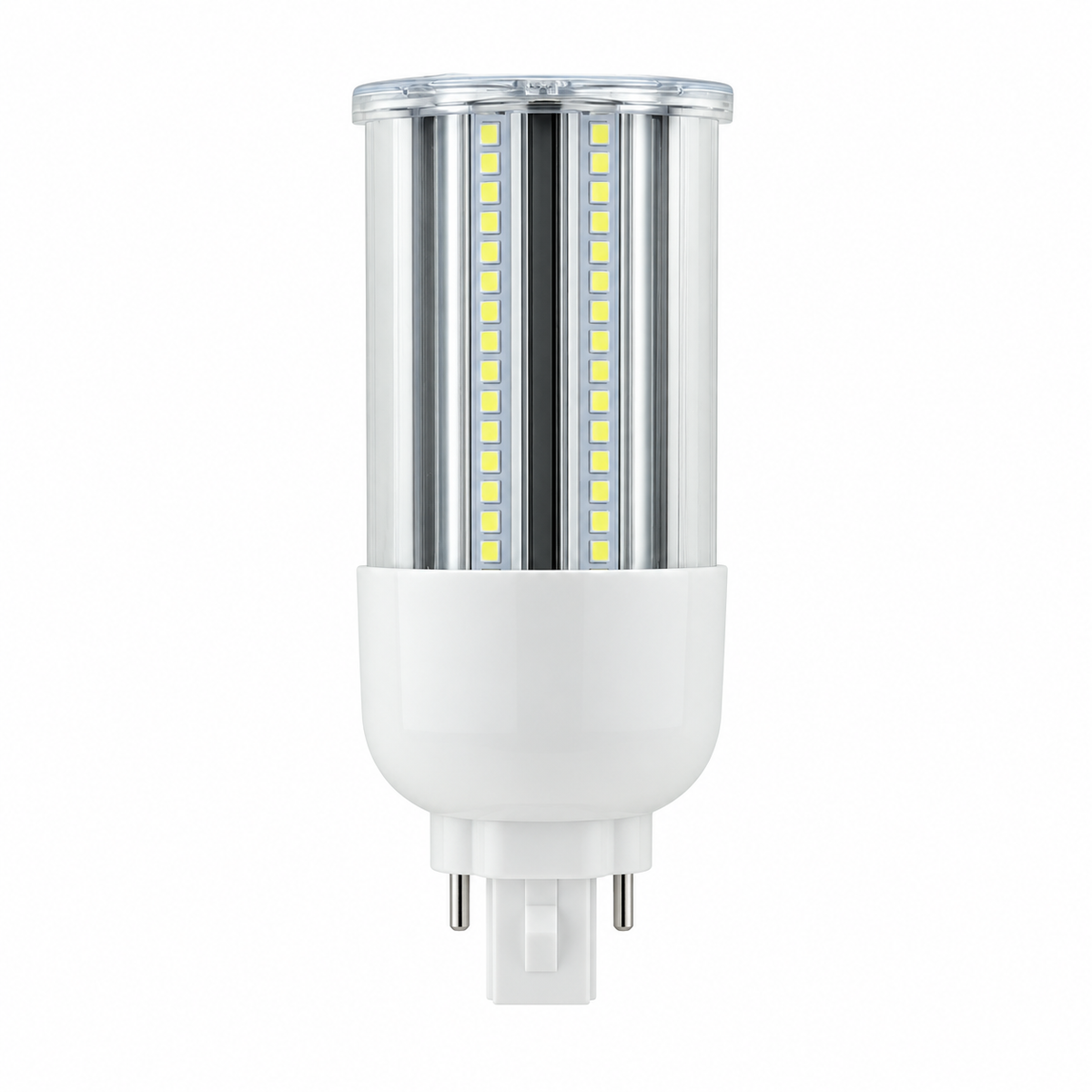

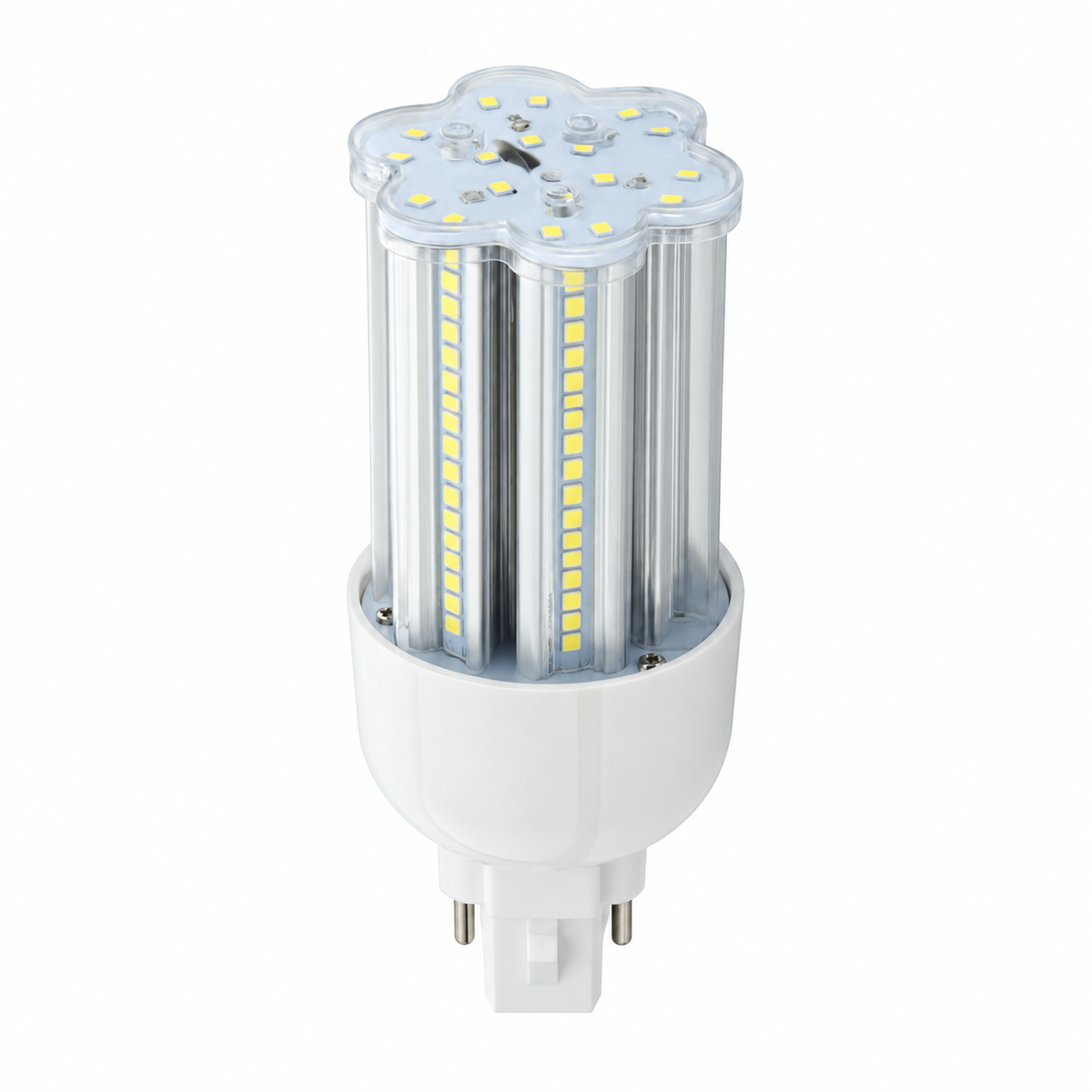

16W GX24-2 Clima Corn Lamp Series
16W GX24-2 Clima Corn Lamp Series
Couldn't load pickup availability
The 16W Clima Corn Lamp Series – GX24-2 Base delivers bright, energy-efficient illumination in a compact LED lamp design. Producing up to 1,400 lumens while consuming only 16 watts, the Clima provides an efficient replacement for traditional lamps up to 80W.
Designed with a GX24-2 base, this version of the Clima 16 provides an LED replacement option for compatible fixtures using the GX24-2 socket configuration. Featuring Epistar LED technology, 126 high-power LEDs, and full 360° light distribution, it provides broad, all-around illumination for residential and commercial applications.
Features
- 16W LED power consumption
- Equivalent to up to 80W traditional lighting
- Produces up to 1,400 lumens
- GX24-2 base
- 126 high-power LEDs
- Epistar LED technology
- 360° beam angle for broad, all-around illumination
- Available in 3000K, 4500K & 6000K
- CRI >80
- Wide-range 85–305V AC operation
- Power factor >0.90
- Non-dimmable
- Durable aluminum and PVC construction
- Rated life exceeding 50,000 hours
- Operating temperature from -4°F to 122°F (-20°C to 50°C)
- CE, RoHS & FCC compliant
- 2-year warranty
Available Models
| Model No. | Color Temperature | Description | Lumens |
| CL-GX24-2-16W-30K | 3000K | Warm White | 1,300 lm |
| CL-GX24-2-16W-45K | 4500K | Natural White | 1,300 lm |
| CL-GX24-2-16W-60K | 6000K | Bright White | 1,400 lm |
Color Temperature Options
| Color Temperature | Description | Lumens |
| 3000K | Warm White | 1,300 lm |
| 4500K | Natural White | 1,300 lm |
| 6000K | Bright White | 1,400 lm |
Specifications
| Product Type | LED Corn Lamp |
| Series | Clima 16 Corn Lamp Series |
| Power | 16W |
| Equivalent Wattage | Up to 80W |
| Light Output | 1,300–1,400 lm |
| Input Voltage | 85–305V AC |
| Base | GX24-2 |
| LED Quantity | 126 High Power LEDs |
| LED Source | Epistar |
| Color Temperatures | 3000K / 4500K / 6000K |
| CRI | >80 |
| Beam Angle | 360° |
| Power Factor | >0.90 |
| Dimming | Non-Dimmable |
| Body Material | Aluminum + PVC |
| Diameter | 2.48" (63 mm) |
| Height | 6.26" (159 mm) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rated Life | >50,000 Hours |
| Compliance | CE / RoHS / FCC |
| Warranty | 2 Years |
Applications
- Commercial Lighting
- Residential Lighting
- General Illumination
- Compatible GX24-2 Fixtures
- Ceiling Fixtures
- Recessed Lighting Applications
- Replacement Lamp Applications
Why Choose the GX24-2 Clima Corn Lamp?
The 16W Clima Corn Lamp with GX24-2 Base provides up to 1,400 lumens while consuming only 16W. Its 360° beam angle provides broad light distribution, while the GX24-2 base makes it suitable for compatible fixtures requiring this socket configuration.
With Epistar LED technology, three color temperature options, wide-range 85–305V AC compatibility, CRI greater than 80, durable aluminum and PVC construction, and a rated life exceeding 50,000 hours, the GX24-2 Clima 16 provides an efficient LED replacement solution for compatible residential and commercial fixtures.
