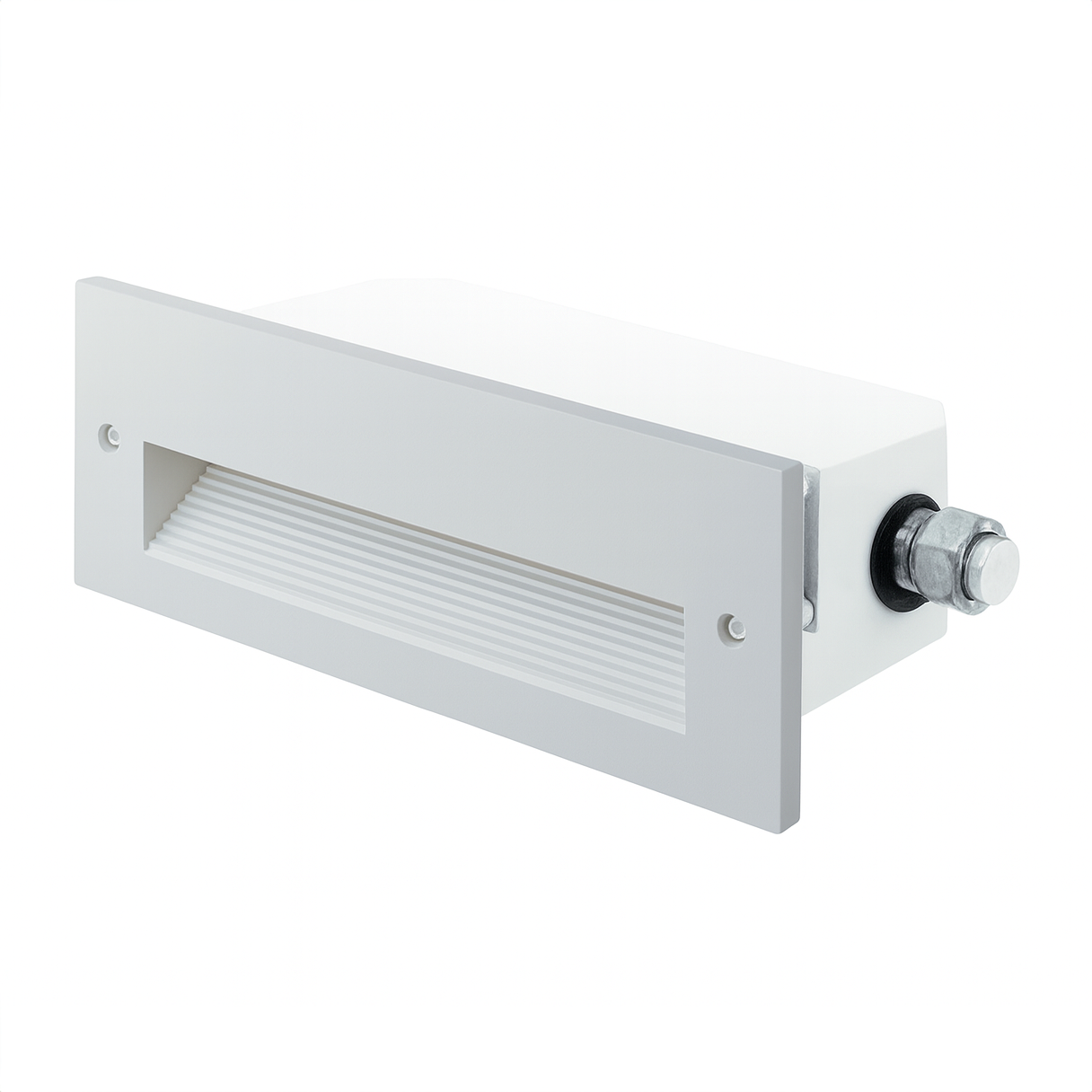

13W Lantis Step Light Series
13W Lantis Step Light Series
Couldn't load pickup availability
The 13W Lantis Step Light Series delivers reliable, energy-efficient illumination in a durable architectural wall-mounted design. Engineered for both indoor and outdoor applications, the Lantis Series is ideal for stairways, walkways, patios, entryways, pathways, and other areas requiring functional low-level illumination.
Featuring a 13W LED light engine, durable die-cast aluminum construction, and an IP65-rated weather-resistant design, the Lantis Series is built for long-lasting performance. Its versatile construction supports installation in concrete pour, brick masonry, and drywall applications.
Features
- 13W LED light engine for efficient architectural illumination
- Available in 3000K, 4000K & 5000K color temperatures
- Designed for indoor and outdoor wall-mounted applications
- Suitable for concrete pour, brick masonry & drywall installations
- Durable die-cast aluminum construction
- Available in Black, Bronze, Silver & White finishes
- IP65 rated for wet-location applications
- Watertight gasket for added protection against outdoor elements
- Power factor >0.90
- Thermally protected LED driver
- Overload and short-circuit protection
- LED light engine and driver mounted to the trim for convenient installation and servicing
- Approximately 50,000-hour rated life at 70% lumen maintenance
- No lead or mercury
- No UV or IR emissions
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 3000K | Warm White |
| 4000K | Natural White |
| 5000K | Daylight |
Finish Options
- Black
- Bronze
- Silver
- White
Specifications
| Product Type | LED Step Light |
|---|---|
| Series | Lantis Step Light Series |
| Power | 13W |
| Input Voltage | 120V AC, 50/60Hz |
| Current | 0.12A |
| Color Temperatures | 3000K / 4000K / 5000K |
| Power Factor | >0.90 |
| THD | ≤10% |
| Material | Die-Cast Aluminum |
| Finish Options | Black / Bronze / Silver / White |
| IP Rating | IP65 |
| Location Rating | Wet Location |

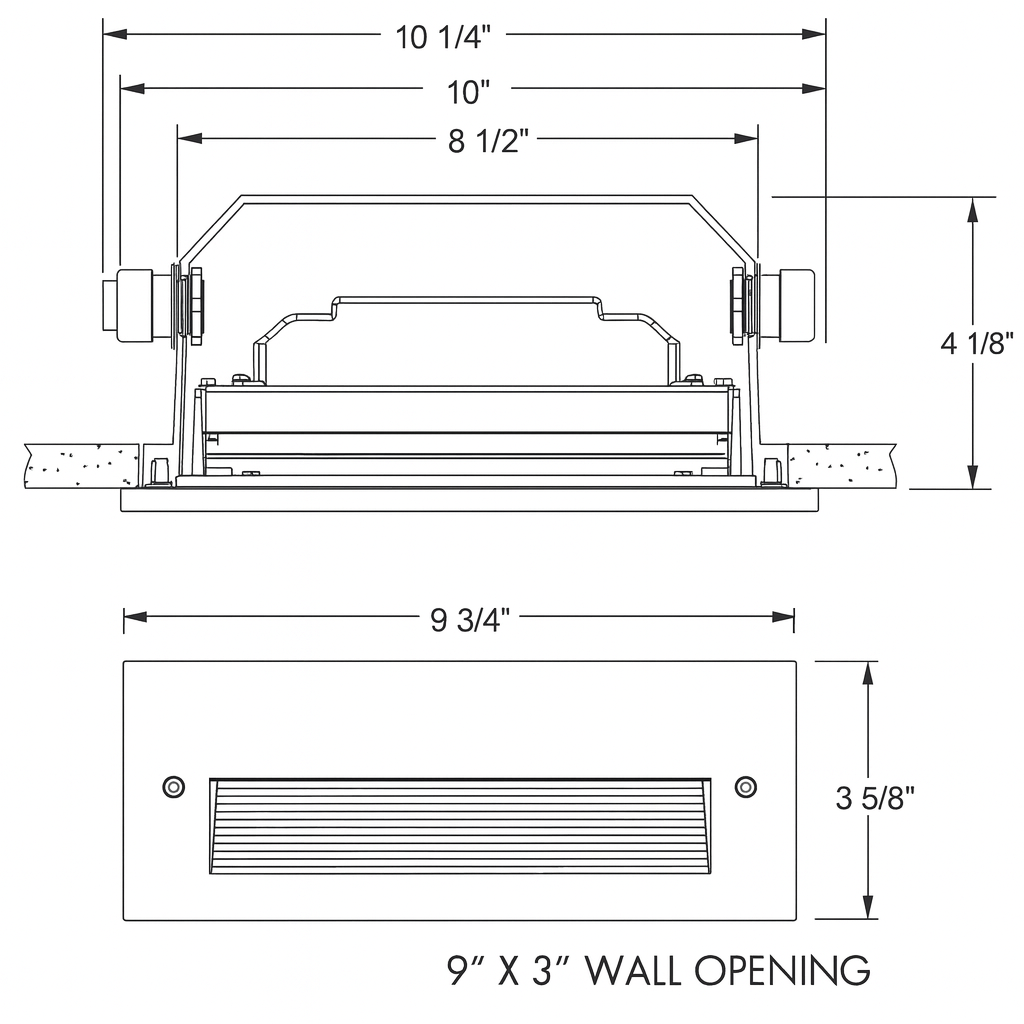

| Overall Size | 9.75" (248 mm) |
| Wall Opening | 9" × 3" (229 × 76 mm) |
| Installation | Concrete Pour / Brick Masonry / Drywall |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Rated Life | Approximately 50,000 Hours at 70% Lumen Maintenance |
| Driver Protection | Thermal / Overload / Short-Circuit Protection |
Applications
- Stairways & Steps
- Walkways & Pathways
- Patios
- Entryways
- Architectural Accent Lighting
- Safety & Wayfinding Lighting
- Residential Exteriors
- Commercial Properties
- Hotels & Hospitality
- Indoor Wall-Mounted Applications
- Outdoor Wall-Mounted Applications
Why Choose the Lantis Step Light Series?
The Lantis Step Light Series combines a 13W LED light engine with durable die-cast aluminum construction and an IP65-rated design for dependable indoor and outdoor illumination. Its low-level wall-mounted format is ideal for improving visibility along stairs, pathways, entryways, and architectural circulation areas.
With three color temperature options, four finish choices, multiple installation methods, protected driver components, and an approximately 50,000-hour rated life, the Lantis Series provides a versatile solution for residential, commercial, and hospitality step and pathway lighting.
