Diamond Brite LEDs
30W MR10L Micro Nugget Recessed Downlight Series
30W MR10L Micro Nugget Recessed Downlight Series
Couldn't load pickup availability

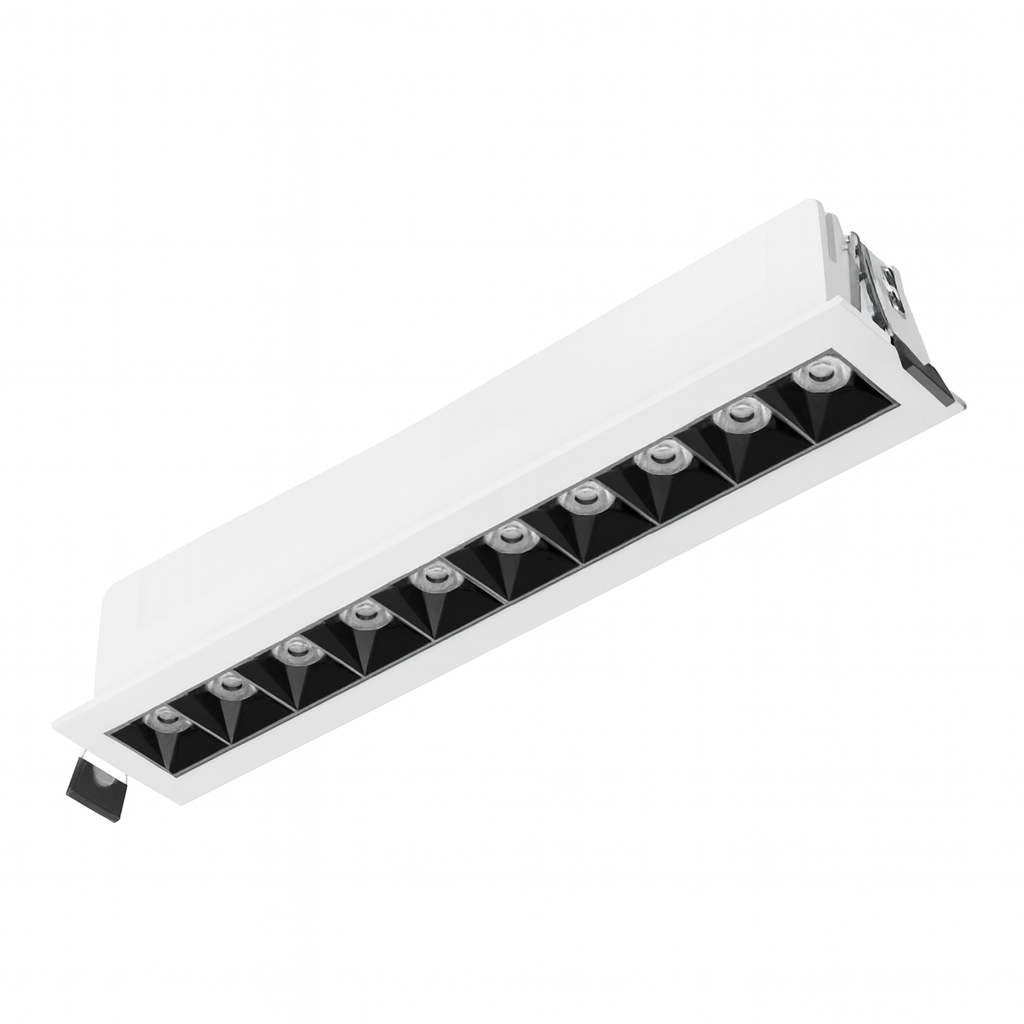

The 30W MR10L Micro Nugget Recessed Downlight Series is the largest fixture in the Nugget family, designed to provide bold, efficient illumination for expansive residential and commercial interiors. With a substantial 13.75" aperture and 30W power rating, it delivers a contemporary recessed lighting solution for larger spaces.
Designed for 120V applications, the MR10L Micro Nugget is available in multiple color temperatures from 2700K to 6500K and offers customizable trim and reflector combinations. An included junction box with integrated dimmable remote driver provides a convenient solution for modern recessed lighting installations.
Features
- Largest fixture in the Nugget Series
- 13.75" recessed aperture
- 30W LED power
- 120V operation
- Color temperature options from 2700K–6500K
- Designed for large residential and commercial spaces
- Black or White fixture trim options

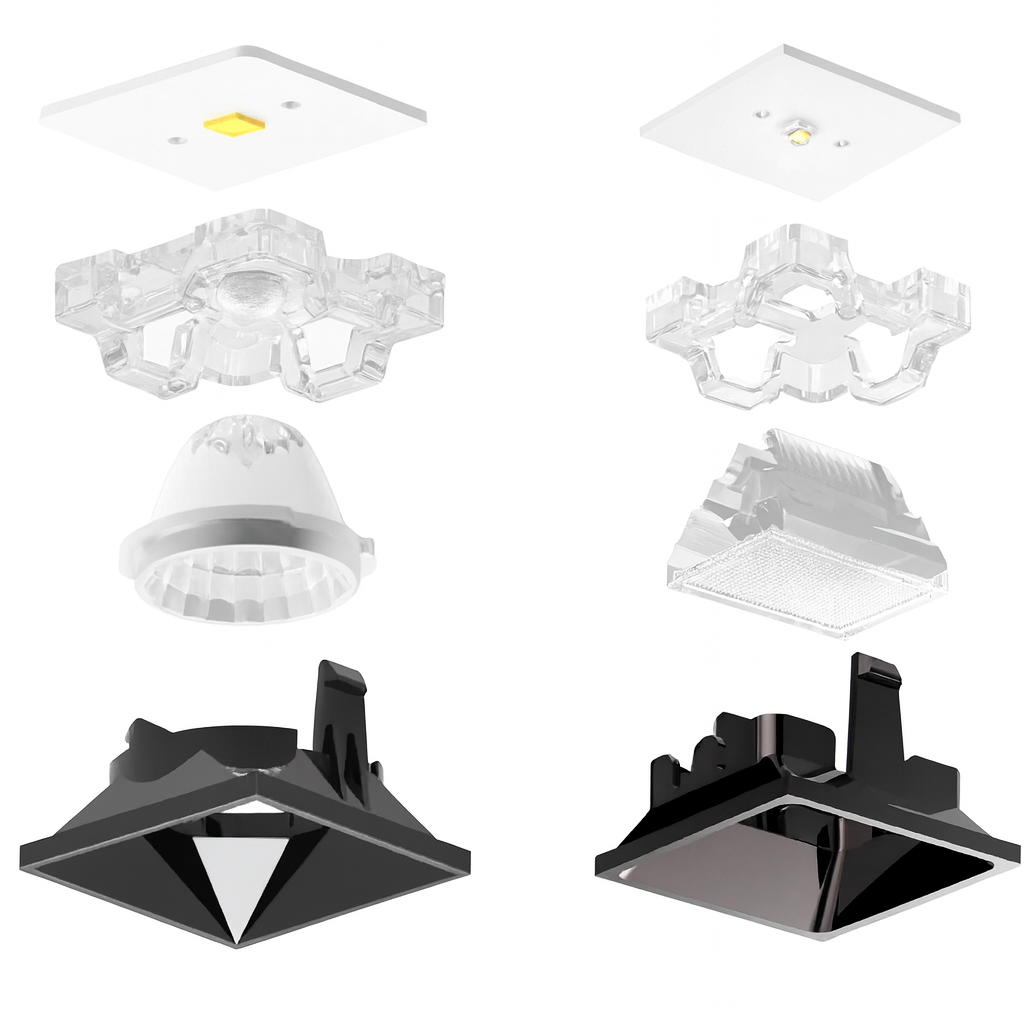

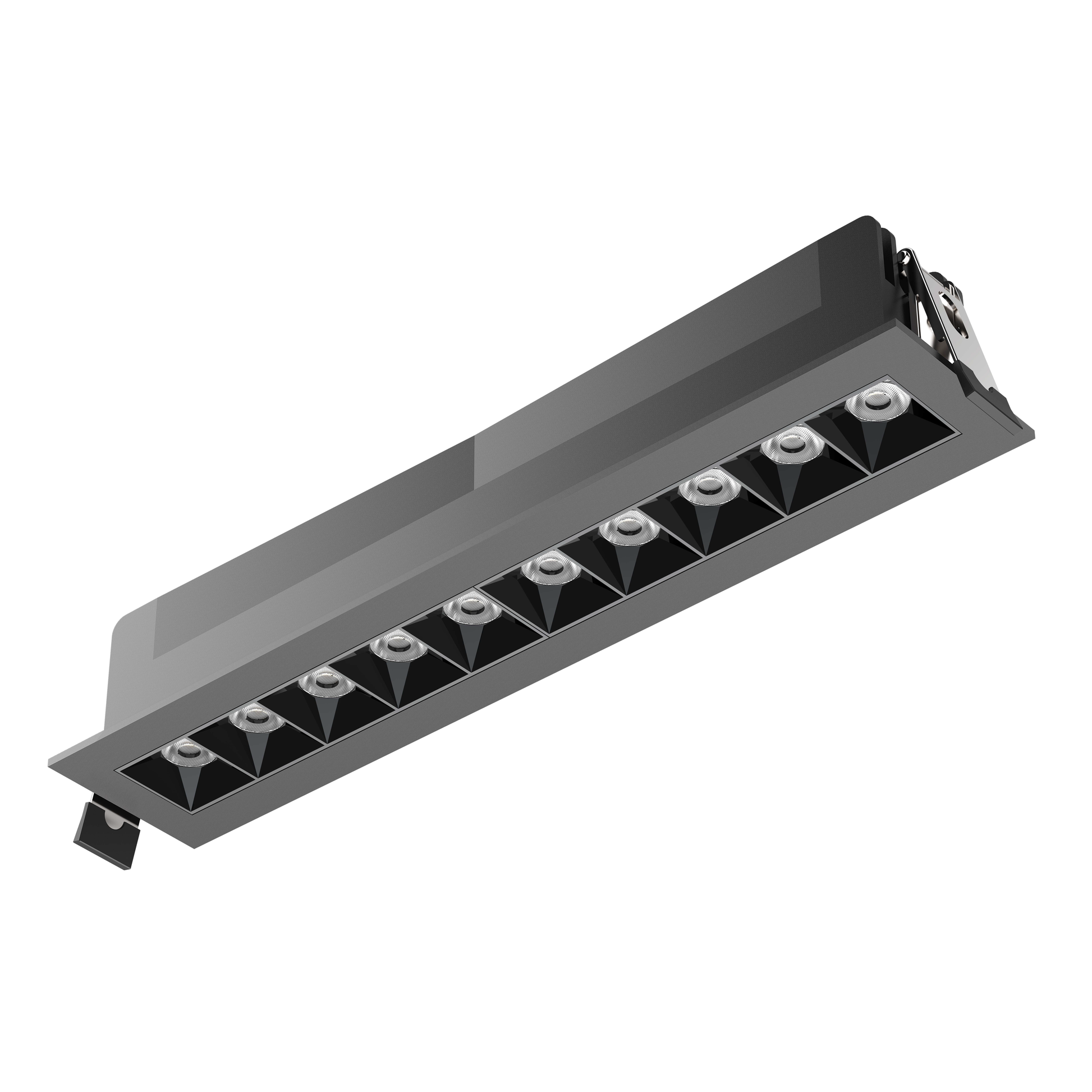

- Black, White, or Standard Gun Metal reflector options
- Junction box included
- Integrated dimmable remote driver
- IC rated
- Damp location rated
- 5-year warranty
Finish & Reflector Options
| Component | Available Options |
|---|---|
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
Specifications
| Product Type | Recessed LED Downlight |
|---|---|
| Series / Model | MR10L Micro Nugget |

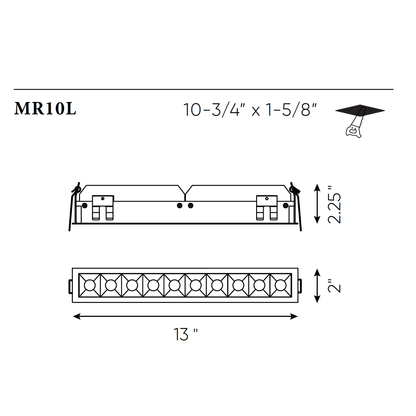

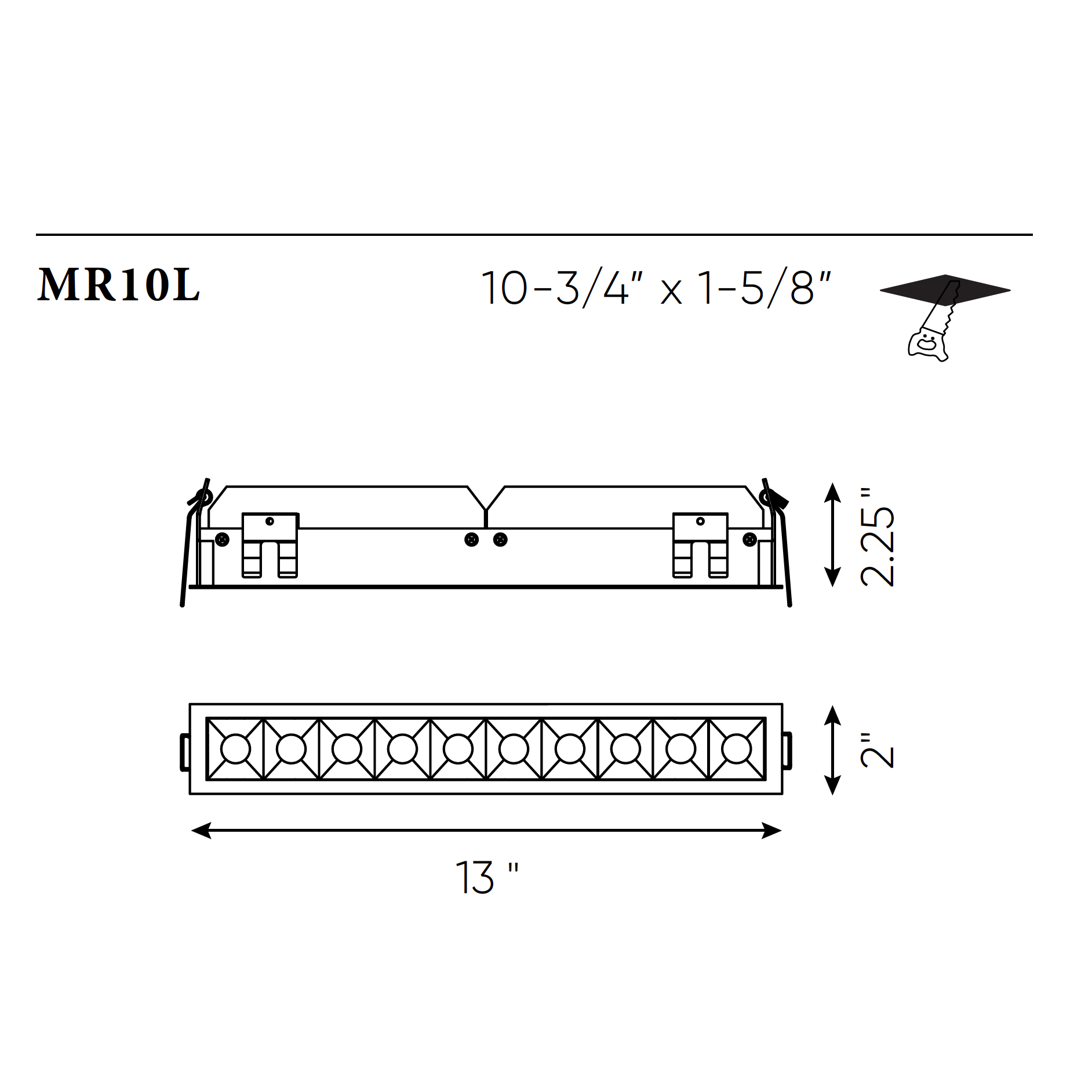

| Aperture Size | 13.75" (349 mm) |
| Power | 30W |
| Voltage | 120V |
| Color Temperature | 2700K–6500K |
| Dimming | Dimmable |
| Driver | Integrated Remote Driver |
| Junction Box | Included |
| Fixture Trim | Black / White |
| Reflector | Black / White / Standard Gun Metal |
| IC Rating | IC Rated |
| Location Rating | Damp Location |
| Warranty | 5 Years |
Applications
- Large Residential Spaces
- Commercial Interiors
- Large Living Areas
- Office Lighting
- Hospitality Environments
- Retail Spaces
- General Area Lighting
- Architectural Lighting
- Contemporary Ceiling Designs
Why Choose the 30W MR10L Micro Nugget Recessed Downlight Series?
The MR10L Micro Nugget combines a substantial 13.75" aperture with powerful 30W LED performance, making it the largest fixture in the Nugget Series and an excellent solution for expansive spaces requiring bold recessed illumination. Multiple trim, reflector, and color temperature options provide flexibility for coordinating the fixture with a variety of architectural interiors.
With an included junction box, integrated dimmable remote driver, IC rating, damp-location rating, and a 5-year warranty, the MR10L Micro Nugget provides a versatile recessed lighting solution for large residential, commercial, office, retail, and hospitality applications.
