Diamond Brite LEDs

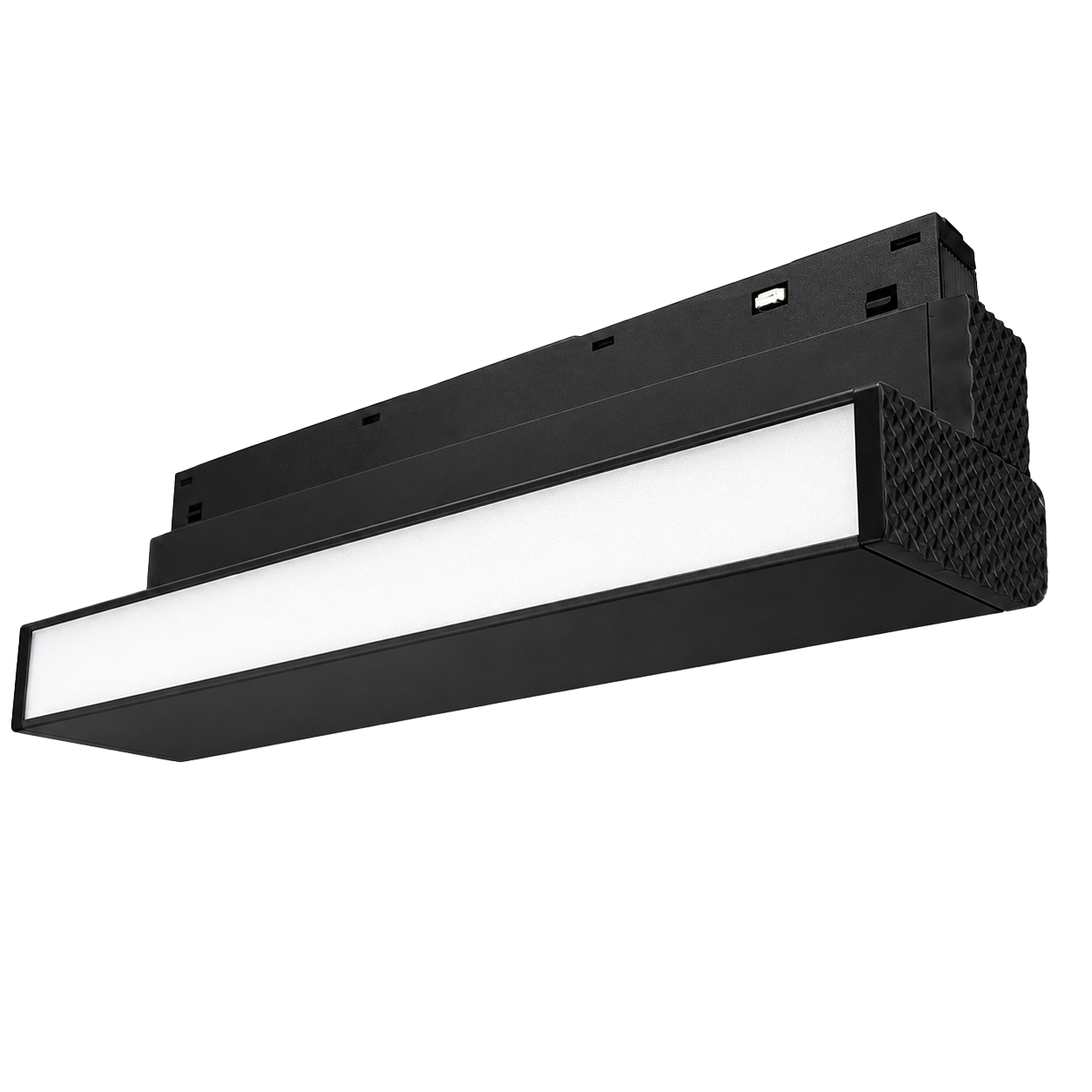

12W Micro Magnetic Pivot Linear Light Series
12W Micro Magnetic Pivot Linear Light Series
Couldn't load pickup availability
The 12W Micro Magnetic Pivot Linear Light delivers smooth, glare-free illumination with an adjustable pivoting design for greater lighting flexibility. Its extended 9" profile produces 1,416 lumens of continuous diffused light while allowing the fixture to be aimed toward workspaces, displays, architectural features, and task areas.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick, tool-free repositioning and effortless lighting customization.
Features
- 12W Integrated LED
- 1,416 Lumens
- High efficiency: 118 lm/W
- Adjustable pivoting linear light
- Continuous diffused illumination
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Low-glare frosted diffuser
- 48V DC magnetic system
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium extruded aluminum housing
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 12W | 9" (220 mm) | 1,416 lm | MCR-LNR9-PVT-12W-CCT-48V-MB |
| Matte White | 12W | 9" (220 mm) | 1,416 lm | MCR-LNR9-PVT-12W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Pivot Linear Light |
| Power | 12W |
| Lumen Output | 1,416 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 9" (220 mm) |
| Width | 1" (22 mm) |
| Height | 4" (105 mm) |
| Beam Type | Continuous Diffused Linear Light |
| Adjustable Head | Pivoting Directional Lighting |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for:
- Kitchen Islands
- Dining Tables
- Retail Displays
- Jewelry Showcases
- Art Galleries
- Office Workstations
- Hospitality
- Hotels
- Restaurants
- Residential Accent Lighting
- Commercial Interiors
What's Included
- 1 × 12W Micro Magnetic Pivot Linear Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Pivot Linear Light?
The adjustable pivoting design allows the angle of illumination to be changed after installation, providing greater flexibility than a fixed linear fixture. Its continuous frosted diffuser produces smooth, uniform illumination while the adjustable head allows light to be directed exactly where it's needed.
