12W Micro Magnetic Pivot Linear Dot Light Series
12W Micro Magnetic Pivot Linear Dot Light Series
Couldn't load pickup availability

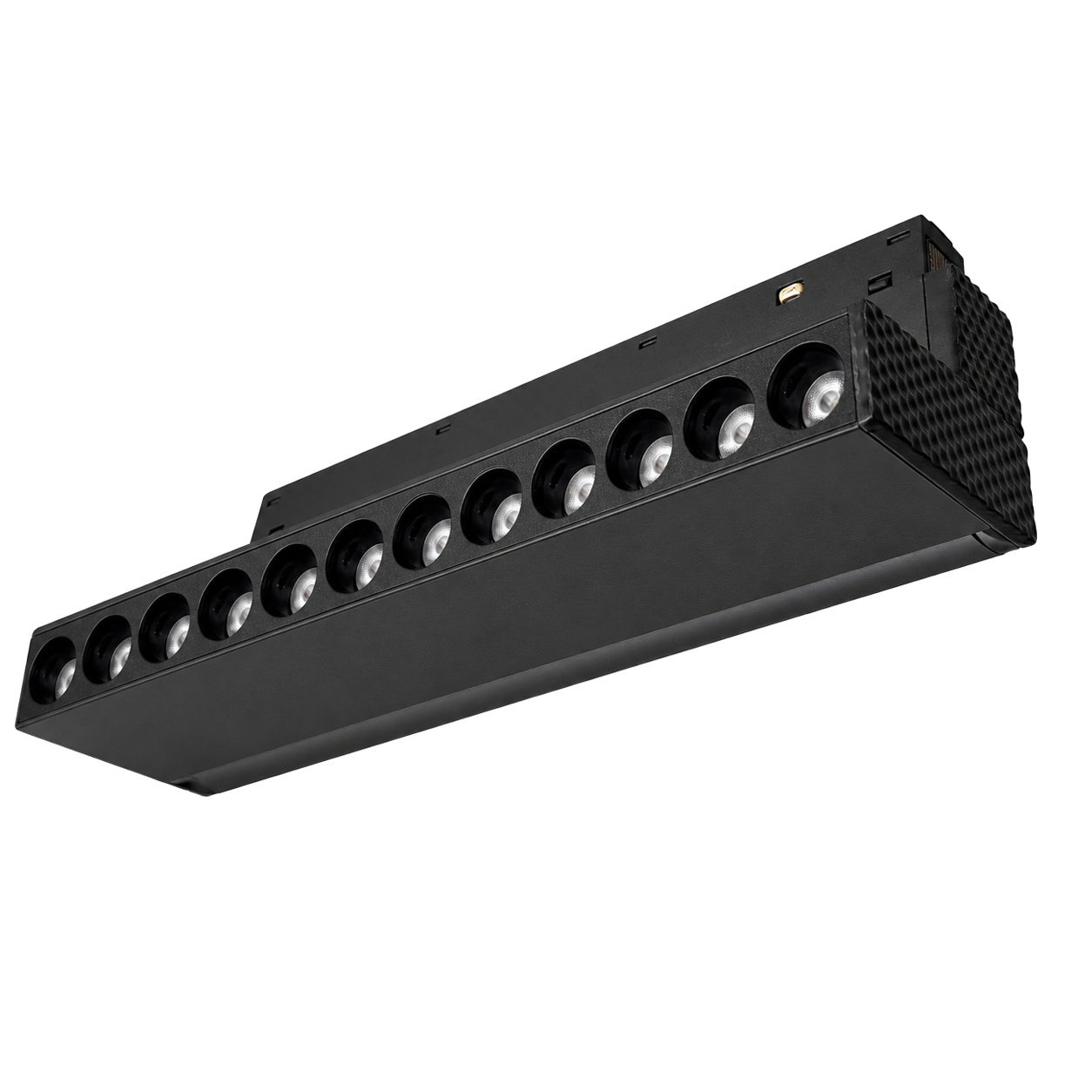

The 12W Micro Magnetic Pivot Linear Dot Light delivers precise directional illumination through 12 individually recessed LED optics. Its adjustable pivoting design allows the light to be aimed toward merchandise, artwork, architectural features, and task areas while maintaining a clean, minimalist appearance.
Designed for 48V Micro Magnetic Track Systems, the fixture magnetically installs into the track for quick repositioning and flexible lighting layouts.
Features
- 12W Integrated LED
- DOT9 configuration with 12 recessed optics

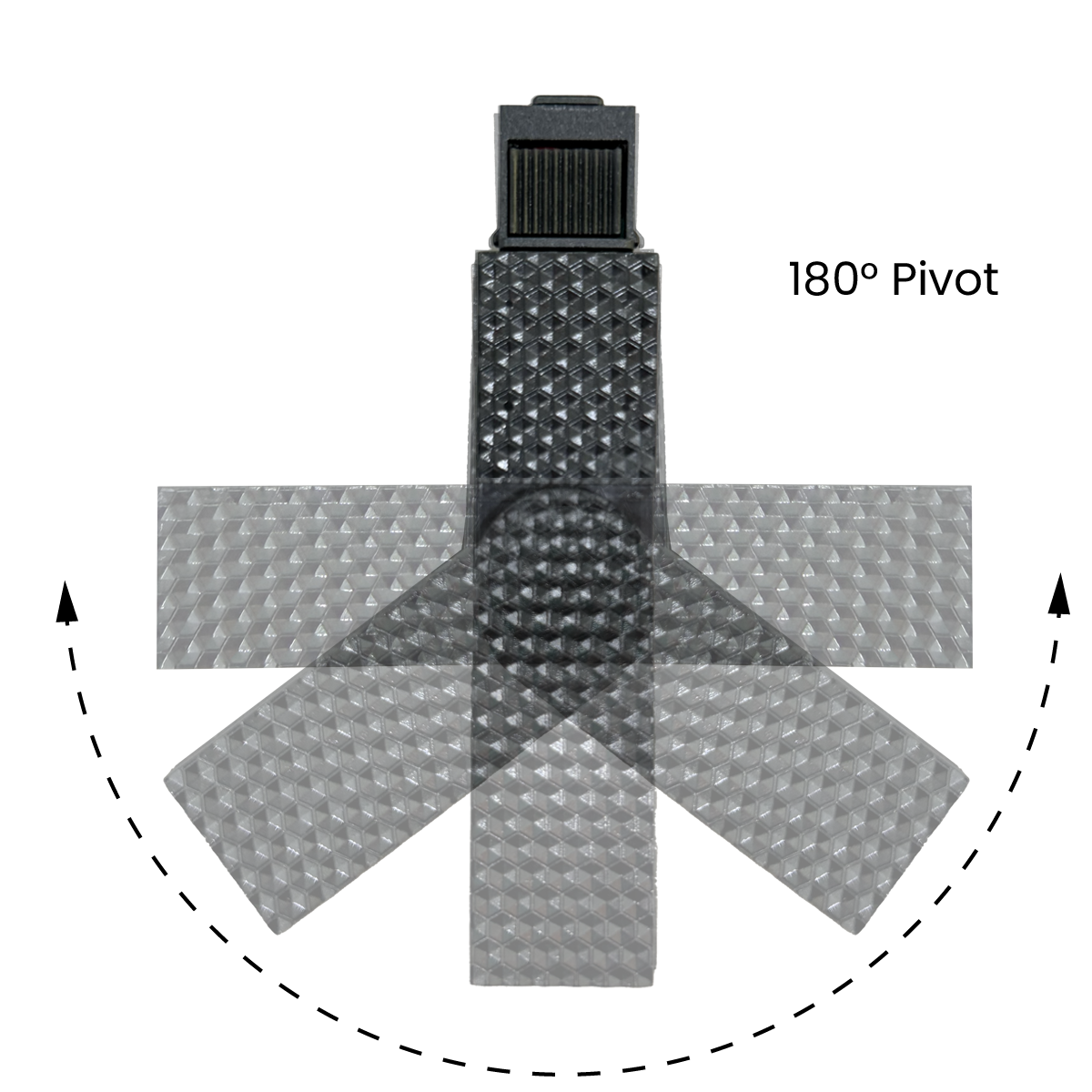

- Adjustable pivoting light head
- 1,416 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Precision directional lighting
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 12W | 9" (220 mm) | 1,416 lm | MCR-DOT9-PVT-12W-CCT-48V-MB |
| Matte White | 12W | 9" (220 mm) | 1,416 lm | MCR-DOT9-PVT-12W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Pivot Linear Dot Light |
| Configuration | DOT9 Pivot |
| LED Optics | 12 |
| Power | 12W |
| Lumen Output | 1,416 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 9" (220 mm) |
| Width | 1" (22 mm) |
| Height | 4" (105 mm) |
| Adjustable Head | Pivoting Directional Lighting |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications

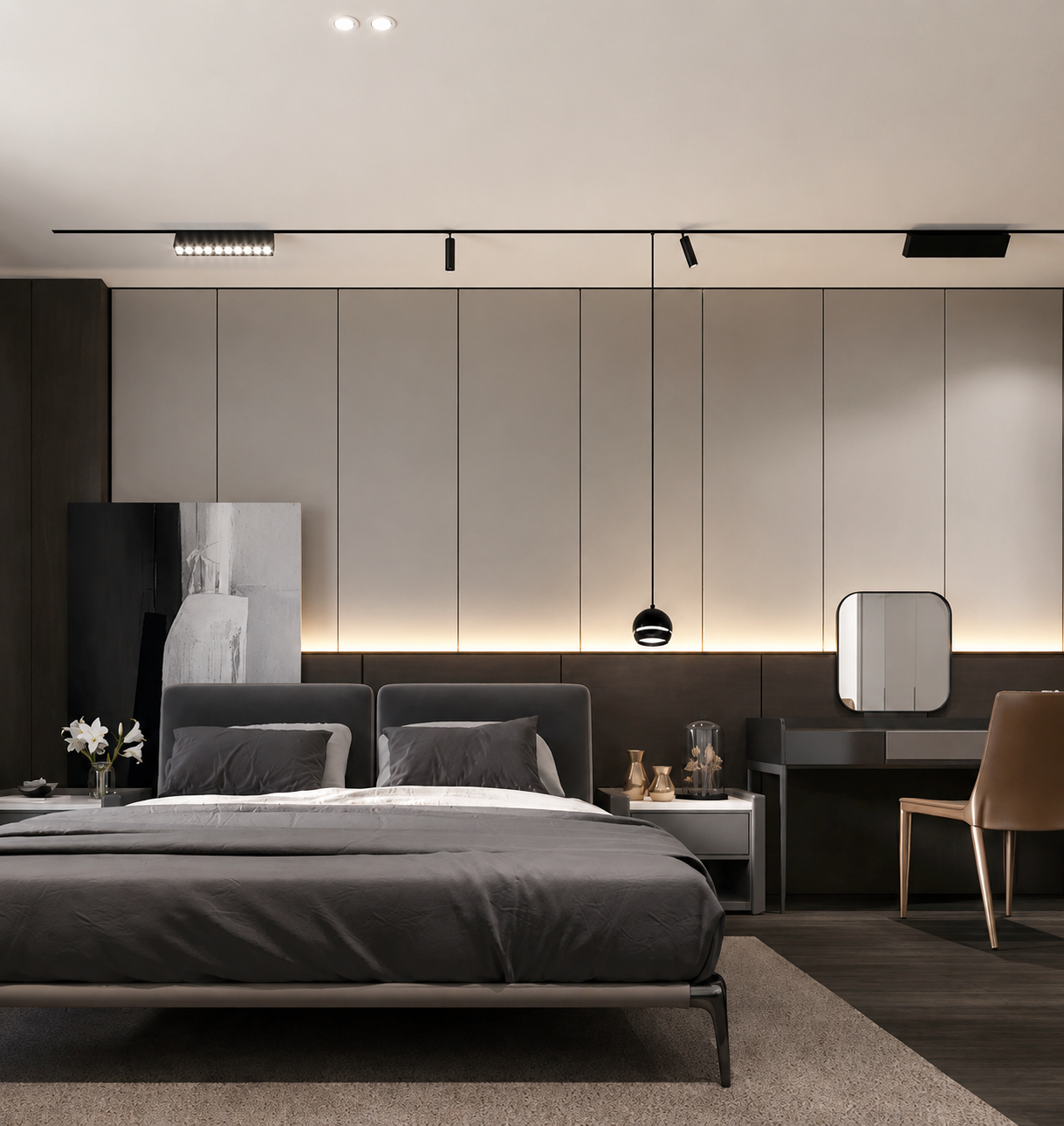

Ideal for retail displays, jewelry stores, art galleries, museums, luxury residences, kitchen islands, display cabinets, hospitality spaces, restaurants, hotels, offices, and accent lighting.
What's Included
- 1 × 12W DOT9 Micro Magnetic Pivot Linear Dot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
