12W Micro Magnetic Linear Dot Light Series
12W Micro Magnetic Linear Dot Light Series
Couldn't load pickup availability

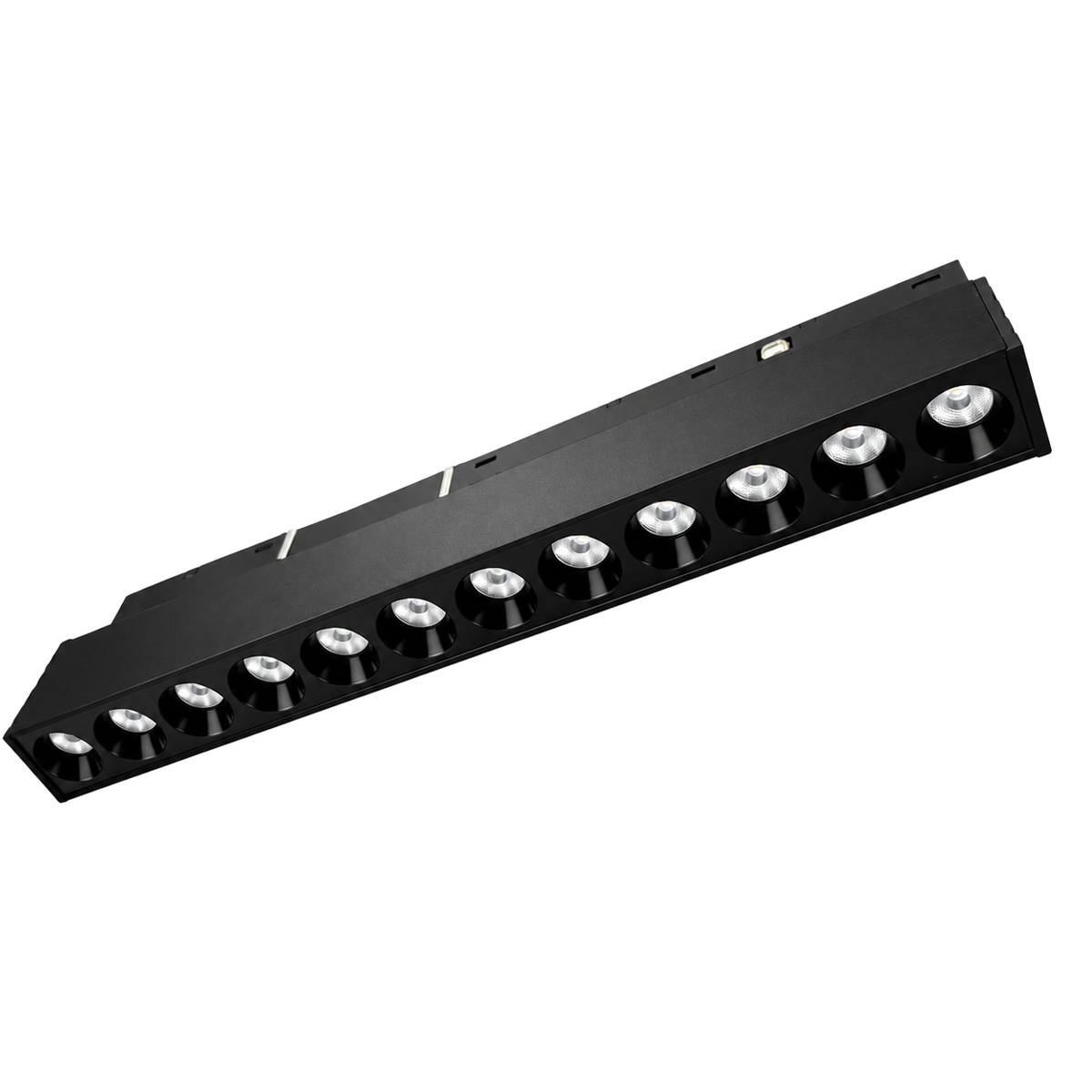

The 12W Micro Magnetic Linear Dot Light delivers precise, low-glare accent illumination through 12 individually recessed LED optics. The DOT9 configuration provides excellent beam control while maintaining the sleek appearance of a linear architectural fixture.
Designed for 48V Micro Magnetic Track Systems, the fixture installs magnetically for quick repositioning and flexible lighting layouts.
Features
- 12W Integrated LED
- DOT9 configuration with 12 recessed optics
- 1,416 Lumens
- High efficiency: 118 lm/W
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Low-glare architectural design
- 48V DC magnetic system
- Tool-free magnetic installation
- Available in Matte Black and Matte White
- Premium aluminum construction
- ETL, CE, FCC & RoHS Certified
Available Models
| Finish | Power | Length | Lumens | Model No. |
|---|---|---|---|---|
| Matte Black | 12W | 9" (222 mm) | 1,416 lm | MCR-DOT9-12W-CCT-48V-MB |
| Matte White | 12W | 9" (222 mm) | 1,416 lm | MCR-DOT9-12W-CCT-48V-MW |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Dot Light |
| Configuration | DOT9 |
| LED Optics | 12 |
| Power | 12W |
| Lumen Output | 1,416 lm |
| Luminous Efficacy | 118 lm/W |
| System Voltage | 48V DC |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Material | Aluminum |
| Finish | Matte Black or Matte White |
| Length | 9" (222 mm) |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Mounting | Magnetic Track Mounted |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Ideal for retail displays, jewelry stores, artwork, museums, galleries, kitchen islands, shelving, hospitality spaces, restaurants, offices, and accent lighting.
What's Included
- 1 × 12W DOT9 Micro Magnetic Linear Dot Light
Magnetic track, power supply, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including recessed trimless, surface mount, and suspended mount tracks.
