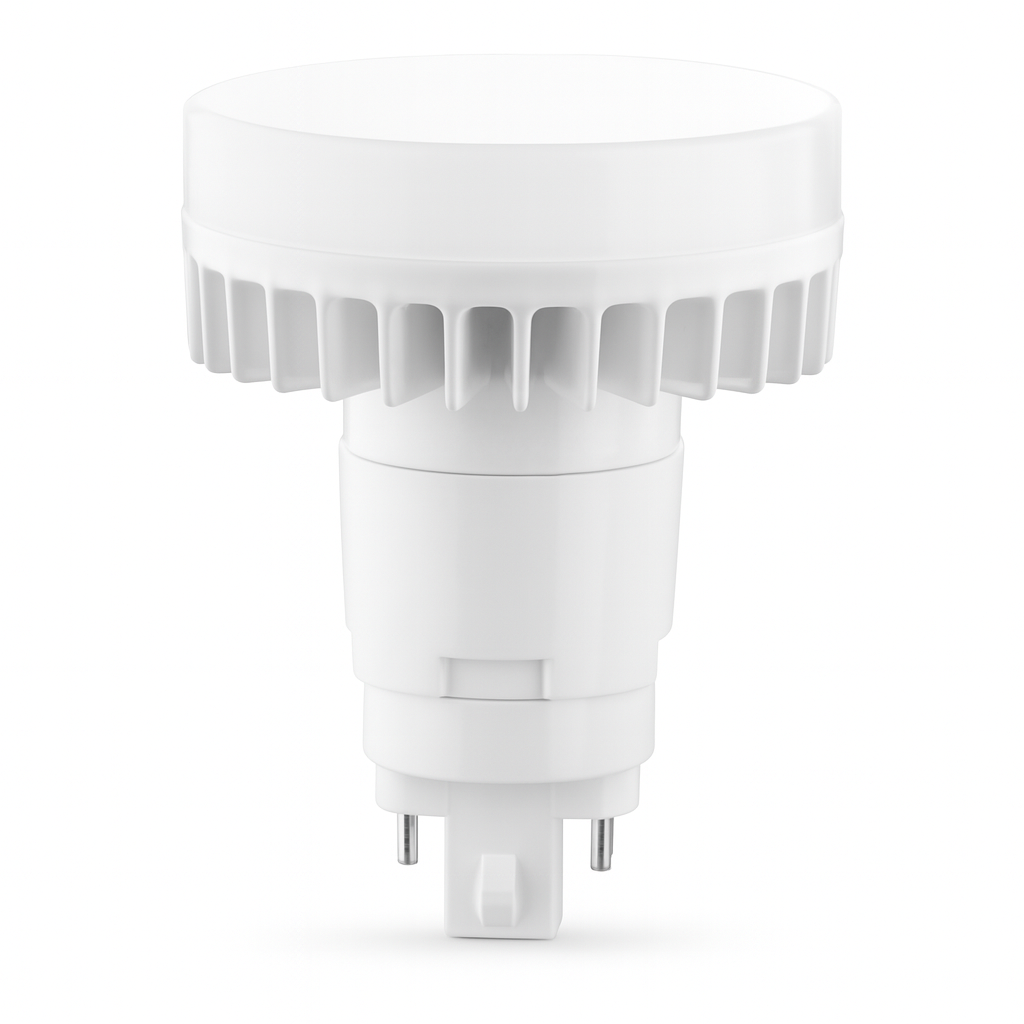

12W Hybrid Vertical PL Retrofit Lamp Series
12W Hybrid Vertical PL Retrofit Lamp Series
Couldn't load pickup availability
The Hybrid Vertical PL LED Retrofit Lamp Series provides a flexible, energy-efficient solution for replacing traditional compact fluorescent plug-in lamps. Designed with hybrid technology, these lamps can operate with compatible existing ballasts or on direct line voltage, simplifying LED retrofit projects across a wide range of commercial and residential fixtures.
Available with G24Q, G24D, GX23, G23, and GU24 base configurations, the Hybrid Vertical PL Series offers wattages up to 12W for replacing CFL lamps up to 26W. Multiple color temperatures from 2700K to 5000K provide additional flexibility for offices, retail spaces, hotels, healthcare facilities, educational environments, and residential applications.
Features
- LED replacement for traditional compact fluorescent plug-in lamps
- Available in wattages up to 12W
- Replaces CFL lamps up to 26W
- Hybrid technology supports compatible ballast or direct line-voltage operation
- Direct line-voltage operation from 120–347V
- Available with G24Q, G24D, GX23, G23 & GU24 bases
- Available in 2700K, 3000K, 3500K, 4100K & 5000K
- Up to 60% energy savings compared with traditional CFL lamps
- Compact vertical form factor for convenient CFL replacement
- Approximately 50,000-hour rated life
- 5-year limited warranty
Base Options
| Base Type | Configuration |
|---|---|
| G24Q | Plug-In Base |
| G24D | Plug-In Base |
| GX23 | Plug-In Base |
| G23 | Plug-In Base |
| GU24 | Twist-Lock Base |
Color Temperature Options
| Color Temperature | Description |
|---|---|
| 2700K | Warm White |
| 3000K | Warm White |
| 3500K | Soft White |
| 4100K | Neutral White |
| 5000K | Daylight |
Hybrid Installation Options
- Ballast Compatible: Designed to operate with compatible existing ballasts for convenient retrofit installation
- Direct Line Voltage: Can operate directly from 120–347V when installed in the appropriate configuration
Specifications
| Product Type | Vertical PL LED Retrofit Lamp |
|---|---|
| Series | Hybrid Vertical PL Series |
| Power | Up to 12W |
| CFL Replacement | Up to 26W |
| Technology | Hybrid Ballast Compatible / Direct Line Voltage |
| Direct Input Voltage | 120–347V |
| Base Options | G24Q / G24D / GX23 / G23 / GU24 |
| Color Temperatures | 2700K / 3000K / 3500K / 4100K / 5000K |
| Energy Savings | Up to 60% Compared with CFL |
| Form Factor | Vertical |
| Rated Life | Up to 50,000 Hours |
| Warranty | 5-Year Limited Warranty |
Applications
- Office Lighting
- Retail Stores
- Hotels & Hospitality Spaces
- Healthcare Facilities
- Schools & Educational Facilities
- Commercial Buildings
- Residential Retrofits
- Existing CFL Fixture Upgrades
Why Choose the Hybrid Vertical PL Series?
The Hybrid Vertical PL LED Retrofit Lamp Series combines ballast-compatible and direct line-voltage operation in a compact vertical design, providing greater flexibility when upgrading existing compact fluorescent fixtures. Multiple base configurations allow the series to accommodate a wide range of existing PL lamp applications.
With wattages up to 12W, CFL replacement up to 26W, five color temperature options, up to 50,000 hours of rated life, and a 5-year limited warranty, the Hybrid Vertical PL Series provides a versatile and energy-efficient solution for commercial, institutional, hospitality, and residential retrofit projects.
