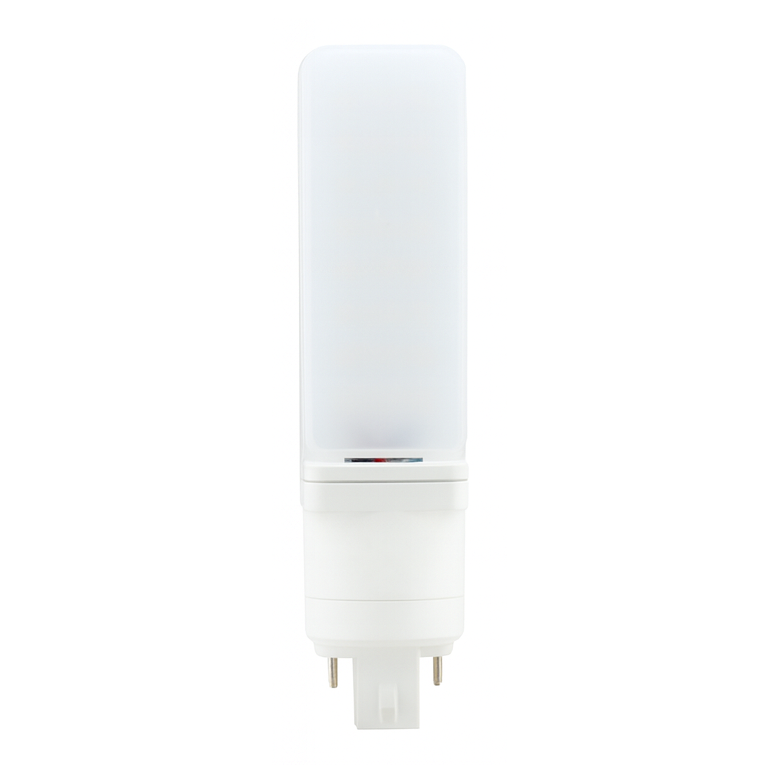

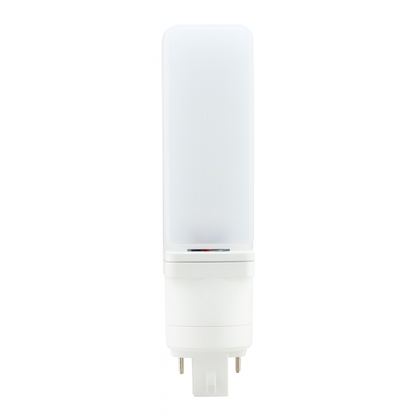

12W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
12W Hybrid Horizontal PL Retrofit Lamp - G24Q Base
Couldn't load pickup availability
The 12W Hybrid Horizontal PL Retrofit Lamp with G24Q Base is an energy-efficient LED replacement for traditional 26W 4-pin CFL lamps. Designed for horizontal fixture applications, it provides long-lasting performance while significantly reducing power consumption compared with conventional CFL lighting.
Featuring hybrid compatibility for both ballast-compatible and ballast-bypass installations, a G24Q 4-pin base, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp is well suited for high-demand retail spaces, schools, offices, and commercial retrofit projects.
Features
- 12W LED replacement for 26W CFL lamps
- Approximately 54% lower power consumption compared with a 26W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G24Q 4-Pin Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 12W |
| CFL Replacement | 26W CFL |
| Power Reduction | Approximately 54% |
| Base | G24Q (4-Pin) |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- High-Demand Retail Spaces
- Schools
- Offices
- Educational Facilities
- Commercial Interiors
- Commercial Retrofit Projects
- G24Q 4-Pin Fixture Retrofits
Why Choose the 12W Hybrid Horizontal PL Retrofit Lamp with G24Q Base?
The 12W Hybrid Horizontal PL Retrofit Lamp provides an efficient upgrade from traditional 26W CFL lamps, reducing power consumption by approximately 54%. Its G24Q 4-pin base is designed for compatible fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for high-demand retail spaces, schools, offices, and commercial retrofit applications.
