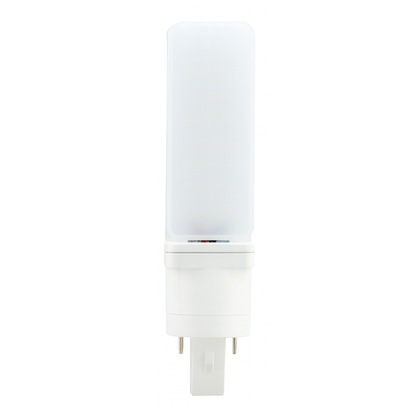

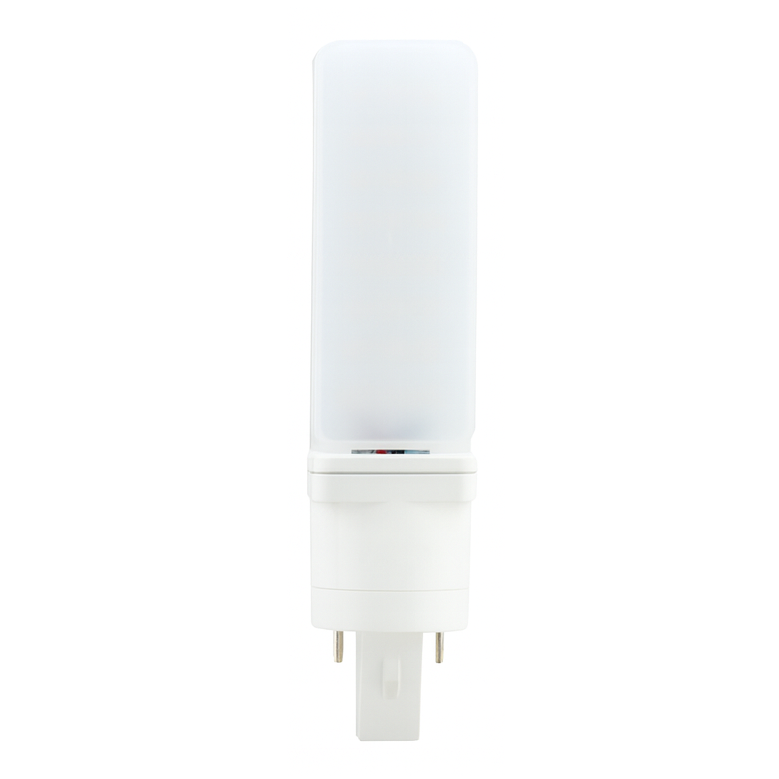

12W Hybrid Horizontal PL Retrofit Lamp - G23 Base
12W Hybrid Horizontal PL Retrofit Lamp - G23 Base
Couldn't load pickup availability
The 12W Hybrid Horizontal PL Retrofit Lamp with G23 Base is an energy-efficient LED replacement for traditional 26W CFL lamps. Designed for horizontal fixture applications, it provides reliable, long-lasting performance while significantly reducing power consumption compared with conventional CFL lighting.
Featuring a G23 base, hybrid compatibility for both ballast-compatible and ballast-bypass installations, five available color temperatures, and 120–277V operation with an optional 347V configuration, this retrofit lamp is a versatile solution for schools, offices, multi-family housing, and other compatible retrofit applications.
Features
- 12W LED replacement for 26W CFL lamps
- Approximately 54% lower power consumption compared with a 26W CFL
- Designed for horizontal fixture applications
- Hybrid plug-and-play and direct-wire operation
- Ballast-compatible installation option
- Ballast-bypass installation option
- G23 Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Installation Options
| Installation Method | Configuration |
|---|---|
| Plug-and-Play | Ballast Compatible |
| Direct-Wire | Ballast Bypass |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 12W |
| CFL Replacement | 26W CFL |
| Power Reduction | Approximately 54% |
| Base | G23 |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Installation | Plug-and-Play / Direct-Wire |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Schools
- Offices
- Multi-Family Housing
- Educational Facilities
- Commercial Interiors
- Residential Common Areas
- Horizontal CFL Retrofit Applications
- G23 Fixture Retrofits
Why Choose the 12W Hybrid Horizontal PL Retrofit Lamp with G23 Base?
The 12W Hybrid Horizontal PL Retrofit Lamp provides an efficient upgrade from traditional 26W CFL lamps, reducing power consumption by approximately 54%. Its G23 base is designed for compatible horizontal fixtures, while hybrid operation supports both ballast-compatible and ballast-bypass installations.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this retrofit lamp provides a versatile solution for schools, offices, multi-family housing, and commercial retrofit applications.
