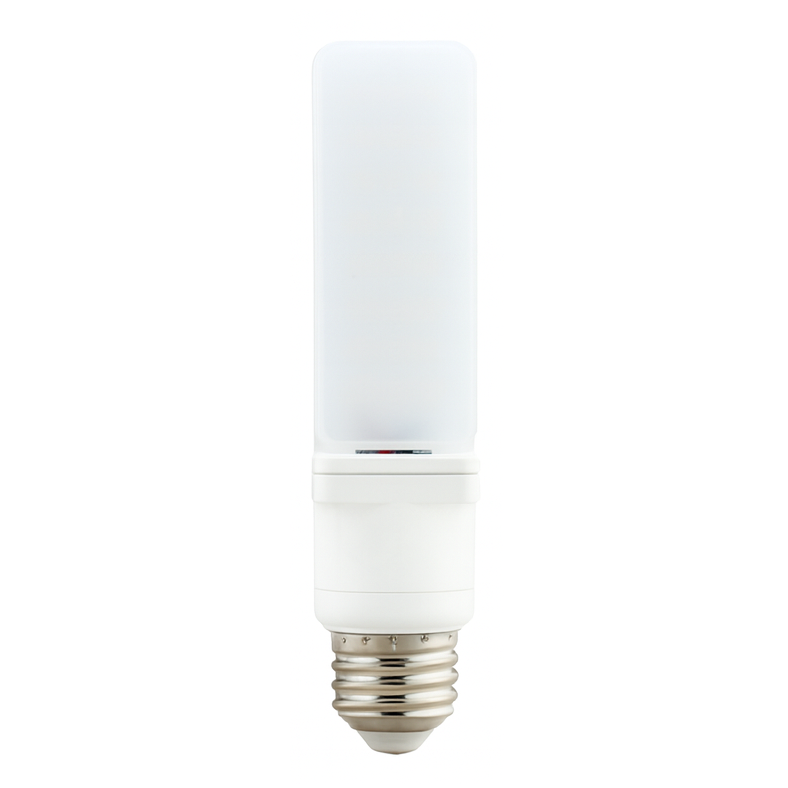

12W Hybrid Horizontal PL Retrofit Lamp - E26 Base
12W Hybrid Horizontal PL Retrofit Lamp - E26 Base
Couldn't load pickup availability
The 12W Hybrid Horizontal PL Retrofit Lamp with E26 Base is an energy-efficient LED replacement for traditional 26W CFL lamps. Designed for horizontal fixture applications, it provides a practical retrofit solution for larger residential and commercial lighting projects while significantly reducing power consumption.
Featuring an E26 medium screw base, five available color temperatures, and 120–277V operation with an optional 347V configuration, the 12W Hybrid Horizontal PL Retrofit Lamp is well suited for large retail spaces, schools, offices, multi-unit housing, and other interior applications.
Features
- 12W LED replacement for 26W CFL lamps
- Approximately 54% lower power consumption compared with a 26W CFL
- Designed for horizontal fixture applications
- Hybrid retrofit design
- E26 Medium Screw Base
- 2700K, 3000K, 3500K, 4100K, and 5000K color temperature options
- 120–277V operation
- Optional 347V configuration
- Approximately 50,000-hour rated life
- UL Listed
- RoHS Compliant
Color Temperature Options
| Color Temperature | Availability |
|---|---|
| 2700K | Available |
| 3000K | Available |
| 3500K | Available |
| 4100K | Available |
| 5000K | Available |
Specifications
| Product Type | Hybrid Horizontal PL Retrofit Lamp |
|---|---|
| Wattage | 12W |
| CFL Replacement | 26W CFL |
| Power Reduction | Approximately 54% |
| Base | E26 Medium Screw Base |
| Orientation | Horizontal |
| Color Temperature | 2700K / 3000K / 3500K / 4100K / 5000K |
| Voltage | 120–277V |
| Optional Voltage | 347V |
| Rated Life | 50,000 Hours |
| Certifications | UL Listed / RoHS Compliant |
Applications
- Large Retail Spaces
- Schools
- Offices
- Multi-Unit Housing
- Commercial Interiors
- Residential Common Areas
- Horizontal CFL Retrofit Applications
Why Choose the 12W Hybrid Horizontal PL Retrofit Lamp?
The 12W Hybrid Horizontal PL Retrofit Lamp provides an efficient replacement for traditional 26W CFL lamps, reducing power consumption by approximately 54%. Its horizontal configuration and E26 medium screw base make it a practical retrofit option for compatible fixtures in larger residential and commercial environments.
With five available color temperatures, 120–277V operation, an optional 347V configuration, a 50,000-hour rated life, UL listing, and RoHS compliance, this hybrid retrofit lamp provides a versatile solution for retail spaces, schools, offices, multi-unit housing, and other high-use lighting applications.
