Diamond Brite LEDs

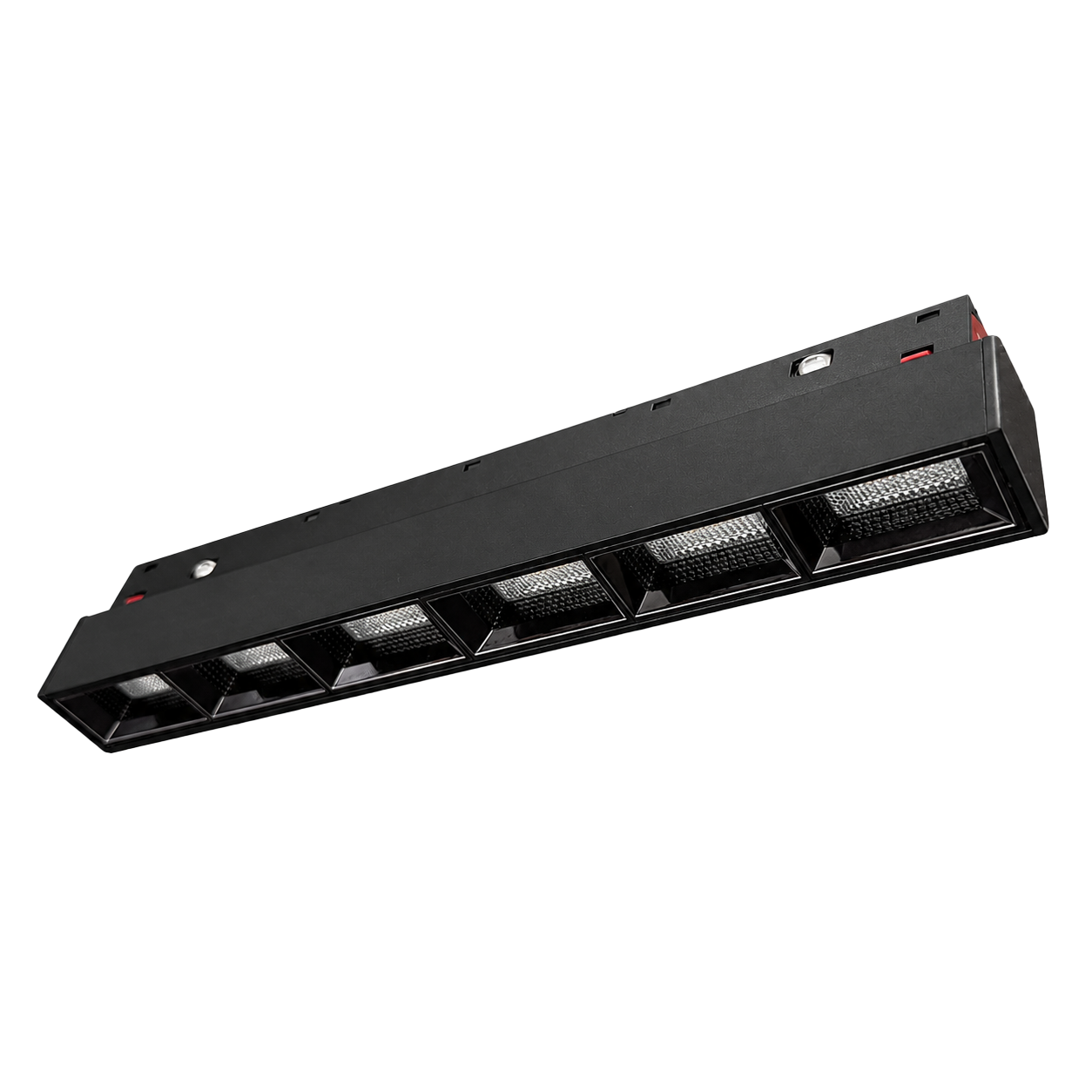

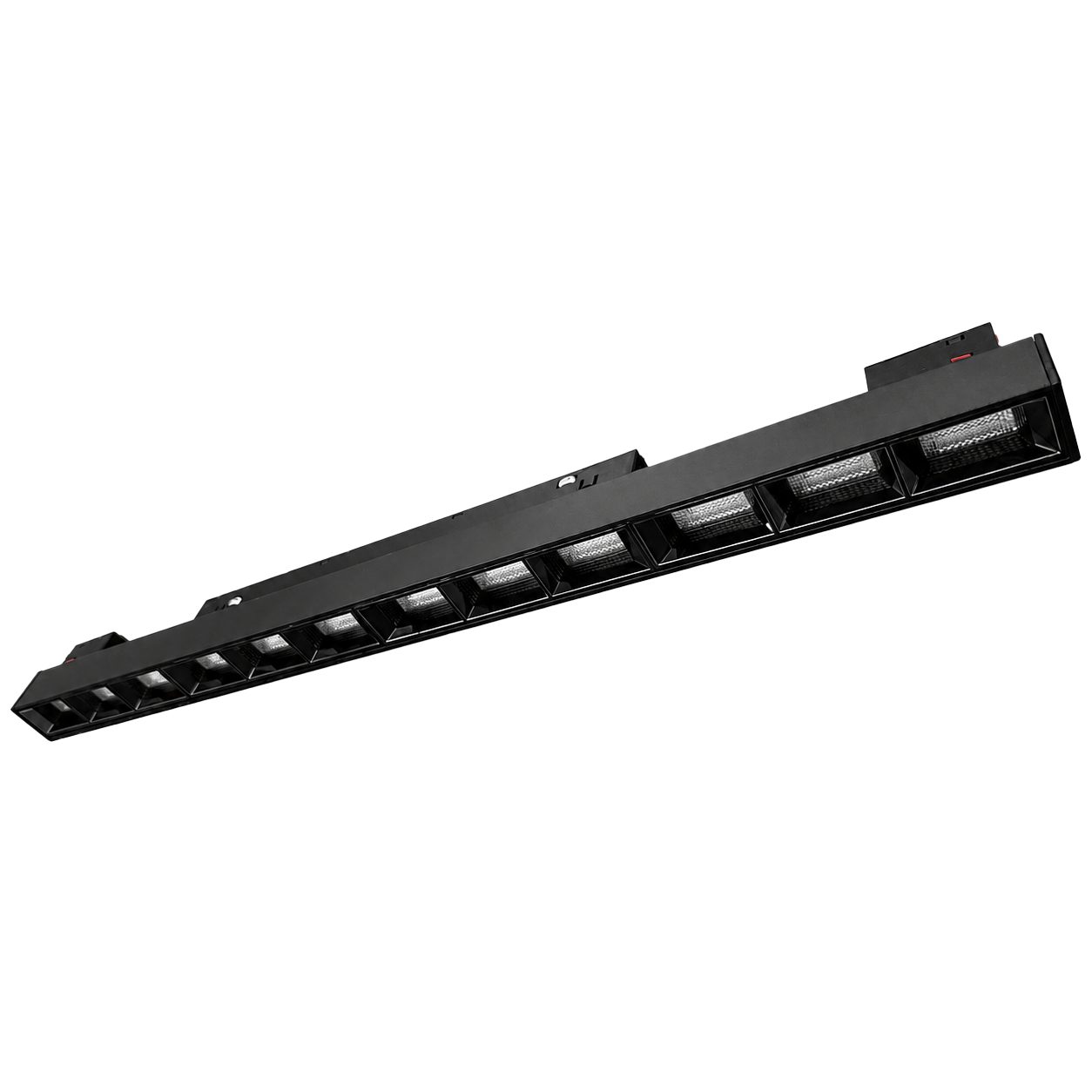

Micro Magnetic Linear Grille Light Series
Micro Magnetic Linear Grille Light Series
Couldn't load pickup availability
The Micro Magnetic Linear Grille Light delivers high-performance, low-glare illumination with a sleek architectural design. Featuring deep recessed optics and a precision grille, this fixture minimizes glare while providing exceptional visual comfort, making it ideal for retail, hospitality, residential, and commercial applications.
Designed for 48V Micro Magnetic Track Systems, the fixture magnetically installs into the track for quick repositioning and maximum lighting flexibility.
Features
- Deep recessed anti-glare grille optics
- Compatible with all 48V Micro Magnetic Track Systems
- LED color temperature: 3000K Warm White
- Smooth dimmable operation
- High efficiency: 118 lm/W
- Precision directional illumination
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium extruded aluminum housing
- Low UGR architectural lighting
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant
Available Models
Matte Black
| Configuration | Power | Length | Lumens |
|---|---|---|---|
| Grille 9 | 12W | 9" (221 mm) | 1,416 lm |
| Grille 17 | 24W | 17" (436 mm) | 2,832 lm |
Matte White
| Configuration | Power | Length | Lumens |
| Grille 9 | 12W | 9" (221 mm) | 1,416 lm |
| Grille 17 | 24W | 17" (436 mm) | 2,832 lm |
Specifications
| Specification | Details |
| Product Type | Micro Magnetic Linear Grille Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| Power Options | 12W, 24W |
| Luminous Efficacy | 118 lm/W |
| Lumen Output | 1,416 lm (12W), 2,832 lm (24W) |
| Color Temperature | 3000K Warm White |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Aluminum |
| Width | 1" (23 mm) |
| Height | 2" (45 mm) |
| Length Options | 9" (221 mm), 17" (436 mm) |
| Optical Design | Deep Recessed Anti-Glare Grille |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Perfect for:
- Luxury Homes
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Museums
- Hotels
- Restaurants
- Office Spaces
- Product Displays
- Accent Lighting
- Architectural Lighting
What's Included
- 1 × Micro Magnetic Linear Grille Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Linear Grille Light?
The Micro Magnetic Linear Grille Light features deep recessed optics that significantly reduce glare while providing precise, controlled illumination. Its warm 3000K LED light creates a comfortable, inviting atmosphere while maintaining the performance and modern aesthetics required for upscale residential and commercial environments.
