Diamond Brite LEDs

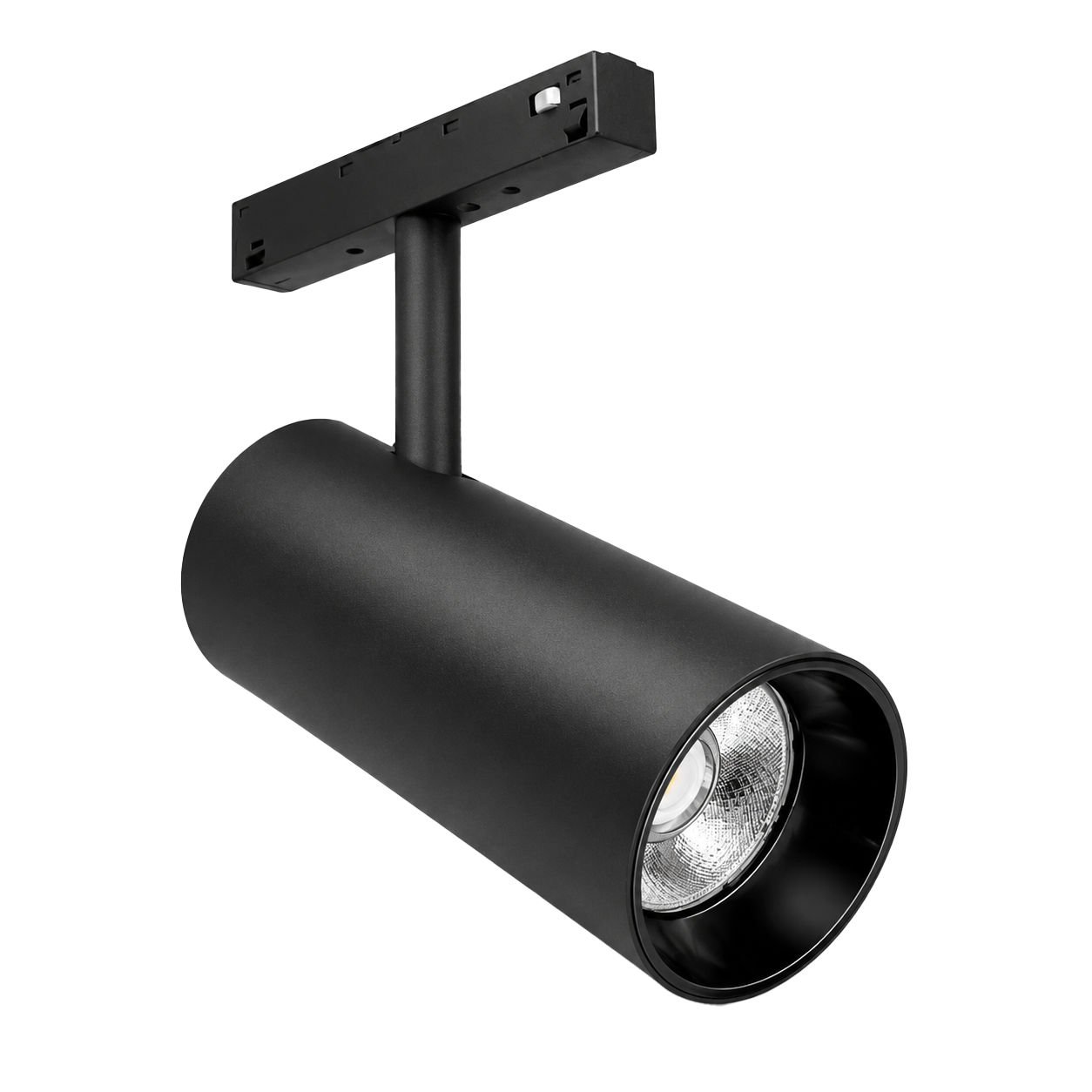

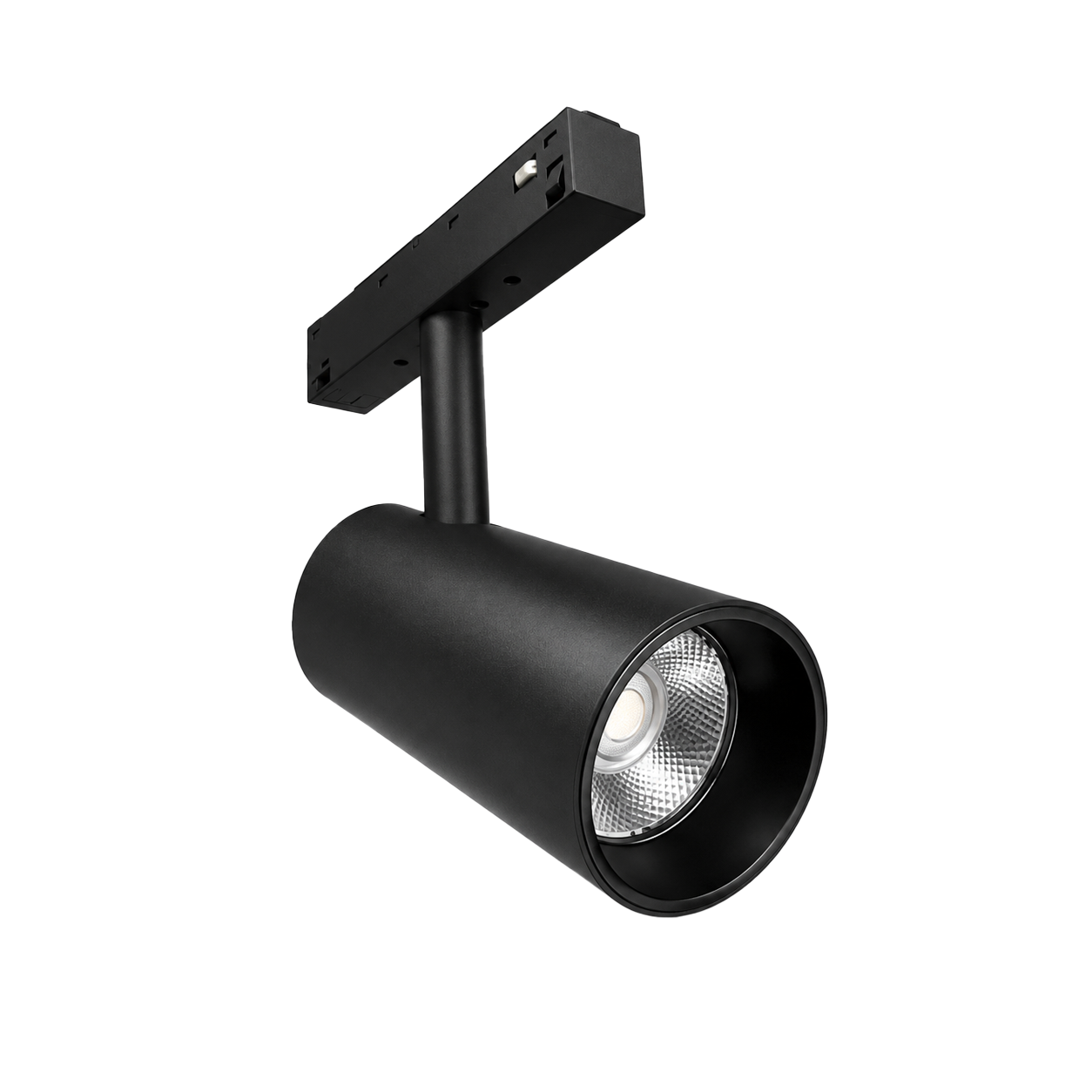

12W & 20W Micro Magnetic Spot Light Series
12W & 20W Micro Magnetic Spot Light Series
Couldn't load pickup availability
The Micro Magnetic Spot Light delivers precise, directional illumination for accent and task lighting applications. Featuring a fully adjustable spotlight head, smooth dimming, and tunable white technology from 2700K to 6500K, this fixture is perfect for highlighting artwork, merchandise, architectural details, and display areas.
Designed for 48V Micro Magnetic Track Systems, the fixture magnetically installs into the track for quick repositioning without tools, giving you complete flexibility as your lighting needs evolve.
Features

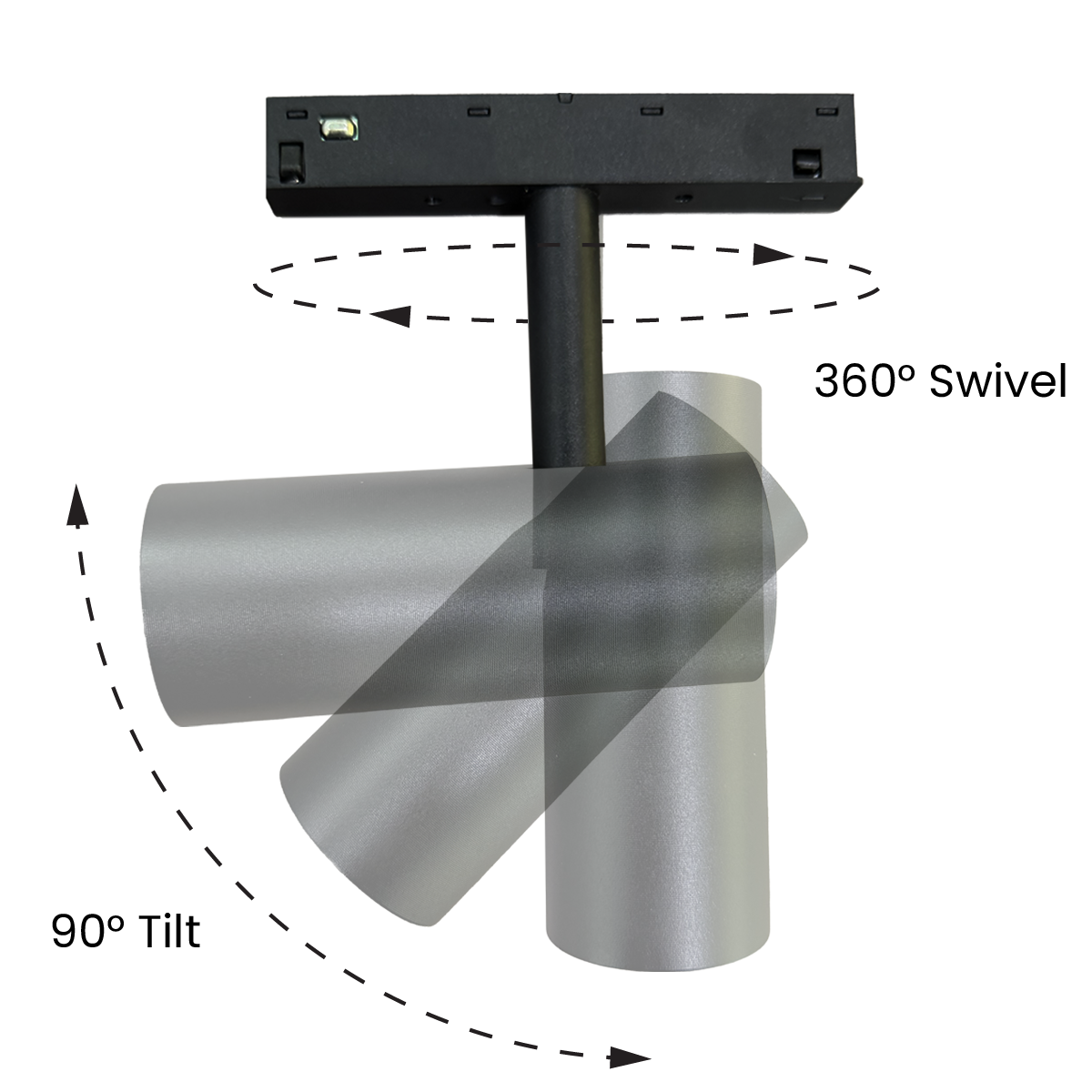

- Adjustable spotlight head for precision aiming
- Compatible with all 48V Micro Magnetic Track Systems
- High-output COB LED technology
- CCT Tunable: 2700K–6500K
- Smooth dimmable operation
- Magnetic tool-free installation
- Available in Matte Black and Matte White
- Premium die-cast aluminum construction
- Modern cylindrical architectural design
- ETL Certified
- CE Certified
- FCC Certified
- RoHS Compliant

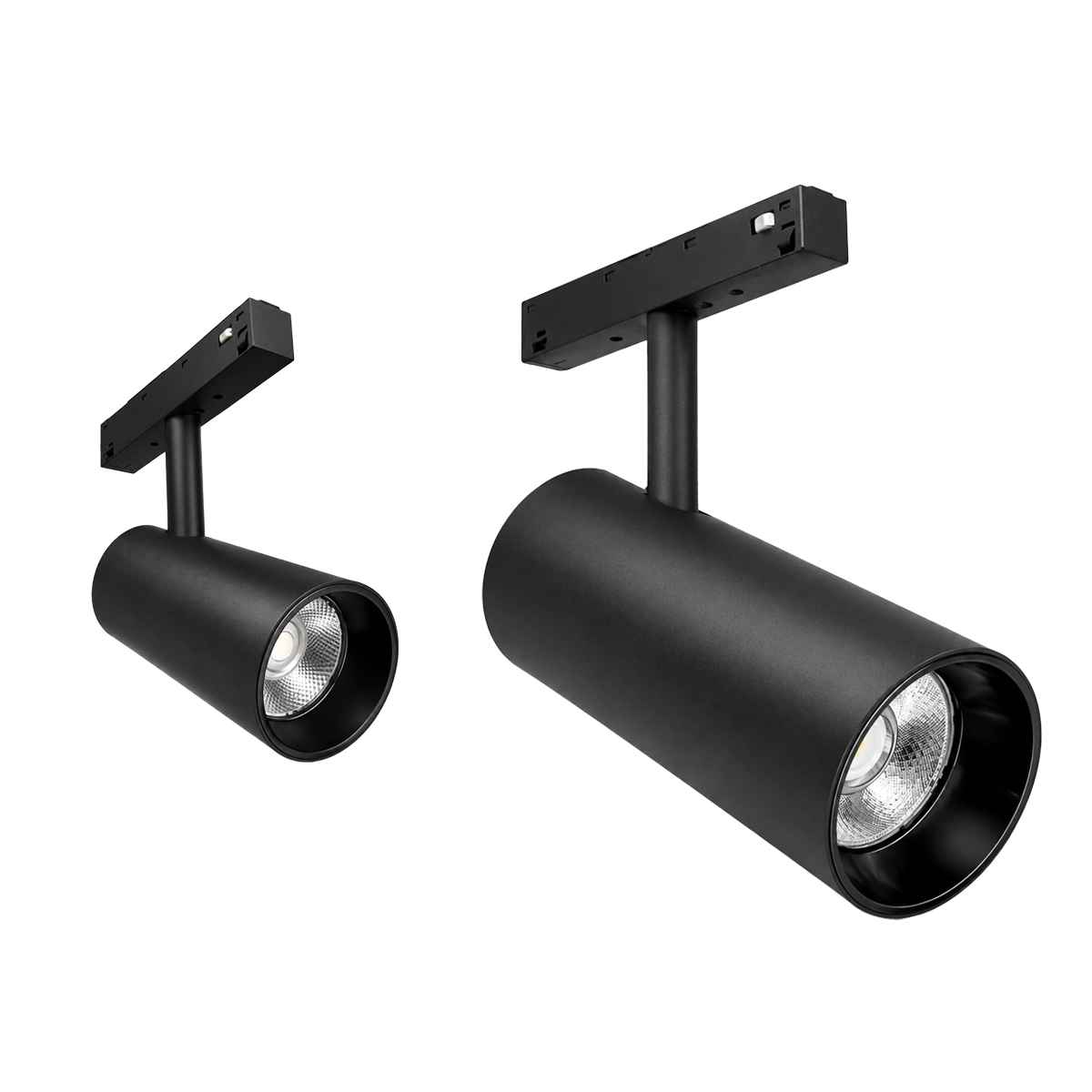

Available Models
Matte Black
| Power | Dimensions | Model No. | SKU |
|---|---|---|---|
| 12W | Ø45 × 103 mm | MCR-SPT-12W-CCT-48V-MB | MCR-SPT-12W-CCT-48V-MB |
| 20W | Ø65 × 138 mm | MCR-SPT-20W-CCT-48V-MB | MCR-SPT-20W-CCT-48V-MB |
Matte White
| Power | Dimensions | Model No. | SKU |
|---|---|---|---|
| 12W | Ø45 × 103 mm | MCR-SPT-12W-CCT-48V-MW | MCR-SPT-12W-CCT-48V-MW |
| 20W | Ø65 × 138 mm | MCR-SPT-20W-CCT-48V-MW | MCR-SPT-20W-CCT-48V-MW |
Specifications
| Specification | Details |
|---|---|
| Product Type | Micro Magnetic Spot Light |
| Mounting | Magnetic Track Mounted |
| System Voltage | 48V DC |
| Power Options | 12W, 20W |
| Color Temperature | CCT Tunable (2700K–6500K) |
| Dimming | Yes |
| Finish | Matte Black or Matte White |
| Material | Die-Cast Aluminum & Plastic |
| Light Source | High-Efficiency COB LED |
| Dimensions | Ø45 × 103 mm (12W), Ø65 × 138 mm (20W) |
| Adjustable Head | Yes |
| Certifications | ETL, CE, FCC, RoHS |
Applications
Perfect for:
- Retail Stores
- Jewelry Showrooms
- Art Galleries
- Museums
- Luxury Homes
- Living Rooms
- Kitchen Islands
- Hospitality
- Hotels
- Restaurants
- Office Spaces
- Display & Accent Lighting
What's Included
- 1 × Micro Magnetic Spot Light
Magnetic track, driver, power feed, and accessories are sold separately.
Compatible With
Compatible with all 48V Micro Magnetic Track Systems, including:
- Recessed Trimless Tracks
- Surface Mount Tracks
- Suspended Mount Tracks
Why Choose a Magnetic Spot Light?
The Micro Magnetic Spot Light provides focused, directional illumination with the flexibility of a modular magnetic track system. Its adjustable head allows you to easily aim the beam exactly where it's needed, making it ideal for accent lighting, merchandise displays, artwork, and architectural features. As your space changes, simply reposition the fixture without rewiring.
