80W Constant Voltage Waterproof Driver - 12V
80W Constant Voltage Waterproof Driver - 12V
Couldn't load pickup availability

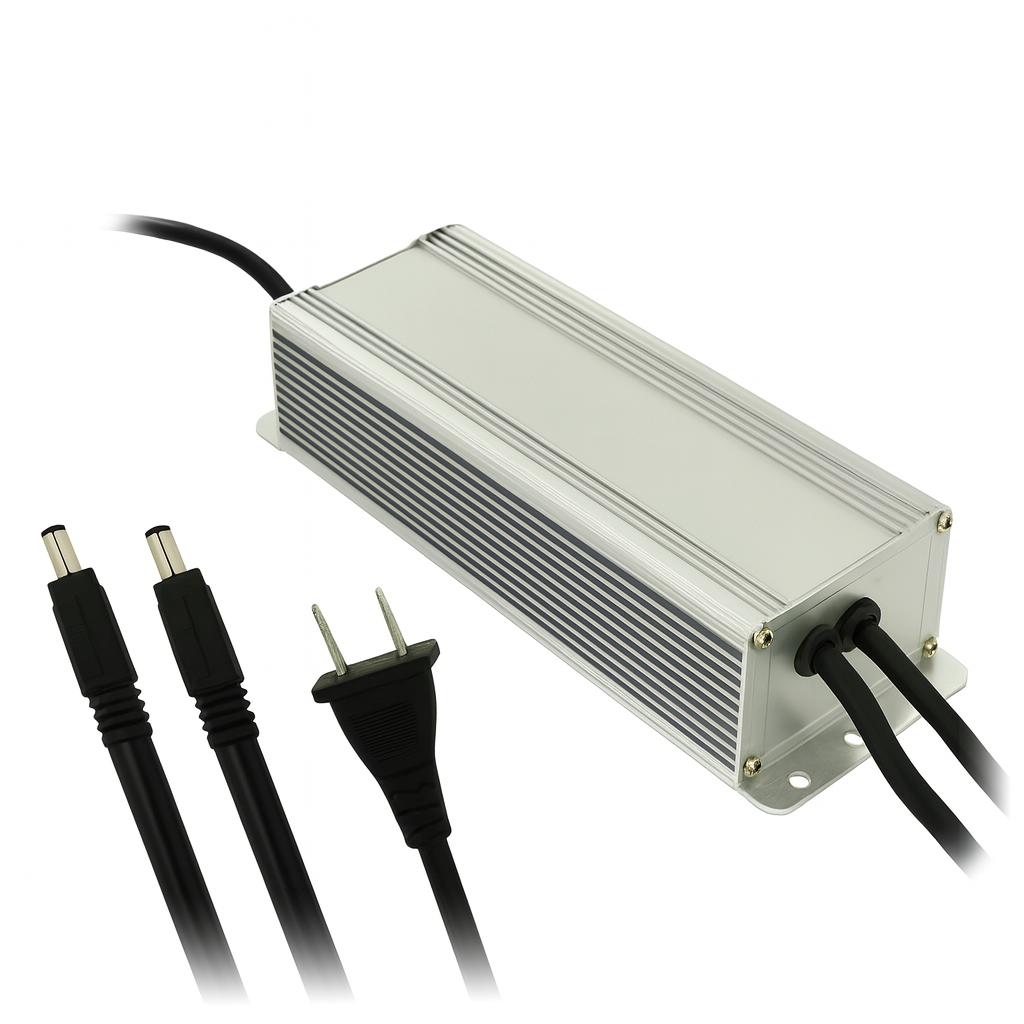

The 12V Plug & Play Constant Voltage Waterproof LED Driver is a durable power supply designed for indoor and outdoor low-voltage LED lighting systems. Converting AC 100–240V input to DC 12V output, the driver supplies up to 6.7A and 80W for LED strips, RGB/DMX controllers, and other compatible 12V lighting applications.
Built with a rugged IP67-rated aluminum housing, the driver provides protection against dust, rain, and moisture for wet or dry location installations. Dual DC male plug pigtails and a two-wire USA AC plug provide convenient connections for a variety of residential and commercial LED lighting projects.
Features
- 80W maximum output
- Converts AC 100–240V to DC 12V constant voltage
- DC 12V, 6.7A output
- Constant voltage design for consistent power delivery
- Compatible with LED strips and other 12V LED lighting
- Suitable for RGB and DMX controllers
- Dual DC male plug pigtails
- Two-wire USA AC plug
- Durable aluminum housing
- IP67 rated for protection against dust and moisture
- Suitable for wet or dry locations
- Designed for indoor and outdoor installations
- Non-dimmable
- CE and RoHS certified
- Not intended for full submersion
Output Specifications
| Output Voltage | Output Current | Maximum Load |
|---|---|---|
| DC 12V | 6.7A | 80W |
Specifications
| Product Type | Waterproof Constant Voltage LED Driver |
|---|---|
| Model Number | 12V-80W-IP67 |
| Maximum Load | 80W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Input Current | 1.0A |
| Output Voltage | DC 12V |
| Output Current | 6.7A |
| Output Type | Constant Voltage |
| Dimming | Non-Dimmable |
| Protection Rating | IP67 |
| Housing Material | Aluminum |
| DC Connections | Dual DC Male Plug Pigtails |
| AC Connection | Two-Wire USA AC Plug |
| Dimensions | 7" L × 2.75" D × 1.75" H (178 × 70 × 44 mm) |
| Weight | 1.90 lbs (862 g) |
| Shipping Weight | 2.20 lbs |
| Certifications | CE / RoHS |
| Environment | Indoor / Outdoor / Wet or Dry Locations |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- RGB Controllers
- DMX Control Systems
- Low-Voltage LED Lighting
- Architectural Accent Lighting
- Landscape and Outdoor Accent Lighting
- Display and Showcase Lighting
- Residential Lighting Applications
- Commercial Indoor and Outdoor Lighting
Why Choose the 12V Plug & Play Constant Voltage Waterproof LED Driver?
This waterproof LED driver delivers up to 80W of stable DC 12V power at 6.7A, providing a convenient power solution for LED strips, RGB/DMX controllers, and other compatible low-voltage lighting systems in both indoor and outdoor environments.
Its rugged aluminum construction, IP67 protection rating, dual DC connections, and plug-and-play design make it well suited for installations exposed to dust, rain, and moisture. The driver is suitable for wet or dry locations but is not intended for full submersion.
