72W Constant Voltage Driver - 12V
72W Constant Voltage Driver - 12V
Couldn't load pickup availability

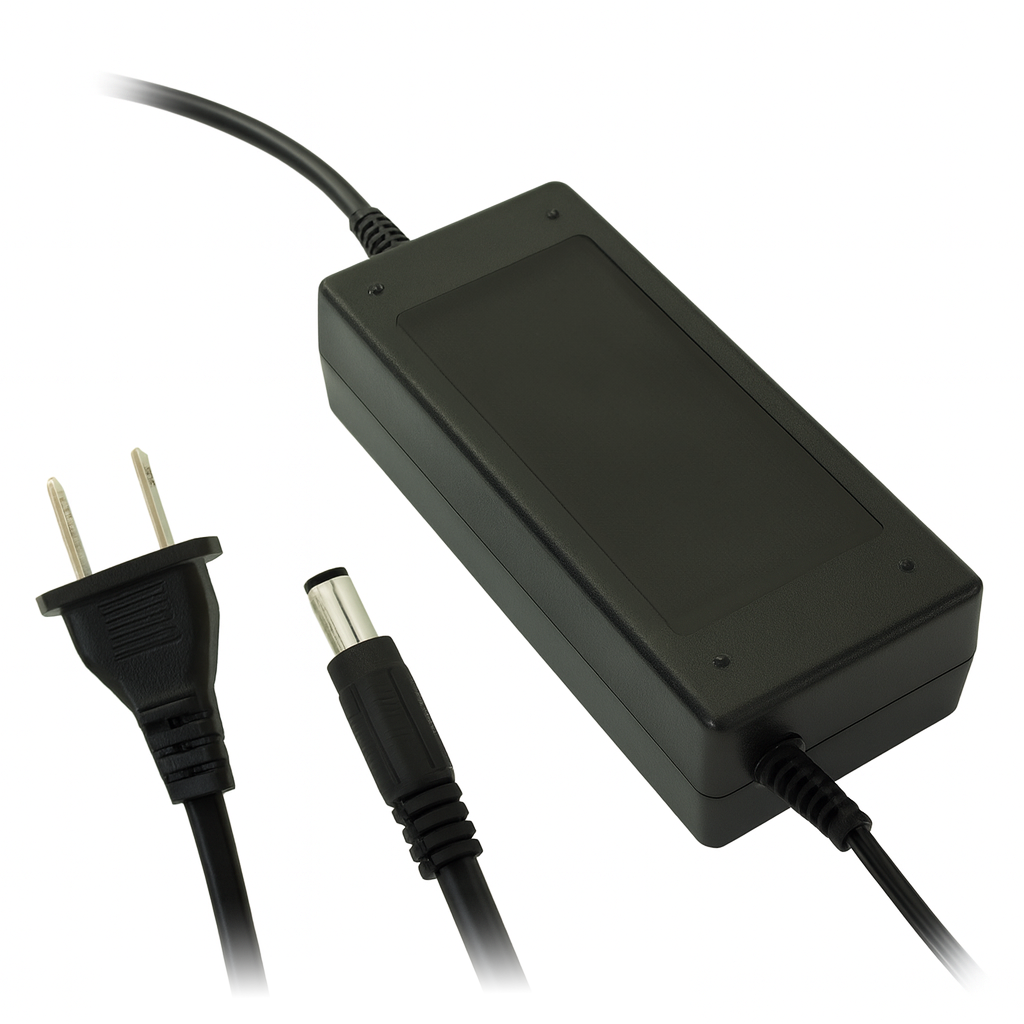

The 12V Plug & Play Constant Voltage LED Driver is a compact and convenient power supply designed for low-voltage LED lighting systems. Converting AC 100–240V input to DC 12V output, the driver supplies up to 6A and 72W for LED strips, RGB/DMX controllers, and other compatible 12V lighting applications.
Designed for quick installation, the driver includes a DC male plug pigtail and a 3-wire USA AC plug for plug-and-play operation. Its high-strength plastic housing, built-in protection features, and UL, CE, FCC, and RoHS certifications make it a practical solution for residential and commercial indoor LED lighting installations.
Features
- 72W maximum output
- Converts AC 100–240V to DC 12V constant voltage
- DC 12V, 6A output
- Plug-and-play design for convenient installation
- Compatible with LED strips and other 12V LED lighting
- Suitable for RGB and DMX controllers
- DC male plug pigtail included
- 3-wire USA AC plug included
- Built-in short-circuit protection
- Built-in overload protection
- Soft-start protection
- High-strength plastic housing
- Compact and lightweight construction
- Non-dimmable
- IP40 rated
- UL, CE, FCC, and RoHS certified
- Designed for indoor, dry-location applications
Output Specifications
| Output Voltage | Output Current | Maximum Load |
|---|---|---|
| DC 12V | 6A | 72W |
Specifications
| Product Type | Plug & Play Constant Voltage LED Driver |
|---|---|
| Model Number | ULPS-12V-72W-IP44 |
| Maximum Load | 72W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Input Current | 1.2A |
| Output Voltage | DC 12V |
| Output Current | 6A |
| Output Type | Constant Voltage |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload / Soft Start |
| Protection Rating | IP40 |
| Housing Material | High-Strength Plastic |
| Included Connections | DC Male Plug Pigtail / 3-Wire USA AC Plug |
| Dimensions | 5.5" L × 2.38" D × 1.38" H (140 × 60 × 35 mm) |
| Weight | 0.95 lbs (400 g) |
| Shipping Weight | 1.2 lbs |
| Certifications | UL / CE / FCC / RoHS |
| Environment | Indoor / Dry Locations Only |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- RGB Controllers
- DMX Control Systems
- Low-Voltage LED Lighting
- Architectural Accent Lighting
- Display and Showcase Lighting
- Residential Lighting Applications
- Commercial Indoor Lighting Applications
Why Choose the 12V Plug & Play Constant Voltage LED Driver?
This compact LED driver delivers up to 72W of stable DC 12V power at 6A, making it a convenient power solution for LED strips, RGB/DMX controllers, and other compatible low-voltage lighting systems. Its plug-and-play connections simplify installation without sacrificing dependable power delivery.
With a durable plastic housing, built-in short-circuit and overload protection, soft-start operation, and UL, CE, FCC, and RoHS certifications, the driver provides a reliable solution for indoor, dry-location 12V LED lighting applications.
