60W H2V Constant Voltage Waterproof Driver - 12V
60W H2V Constant Voltage Waterproof Driver - 12V
Couldn't load pickup availability

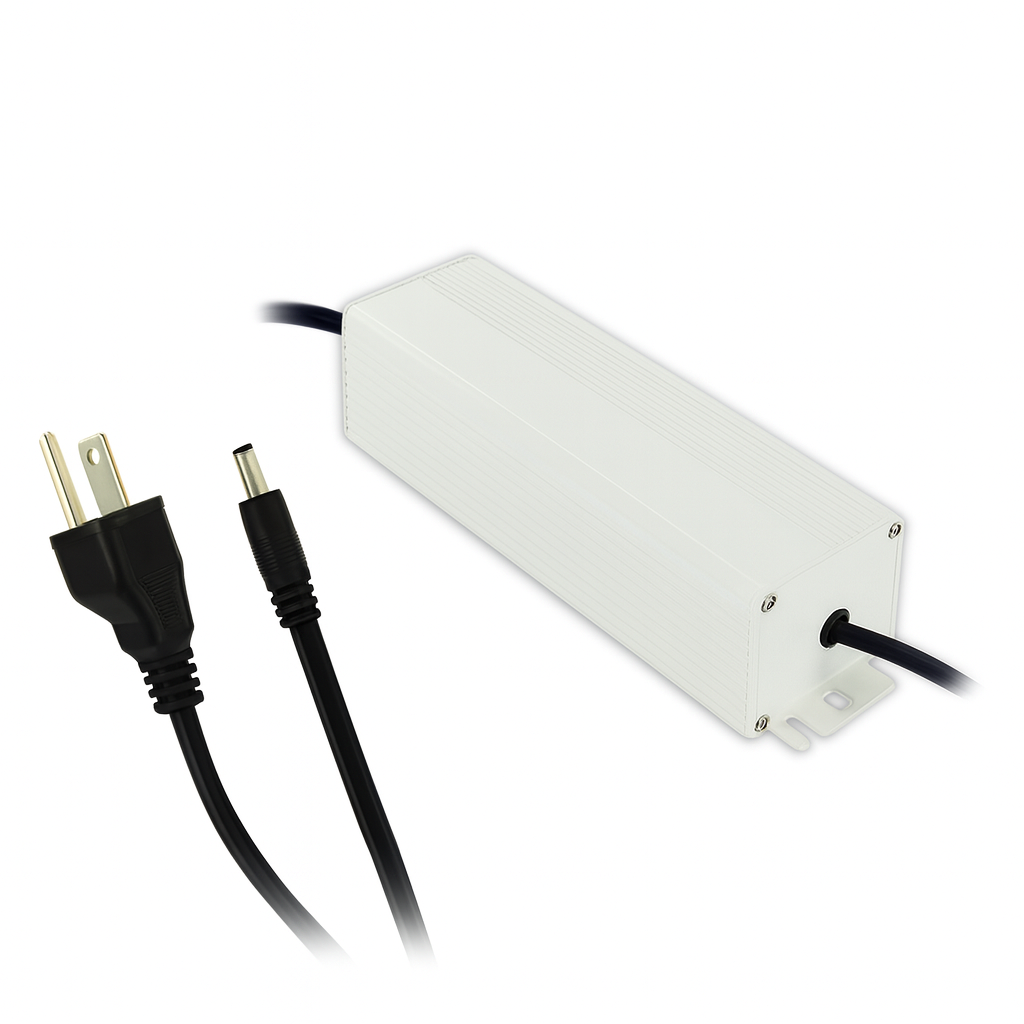

The H2V 60W Waterproof UL LED Driver is a reliable constant voltage power supply designed for 12V low-voltage LED lighting systems. Delivering DC 12V at 5.0A with a maximum load of 60W, it provides dependable power for LED strip lighting, RGB and DMX controllers, signage, architectural lighting, and other compatible LED installations.
Built with a durable IP67-rated aluminum housing, this driver is suitable for indoor and outdoor applications where waterproof protection is required. A DC male pigtail plug and 3-wire USA AC plug provide convenient connections for compatible lighting installations.
Features
- 60W maximum power output
- DC 12V constant voltage output
- 5.0A output current
- AC 100–240V input range
- DC male pigtail plug
- 3-wire USA AC plug
- Durable aluminum housing
- IP67 waterproof protection
- Suitable for indoor and outdoor applications
- Designed for compatible 12V low-voltage LED systems
- Non-dimmable
- UL, CE, and RoHS certified
- UL standards 879 / 1310 / 8750
Output Specifications
| Output Voltage | Output Current | Maximum Load | Output Type |
|---|---|---|---|
| DC 12V | 5.0A | 60W | Constant Voltage |
Specifications
| Product Type | Constant Voltage Waterproof LED Driver |
|---|---|
| Series | H2V |
| Model Number | HMA-60NU-R12 |
| Maximum Load | 60W |
| Input Voltage | AC 100–240V, 2.5A, 50/60Hz |
| Output Voltage | DC 12V |
| Output Current | 5.0A |
| Output Type | Constant Voltage |
| DC Connection | Male Pigtail Plug |
| AC Connection | 3-Wire USA AC Plug |
| Dimming | Non-Dimmable |
| Protection Rating | IP67 |
| Housing Material | Aluminum |
| Dimensions | 7.76" × 2.36" × 1.50" (197 × 60 × 38 mm) |
| Weight | 1.70 lbs (770 g) |
| Shipping Weight | 2.50 lbs |
| Certifications | UL / CE / RoHS |
| UL Standards | 879 / 1310 / 8750 |
| Environment | Indoor / Outdoor |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- DMX Lighting Controllers
- Signage Lighting
- Architectural Lighting
- Landscape Lighting
- Accent Lighting
- Indoor LED Installations
- Outdoor LED Installations
- Compatible 12V Low-Voltage LED Systems
Why Choose the H2V 60W Waterproof UL LED Driver?
With a maximum capacity of 60W and a regulated DC 12V, 5.0A constant voltage output, the H2V driver provides dependable power for compatible 12V LED lighting installations. Its DC male pigtail and 3-wire USA AC plug simplify connection to compatible lighting systems.
The durable aluminum construction, IP67 waterproof protection, and UL, CE, and RoHS certifications make it a practical power solution for compatible indoor and outdoor 12V LED lighting applications.
