60W Constant Voltage Driver - 12V
60W Constant Voltage Driver - 12V
Couldn't load pickup availability
The 12V Constant Voltage LED Driver provides stable and reliable power for low-voltage LED lighting systems. Converting AC 100–240V input to DC 12V output, the driver supplies up to 5.0A and 60W for LED strips, RGB controllers, DMX systems, switches, and other compatible 12V lighting applications.

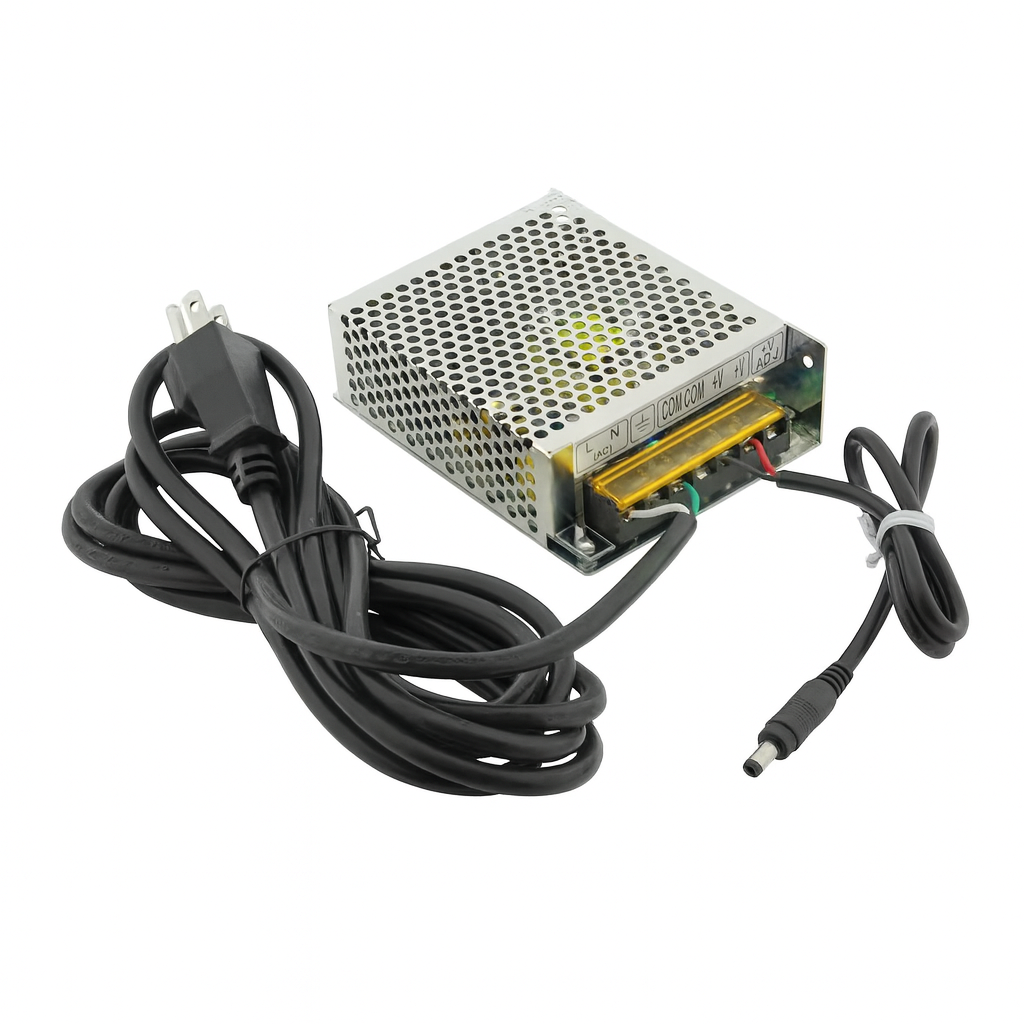

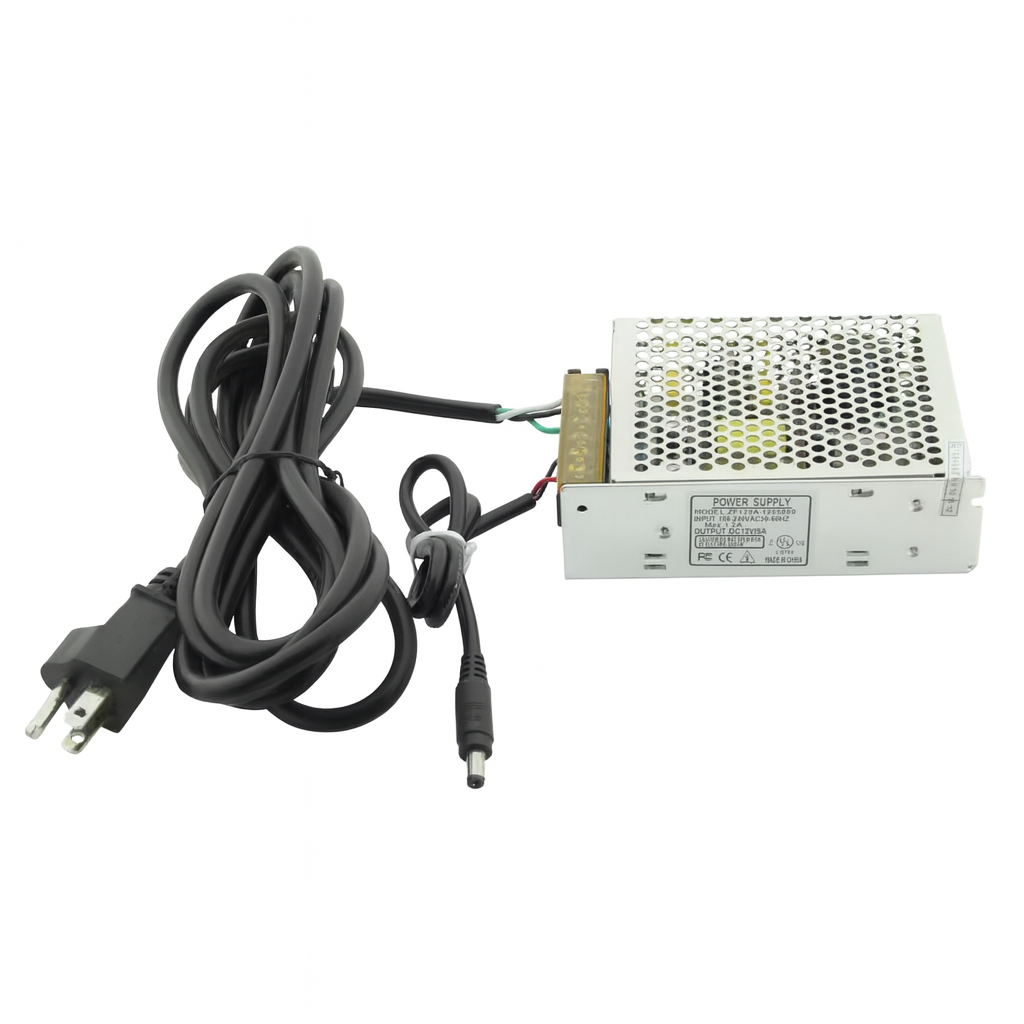

Designed for convenient installation, the driver includes a DC male plug pigtail and an 8-foot USA AC power cord. Its perforated metal housing promotes ventilation and cooling, while integrated short-circuit and overload protection help provide dependable operation in indoor, dry-location installations.
Features
- 60W maximum output
- Converts AC 100–240V to DC 12V constant voltage
- DC 12V, 5.0A output
- Compatible with LED strips and other 12V LED lighting
- Suitable for RGB controllers and DMX systems
- DC male plug pigtail included
- 8-foot USA AC power cord included
- Built-in short-circuit protection
- Built-in overload protection
- Soft-start operation
- Integrated LED indicator light
- Perforated metal housing for ventilation and cooling
- Non-dimmable
- IP20 rated for indoor use
- UL, CE, FCC, and RoHS certified
Output Specifications
| Output Voltage | Output Current | Maximum Load |
|---|---|---|
| DC 12V | 5.0A | 60W |
Specifications
| Product Type | Constant Voltage LED Driver |
|---|---|
| Model Number | ULPS-12V-60W |
| Maximum Load | 60W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Input Current | 1.2A |
| Output Voltage | DC 12V |
| Output Current | 5.0A |
| Output Type | Constant Voltage |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload / Soft Start |
| Protection Rating | IP20 |
| Housing | Perforated Metal |
| Included Connections | DC Male Plug Pigtail / 8 FT USA AC Plug |
| Dimensions | 5.24" × 3.86" × 1.50" (133 × 98 × 38 mm) |
| Weight | 1.35 lbs (612 g) |
| Shipping Weight | 1.75 lbs |
| Certifications | UL / CE / FCC / RoHS |
| Environment | Indoor / Dry Locations Only |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- RGB Controllers
- DMX Control Systems
- Low-Voltage LED Lighting
- LED Switches and Controls
- Architectural Accent Lighting
- Display and Showcase Lighting
- Indoor Decorative Lighting
Why Choose the 12V Constant Voltage LED Driver?
This LED driver delivers up to 60W of stable DC 12V power at 5.0A, making it a practical power solution for LED strips, RGB controllers, DMX systems, and other compatible low-voltage lighting equipment. Its wide AC 100–240V input range provides flexibility across a variety of indoor lighting installations.
With a perforated metal housing, short-circuit and overload protection, soft-start operation, an LED indicator, and included power connections, the driver provides a convenient and reliable solution for indoor, dry-location 12V LED lighting systems.
