250W Constant Voltage Driver - 12V
250W Constant Voltage Driver - 12V
Couldn't load pickup availability

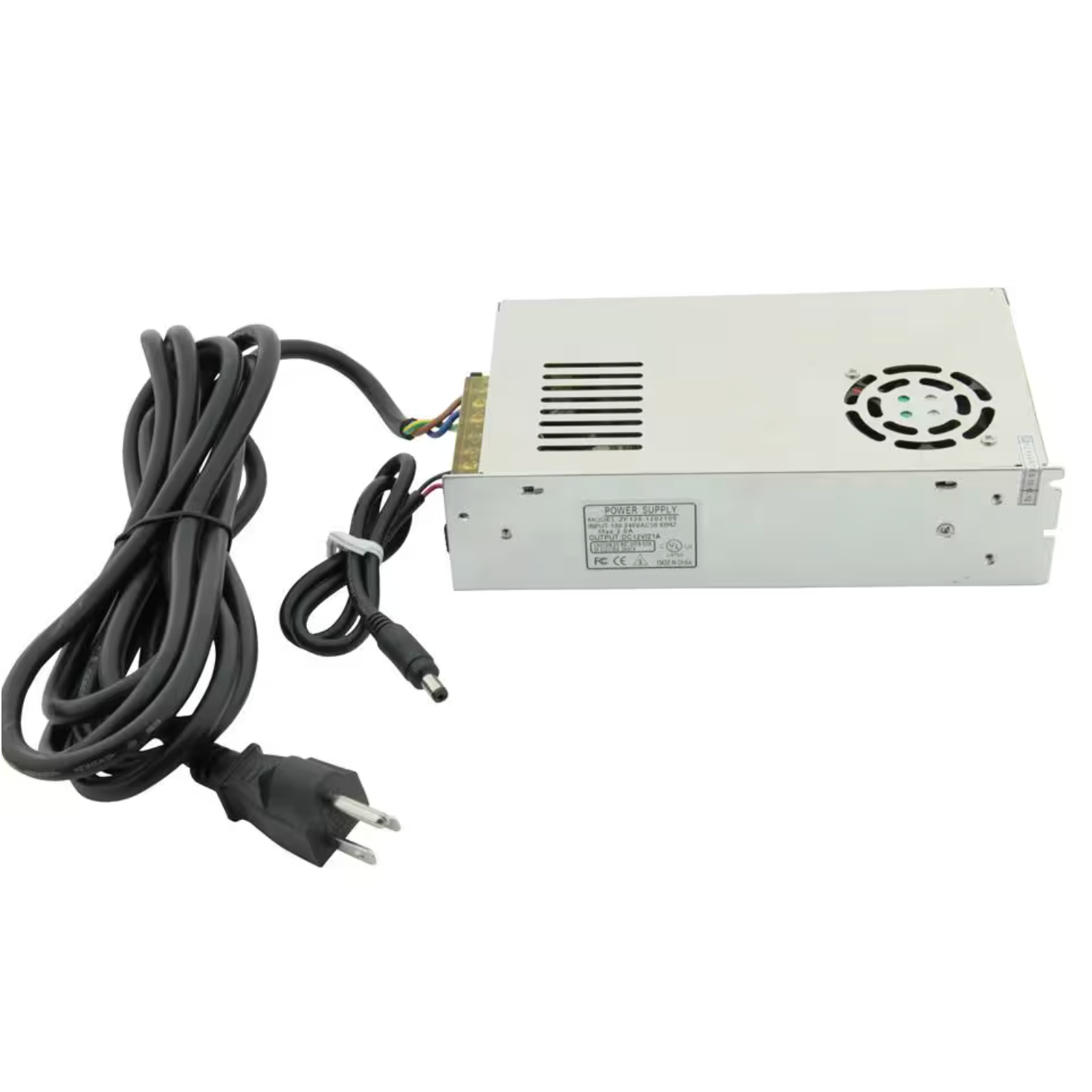

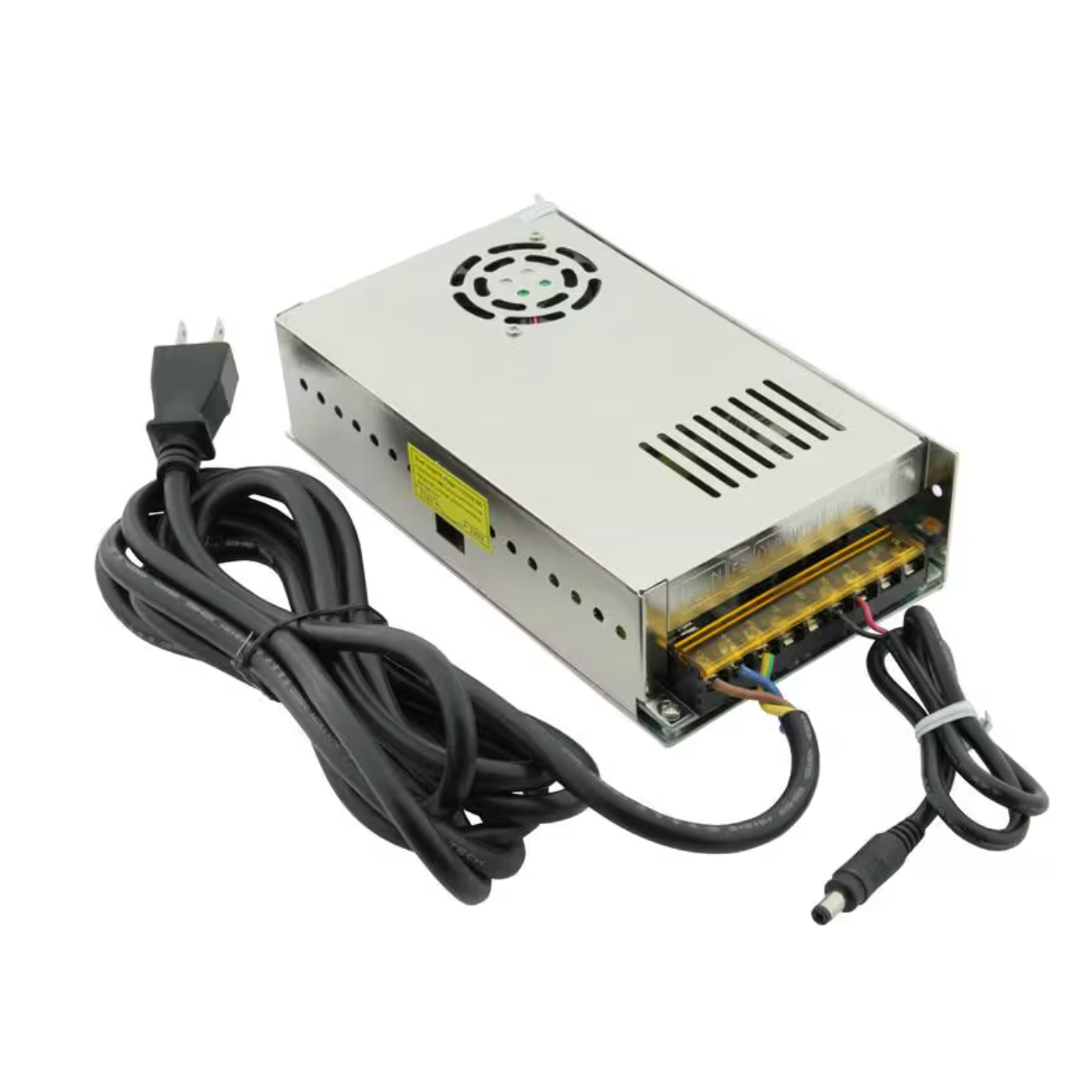

The 12V Constant Voltage LED Driver is a high-capacity power supply designed for demanding low-voltage LED lighting systems. Converting AC 100–240V input to DC 12V output, the driver supplies up to 21A and 250W for LED strips, RGB/DMX controllers, and other compatible 12V lighting applications.
Designed for reliable operation, the driver features selectable 100–120V and 200–240V input ranges, a silent cooling fan, and a ventilated perforated metal housing for effective heat dissipation. A DC male plug pigtail and 8-foot USA AC power cord are included for convenient installation.
Features
- 250W maximum output
- Converts AC 100–240V to DC 12V constant voltage
- DC 12V, 21A output
- Selectable 100–120V / 200–240V input ranges
- Designed for high-output 12V LED lighting applications
- Compatible with LED strips and other low-voltage LED lighting
- Suitable for RGB and DMX controllers
- DC male plug pigtail included
- 8-foot USA AC power cord included
- Integrated silent cooling fan
- Built-in short-circuit protection
- Built-in overload protection
- LED power indicator
- Ventilated perforated metal housing for heat dissipation
- Non-dimmable
- IP20 rated for indoor use
- UL, CE, FCC, and RoHS certified
Output Specifications
| Output Voltage | Output Current | Maximum Load |
|---|---|---|
| DC 12V | 21A | 250W |
Specifications
| Product Type | Constant Voltage LED Driver |
|---|---|
| Model Number | ULPS-12V-250W |
| Maximum Load | 250W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Input Current | 2.0A |
| Selectable Input Range | 100–120V / 200–240V |
| Output Voltage | DC 12V |
| Output Current | 21A |
| Output Type | Constant Voltage |
| Dimming | Non-Dimmable |
| Cooling | Integrated Silent Cooling Fan |
| Protection | Short-Circuit / Overload |
| Protection Rating | IP20 |
| Housing | Perforated Metal |
| Included Connections | DC Male Plug Pigtail / 8 FT USA AC Plug |
| Dimensions | 7.99" × 4.29" × 1.97" (203 × 109 × 50 mm) |
| Weight | 2.55 lbs (1,157 g) |
| Shipping Weight | 3.50 lbs |
| Certifications | UL / CE / FCC / RoHS |
| Environment | Indoor / Dry Locations Only |
Applications
- 12V LED Strip Lighting
- High-Output LED Lighting Systems
- RGB LED Lighting Systems
- RGB Controllers
- DMX Control Systems
- Low-Voltage LED Lighting
- Architectural Accent Lighting
- Display and Showcase Lighting
- Commercial Indoor Lighting Applications
Why Choose the 12V Constant Voltage LED Driver?
This high-capacity LED driver delivers up to 250W of stable DC 12V power at 21A, making it well suited for larger LED strip installations, RGB/DMX control systems, and other demanding low-voltage lighting applications.
With selectable input ranges, an integrated silent cooling fan, short-circuit and overload protection, an LED power indicator, and a durable ventilated metal housing, the driver provides a reliable power solution for indoor, dry-location 12V LED lighting systems.
