150W Constant Voltage Waterproof Driver - 12V
150W Constant Voltage Waterproof Driver - 12V
Couldn't load pickup availability

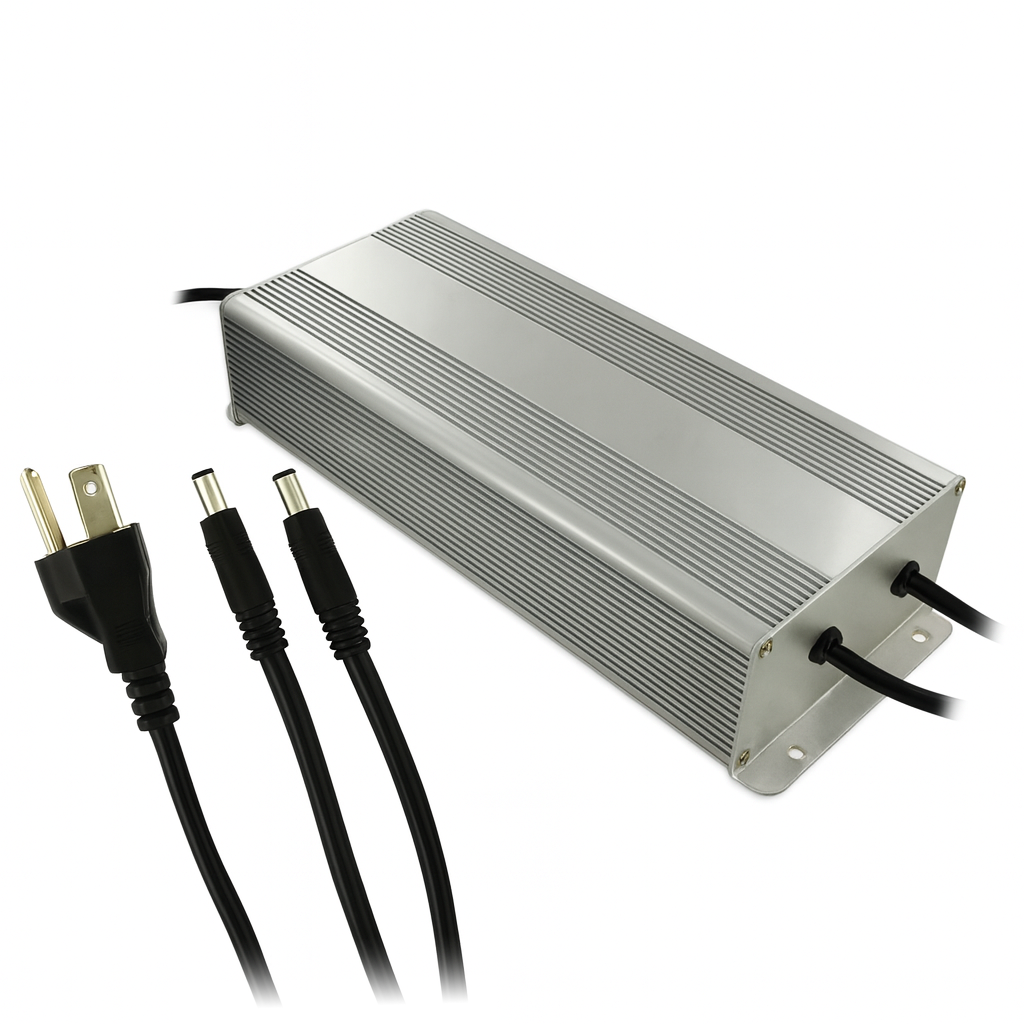

The 12V Constant Voltage 150W Waterproof LED Driver Series is a high-capacity power supply designed for 12V low-voltage LED lighting systems. Delivering DC 12V at 12.5A with a maximum load of 150W, it provides dependable power for LED strip lighting, RGB and DMX controllers, signage, architectural lighting, and other compatible LED installations.
Built with a rugged IP67-rated aluminum housing, this driver is designed for indoor and outdoor applications where protection against water and environmental exposure is required. Dual DC pigtails and a 3-wire AC input cable provide convenient connections, while short-circuit and overload protection help support reliable operation.
Features
- 150W maximum power output
- DC 12V constant voltage output
- 12.5A output current
- AC 120V input
- Dual DC output pigtails
- 3-wire AC input cable
- Built-in short-circuit protection
- Built-in overload protection
- Rugged aluminum housing
- IP67 waterproof protection
- Suitable for indoor and outdoor applications
- Designed for compatible 12V LED lighting systems
- Non-dimmable
- UL, CE, and RoHS certified
- UL standards 879 / 1310 / 8750
Output Specifications
| Output Voltage | Output Current | Maximum Load | Output Type |
|---|---|---|---|
| DC 12V | 12.5A | 150W | Constant Voltage |
Specifications
| Product Type | Constant Voltage Waterproof LED Driver |
|---|---|
| Series | 12V Constant Voltage 150W Waterproof LED Driver |
| Model Number | HMA-150NU-RX |
| Maximum Load | 150W |
| Input Voltage | AC 120V, 3.2A, 50/60Hz |
| Output Voltage | DC 12V |
| Output Current | 12.5A |
| Output Type | Constant Voltage |
| DC Outputs | Dual Pigtails |
| AC Input Connection | 3-Wire Cable |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload |
| Protection Rating | IP67 |
| Housing Material | Aluminum |
| Dimensions | 11.34" × 4.72" × 2.36" (288 × 120 × 60 mm) |
| Weight | 6.25 lbs (2,835 g) |
| Shipping Weight | 7.5 lbs |
| Certifications | UL / CE / RoHS |
| UL Standards | 879 / 1310 / 8750 |
| Environment | Indoor / Outdoor |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- DMX Lighting Controllers
- Signage Lighting
- Architectural Lighting
- Landscape Lighting
- Accent Lighting
- Indoor LED Installations
- Outdoor LED Installations
- Compatible 12V Low-Voltage LED Systems
Why Choose the 12V Constant Voltage 150W Waterproof LED Driver Series?
With a maximum capacity of 150W and a regulated DC 12V, 12.5A constant voltage output, this driver provides dependable power for compatible medium-to-large LED lighting installations. Dual DC output pigtails make it practical for connecting compatible LED systems, while the 3-wire AC input cable provides a secure power connection.
Its rugged aluminum construction, IP67 waterproof protection, short-circuit and overload protection, and UL, CE, and RoHS certifications make it a dependable power supply for compatible indoor and outdoor 12V LED lighting applications.
