100W Constant Voltage Waterproof Driver - 12V
100W Constant Voltage Waterproof Driver - 12V
Couldn't load pickup availability

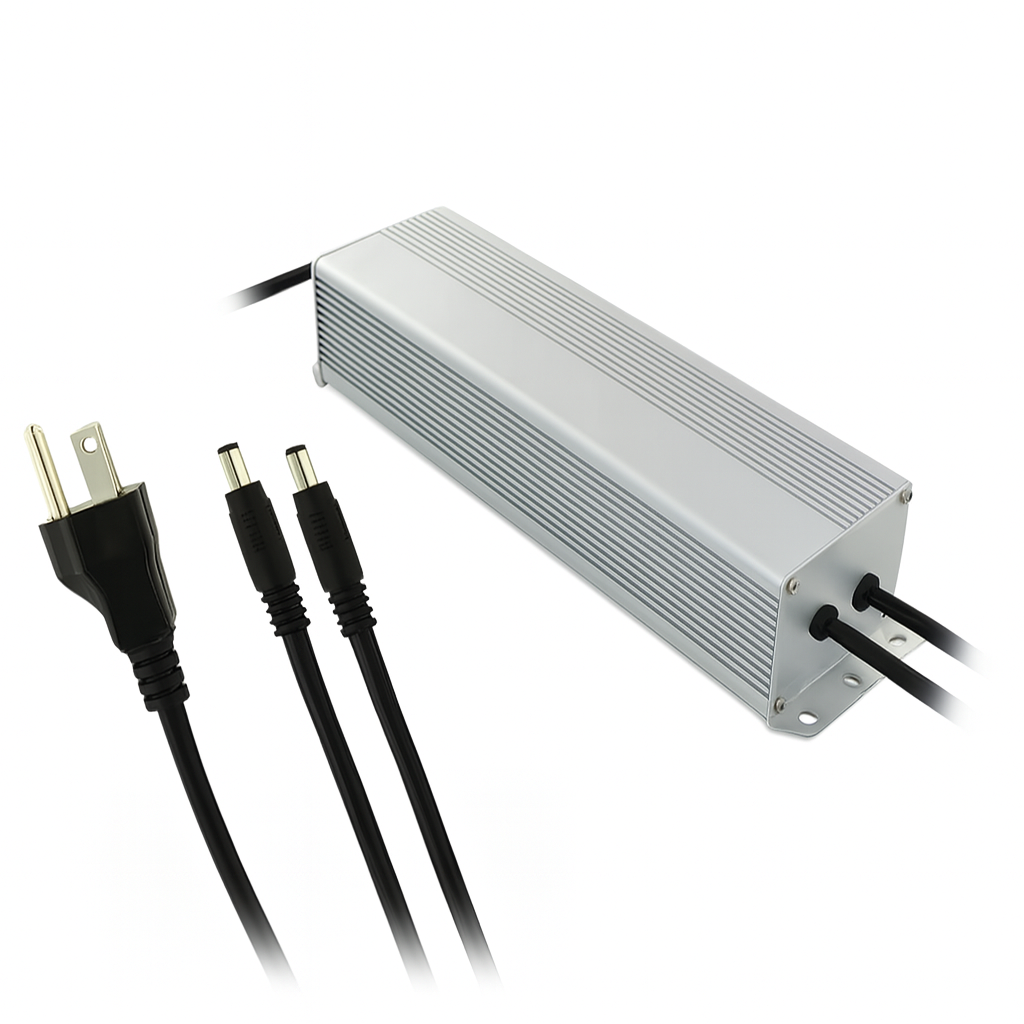

The 12V 100W Waterproof UL LED Driver is a durable constant voltage power supply designed for 12V low-voltage LED lighting systems. Built with a rugged IP67-rated aluminum housing, this driver is suitable for indoor and outdoor installations where dependable waterproof power is required.
Note: The supplied electrical specifications list a 150W maximum load, DC 12V at 12.5A, and model HMA-150NU-RX, which correspond to the 150W version rather than the 100W product name. The specifications below preserve the supplied technical data and should be verified before publishing as a 100W model.
Features
- 150W maximum load based on supplied specifications
- DC 12V constant voltage output
- 12.5A output current
- AC 120V input
- Dual DC output pigtails
- 3-wire AC input cable
- Built-in short-circuit protection
- Built-in overload protection
- Rugged aluminum housing
- IP67 waterproof protection
- Suitable for indoor and outdoor applications
- Designed for compatible 12V LED lighting systems
- Non-dimmable
- UL, CE, and RoHS certified
- UL standards 879 / 1310 / 8750
Output Specifications
| Output Voltage | Output Current | Maximum Load | Output Type |
|---|---|---|---|
| DC 12V | 12.5A | 150W | Constant Voltage |
Specifications
| Product Type | Constant Voltage Waterproof LED Driver |
|---|---|
| Model Number | HMA-150NU-RX |
| Maximum Load | 150W |
| Input Voltage | AC 120V, 3.2A, 50/60Hz |
| Output Voltage | DC 12V |
| Output Current | 12.5A |
| Output Type | Constant Voltage |
| DC Outputs | Dual Pigtails |
| AC Input Connection | 3-Wire Cable |
| Dimming | Non-Dimmable |
| Protection | Short-Circuit / Overload |
| Protection Rating | IP67 |
| Housing Material | Aluminum |
| Dimensions | 11.34" × 4.72" × 2.36" (288 × 120 × 60 mm) |
| Weight | 6.25 lbs (2,835 g) |
| Shipping Weight | 7.5 lbs |
| Certifications | UL / CE / RoHS |
| UL Standards | 879 / 1310 / 8750 |
| Environment | Indoor / Outdoor |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- DMX Lighting Controllers
- Signage Lighting
- Architectural Lighting
- Landscape Lighting
- Accent Lighting
- Indoor LED Installations
- Outdoor LED Installations
- Compatible 12V Low-Voltage LED Systems
Why Choose the 12V Waterproof UL LED Driver?
The supplied specifications provide a regulated DC 12V, 12.5A constant voltage output with short-circuit and overload protection for compatible 12V LED lighting systems. Dual DC output pigtails and a 3-wire AC input cable provide practical connections for professional LED installations.
Its rugged aluminum construction, IP67 waterproof protection, and UL, CE, and RoHS certifications make it suitable for compatible indoor and outdoor LED lighting applications.
