Diamond Brite LEDs
100W Constant Voltage Waterproof Driver - 12V
100W Constant Voltage Waterproof Driver - 12V
Couldn't load pickup availability

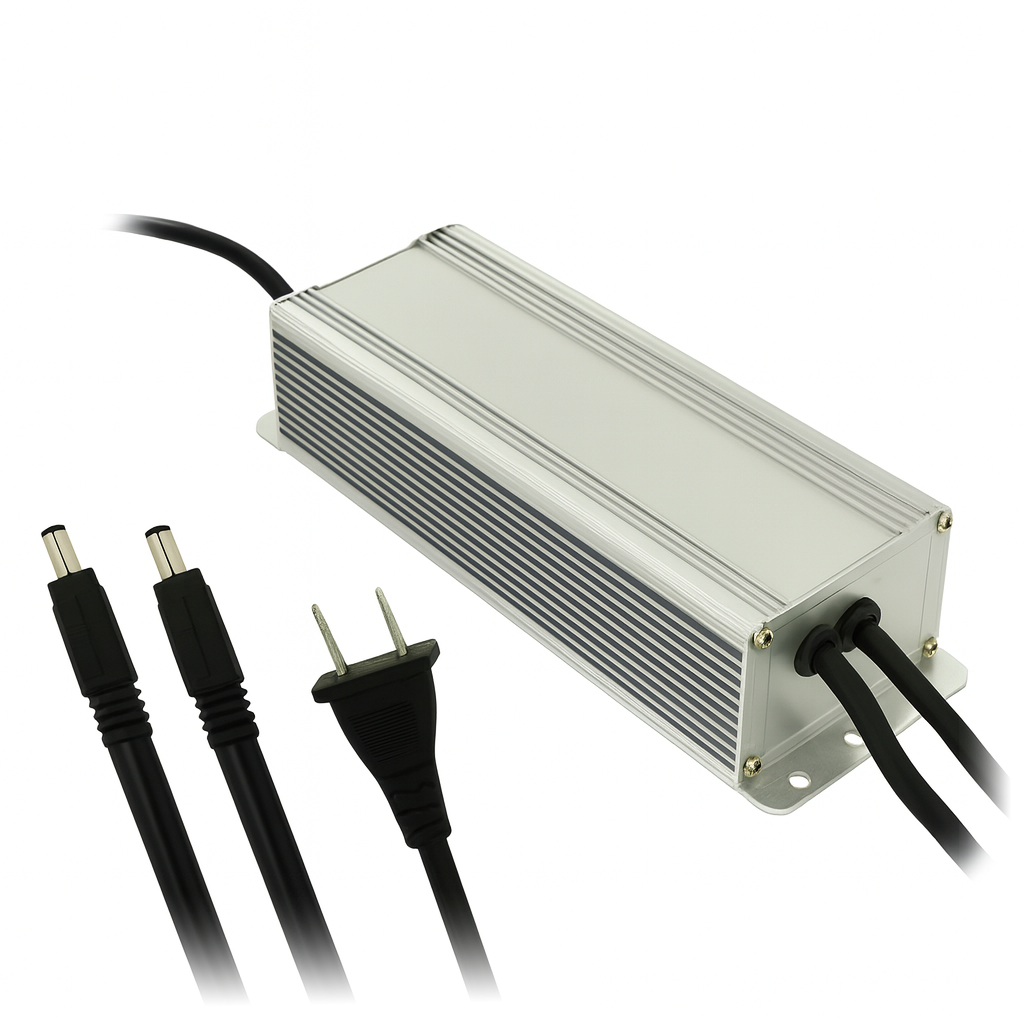

The 12V Plug & Play Constant Voltage Waterproof LED Driver is a durable power supply designed for indoor and outdoor low-voltage LED lighting systems. Converting AC 100–240V input to DC 12V output, the driver supplies up to 8.3A and 100W for LED strips, RGB/DMX controllers, and other compatible 12V lighting applications.
Built with a rugged IP67-rated aluminum housing, the driver provides protection for installations exposed to wet, dusty, or demanding environments. Dual DC male plug pigtails and a two-wire USA AC plug provide convenient plug-and-play connections for residential and commercial LED lighting projects.
Features
- 100W maximum output
- Converts AC 100–240V to DC 12V constant voltage
- DC 12V, 8.3A output
- Constant voltage design for stable power delivery
- Compatible with LED strips and other 12V LED lighting
- Suitable for RGB and DMX controllers
- Dual DC male plug pigtails
- Two-wire USA AC plug
- Durable aluminum housing
- IP67 rated for wet and dusty environments
- Suitable for wet and dry locations
- Designed for indoor and outdoor installations
- Non-dimmable
- CE and RoHS certified
- Not intended for full submersion
Output Specifications
| Output Voltage | Output Current | Maximum Load |
|---|---|---|
| DC 12V | 8.3A | 100W |
Specifications
| Product Type | Waterproof Constant Voltage LED Driver |
|---|---|
| Model Number | 12V-100W-IP67 |
| Maximum Load | 100W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Input Current | 1.0A |
| Output Voltage | DC 12V |
| Output Current | 8.3A |
| Output Type | Constant Voltage |
| Dimming | Non-Dimmable |
| Protection Rating | IP67 |
| Housing Material | Aluminum |
| DC Connections | Dual DC Male Plug Pigtails |
| AC Connection | Two-Wire USA AC Plug |
| Dimensions | 7" L × 2.75" D × 1.75" H (178 × 70 × 44 mm) |
| Weight | 1.90 lbs (862 g) |
| Shipping Weight | 2.20 lbs |
| Certifications | CE / RoHS |
| Environment | Indoor / Outdoor / Wet or Dry Locations |
Applications
- 12V LED Strip Lighting
- RGB LED Lighting Systems
- RGB Controllers
- DMX Control Systems
- Low-Voltage LED Lighting
- Architectural Accent Lighting
- Landscape and Outdoor Accent Lighting
- Display and Showcase Lighting
- Residential Lighting Applications
- Commercial Indoor and Outdoor Lighting
Why Choose the 12V Plug & Play Constant Voltage Waterproof LED Driver?
This waterproof LED driver delivers up to 100W of stable DC 12V power at 8.3A, providing a reliable power solution for LED strips, RGB/DMX controllers, and other compatible low-voltage lighting systems.
Its rugged aluminum construction, IP67 protection rating, dual DC connections, and plug-and-play design make it well suited for indoor and outdoor installations, including wet and dry locations. The driver is designed to withstand demanding environments but is not intended for full submersion.
