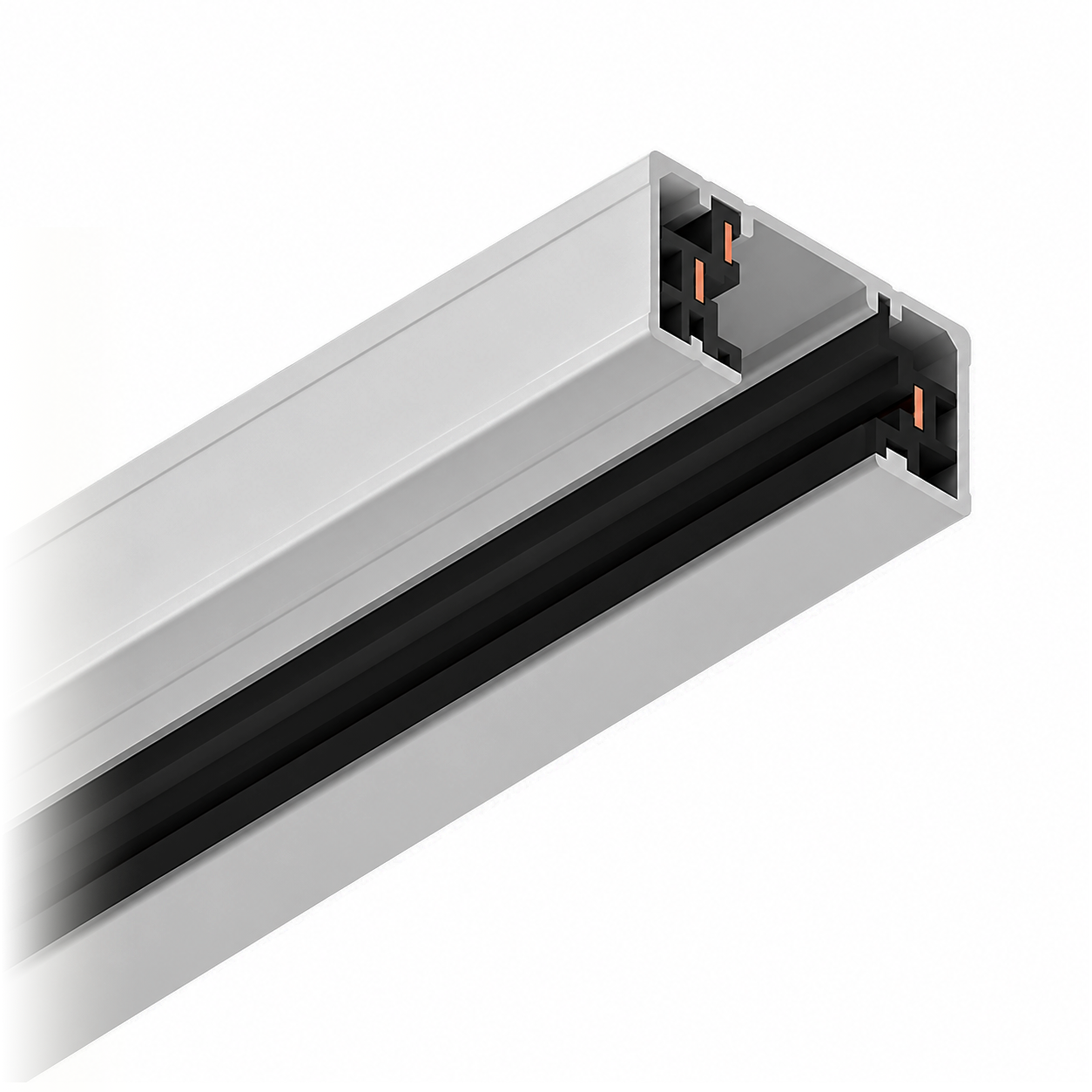

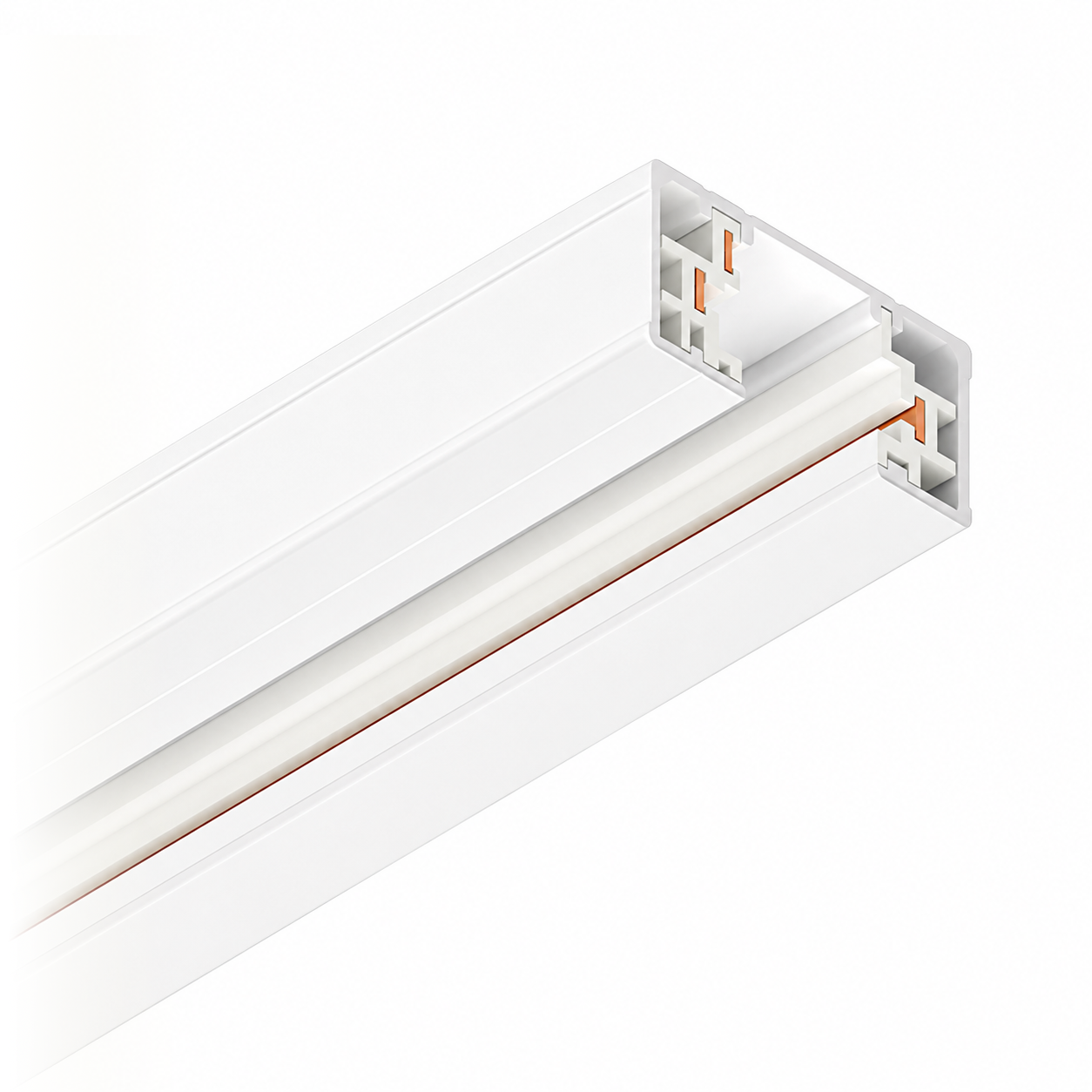

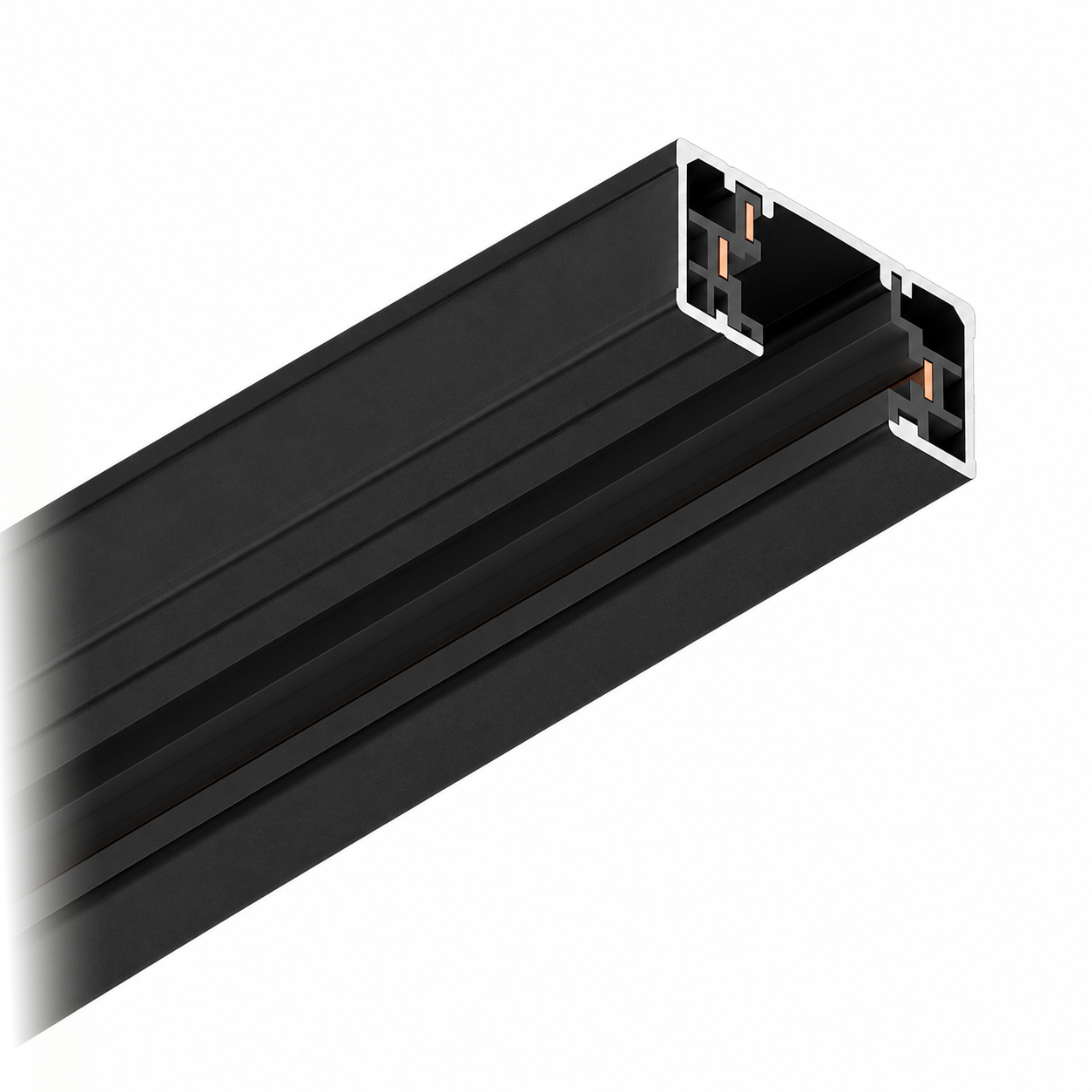

The 120V One-Circuit Lighting Track Series is a low-profile architectural track system designed for flexible commercial and residential lighting installations. Constructed from extruded aluminum with integral conductors, the track provides a durable and versatile platform for compatible track lighting fixtures.
Operating at 120V with a maximum capacity of 2400W per circuit, the one-circuit track can be surface, stem, or cable mounted and may be field cut to accommodate project-specific layouts. Its compact 1.34" (34 mm) wide × 0.67" (17 mm) high profile provides a clean appearance for retail, hospitality, gallery, showroom, office, and residential lighting applications.
Features
- 120V one-circuit track lighting system
- Maximum capacity of 2400W per circuit
- Low-profile extruded aluminum construction
- Compact 1.34" (34 mm) wide × 0.67" (17 mm) high profile
- 20-amp rated flat, solid integral conductors
- 12-gauge flat conductor wiring with PVC insulators
- Integrated polarity groove identifies grounding conductor orientation
- Track sections can be field cut to accommodate custom layouts
- Surface, stem, or cable mounting options
- Surface mounting hardware included with each track section
- Compatible with Halo 3-wire track configuration
- Dimmable when used with compatible fixtures and approved controls
- cULus Listed for dry locations
Mounting Options
| Mounting Type | Installation |
|---|---|
| Surface Mount | Mounts directly to the installation surface |
| Stem Mount | Track may be suspended using compatible stems |
| Cable Mount | Track may be suspended using compatible cable mounting hardware |
Specifications
| Product Type | One-Circuit Lighting Track |
|---|---|
| Series | 120V One-Circuit Lighting Track Series |
| Circuit Configuration | One-Circuit |
| Input Voltage | 120V |
| Maximum Wattage | 2400W per Circuit |
| Conductor Rating | 20A |
| Conductor Wiring | 12-Gauge Flat Conductors |
| Construction | Extruded Aluminum |
| Insulators | 0.045" PVC |

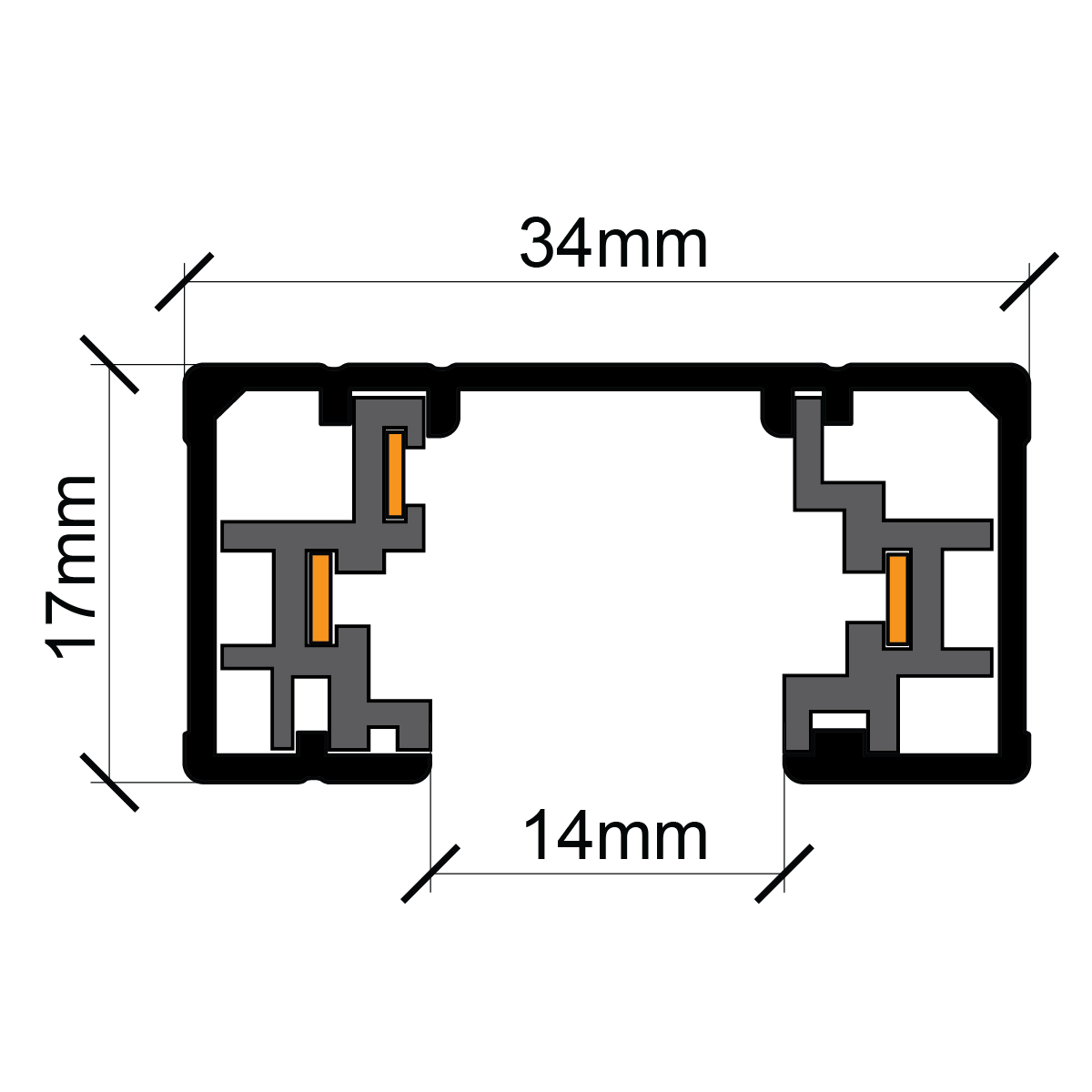

| Track Width | 1.34" (34 mm) |
| Track Height | 0.67" (17 mm) |
| Field Cuttable | Yes |
| Mounting | Surface / Stem / Cable |
| Track Configuration | Halo 3-Wire Compatible |
| Dimming | Compatible with Approved Dimming Controls, Depending on Fixture Type |
| Location Rating | Dry Locations |
| Listing | cULus Listed |
Track Compatibility
The 120V One-Circuit Lighting Track Series uses a Halo 3-wire track configuration and is compatible with track components configured for this system. The polarity groove incorporated into the track extrusion identifies the grounding conductor position and must remain continuous throughout the track run. Compatible track heads must be installed with their polarity groove aligned with the track polarity groove.
Note: Low-voltage fixtures require an individual transformer. Remote transformers are not approved for use with this track system.
Applications
- Retail Stores
- Showrooms
- Jewelry Stores
- Art Galleries
- Museums
- Restaurants
- Hospitality Spaces
- Offices
- Commercial Interiors
- Residential Interiors
- Display & Accent Lighting
- Architectural Lighting
Why Choose the 120V One-Circuit Lighting Track Series?
The 120V One-Circuit Lighting Track Series combines a compact architectural profile with flexible installation options for a wide variety of track lighting projects. Its extruded aluminum construction, 20-amp integral conductors, and 2400W circuit capacity provide a durable foundation for compatible track-mounted fixtures.
With a slim 1.34" (34 mm) × 0.67" (17 mm) profile, field-cuttable construction, and surface, stem, or cable mounting capability, the system can be adapted to retail displays, galleries, showrooms, hospitality environments, offices, and residential spaces requiring flexible accent and general illumination.
