The 120V Lighting Track T-Connector Series is designed to connect three compatible track lighting sections in a T-shaped configuration, providing a clean and flexible solution for branching a track lighting system in multiple directions. The connector maintains electrical continuity between all three track sections while allowing more complex architectural lighting layouts.
Designed for 120V AC track lighting systems, the T-Connector incorporates grounding and polarity connections for proper system operation. The connector can also be configured for use as a power feed, providing additional flexibility when designing commercial, retail, hospitality, gallery, and residential track lighting installations.
Features
- Connects three lighting track sections in a T configuration
- Designed for compatible 120V AC track lighting systems
- 20A electrical rating
- Creates three-leg track lighting layouts
- Maintains electrical continuity between connected track sections
- Integrated grounding connections
- Polarity-oriented design for proper track configuration
- Can be used as a power feed
- Removable cover provides access to electrical connections
- Set screws securely lock the connector to each track section

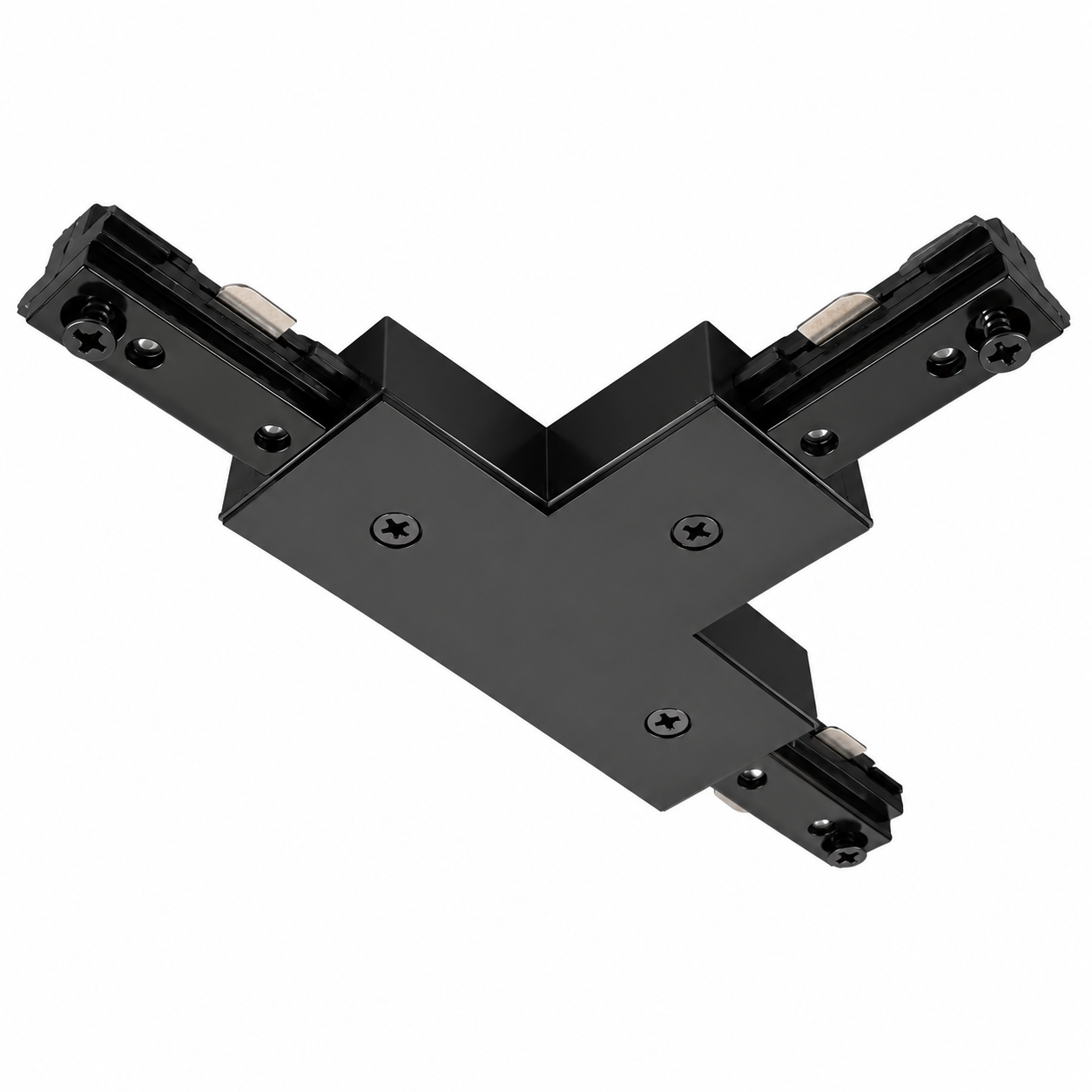

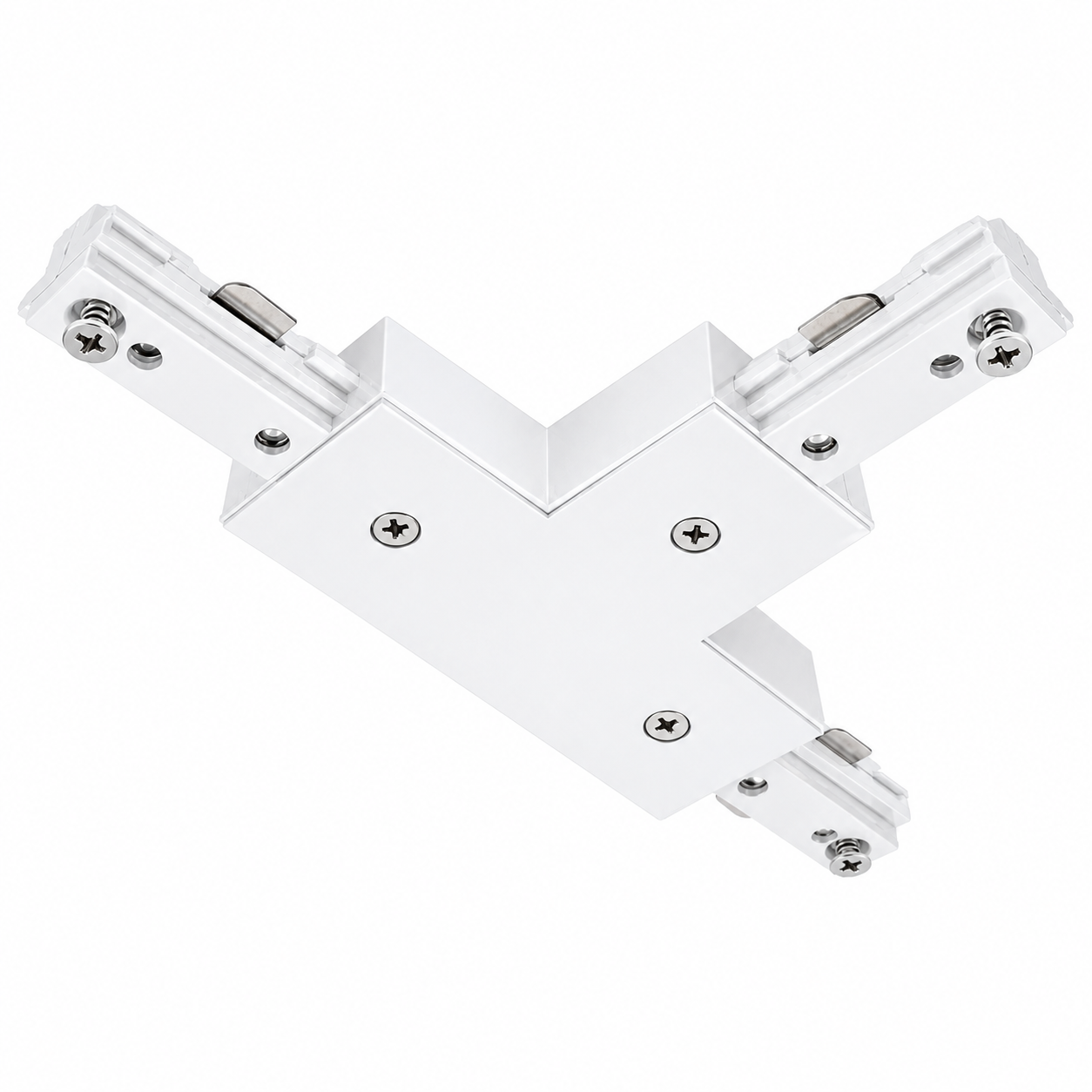

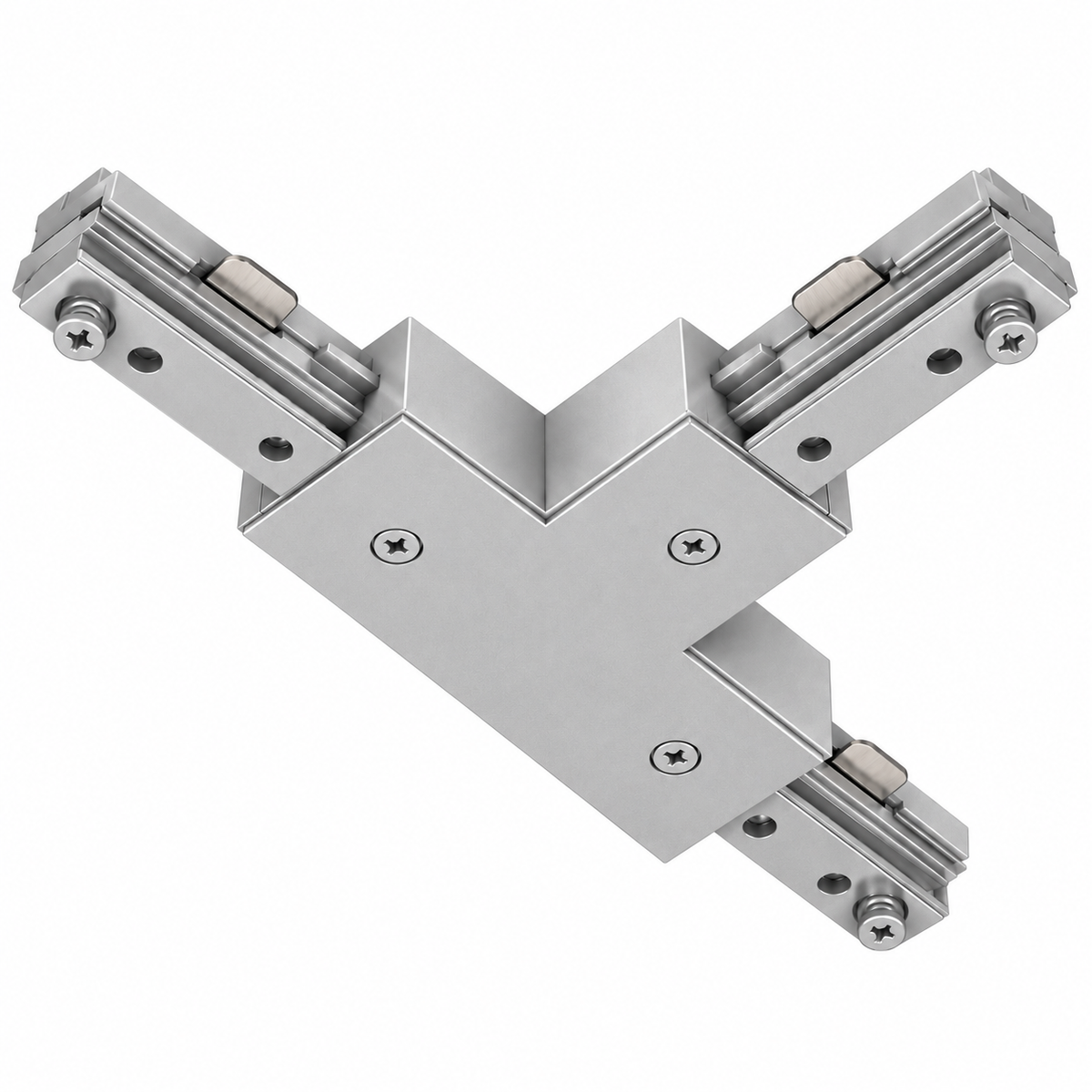

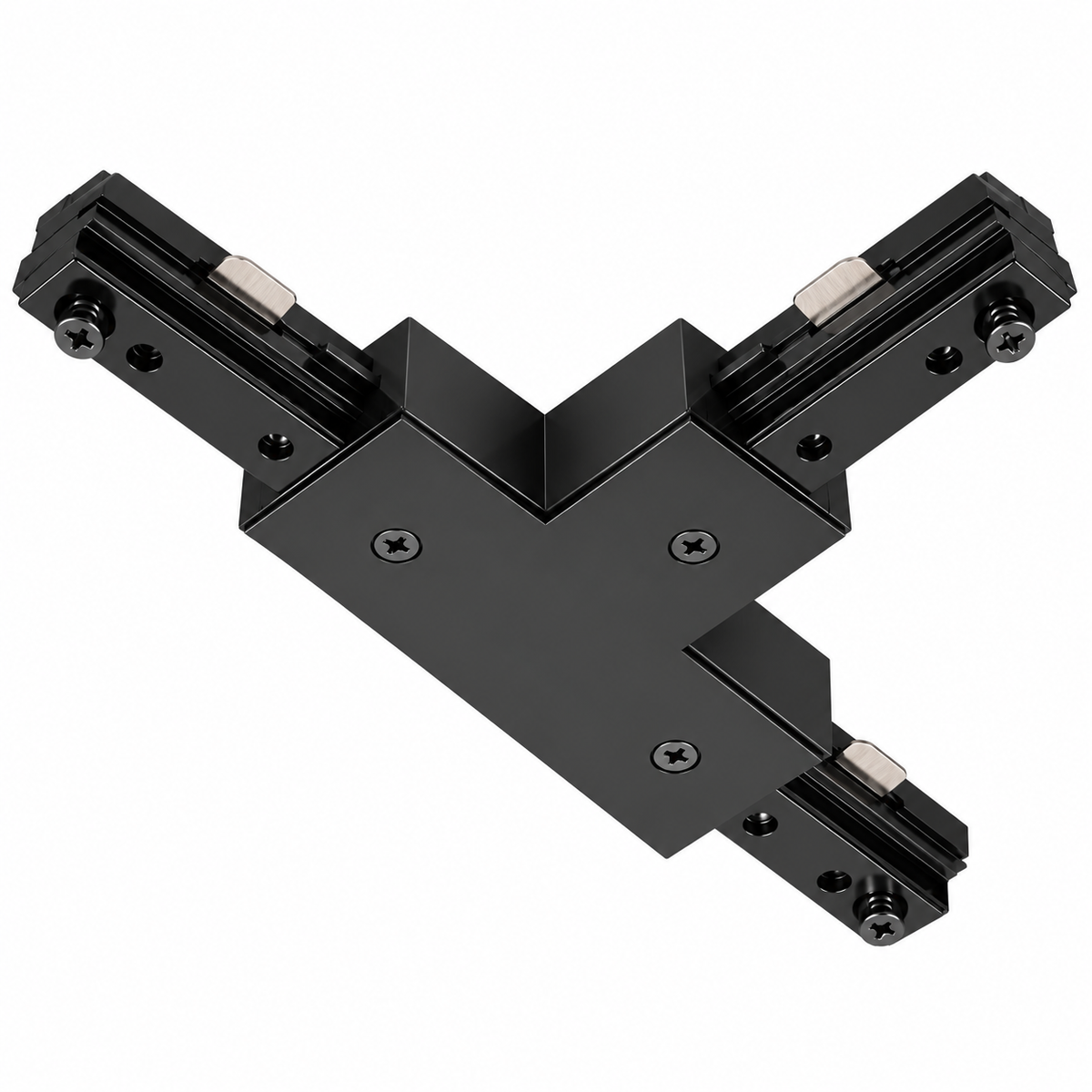

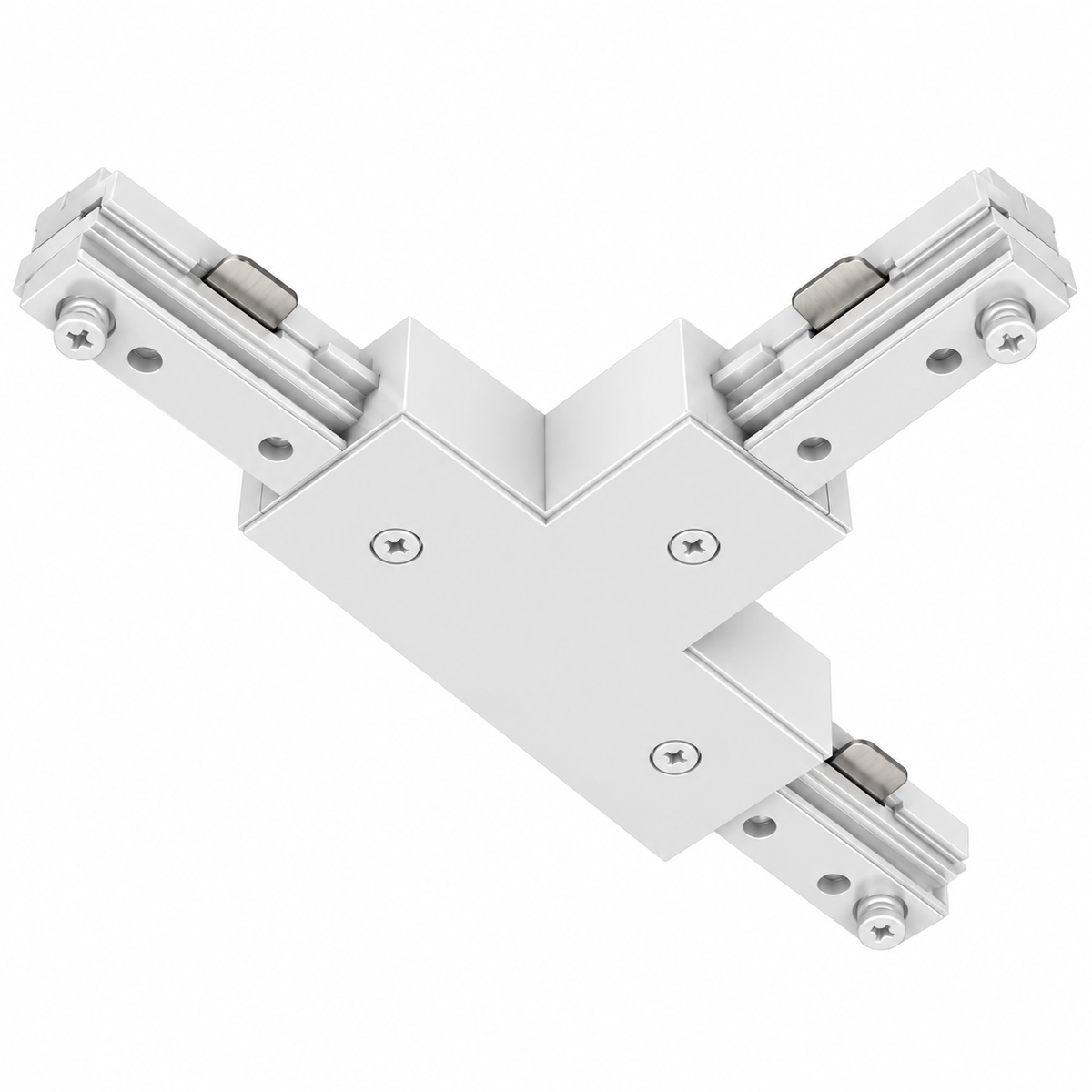

- Available in Black, Silver, and White
- UL Listed track fitting
Finish Options
| Finish | Application |
|---|---|
| Black | Coordinates with black track systems |
| Silver | Coordinates with silver track systems |
| White | Coordinates with white track systems |
Specifications
| Product Type | Lighting Track T-Connector |
|---|---|
| Series | 120V Lighting Track T-Connector Series |
| Function | Connects Three Track Sections |
| Configuration | T-Shaped / Three-Leg |
| Input Voltage | 120V AC |
| Frequency | 60Hz |
| Electrical Rating | 20A |
| Overall Length | Approximately 7" (178 mm) |
| Connector Body Length | Approximately 4" (102 mm) |
| Overall Width | Approximately 2-3/4" (70 mm) |
| Power Feed Capability | Yes |
| Finish Options | Black / Silver / White |
| Grounding | Integrated Ground Conductor Connections |
| Securing Method | Set Screws |
| Listing | UL Listed Track Fitting |
Track Configuration & Installation
The T-Connector allows three individual track sections to be joined into a single T-shaped lighting layout. Proper polarity must be maintained by aligning the connector's grounding tabs with the ground conductor side of each connected track section.
For installation, the connector cover is removed to access the terminal and set screws. Each connector leg is inserted into the corresponding track section and secured using the integrated set screws. The cover is then reinstalled after the track sections and electrical connections have been properly secured.
The T-Connector can also be configured as an electrical power feed, allowing power to be introduced at the connector when required by the track layout.
Important: Turn off power at the main electrical source before installing or servicing the track or connector. Proper grounding and track polarity must be maintained throughout the complete track system.
Applications
- T-Shaped Track Lighting Layouts
- Three-Way Track Branches
- Retail Track Lighting
- Jewelry Stores & Showrooms
- Art Galleries
- Museums
- Restaurants & Hospitality
- Commercial Interiors
- Office Lighting
- Residential Track Lighting
- Architectural Lighting Systems
- Display & Accent Lighting
Why Choose the 120V Lighting Track T-Connector Series?
The 120V Lighting Track T-Connector Series provides a practical solution for creating three-way branches and T-shaped track lighting layouts. By connecting three track sections through a single fitting, the connector makes it possible to expand track systems across larger or more complex architectural spaces while maintaining electrical continuity and grounding.
With a 120V AC / 20A electrical rating, integrated power-feed capability, UL Listed construction, and Black, Silver, and White finish options, the T-Connector provides a flexible solution for professional track lighting installations in retail, commercial, hospitality, gallery, showroom, and residential environments.
