Diamond Brite LEDs
120V Lighting Track Pendent Series
120V Lighting Track Pendent Series
Couldn't load pickup availability

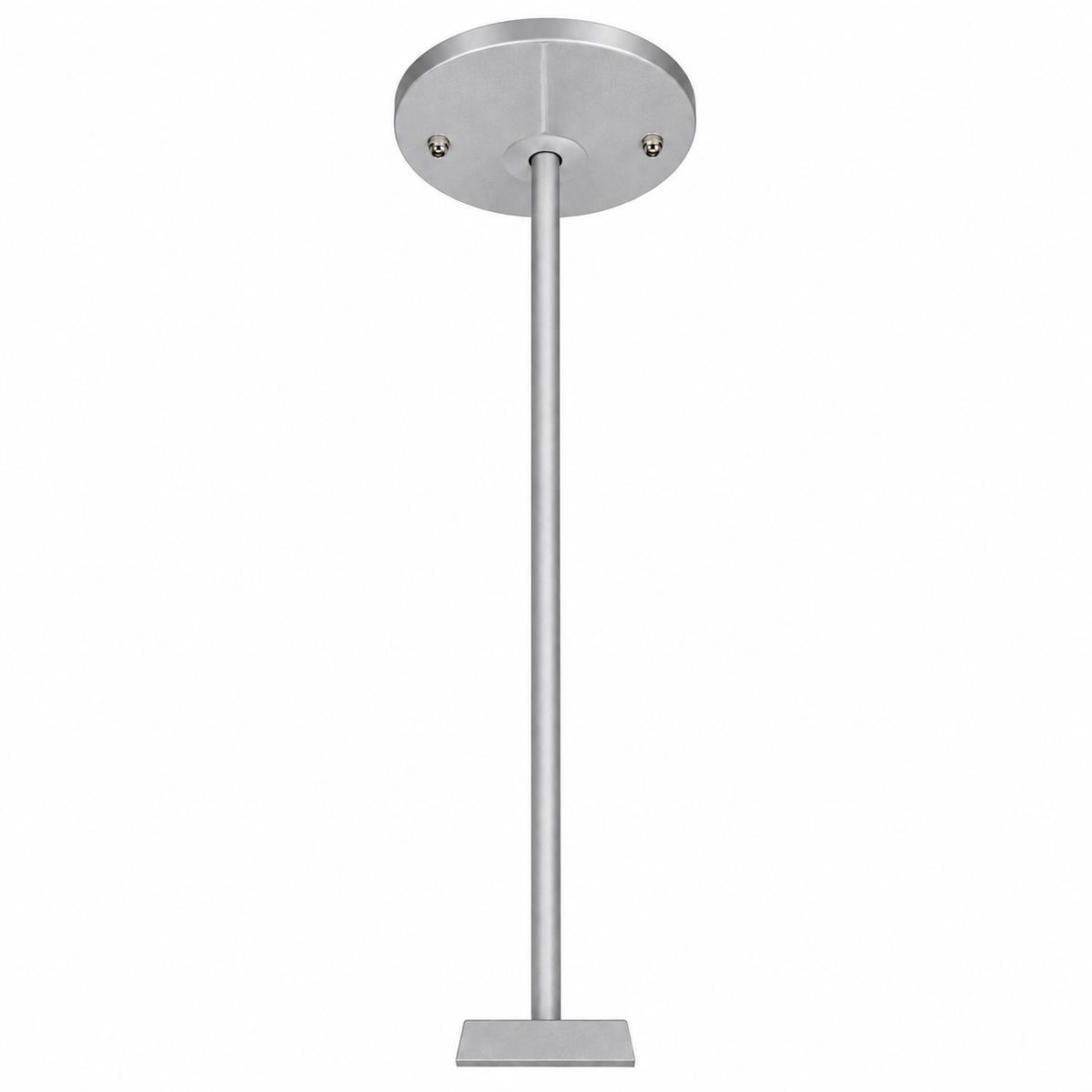

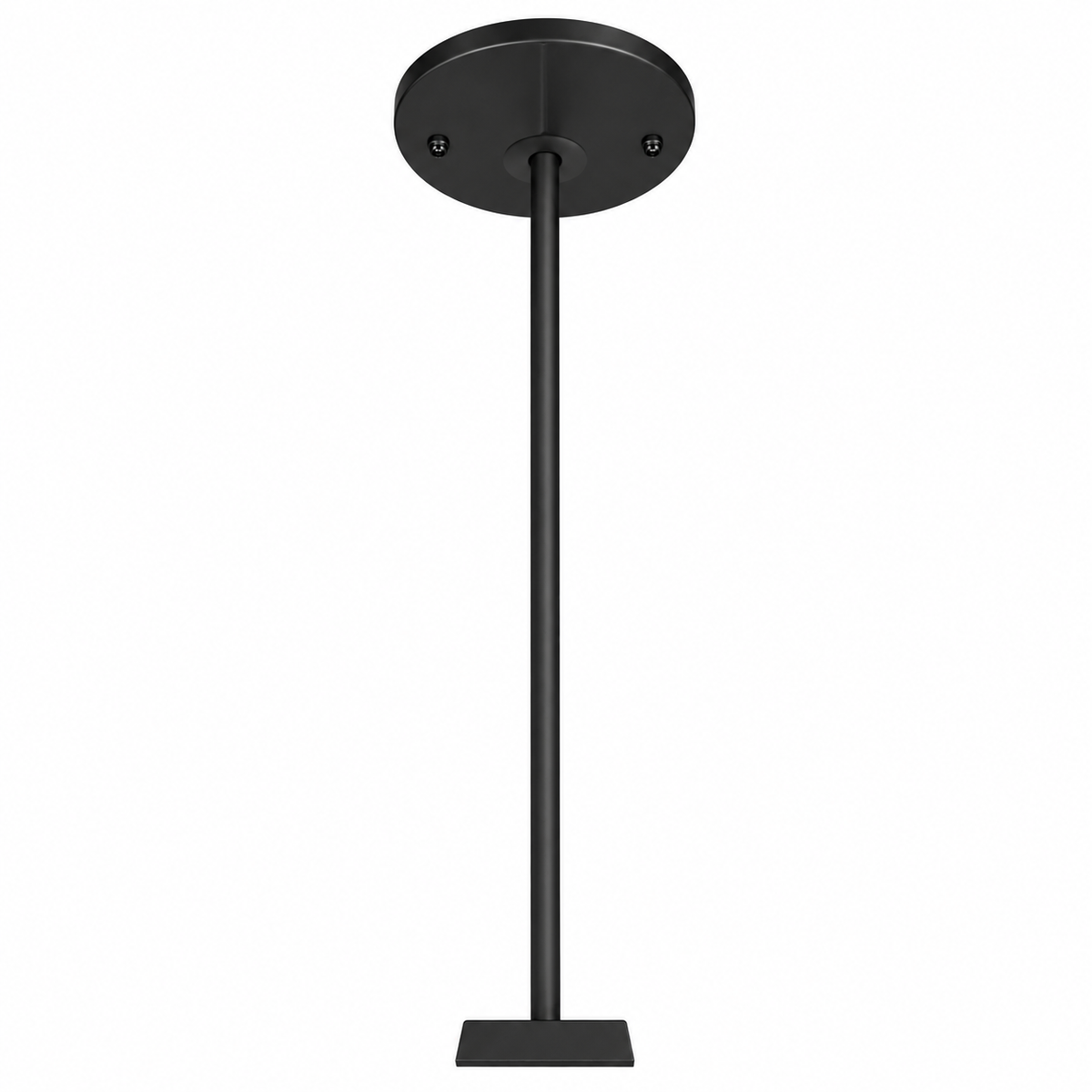

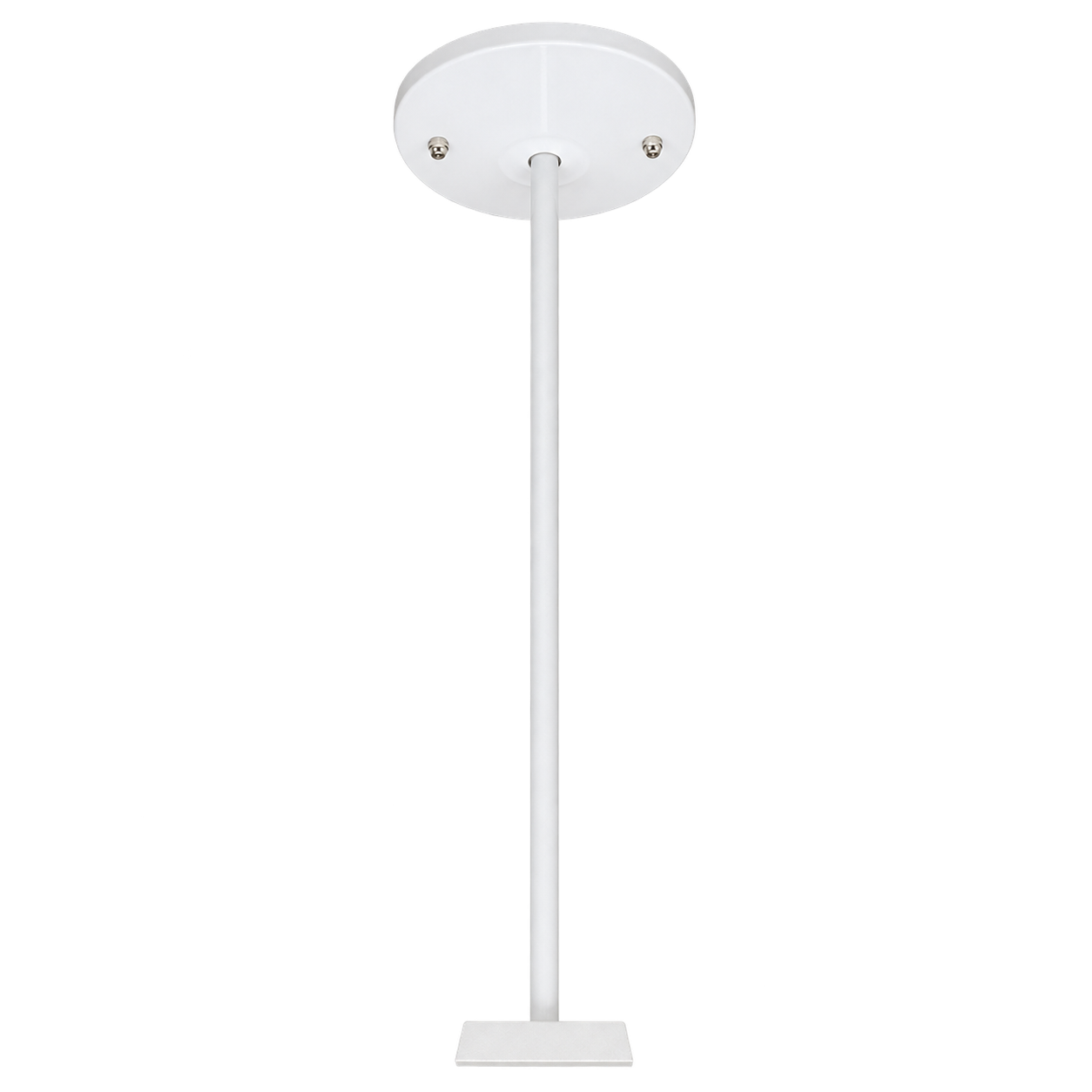

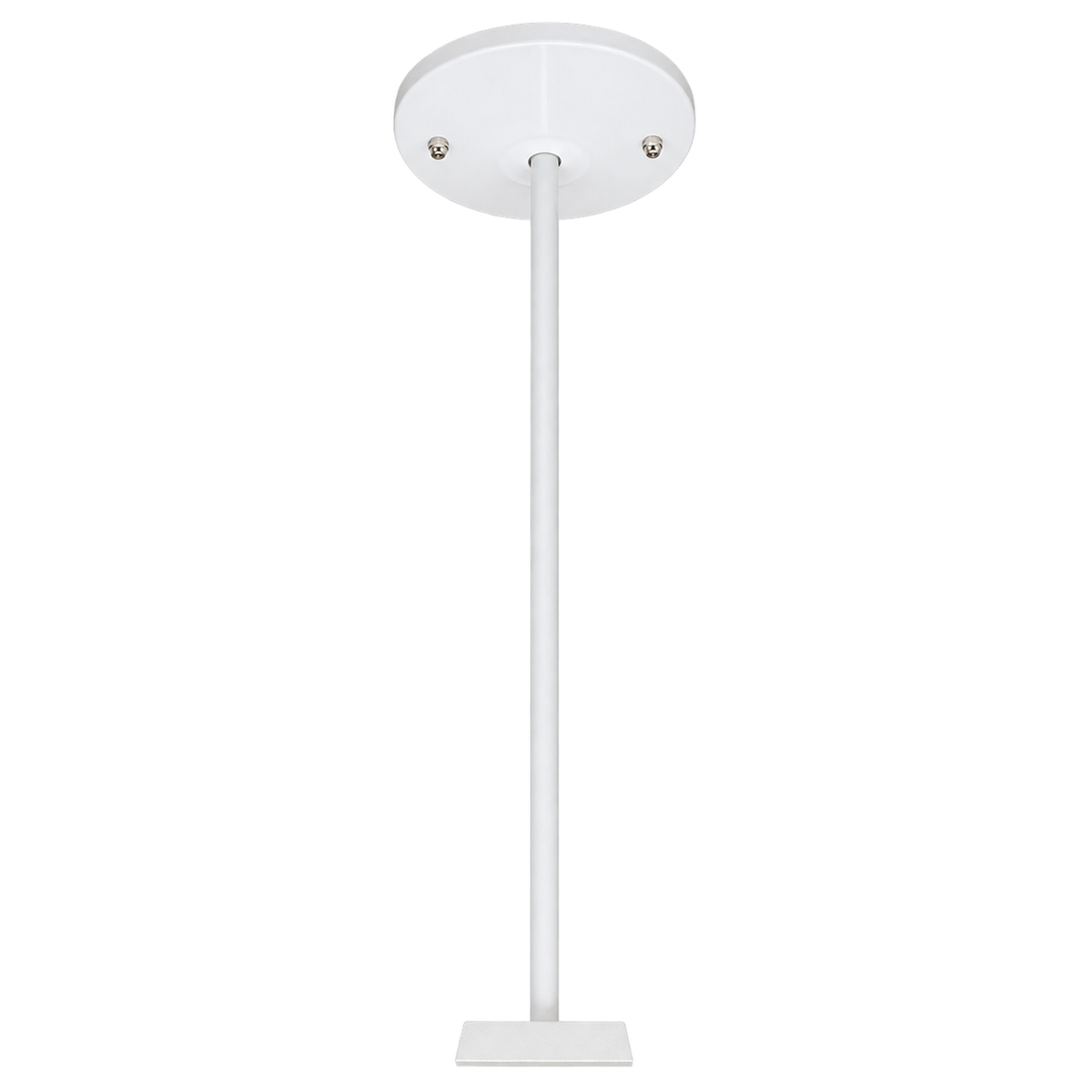

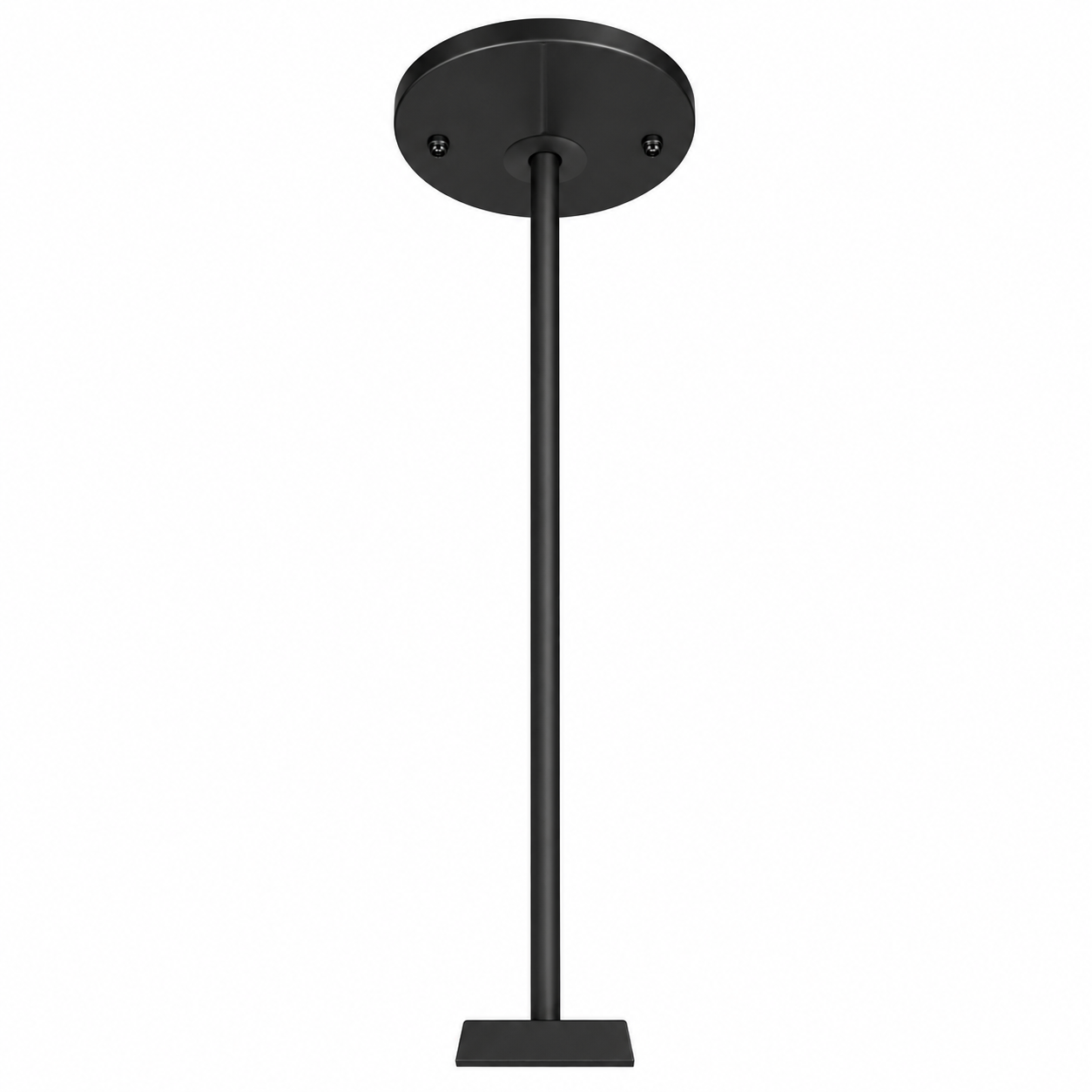

The 120V Lighting Track Pendent Series is a suspension assembly designed to mount compatible lighting track systems below the ceiling. The rigid stem and ceiling canopy provide a clean architectural solution for suspended track installations where the track needs to be positioned at a specific distance below the ceiling.
Available in six suspension lengths ranging from 18" (457 mm) to 96" (2,438 mm), the series provides multiple options for different ceiling heights and project requirements. Finish options include Black, Silver, and White to coordinate with compatible track lighting systems.
Features
- Designed to suspend lighting track from the ceiling
- Rigid stem suspension design
- Integrated round ceiling canopy
- Available in six suspension lengths
- Lengths from 18" (457 mm) to 96" (2,438 mm)
- Available in Black, Silver, and White
- Designed for compatible 120V lighting track systems
- Suitable for architectural and commercial suspended track layouts
- Maximum spacing of 4' (1,219 mm) between pendant assembly kits
Length Options
| Length | Metric Equivalent |
|---|---|
| 18" | 457 mm |
| 24" | 610 mm |
| 36" | 914 mm |
| 48" | 1,219 mm |
| 72" | 1,829 mm |
| 96" | 2,438 mm |
Finish Options
| Finish | Application |
|---|---|
| Black | Coordinates with black track systems |
| Silver | Coordinates with silver track systems |
| White | Coordinates with white track systems |
Specifications
| Product Type | Lighting Track Pendant Assembly Kit |
|---|---|
| Series | 120V Lighting Track Pendent Series |
| Function | Suspends Lighting Track from Ceiling |
| Suspension Type | Rigid Stem |
| Available Lengths | 18" / 24" / 36" / 48" / 72" / 96" |
| Metric Lengths | 457 / 610 / 914 / 1,219 / 1,829 / 2,438 mm |
| Finish Options | Black / Silver / White |
| Maximum Spacing | 4' (1,219 mm) Between Pendant Assembly Kits |
| Installation | Ceiling Suspended |
| Track Compatibility | Compatible 120V Lighting Track Systems |
Installation
The Pendent Assembly Kit suspends a compatible track lighting system below the ceiling using a rigid stem and ceiling canopy. Multiple assemblies can be installed along the track run to provide the necessary support for suspended installations.
Important: Pendant assembly kits should be installed with a maximum spacing of 4' (1,219 mm) between suspension points. The appropriate number of suspension kits should be used according to the length and configuration of the track installation.
Applications
- Suspended Track Lighting
- High Ceiling Installations
- Retail Stores
- Jewelry Stores & Showrooms
- Art Galleries
- Museums
- Restaurants & Hospitality
- Commercial Interiors
- Office Lighting
- Architectural Lighting Systems
- Display & Accent Lighting
Why Choose the 120V Lighting Track Pendent Series?
The 120V Lighting Track Pendent Series provides a clean and practical solution for suspending track lighting below the ceiling. With six available lengths from 18" to 96", the system can accommodate a wide range of ceiling heights and architectural lighting requirements.
Available in Black, Silver, and White, the pendant assemblies can be coordinated with the track system for a consistent finished appearance. The rigid stem design provides structured suspension for retail, showroom, gallery, hospitality, office, and other architectural track lighting installations.
